Sony Cinema Line FX2 | Full-frame Cinema Camera with XLR Handle Unit

Cinema Line FX2 | Full-frame Cinema Camera

Product Highlight:

Full-frame Exmor R™ CMOS 33MP1 sensor and BIONZ XR™ image processor engine

15+ stops dynamic range in Log mode with Dual base ISO (800/4000)

Flexible Log shooting modes — Flexible ISO, Cine EI, and Cine EI Quick

Angle-adjustable EVF

"BIG6" interface

AI-based Real-time Recognition AF for various objects

Compact body for handheld shooting; Cage free design

Log shooting mode for stills shares the same video post-production workflow

Active Mode/Dynamic active Mode image stabilization

Up to 16 LUT files can be imported by memory card or Creator's Cloud

Uninterrupted movie recording capability up to 4K 60p (59.94p)

12 Creative Look profiles for in-camera visual moods.

Anamorphic de-squeeze display for easy anamorphic monitoring

FPS menu for frame-rate control: 2.5x slow motion at 4K / 5x slow motion in Full HD

Sony offers more than 70 E-mount lenses to support all shooting styles.

AF Assist empowers manual focus with AF transition speed and sensitivity settings

Auto framing and crops and tracks subject to keep in prominent position

A switch for MOVIE or STILL mode saves and recalls settings for each

Cooling managed via internal fan, thermal components, and a design that facilitates air intake

NP-FZ100 battery provides up to 100 minutes actual video time

XLR-H1 enables four-channel audio, 24-bit audio via connectors, and a digital audio interface

Stream up to 4K 59.94p video via LAN

Two SD card slots with one supporting CFexpress Type A cards

4:2:2 10-bit or 16-bit RAW output to external recorder

Dust and moisture resistant design

Product Feature:

A new versatile tool for cinematic expression

As a gateway into a professional filmmaking career, the FX2 is a full-frame camera in the Cinema Line that inherits the visual philosophy of Sony's top-level VENICE series. Adopting the compact design, user interface, expandability, and reliability synonymous with Sony Cinema Line, it’s ideal for solo shooting, and introduces enhanced still image functions designed to support filmmaking.

For that professional cinematic look

The FX2 is the newest Cinema Line camera, designed to support professional filmmaking. By combining the high image quality of a full-frame sensor with cinematic and expressive tools modelled on Sony’s flagship VENICE 2 cinema camera, you have all the tools you need to bring your creative visions to life.

Cinematic expression with a full-frame sensor

The full-frame FX2 delivers stunning cinematic imagery, blending high resolution with beautiful bokeh. Equipped with a back-illuminated Exmor R™ CMOS sensor supported by our BIONZ XR™ image processing engine and advanced AI processing unit, the camera offers high sensitivity, wide latitude, and 33 MP1 resolution, giving ambitious cinematic visionaries everything they need.

Outstanding image quality for maximum editing flexibility

The FX2's full-frame sensor produces footage with smooth, natural gradations thanks to 15+ stops of latitude when recording with S-Log32, ensuring even high-contrast scenes are captured in full detail. Base ISO for S-Log3 capture can be set to 800 or 4000, and the camera supports S-Gamut3/S-Gamut3.Cine color gamuts for broad compatibility. It all adds up to make editing more efficient when shooting with multiple cameras.

Log recording modes for production flexibility

For creative flexibility, there are three modes available for Log recording — Flexible ISO, Cine EI, and Cine EI Quick — with Cine EI widely used in professional filmmaking on footage that requires more intensive work in post-production. Based on the shooting environment, choose a base ISO of either 800 or 4000 to maintain maximum latitude throughout the shoot, allowing specific tonal ranges to be enhanced in post production to achieve your desired cinematic look.

Multiple recording formats for versatile shooting and editing

7K oversampling is used with full pixel readout and no pixel binning when shooting full-frame 4K (QFHD 3840 x 2160), and 4K 60p (59.94p) recording is available in Super 35mm mode. With 10-bit depth, 4:2:2 color sampling, an efficient MPEG-H HEVC/H.265 codec, and Intra recording including DCI-4K (4096 x 2160), outstanding quality is assured.

Import up to 16 user LUTs

With the FX2, LUTs can be imported and applied to the LCD monitor and the electronic viewfinder while shooting or playing back movies. Up to 16 user LUT files7 can be imported from memory cards or Sony’s Creators’ Cloud and selected as needed. The LUT used for recording can then be embedded in the video metadata for post-production.

Create moods right in the camera

Picture Profile presets make it easy to adjust color and gradation to create a variety of moods in camera. These include the invaluable S-Cinetone™, which produces beautiful skin tones. Imported user LUTs can be registered as PPLUT 1 to 4 and applied during recording, and an expanded range of 12 Creative Look profiles, including FL2 and FL3, offers a comprehensive selection of visual moods for many recording needs.

Desqueeze display for anamorphic lenses

Anamorphic lenses are a popular choice for creating a distinctly cinematic look. The FX2 is equipped with a desqueeze display mode that allows monitoring in the standard CinemaScope aspect ratio of 2.93:1 while shooting with anamorphic lenses. It offers 1.3x and 2.0x desqueeze settings9, and Sony’s Monitor & Control app provides even more detailed settings for monitoring on a tablet or other external display devices.

Frame rate freedom

An FPS menu inherits features from Cinema Line higher-end models, including a [Variable] setting that allows intuitive frame-rate control: up to 2.5x slow motion11 at 4K resolution, or up to 5x slow motion11 when recording in Full HD at up to 120 fps.

An extensive range of expressive E-mount lenses

Sony offers a range of more than 70 high-performance E-mount lenses, including ultra-wide angles, super telephoto zooms, exquisite primes and powered zooms. Combine with Sony original microphones for outstanding sound quality and choose from a variety of other accessories to bring your creative vision to life.

Designed for solo shooting

Combining video features from current Cinema Line cameras with enhanced functions for stills that support filmmaking, the FX2 is designed to handle solo shooting in a wide range of circumstances, giving you maximum flexibility.

Compact and lightweight with built-in accessory mount points

With the same compact flat-top design as the Cinema Line FX3 and FX30, the FX2 is ideal for handheld shooting as well as gimbal and drone mounting. The magnesium alloy exterior has 1/4-20 (UNC) screw holes in three locations for mounting accessories, and two additional screw holes are located on the bottom panel for secure tripod mounting.

AI-based Real-time Recognition AF

Equipped with a powerful AI processing unit, the FX2 is capable of Real-time Recognition AF for humans, animals, birds, vehicles and even insects. A detection frame indicates the recognized subject and tracking can be initiated simply by touching the subject on the monitor screen. Advanced human pose estimation technology accurately recognizes subject movement, and human eye recognition has been improved by about 30% compared to the FX3/FX30.

Fine-tuned focus control

AF Assist allows seamless switching to manual focus for smooth focus transitions, while a range of 7 autofocus transition speed settings and 5 sensitivity settings offer detailed control. Focus Map makes it easier to visualize depth of field by overlaying focus info on the live view display, and the Breathing Compensation function can significantly enhance image stability.

Automatic framing using advanced AI

The FX2's Auto Framing feature automatically crops and tracks a subject to keep them in a prominent position when the camera is mounted on a tripod, producing footage that looks like it was shot by an experienced operator. The Framing Stabilizer function automatically keeps the subject in the same position within the frame, which can be useful, for example, when the camera operator is moving alongside the subject.

Stabilization for dynamic handheld shooting

Active Mode boosts stabilization while walking and shooting. For even faster paced shooting, there’s Dynamic active Mode, which utilizes electronic stabilization for as much as 30% greater effect, making it possible to shoot stable footage even when running around. Corresponding stabilization metadata is embedded in the footage for efficient post production.

Stills at the flip of a switch

A single switch selects MOVIE or STILL mode and instantly recalls all the corresponding settings. In addition to providing 33 MP resolution and continuous bursts at up to 10 fps, the camera is equipped with a [Creating still images from Shot Marks] function that allows you to snap stills while recording or playing video that has a previously imported user LUT.

Visual consistency across stills and videos

The Log mode is also available for stills, making it possible to shoot JPEG and HEIF still images with the S-Log3 gamma curve used during a video shoot, so the same workflow can be easily applied during post production. Transform your stills in editing applications such as Blackmagic DaVinci Resolve, ready for a variety of uses while maintaining the same look.

Operability for professional filmmaking

The FX2 is designed for maximum operability during professional use, supporting a smooth workflow throughout production.

Tiltable high-definition electronic viewfinder

Keep focused on shooting even in bright or distracting environments, thanks to an OLED viewfinder with approximately 3.68 million dots. Magnification is 0.70x (50mm lens, infinity focus, -1m-1 diopter), and the angle of view and eyepoint are optimized for video recording. The viewfinder itself can be rotated from 0 ° to +90° for easy viewing at just about any angle, and the eye cup can be removed or reversed left-to-right as necessary.

Frequently used parameters all in one place

The FX2 inherits the BIG6 (Home) screen from high-end CineAlta cameras such as VENICE, which allows you to easily monitor six essential parameters in MOVIE mode: FPS (frame rate), ISO, Shutter (speed/angle), Aperture or ND Filter, Look, and White Balance. The BIG6 (Home) screen contributes to smooth, intuitive operation, and provides quick access to Variable/Fixed parameters.

Effective heat management

Enjoy uninterrupted video recording time for formats up to 4K 59.94p. Heat buildup is prevented through a combination of an internal cooling fan, a highly thermal conductive graphite material used in the image stabilization unit, and an innovative design that allows ample air intake even when the LCD monitor is closed. The cooling fan has three modes that can be selected according to shooting conditions: Auto, Minimum, and Off while Recording.

Plenty of power for long shoots

A high-capacity NP-FZ100 battery and effective power management provide up to 100 minutes of actual video time or up to 155 minutes of continuous shooting. For longer shooting times, continuous power can be supplied from a power adaptor or a mobile battery that supports USB Power Delivery (PD). The optional DC-C1 DC Coupler can supply stable power without occupying the camera’s USB Type-C® terminal.

Digital audio without degradation

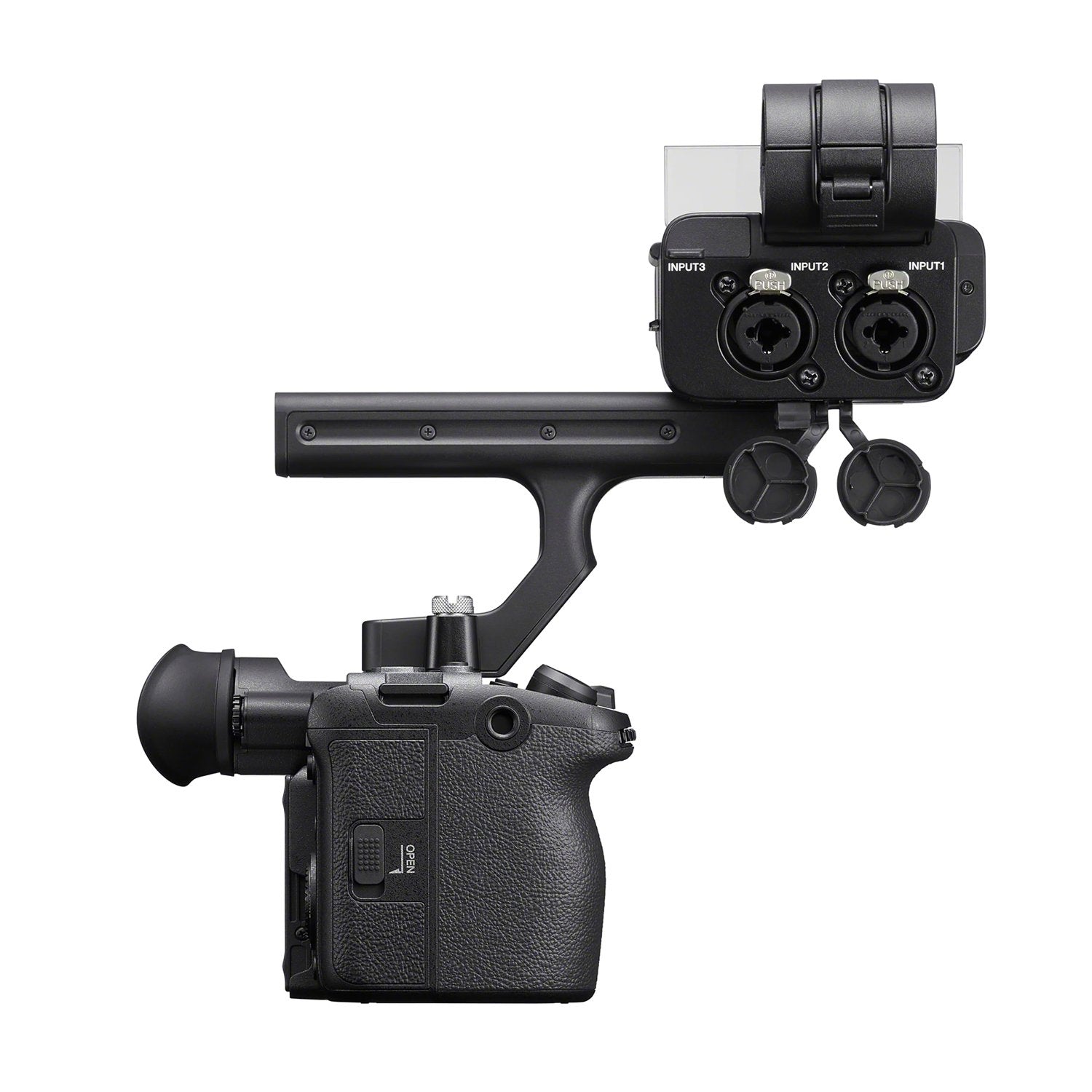

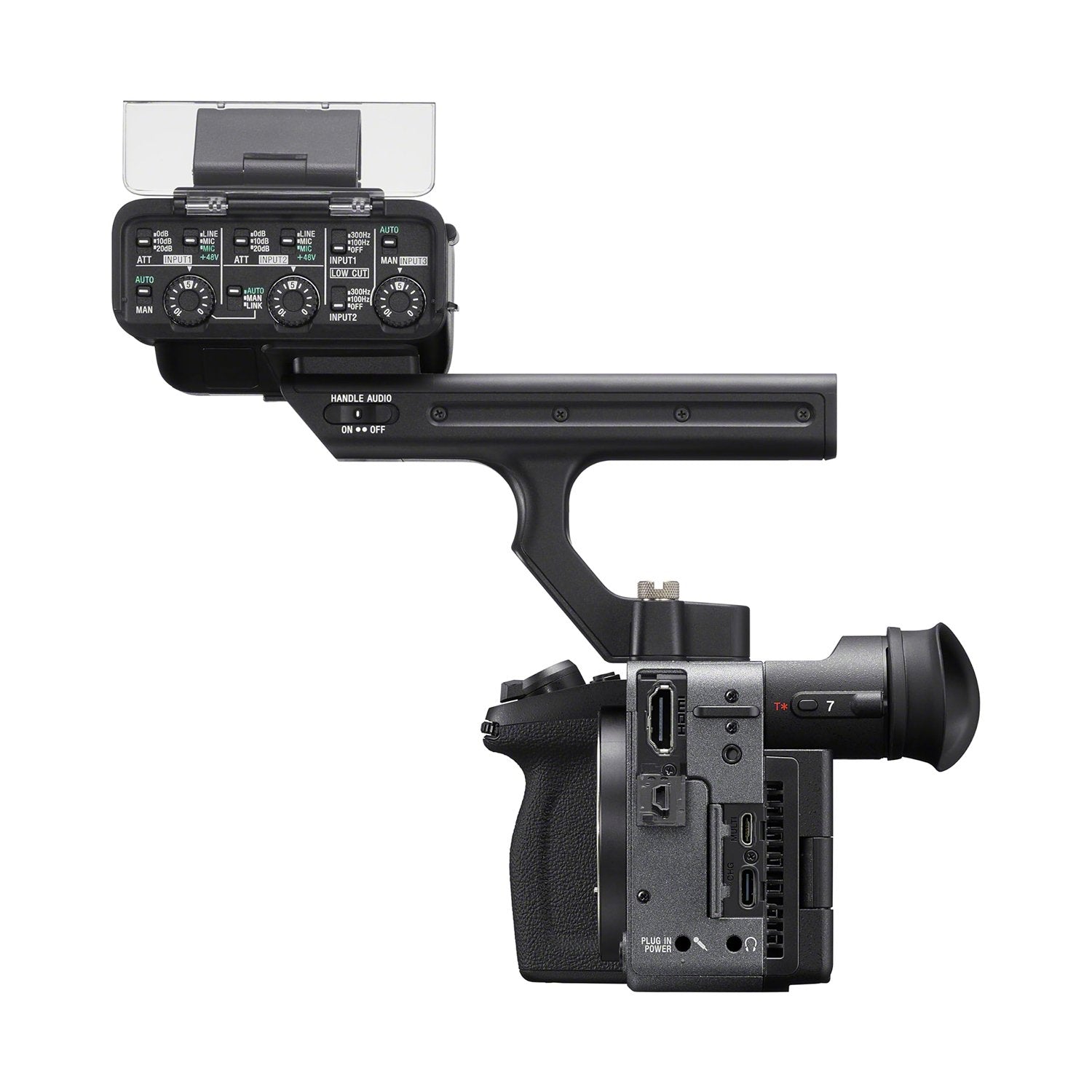

With an XLR Handle Unit XLR-H1 attached, the FX2 can record high-quality audio via two XLR connectors and a digital audio interface without the need for extra batteries or cables. Microphones equipped with XLR connectors are available separately. Four-channel audio, 24-bit recording, and other settings can be easily applied.

Easy live streaming

The FX2 is also a great choice for live streaming to a computer via USB (UVC/UAC) or a wireless or wired LAN30 network. You can stream up to 4K (3840 x 2160) 59.94p video via LAN while simultaneously recording to the camera’s memory card. LAN streaming protocols include RTMP, RTMPS, and SRT.

CFexpress Type A memory card support

Two card slots support SDXC/SDHC UHS-II/UHS-I memory cards, with one also supporting CFexpress Type A32 cards, giving you plenty of options for stable and reliable high-bitrate recording. Select the recording mode to suit your needs: video and stills can be recorded to different cards, recording can be automatically switched to a second card when the first is full, and more.

4:2:2 10-bit or 16-bit RAW output via HDMI

An HDMI Type-A terminal enables 4K 60p (59.94p) 4:2:2 10-bit or 16-bit RAW video output to an external recorder for flexible post production. 16-bit RAW video is output31 at 4672 x 2628 resolution (16:9 aspect ratio), which also covers DCI-4K (4096 x 2160), with selectable [59.94p]/[29.97p]/[23.98p]/[24.00p] frame rates. Video output via HDMI can occur simultaneously with proxy recording to an internal memory card.

Monitor & Control

Sony’s Monitor & Control app not only allows intuitive remote operation and image monitoring on a smartphone or tablet screen but also provides waveform and other displays for exposure confirmation and precise focusing. Multi-monitoring is available when multiple cameras are wirelessly connected to a single iPad. All of this can contribute to smoother workflows with a minimal crew.

Catalyst Browse, Catalyst Prepare/Plugin

The Catalyst Browse and Catalyst Prepare apps allow convenient editing of video recorded in Log mode with embedded LUTs. Shot marks and OK/NG/KEEP flags added while recording can also be imported for easier shot selection. Image stabilization, breathing compensation, rolling shutter, and other metadata embedded while recording can be used to make precise corrections during post production.

Creators' Cloud platform

Creators' Cloud is a platform that supports creative work from shooting to production by combining Sony's advanced camera technology and the cloud. It's also a place for discovery and collaboration with other creators around the world. Explore web, mobile, and PC-based apps for efficient solutions that integrate cameras with shooting and production apps and services.

Cloud Upload (camera direct)

Recorded files can be directly uploaded to Creators’ Cloud storage from the camera without having to transfer via a smartphone or other device. Once in the Creators’ Cloud, data can be transferred to other cloud services such as Google Drive™ or Adobe Lightroom to suit your workflow.

Environmentally conscious

The RMT-VP2 remote commander front panel provides convenient controls including shutter, MOVIE (record), AF-ON, C1 and zoom/focus buttons, letting you shoot video or still images with ease. If you pre-assign a frequently used function to the camera’s AF-ON or C1 button, pressing the corresponding button on the remote commander provides the same function, allowing you to customize the controls to suit your shooting requirements.

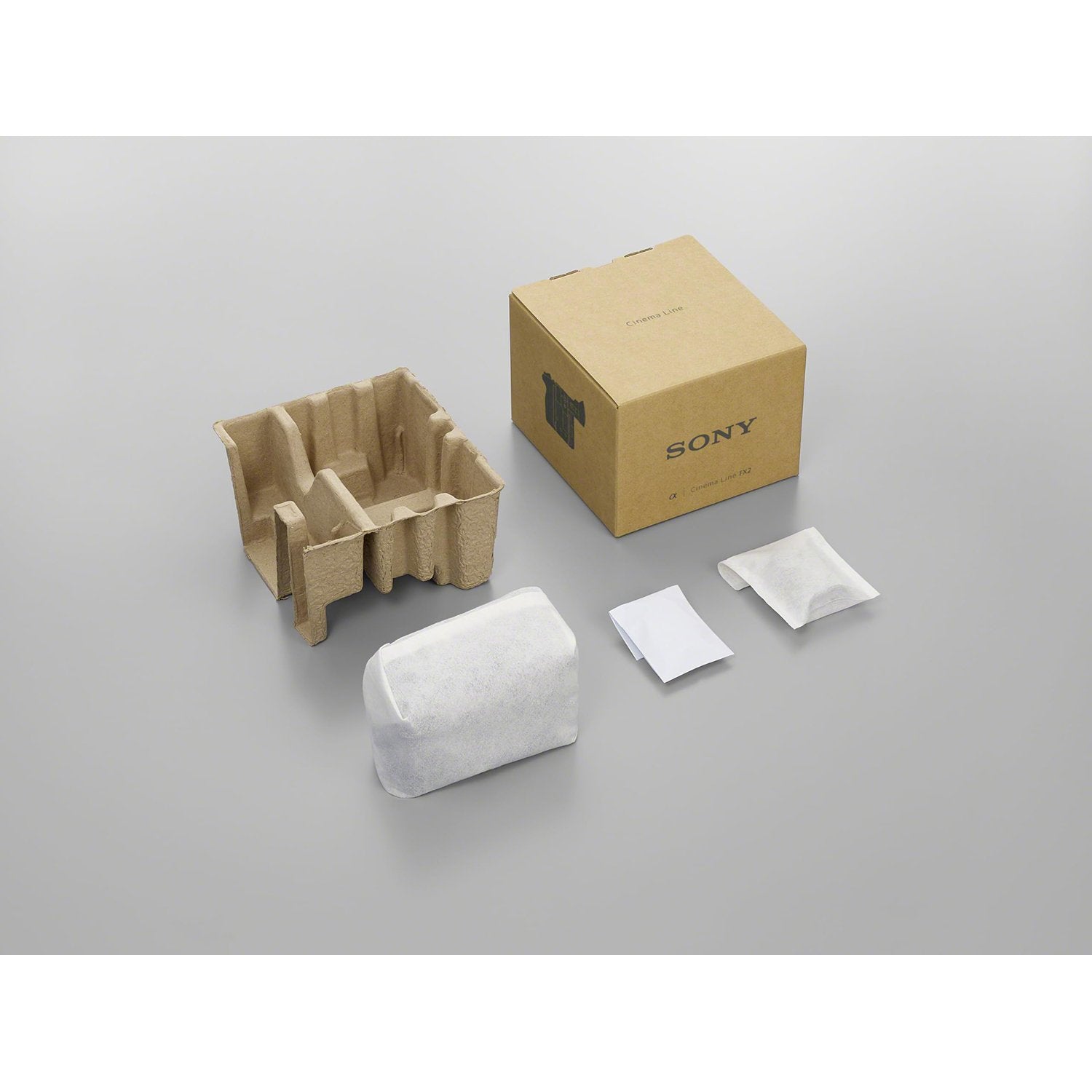

Non-plastic packaging materials

Sony is working towards the use of non-plastic packaging materials that provide ample protection against shock and impact. Plant-based non-woven fabrics are used for product bags, further reducing the use of plastics and minimizing environmental stress.

Greater accessibility for all users

Accessibility features, such as a menu magnifier and a screen reader that reads an expanded range of menu items aloud, make it easier for everyone to enjoy digital imaging. Advanced features, like AI-based Real-time Recognition AF for a wide range of subjects, intuitive touch operation for subject tracking, and many more make the joys of photography and moviemaking available to the widest possible range of users.

Product Specification:
