Product Features:
A BOX CAMERA PERFECT FOR LIVESTREAMS, BROADCASTS AND CINEMA: The high-performance BGH1 is small and light, with expandability and multi-camera control with Wi-Fi, PoE+ and 3G-SDI.
ASTONISHING IMAGE QUALITY: Camera provides superior low-light performance using a high sensitivity, 10.2MP Live MOS Micro Four Thirds sensor with Dual Native ISO technology to minimize noise.
EXCEPTIONAL VIDEO CAPABILITY: C4K/4K 60p 4:2:0 10-bit, 4:2:2 30p 10-bit ALL-Intra 400Mbps recording, V-Log L with 13 stops of dynamic range.
PROFESSIONAL-LEVEL FEATURES: 10-bit internal recording ensures rich data and smooth gradation, with the option of simultaneous live output over HDMI or 3G-SDI. Supports Anamorphic recording, Genlock IN/Timecode IN/OUT and unlimited recording on all settings.
REMOTE CONTROL: Control of multi BGH1 cameras remotely via Ethernet with LUMIX Tether App while supplying power via PoE+. Control both by the app and with SDK is also available via USB-C.
Unbox Your Creativity
High-performance livestream camera is small and light, with expandability and multi-camera control, perfect for livestreamers, broadcasters, and cinema.
Box-Style Cinema & Live Camera
Dual Native ISO, C4K 60p 10-bit recording, 13 stops of dynamic range with V-LogL all in an easy to deploy box-style camera for increased shooting flexibility.
Superior Low Light Performance
High-sensitive 10.2MP Live MOS sensor with Dual Native ISO technology for outstanding low-light video performance.*
*The Micro Four Thirds name and logos are trademarks or registered trademarks of Olympus Corporation in Japan, the United States, the European Union, and other countries and regions.
Product Features:
A BOX CAMERA PERFECT FOR LIVESTREAMS, BROADCASTS AND CINEMA: The high-performance BGH1 is small and light, with expandability and multi-camera control with Wi-Fi, PoE+ and 3G-SDI.
ASTONISHING IMAGE QUALITY: Camera provides superior low-light performance using a high sensitivity, 10.2MP Live MOS Micro Four Thirds sensor with Dual Native ISO technology to minimize noise.
EXCEPTIONAL VIDEO CAPABILITY: C4K/4K 60p 4:2:0 10-bit, 4:2:2 30p 10-bit ALL-Intra 400Mbps recording, V-Log L with 13 stops of dynamic range.
PROFESSIONAL-LEVEL FEATURES: 10-bit internal recording ensures rich data and smooth gradation, with the option of simultaneous live output over HDMI or 3G-SDI. Supports Anamorphic recording, Genlock IN/Timecode IN/OUT and unlimited recording on all settings.
REMOTE CONTROL: Control of multi BGH1 cameras remotely via Ethernet with LUMIX Tether App while supplying power via PoE+. Control both by the app and with SDK is also available via USB-C.
Unbox Your Creativity
High-performance livestream camera is small and light, with expandability and multi-camera control, perfect for livestreamers, broadcasters, and cinema.
Box-Style Cinema & Live Camera
Dual Native ISO, C4K 60p 10-bit recording, 13 stops of dynamic range with V-LogL all in an easy to deploy box-style camera for increased shooting flexibility.
Superior Low Light Performance
High-sensitive 10.2MP Live MOS sensor with Dual Native ISO technology for outstanding low-light video performance.*
*The Micro Four Thirds name and logos are trademarks or registered trademarks of Olympus Corporation in Japan, the United States, the European Union, and other countries and regions.
A LUMIX First: Simultaneous SDI/HDMI Output
You can simultaneously monitor SDI output, record HDMI output externally, and control the camera remotely via USB or LAN tethering for professional cinematic quality.
A LUMIX First: Ethernet / PoE+ Compatible Camera
Simply by connecting the BGH1 via Ethernet cable, your camera will be powered over Ethernet* and allow multiple-camera remote control through the LUMIX Tether software.
* IEEE802.3at compliant.
Remote Control Multiple Cameras with LUMIX Tether
Multiple camera recording enabled by Ethernet cable connection on LUMIX Tether software* enables more efficient video production.
*LUMIX Tether for Multicam software will be released at the product shipment of BGH1.
Front Tally Lamp / Rear Tally Lamp
Thanks to the clean lines of the body design, the tally lamps can be monitored from the front, top, side, or back, a welcome convenience on any shoot.
Stable Connectivity with Simultaneous SDI/HDMI Output
Supports extended cable runs and external monitoring. Supports simultaneous C4K/4K 60p 4:2:0 10-bit internal recording and C4K/4K 60p 4:2:2 10-bit HDMI live output external recording.
Image Sensor
Image Sensor Size
19 x 13 mm (4/3")
Sensor Type
MOS
Sensor Resolution
Actual: 10.2 MP
Color Filter
Bayer
Shutter Type
Mechanical Shutter
ISO
160 to 51,200 (Native) / 80 to 204,800 (Expanded)
Advertised Dynamic Range
13 Stops
Signal-to-Noise Ratio
9.7 dB
Camera

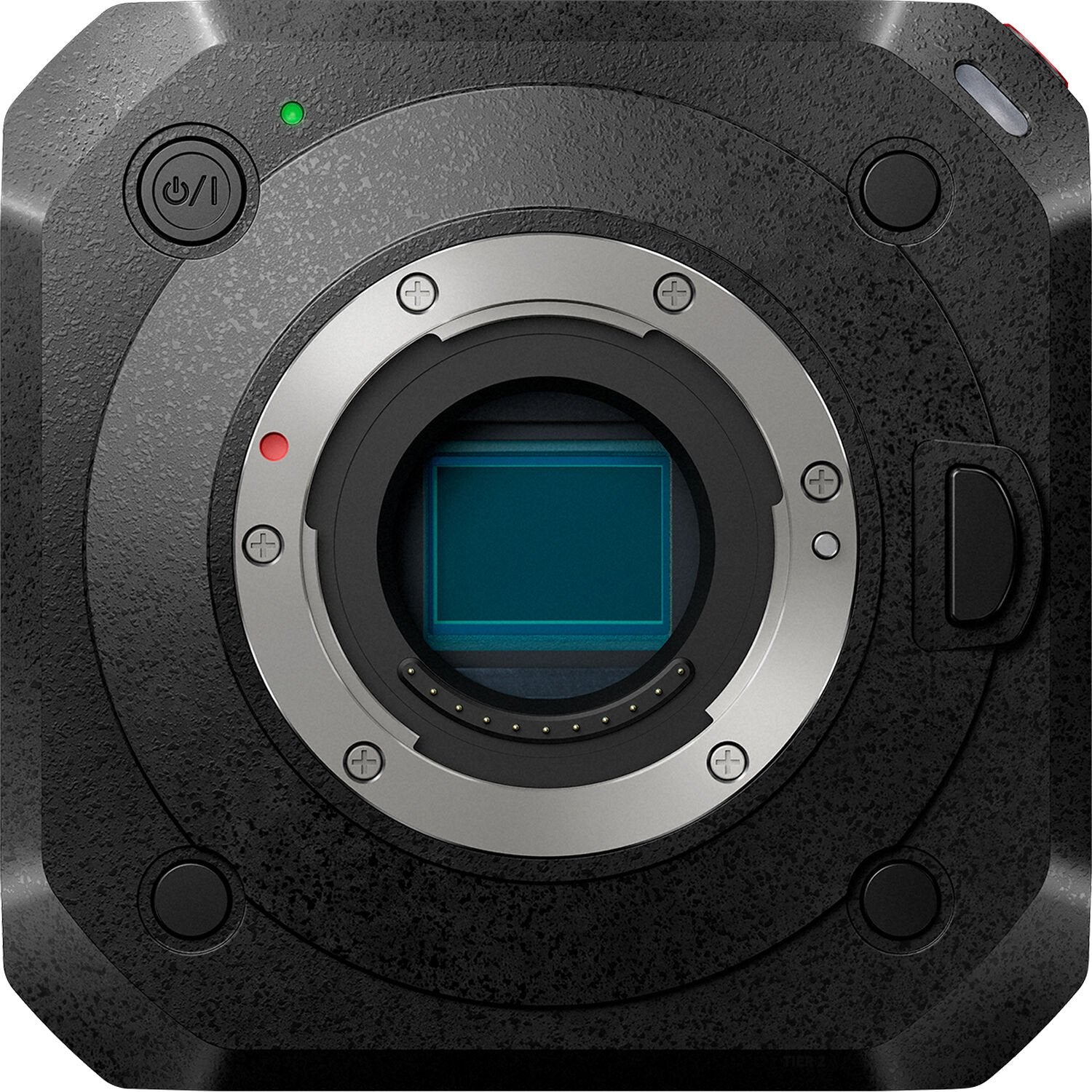

Lens Mount
Micro Four Thirds
Lens Communication
Yes
Interchangeable Lens Mount
Yes
Built-In ND Filter
None
Built-In Microphone Type
Stereo
Recording Media
2 x SD Card Slots
Variable Frame Rates
DCI 4K: 1 to 60 fps / 1080p: 1 to 240 fps
Internal Recording
Recording Modes
AVC-Intra/AVC-LongG/H.264 Long GOP/H.265/MOV 4:2:0 10-Bit:
4096 x 2160p at 23.98/24/25/29.97/50/59.94 fps (100 to 400 Mb/s)
3840 x 2160p at 23.98/24/25/29.97/50/59.94 fps (100 to 200 Mb/s)
3328 x 2496p at 23.98/24/25/29.97/50/59.94 fps (100 to 400 Mb/s)
1920 x 1080p at 23.98/24/25/29.97/50/59.94 fps (100 to 200 Mb/s)
AVC-Intra/AVC-LongG/H.264 Long GOP/H.265/MOV 4:2:0 8-Bit:
4096 x 2160p at 23.98/24/25/29.97/50/59.94 fps (100 to 150 Mb/s)
3840 x 2160p at 23.98/24/25/29.97/50/59.94 fps (100 to 150 Mb/s)
3328 x 2496p at 23.98/24/25/29.97/50/59.94 fps (100 to 150 Mb/s)
1920 x 1080p at 23.98/24/25/29.97/50/59.94 fps (100 Mb/s)
AVC-Intra/AVC-LongG/H.264 Long GOP/H.265/MP4 4:2:0 10-Bit:
3840 x 2160p at 23.98/25/29.97/50/59.94 fps (72 to 100 Mb/s)
AVC-Intra/AVC-LongG/H.264/H.264 Long GOP/H.265/MP4 4:2:0 8-Bit:
3840 x 2160p at 23.98/25/29.97 fps (100 Mb/s)
1920 x 1080p at 23.98/25/29.97/50/59.94 fps (24 to 28 Mb/s)
Gamma Curve
Panasonic V-Gamut, Panasonic V-Log
Audio Recording
MOV: 24-Bit 48 kHz LPCM Audio
MOV: 24-Bit 96 kHz LPCM Audio
MP4: 24-Bit 48 kHz LPCM Audio
MP4: 24-Bit 96 kHz LPCM Audio
Still Image Support
None
External Recording
Video Output
4:2:2 10-Bit via SDI/BNC:
1920 x 1080p at 60 fps
4:2:2 10-Bit via HDMI:
4096 x 2160p at 60 fps

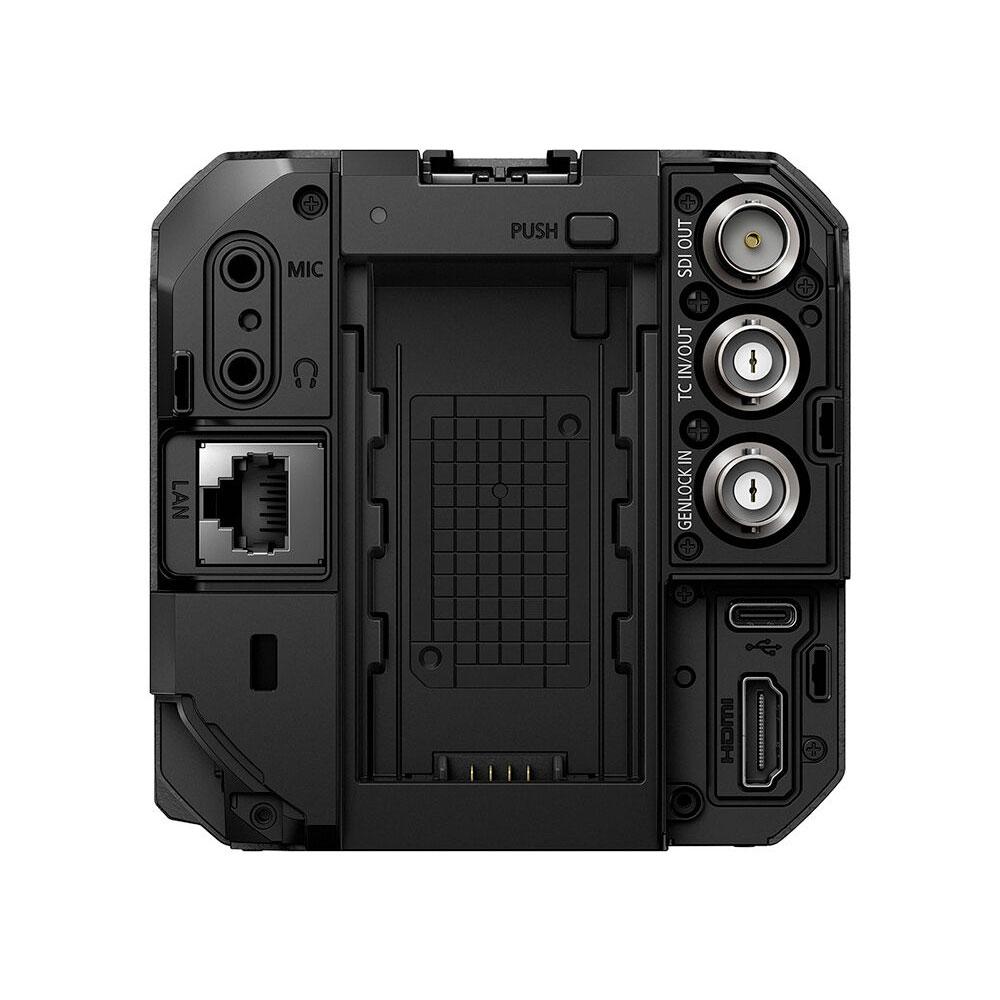

Interfaces
Video Connectors
1 x BNC (3G-SDI) Output
1 x HDMI (HDMI 2.0) Output
Audio Connectors
1 x 1/8" / 3.5 mm Stereo Mic Level Input
1 x 1/8" / 3.5 mm Stereo Headphone Output
Other I/O
1 x USB Type-C Camera Interface, USB 3.1 Gen 1 Data, Control, Video Input
1 x BNC Timecode Data Input/Output
1 x BNC Genlock Data Input/Output
1 x RJ45 LAN Control, Monitor, Video Input/Output
1 x 2.5 mm LANC Control Input
Wireless Interfaces
2.4 GHz Wi-Fi, Bluetooth Video Output, Control
EVF
EVF
Optional, Not Included
Power
Battery Type
Panasonic AG-VBR Series
Power Connectors
1 x Weipu SF610/S2 (12 VDC) Input
PoE Support
PoE+ 802.3at
General

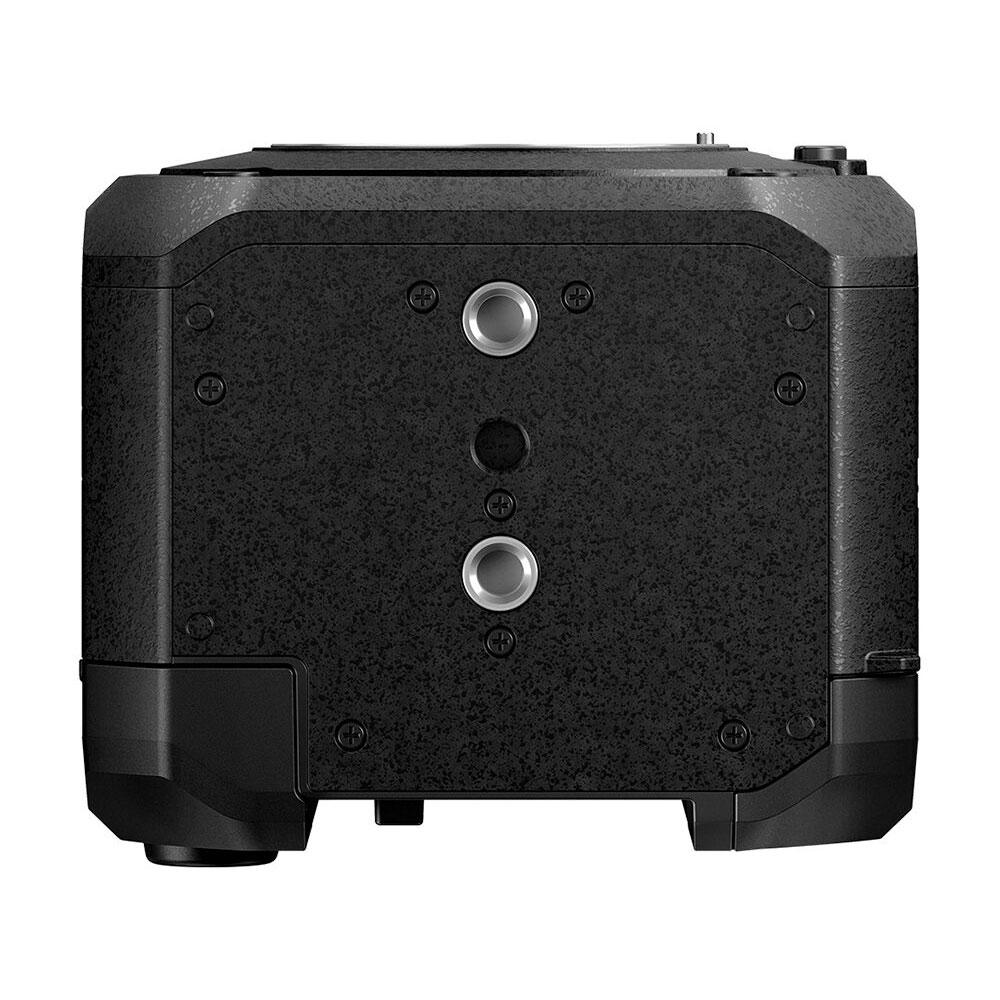

Tripod Mounting Thread
1/4"-20 Female (Bottom)
Material of Construction
Aluminum
Dimensions
3.7 x 3.7 x 3.1" / 9.3 x 9.3 x 7.8 cm (Without Protrusions)
Weight
1.2 lb / 545 g
