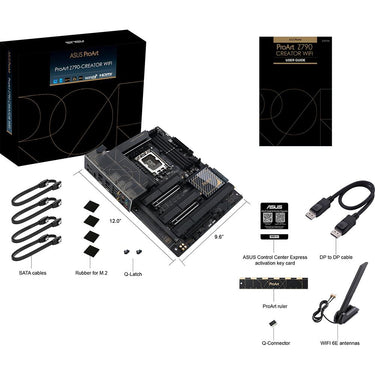

What's In The Box
Free Shipping
Free ground shipping is available to home addresses in the contiguous United States. PO Boxes, Alaska, Hawaii, US Territories (including Puerto Rico), APO/FPO and addresses outside the United States are not eligible for free shipping.
FedEx Shipping
All merchandise except for oversized items (e.g. Flat screen LED TVs over 55" and plasma TVs over 51") advertised on Beachcamera.com are usually shipped via FedEx.
All packages shipped from Beachcamera.com require a signature upon delivery. Please arrange for someone to sign for the delivery if you are unable to do so. We recommend that you provide an email address so that we may keep you informed of the status of your order and send you tracking information. You will be able to track your order online or by phone for an estimated time of arrival. FedEx will attempt to deliver your package three times before returning it to Beachcamera.com
United States Postal Service (USPS) Shipping
Small items such as memory cards may be shipped by the Post Office.
If the destination address is a PO Box or an APO/FPO, we will ship your order via USPS since FedEx is unable to deliver to those destinations. We will provide tracking information via email after your order has shipped. Items delivered to a PO Box or an APO/FPO will be delivered in 7 - 10 business days. Final delivery for APO/FPO destinations will be subject to the Terms and Conditions of the APO/FPO services. Not all items can be shipped via USPS. Some items that are shipped via USPS may be subject to an additional shipping charge. If necessary, Beachcamera.com will contact you before the order is processed.
Oversized Merchandise Shipping
Oversized merchandise (Flat screen LED TVs over 55", plasma TVs over 51", BBQ Grills & Furniture) are shipped via a motor freight carrier that specializes in Home Delivery. Since these items are large and fragile, special handling is required, and cannot be shipped via our standard shipping options.
We take every precaution during our shipping preparation process to ensure that your order arrives to you in perfect condition. Each item on your order is scanned for accuracy of model and serial number. We apply large orange fragile sticker labels to notify the carrier that your shipment is fragile and requires special handling. The labels also include important step-by-step instructions on how to inspect and sign for your shipment. In addition to the manufacturer's standard foam and corrugated packaging, we also apply a special shock absorption polyethylene material to the outer carton of every TV. This safeguard will disperse energy from impact during transit, and eliminate damage to the product itself. Our professional appointment-based delivery service allows you to open and inspect your new TV prior to signing and accepting the TV. When you purchase a TV at Beachcamera.com, you can be sure that it will arrive perfect working order, and will remain that way for a long time to come.
Non-Deliverable Addresses
We are unable to delivery to the following addresses:
- Mail box drop off locations
- Hotels and motels
- Trade Shows, Conventions, Conferences
Standard Return Policy
We want you to love the items you purchase from Beachcamera.com. If you are not satisfied with your purchase for any reason, you may return items for a full refund within 45 days, subject to the conditions below.
- Returned merchandise must be in original condition and include all factory packed accessories and paperwork (e.g. battery, charger, cords, straps, unmarked warranty card, manuals, etc.), in the original manufacturer box and packaging with UPC, barcode, and serial number intact.
- Incomplete returns will receive a reduced credit, reflecting any missing peripherals.
- The product serial number must match the serial number in our database. Beachcamera.com maintains serial number tracking.
- We require that all approved returns of computers, tablets, and similar devices have the password removed or restored to the system default.
- Return merchandise must be double-boxed with no writing on the manufacturer's box. Your Return Authorization number should be prominently displayed on the outside of the shipping box.
You must contact our customer service department to arrange a return. All returns must be shipped to the following address:
BTC Beach Camera Returns
80 Carter Drive
Edison, NJ 08817
You must include the RA number issued to you by customer service, please be sure to write this number clearly on the return box.
Please be sure to save the shipment tracking number for your return. Merchandise lost or damaged during shipping is the shipper's responsibility.
Televisions over 65" must be returned via one of our Home Delivery Partners. Please contact us to schedule a pickup for your large TV return.
If your return is not the result of our error, the return shipping costs are the responsibility of the customer.
Television Returns
Buyer's Remorse for TVs in Brand New condition:
If you are not 100% satisfied with your TV purchase, you may return it within 30 days from delivery for a full refund, less return shipping fees. Please note that a 15% restocking fee may apply. All returned TVs must be in their original box and include all packing material, manuals, and accessories.
Damages:
We're here to help!
For Common Deliveries (FedEx, UPS):
Please inspect the TV and report any damages (e.g. cracked screen, scratches, dents, etc.) within 2 days by contacting us at 1.800.572.3224
For Special Handling/Freight deliveries:
Please open and inspect the TV prior to signing for it. If the TV is cracked or damaged, please refuse delivery and contact us immediately at 1.800.572.3224 .
Please note damage claims will be denied for the following:
- TVs with over 60 minutes of recorded usage
- TVs that have been moved from the original delivery address
All damage claims must be made within two (2) days of delivery. We will issue a refund and cover all shipping costs.
Manufacturer Defects:
Your TV is fully covered under your in-home one year Manufacturer's Warranty service. If any further assistance is needed, please contact us. *Open-Box units are covered under our in-house 90 day warranty.
Drones Returns
All defects can be handled under the manufacturer's warranty. For DJI brand drones, call DJI at 818-235-0789 and obtain a case number for the defect prior to requesting an RMA. Please note only Dead on Arrival units out of the box will be returnable to us (with a valid case number). DJI will NOT authorize any returns to us if there are any signs of use like dirt, grass stains, nicks or any signs of use. For these situations, the Return Authorization would need to be handled directly between the customer & DJI
Exceptions
- Mattresses
- Opened or Downloadable Software
- Consumables, including batteries, paper and ink
- Opened packages of Apparel, Bedding or Linens
- Used Cookwear and BBQ Grills
- Personal Body Massagers/Shavers
- Special order items
- Refunds
Refunds for returns are applied to the payment method used at the time of purchase. Once we receive and inspect the product we will credit your account. Please allow 5-7 business days for a credit to appear on your account.
Product Exchanges
If you purchased a product from Beachcamera.com that you wish to exchange for an alternative, you can return the item for a full refund and simply place a new order for the item you desire. A refund credit cannot be applied to a new purchase.
Defective Items
An item that was discovered to be defective upon receipt can be replaced or returned for a full refund.
Damage or Missing Items
Claims for items damaged in transit or missing items must be received within two business days of receipt of the shipment.
Replacement
We will send a product replacement after the authorized return has completed our receiving/inspection process. The replacement will ship within four business days following the receipt of your return. Please allow for additional processing time after holidays.
Although it is our goal to ship a replacement as quickly as possible, a replacement cannot be shipped before we receive and inspect the return. To receive a replacement more quickly, you may place a new order for the same item (shipping not included) and we will issue a refund for the full value of the returned product (including shipping) upon completion of our return process.
Product Details
The ProArt Z790-Creator WiFi empowers creators of all levels by maximizing the performance of 13th & 12th Gen Intel Core processors with 16+1 teamed power stages; DDR5; PCIe 5.0; and lightning-fast connectivity including Thunderbolt 4 (USB4 compliant); 10 Gb and 2.5 Gb Ethernet; plus WiFi 6E.
Thunderbolt 4 ports (USB4 compliant)
Get immersed in your creations with two Thunderbolt 4 ports connect to all your content creation gadgets and enable up to 40 Gbps bi-directional data transfers. To further push your creative work with one 8K or two 4K colour-accurate monitors; you can connect your discrete graphics card to the onboard DisplayPort-in port at the back I/O and direct the video output via the Thunderbolt 4 port.
Ultrafast Networking
WiFi 6E: Onboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band; providing up to three times the bandwidth of the 5 GHz band and up to seven 160 MHz bands to deliver ultrafast wireless networking speeds along with improved capacity and better performance in dense wireless environments.
10 Gb & 2.5 Gb Ethernet: Dual Ethernet ports provide fast data transfers simultaneously for 2.5 Gb internet streaming or uploading and 10 Gb for local network-attached storage (NAS); allowing for improved data organization and security.

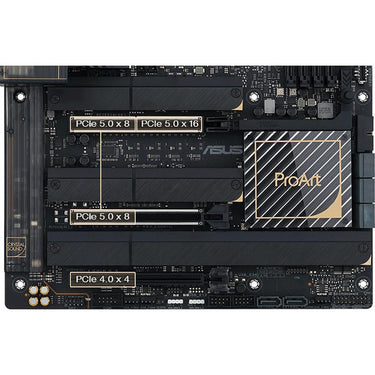

PCIe 5.0 Expansion Slots
Both of the x16 expansion slots have the PCIe 5.0 treatment to offer incredible speeds up to 64 GB/s for compatible devices. To bear the brunt of massive graphics cards; they are also protected with SafeSlot retention brackets; and the top slot can be released easily thanks to the Q-Release button.
Ultrafast M.2 Storage
Four PCIe 4.0 M.2 slots support up to 22110 and provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to two PCIe 4.0 storage devices to enjoy the fastest data transfer speeds.
USB 3.2 Gen 2x2 Type-C Front-panel Connector with Quick Charge 4+
USB 3.2 Gen 2x2 boosts data transfers with speeds of up to 20 Gbps. This header also features Quick Charge 4+ technology that can quickly charge your pen display; tablet or mobile phone up to 60 watts by using a PCIe power supply cable plugged into the nearby 6-pin connector.
Performance Boost
Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and pushes the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.
Unleash DDR5 with AEMP II
ASUS Enhanced Memory Profile II is an exclusive firmware feature for PMIC-restricted memory modules. AEMP II is based on a CPU and memory module's ability to train the memory chips on your kit; and it presents an optimized clock speed that can effortlessly unleash performance.
Built through a flexible training method; AEMP II makes it easy to not only tune the memory above baseline settings but also maintain the stability of system operation; whether getting the most out of an entry-level module or priming a high-speed kit for ultimate performance.
Product Features:
- Future-proofed connectivity - Two Thunderbolt 4 (USB4 compliant) ports; 10 Gb & 2.5 Gb Ethernet; WiFi 6E; four PCIe 4.0 M.2 slots and a USB 3.2 Gen 2x2 front panel connector with Quick Charge 4+ up to 60W
- Next-gen performance - 16+1 power stages rated for 70 amps; PCIe 5.0 ready; and a DDR5 speed boost
- Intelligent optimization - ASUS-exclusive software and firmware that simplify setup and improve performance: AI Overclocking; AI Cooling II; CreationFirst and Two-Way AI Noise-Cancelation
- Comprehensive thermal design - Massive VRM and chipset heatsinks; aluminum M.2 heatsinks; seven 4-pin PWM fan headers and an AIO pump header
- DIY-friendly design - PCIe Slot Q-Release; M.2 Q-Latch; SafeSlot; SafeDIMM; pre-mounted I/O shield; BIOSâŻFlashBack; Q-Connector
- Advanced security - USB port management; software blacklisting and Regedit on/off controls via ASUS Control Center Express
Specifications:
- CPU:
- Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors; Intel Core 12th Gen; Pentium Gold and Celeron Processors
- Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
- Refer to www.asus.com for CPU support list
- Intel Turbo Boost Max Technology 3.0 support depends on the CPU types
- Chipset: Intel Z790 Chipset
- Memory:
- 4 x DIMM; Max. 192GB; DDR5
- 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC; Un-buffered Memory
- Dual Channel Memory Architecture
- Supports Intel Extreme Memory Profile (XMP)
- OptiMem II
- Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists); and memory frequency support depends on the CPU types
- Graphics:
- 1 x HDMI port
- 2 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort and Thunderbolt video outputs
- Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates
- Support 4K@60Hz as specified in HDMI 2.1
- Support 8K@60Hz as specified in DisplayPort 1.4
- Output at TBT4_E1 and TBT4_E2; the USB Type-C ports right under RJ45 ports; each requires a USB-C to DisplayPort adapter cable. For display connection and video output configuration regarding DP IN and Intel Thunderbolt 4 ports; please refer to the user manual for more details. VGA resolution support depends on processors' or graphic cards' resolution
- Expansion Slots:
- Intel Core Processors (14th & 13th & 12th Gen)
- 2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)
- Intel Z790 Chipset
- 1 x PCIe 4.0 x16 slot (supports x4 mode)
- Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/)
- To ensure compatibility of the device installed; please refer to https://www.asus.com/support/ for the list of supported peripherals
- Storage:
- Total supports 4 x M.2 slots and 8 x SATA 6Gb/s ports
- Intel Core Processors (14th & 13th & 12th Gen)
- M.2_1 slot (Key M); type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
- Intel Z790 Chipset
- M.2_2 slot (Key M); type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- M.2_3 slot (Key M); type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
- M.2_4 slot (Key M); type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
- 8 x SATA 6Gb/s ports
- Intel Rapid Storage Technology supports NVMe RAID 0/1/5; SATA RAID 0/1/5/10
- M.2_4 slot shares bandwidth with SATA6G_5~8. SATA6G5~8 will be suspended once either a SATA or NVMe device is detected at M.2_4
- Ethernet:
- 1 x Marvell AQtion 10Gb Ethernet
- 1 x Intel 2.5Gb Ethernet
- ASUS LANGuard
- Wireless & Bluetooth:
- Wi-Fi 6E
- 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
- Supports 2.4/5/6GHz frequency band
- Bluetooth v5.3
- WiFi 6E 6GHz regulatory may vary between countries
- The Bluetooth version may vary; please refer to the Wi-Fi module manufacturer's website for the latest specifications
- USB:
- Rear USB (Total 8 ports)
- 2 x Thunderbolt 4 port(s) (2 x USB Type-C) with up to 5V/3A; 15W charging support
- 6 x USB 3.2 Gen 2 port(s) (6 x Type-A)
- Front USB (Total 7 ports)
- 1 x USB 3.2 Gen 2x2 connector(s) (support(s) USB Type-C with 60W PD 3.0 / QC 4+)
- 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
- Audio:
- Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection; Multi-streaming; Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback
- Audio Features
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit
- Due to limitations in HDA bandwidth; 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio
- A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output
- Back Panel I/O Ports:
- 2 x Thunderbolt 4 USB Type-C port(s)
- 6 x USB 3.2 Gen 2 port(s) (6 x Type-A)
- 2 x DisplayPort (Input only)
- 1 x HDMI port
- 1 x ASUS Wi-Fi Module
- 1 x Marvell AQtion 10Gb Ethernet port
- 1 x Intel 2.5Gb Ethernet port
- 5 x Audio jacks
- 1 x BIOS FlashBack button
- Internal I/O Connectors:
- Fan and Cooling related
- 1 x 4-pin CPU Fan header(s)
- 1 x 4-pin CPU OPT Fan header(s)
- 1 x 4-pin AIO Pump header(s)
- 5 x 4-pin Chassis Fan header(s)
- Power related
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
- 1 x 4-pin +12V Power connector
- 1 x 6-pin +12V Power connector
- Storage related
- 4 x M.2 slots (Key M)
- 8 x SATA 6Gb/s ports
- USB
- 1 x USB 3.2 Gen 2x2 (support(s) USB Type-C)
- 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
- Miscellaneous
- 3 x Addressable Gen 2 header(s)
- 1 x AURA RGB header(s)
- 1 x Clear CMOS header
- 1 x COM Port header
- 1 x CPU Over Voltage jumper
- 1 x Front Panel Audio header (AAFP)
- 1 x M.2 slot (Key E)
- 1 x SPI TPM header (14-1pin)
- 1 x 20-3 pin System Panel header with Chassis intrude function
- 1 x Thermal Sensor header
- Special Features:
- ASUS 5X Protection III
- DIGI+ VRM (- Digital power design with DrMOS)
- Enhanced DRAM Overcurrent Protection
- ESD Guards
- LANGuard
- Overvoltage Protection
- SafeSlot
- Stainless-Steel Back I/O
- ASUS Q-Design
- M.2 Q-Latch
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red]; DRAM [yellow]; VGA [white]; Boot Device [yellow green])
- Q-Slot
- ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
- ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Box Headers
- ProCool II
- Pre-mounted I/O shield
- AURA Sync
- AURA RGB header(s)
- Addressable Gen 2 header(s)
- Software Features:
- ASUS Exclusive Software
- Armoury Crate
- AURA Creator
- AURA Sync
- Fan Expert 4 with AI Cooling II
- Two-Way AI Noise Cancelation
- Power Saving
- AI Suite 3
- Easy Optimization with AI Overclocking
- TPU
- DIGI+ Power Control
- Turbo app
- PC Cleaner
- ASUS CPU-Z
- IT Management software supported
- ASUS Control Center Express(ACCE)
- ProArt Creator Hub
- CreationFirst
- MyAsus
- Norton 360 Deluxe (60 Days Free Trial)
- WinRAR
- UEFI BIOS
- AI Overclocking Guide
- ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- FlexKey
- MemTest86
- BIOS: 256 Mb
- Manageability: WOL by PME; PXE
- Operating System: Windows 11 64-bit; Windows 10 64-bit
- Form Factor:
- ATX Form Factor
- 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
