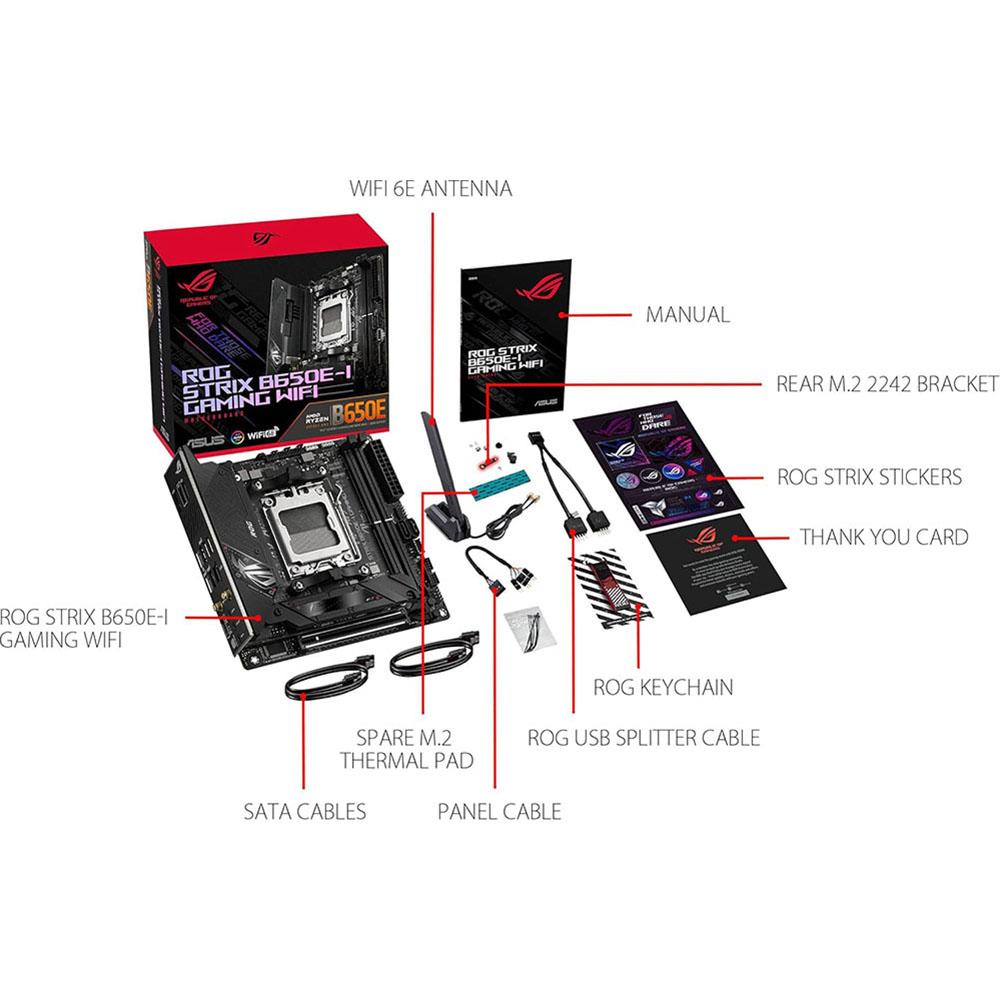

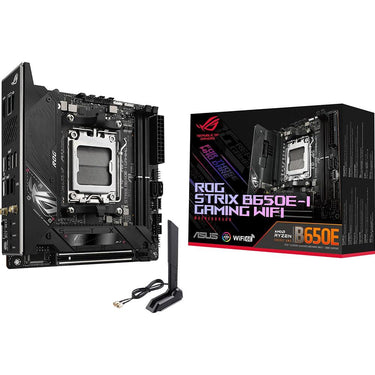

What's In The Box
Free Shipping
Free ground shipping is available to home addresses in the contiguous United States. PO Boxes, Alaska, Hawaii, US Territories (including Puerto Rico), APO/FPO and addresses outside the United States are not eligible for free shipping.
FedEx Shipping
All merchandise except for oversized items (e.g. Flat screen LED TVs over 55" and plasma TVs over 51") advertised on Beachcamera.com are usually shipped via FedEx.
All packages shipped from Beachcamera.com require a signature upon delivery. Please arrange for someone to sign for the delivery if you are unable to do so. We recommend that you provide an email address so that we may keep you informed of the status of your order and send you tracking information. You will be able to track your order online or by phone for an estimated time of arrival. FedEx will attempt to deliver your package three times before returning it to Beachcamera.com
United States Postal Service (USPS) Shipping
Small items such as memory cards may be shipped by the Post Office.
If the destination address is a PO Box or an APO/FPO, we will ship your order via USPS since FedEx is unable to deliver to those destinations. We will provide tracking information via email after your order has shipped. Items delivered to a PO Box or an APO/FPO will be delivered in 7 - 10 business days. Final delivery for APO/FPO destinations will be subject to the Terms and Conditions of the APO/FPO services. Not all items can be shipped via USPS. Some items that are shipped via USPS may be subject to an additional shipping charge. If necessary, Beachcamera.com will contact you before the order is processed.
Oversized Merchandise Shipping
Oversized merchandise (Flat screen LED TVs over 55", plasma TVs over 51", BBQ Grills & Furniture) are shipped via a motor freight carrier that specializes in Home Delivery. Since these items are large and fragile, special handling is required, and cannot be shipped via our standard shipping options.
We take every precaution during our shipping preparation process to ensure that your order arrives to you in perfect condition. Each item on your order is scanned for accuracy of model and serial number. We apply large orange fragile sticker labels to notify the carrier that your shipment is fragile and requires special handling. The labels also include important step-by-step instructions on how to inspect and sign for your shipment. In addition to the manufacturer's standard foam and corrugated packaging, we also apply a special shock absorption polyethylene material to the outer carton of every TV. This safeguard will disperse energy from impact during transit, and eliminate damage to the product itself. Our professional appointment-based delivery service allows you to open and inspect your new TV prior to signing and accepting the TV. When you purchase a TV at Beachcamera.com, you can be sure that it will arrive perfect working order, and will remain that way for a long time to come.
Non-Deliverable Addresses
We are unable to delivery to the following addresses:
- Mail box drop off locations
- Hotels and motels
- Trade Shows, Conventions, Conferences
Standard Return Policy
We want you to love the items you purchase from Beachcamera.com. If you are not satisfied with your purchase for any reason, you may return items for a full refund within 45 days, subject to the conditions below.
- Returned merchandise must be in original condition and include all factory packed accessories and paperwork (e.g. battery, charger, cords, straps, unmarked warranty card, manuals, etc.), in the original manufacturer box and packaging with UPC, barcode, and serial number intact.
- Incomplete returns will receive a reduced credit, reflecting any missing peripherals.
- The product serial number must match the serial number in our database. Beachcamera.com maintains serial number tracking.
- We require that all approved returns of computers, tablets, and similar devices have the password removed or restored to the system default.
- Return merchandise must be double-boxed with no writing on the manufacturer's box. Your Return Authorization number should be prominently displayed on the outside of the shipping box.
You must contact our customer service department to arrange a return. All returns must be shipped to the following address:
BTC Beach Camera Returns
80 Carter Drive
Edison, NJ 08817
You must include the RA number issued to you by customer service, please be sure to write this number clearly on the return box.
Please be sure to save the shipment tracking number for your return. Merchandise lost or damaged during shipping is the shipper's responsibility.
Televisions over 65" must be returned via one of our Home Delivery Partners. Please contact us to schedule a pickup for your large TV return.
If your return is not the result of our error, the return shipping costs are the responsibility of the customer.
Television Returns
Buyer's Remorse for TVs in Brand New condition:
If you are not 100% satisfied with your TV purchase, you may return it within 30 days from delivery for a full refund, less return shipping fees. Please note that a 15% restocking fee may apply. All returned TVs must be in their original box and include all packing material, manuals, and accessories.
Damages:
We're here to help!
For Common Deliveries (FedEx, UPS):
Please inspect the TV and report any damages (e.g. cracked screen, scratches, dents, etc.) within 2 days by contacting us at 1.800.572.3224
For Special Handling/Freight deliveries:
Please open and inspect the TV prior to signing for it. If the TV is cracked or damaged, please refuse delivery and contact us immediately at 1.800.572.3224 .
Please note damage claims will be denied for the following:
- TVs with over 60 minutes of recorded usage
- TVs that have been moved from the original delivery address
All damage claims must be made within two (2) days of delivery. We will issue a refund and cover all shipping costs.
Manufacturer Defects:
Your TV is fully covered under your in-home one year Manufacturer's Warranty service. If any further assistance is needed, please contact us. *Open-Box units are covered under our in-house 90 day warranty.
Drones Returns
All defects can be handled under the manufacturer's warranty. For DJI brand drones, call DJI at 818-235-0789 and obtain a case number for the defect prior to requesting an RMA. Please note only Dead on Arrival units out of the box will be returnable to us (with a valid case number). DJI will NOT authorize any returns to us if there are any signs of use like dirt, grass stains, nicks or any signs of use. For these situations, the Return Authorization would need to be handled directly between the customer & DJI
Exceptions
- Mattresses
- Opened or Downloadable Software
- Consumables, including batteries, paper and ink
- Opened packages of Apparel, Bedding or Linens
- Used Cookwear and BBQ Grills
- Personal Body Massagers/Shavers
- Special order items
- Refunds
Refunds for returns are applied to the payment method used at the time of purchase. Once we receive and inspect the product we will credit your account. Please allow 5-7 business days for a credit to appear on your account.
Product Exchanges
If you purchased a product from Beachcamera.com that you wish to exchange for an alternative, you can return the item for a full refund and simply place a new order for the item you desire. A refund credit cannot be applied to a new purchase.
Defective Items
An item that was discovered to be defective upon receipt can be replaced or returned for a full refund.
Damage or Missing Items
Claims for items damaged in transit or missing items must be received within two business days of receipt of the shipment.
Replacement
We will send a product replacement after the authorized return has completed our receiving/inspection process. The replacement will ship within four business days following the receipt of your return. Please allow for additional processing time after holidays.
Although it is our goal to ship a replacement as quickly as possible, a replacement cannot be shipped before we receive and inspect the return. To receive a replacement more quickly, you may place a new order for the same item (shipping not included) and we will issue a refund for the full value of the returned product (including shipping) upon completion of our return process.
Product Details

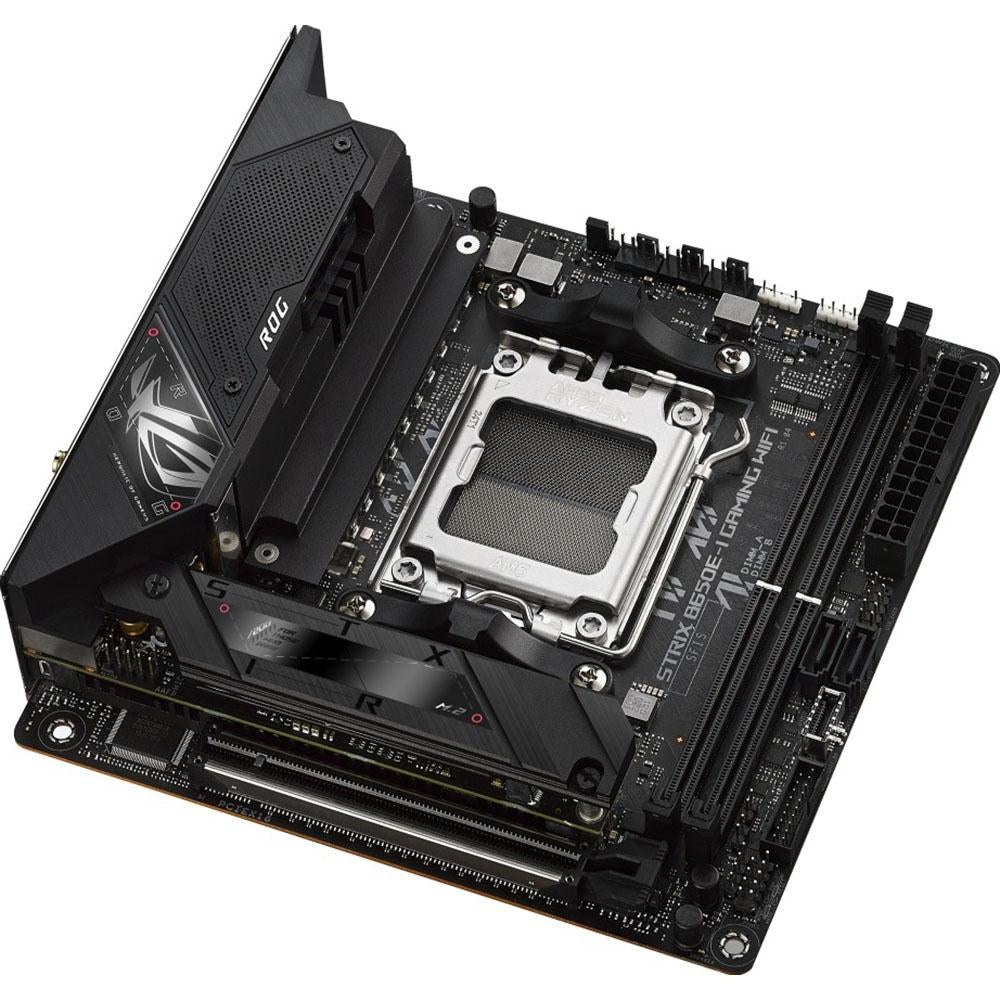

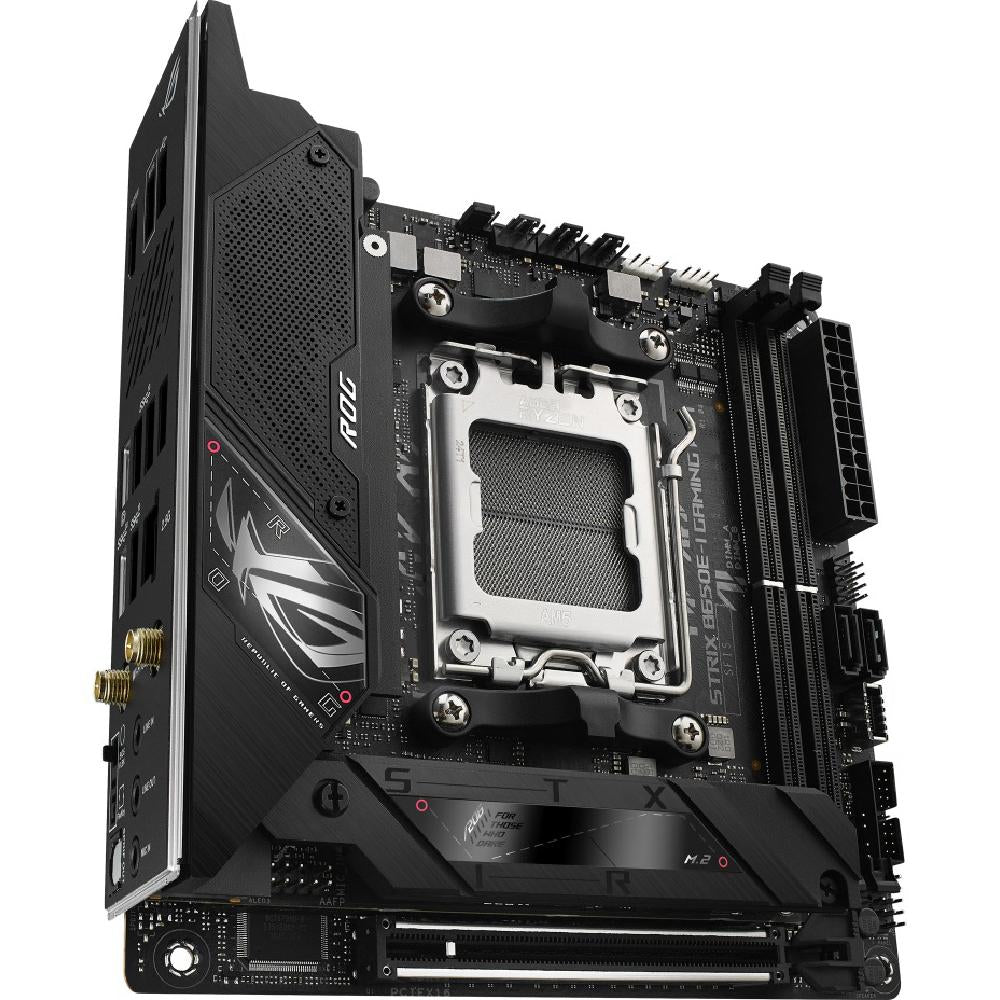

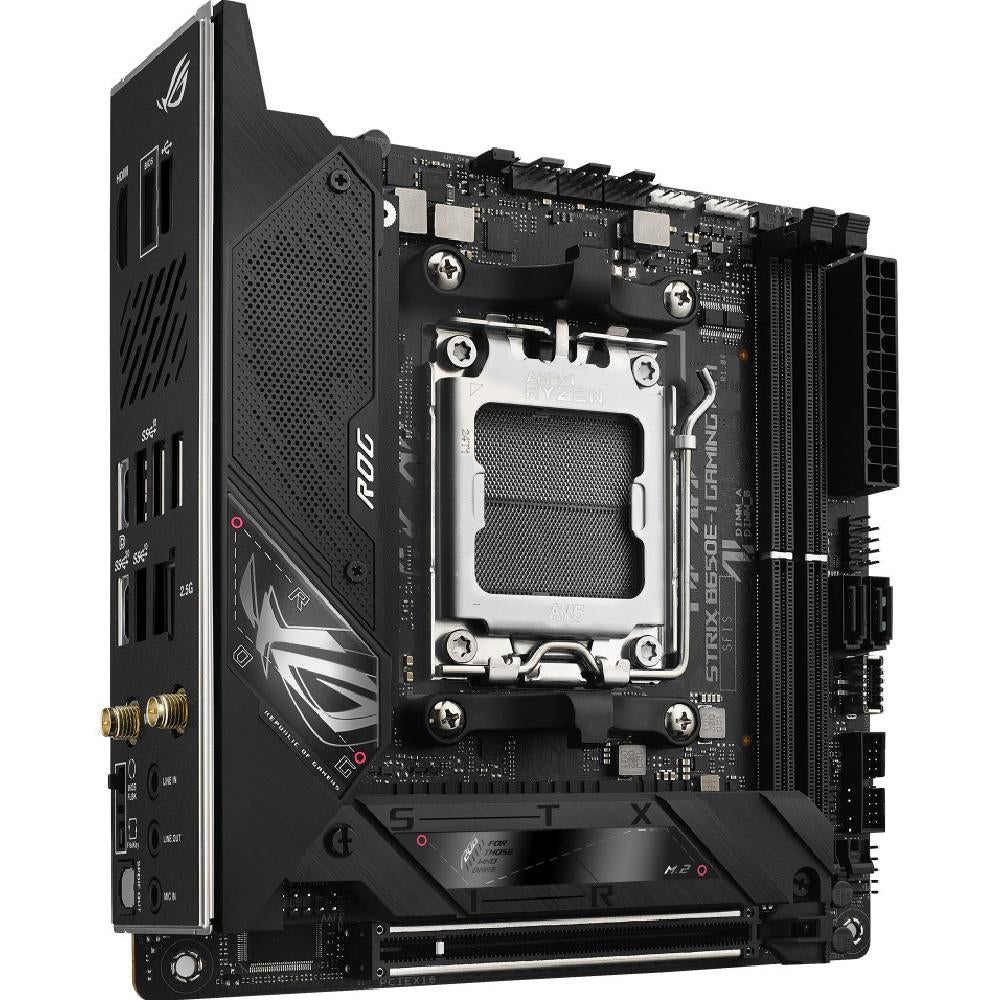

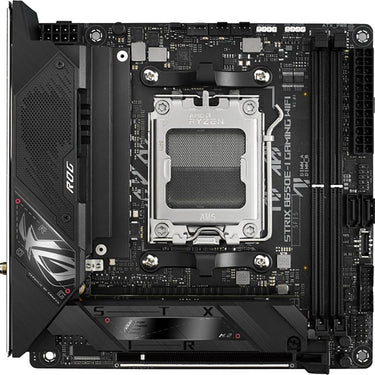

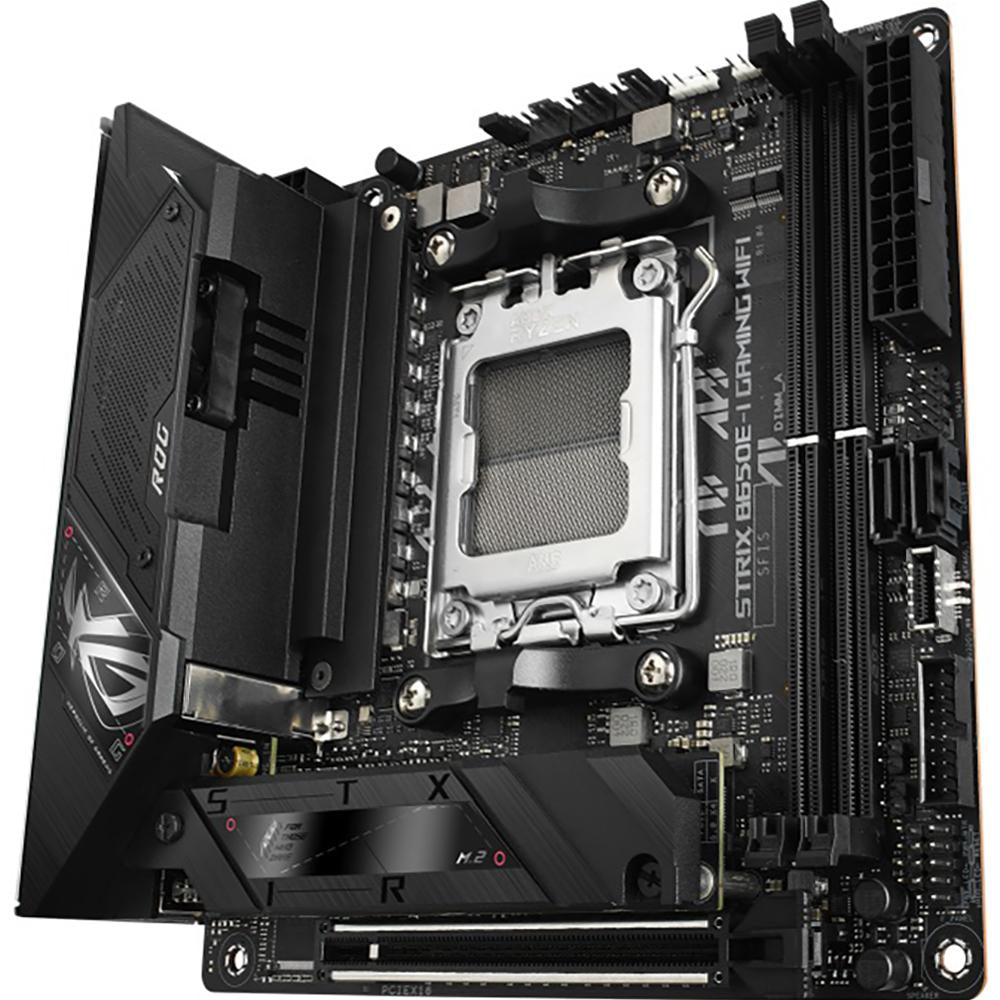

Don't be fooled by its flyweight frame; the Strix B650E-I packs walloping performance! With a jacked VRM and pumped with both DDR and PCIe 5; it's a perfect partner for Ryzen 7000; particularly in stealthy SFF builds.
Day-Friendly Features
M.2 Q-Latch: The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the drive and neatly eliminate traditional screws.
Bios Flashback Button: BIOS FlashBack is a safe and simple way to update BIOS. Just drop the (UEFI) BIOS file onto a FAT32-formatted USB stick; plug it into the USB BIOS FlashBack port; and press the button. Updates can even be performed without having memory or a CPU installed.
Flexkey Button: At its default; FlexKey functions as a system reset button; but it can also be easily reassigned to quickly activate Safe Boot or enter the BIOS.
Q-Led: Four onboard LEDs indicate power status and identify problems with CPU; memory; graphics card; or boot device for quick diagnosis.
All-Round Performance
To keep up with the big boys; the ROG Strix B650E-I comes stacked with a beefy power solution and a quiet thermal array; giving it a nice share of headroom to push for faster frequencies. But the speed doesn't stop there: memory; graphics cards; and storage can all be cranked to the max thanks to DDR5 and PCIe 5.0 support.
Pie 5.0
Fully embracing the new standard; the Strix B650E-I offers end-to-end PCIe 5.0 support to give unfettered bandwidth for the fastest SSDs and graphics cards available. The x16 expansion slot is Gen 5-ready; and is protected with a SafeSlot retention bracket. The onboard M.2 slot is also geared for PCIe 5.0; allowing for blistering 16 GB/s read and write speeds; while the other slot delivers still-impressive 8 GB/s transfers over its PCIe 4.0 interface.
Overclocking
Dynamic Oc Switcher: Lightly-threaded tasks get fantastic uplift using AMD Precision Boost Overdrive (PBO); but all-core frequencies can be pushed higher via traditional overclocking. The Dynamic OC Switcher automatically engages PBO or your preferred settings based on the CPU current or temperature; giving you the best of both worlds. Core Flex and PBO Enhancement can also be deployed to work in tandem with the Dynamic OC Switcher and further bolster performance.
Core Flex: Core Flex empowers you to smash limits farther than ever before by letting you control current; power; and thermals in creative new ways. In its simplest form; you can let your system run unrestricted during lighter loads and set breakpoints to gradually reduce power consumption as temperature increases. But the system is extremely adaptable; supporting multiple user-controlled functions that can manipulate parameters independently so that you can bend CPU performance to your will.
Pio Enhancement: AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters; AMD's algorithm can leverage the motherboard's robust power solution to ramp up performance even higher.
Leading Connectivity
Despite its tiny desktop footprint; the Strix B650E-I stands tall in the connectivity department; with beyond-Gigabit tethered and wireless networking options; and gigantic audio quality via the enhanced Supreme solution.
Networking
Wifi 6E: Onboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.
Intel 2.5G Ethernet: Low-latency gaming; speedy file transfers; and high-resolution video streaming are among the many perks of onboard Intel 2.5 Gbps Ethernet.
Audio
Supreme: ROG Supreme is a unique blend of hardware and software technologies that provide superior audio. The Strix B650E-I implementation features the ALC4080 codec for high-resolution playback up to 32-bit/384 kHz across all channels. Front-panel output is streamed through the integrated Savitech amplifier that can drive high-fidelity acoustics to a wide variety of speakers and headsets.
Audio-Line Shielding: A specially-designed circuit separation reduces electromagnetic interference from the motherboard and attached devices for cleaner audio.
Savitech Sv3H712 Amplifier: The integrated Savitech amplifier greatly improves THD+N performance from 72 dB to 83 dB to deliver pristine audio quality.
Premium Audio Capacitors: High-quality components produce a warmer; more natural sound with exceptional clarity and fidelity.
Play In Style
The understated black shrouds and PCB of the Strix B650-I make it a solid foundation for nearly any rig; especially when coordinated with the vast range of offerings in the ROG ecosystem.
Id Design
Undeniably Rog Strix: The mesh-like texture on the VRM cooling array and the unidirectional brush lines may seem minimalist by Strix standards; but the B650E-I is far from modest; proudly displaying a metallic ROG eye on the I/O shroud and subtle pink accents for a simple; unique flavor.
Certified Compatibility
Cooler Compatibility: The ROG Strix B650E-I bears the same mounting hole alignment as AM4 platforms; so it is backward compatible with many existing coolers; including all AIO offerings from ASUS and ROG.
Ecosystem
The Rog Strix Ecosystem Awaits: Level up your game with ROG Strix. Enjoy complementary aesthetics; control; and compatibility across AIO coolers; cases; peripherals; and much more. ROG offers more choices than any other brand.
Software Utilities
Customize your rig through a suite of intuitive software and firmware utilities that let you maximize performance and tweak your experience to your liking.
Intelligent Control
Two-Way Ai Noise Cancelation: This utility leverages a massive deep-learning database to reduce over 5 million types of background noise from incoming or outgoing audio; helping ensure crystal-clear communication in games or calls.
Ai Networking: GameFirst VI optimizes networking performance by allocating bandwidth in real time based on application usage scenarios and corresponding learning algorithms.
Optimization
UEFA Bios: The renowned ROG UEFI (BIOS) provides everything you need to configure; tweak; and tune your rig. It offers intelligently simplified options for newcomers to PC DIY; as well as more comprehensive features for seasoned veterans.
Ai Suite 3: The dashboard-style control panel of AI Suite 3 lets you fine-tune your system with ease. Get the best balance between performance; cooling; stability; and efficiency via simple and intuitive interfaces.
Advanced Audio
Sonic Studio Iii: Sonic Studio supports HRTF-based (head-related transfer function) virtual surround for headsets; casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets; allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.
Dots Sound Unbound: ROG Strix B650E motherboards are pre-loaded with the DTS Sound Unbound app that envelops you in audio as never before; conjuring whole new levels of immersion for extraordinary gaming and entertainment experiences. By leveraging Windows Sonic spatial technology; DTS Sound Unbound delivers audio in a virtual 3D space - putting you right in the middle of the soundscape; where you can sense the location of every gunshot; footstep; and other sounds.
Aida64
The ROG Strix B650E-I includes a sixty-day AIDA64 Extreme subscription; a tool that provides detailed information about hardware and software; as well as benchmarks to measure the performance of the entire system or individual components. AIDA64 Extreme includes a monitoring and diagnostics feature to detect and prevent hardware issues. All vital system sensors can be tracked in real time; allowing voltage readings; fan speeds; and temperature information to be displayed on the desktop or sent to dedicated displays or to the LCD panels of ROG AIO liquid coolers.
Armoury Crate
Armoury Crate is a software utility designed to give you centralized control of supported gaming products; making it easy to tune the look and feel of your system. From a single intuitive interface; Armoury Crate helps you customize RGB lighting and effects for compatible devices and synchronize them with Aura Sync to create a unified lighting scheme across your system. In addition; Armoury Crate's Fan Xpert4 tool provides comprehensive control over fans; water pumps and all-in-one (AIO) coolers.
Product Features:
- Robust Power Solution - 10 + 2 power stages with an 8-pin ProCool power connector; high-quality alloy chokes; and durable capacitors to support multi-core processors
- Optimized VRM Thermals - Thick heatsinks bolster a quiet cooling system that is bonded to the power stages with high conductivity thermal pads
Specifications:
- CPU: AMD Socket AM5 for AMD Ryzen Desktop Processors
- Chipset: AMD B650
- Memory:
- 2 x DIMM; Max. 96GB; DDR5 8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC; Un-buffered Memory
- Dual Channel Memory Architecture
- Supports AMD Extended Profiles for Overclocking (EXPO)
- OptiMem II
- Supported memory types; data rate(Speed); and number of DRAM module vary depending on the CPU and memory configuration; for more information refer to www.asus.com for memory support list
- Non-ECC; Un-buffered DDR5 Memory supports On-Die ECC function
- Graphics:
- 1 x DisplayPort
- 1 x USB3.2 Gen2 port supports USB Type-C display outputs
- Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications
- Supports max. 8K@60Hz as specified in display outputs
- Supports 4K@60Hz as specified in HDMI 2.1
- VGA resolution support depends on processors' or graphic cards' resolution
- Expansion Slots:
- AMD Ryzen 7000 Series Desktop Processors
- 1 x PCIe 5.0 x16 slot
- Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/)
- To ensure compatibility of the device installed; please refer to https://www.asus.com/support/ for the list of supported peripherals
- Storage:
- Total supports 2 x M.2 slots and 2 x SATA 6Gb/s ports
- AMD Ryzen 7000 Series Desktop Processors
- M.2_1 slot (Key M); type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
- M.2_2 slot (Key M); type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- 2 x SATA 6Gb/s ports
- AMD RAIDXpert2 Technology supports both PCIe RAID 0/1 and SATA RAID 0/1
- Ethernet:
- 1 x Intel 2.5Gb Ethernet
- ASUS LANGuard
- Wireless & Bluetooth:
- Wi-Fi 6E
- 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
- Supports 2.4/5GHz frequency band
- Bluetooth v5.2
- WiFi 6E 6GHz regulatory may vary between countries
- The Bluetooth version may vary; please refer to the Wi-Fi module manufacturer's website for the latest specifications
- USB:
- Rear USB (Total 8 ports)
- 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
- 5 x USB 3.2 Gen 2 ports (4 x Type-A + 1 x USB Type-C)
- 2 x USB 2.0 ports (2 x Type-A)
- Front USB (Total 5 ports)
- 1 x USB 3.2 Gen 2 connector
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 1 x USB 2.0 header supports additional 2 USB 2.0 ports
- Audio:
- ROG Supreme 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection; Multi-streaming; Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
- Audio Features
- Audio Shielding
- Savitech SV3H712 AMP
- LED-illuminated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
- The rear panel Line out port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.

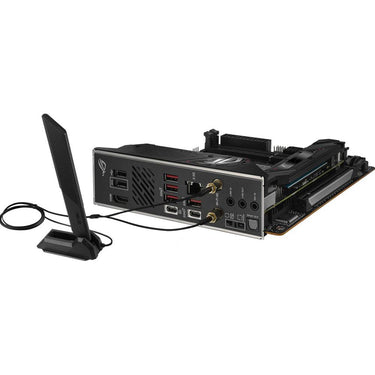

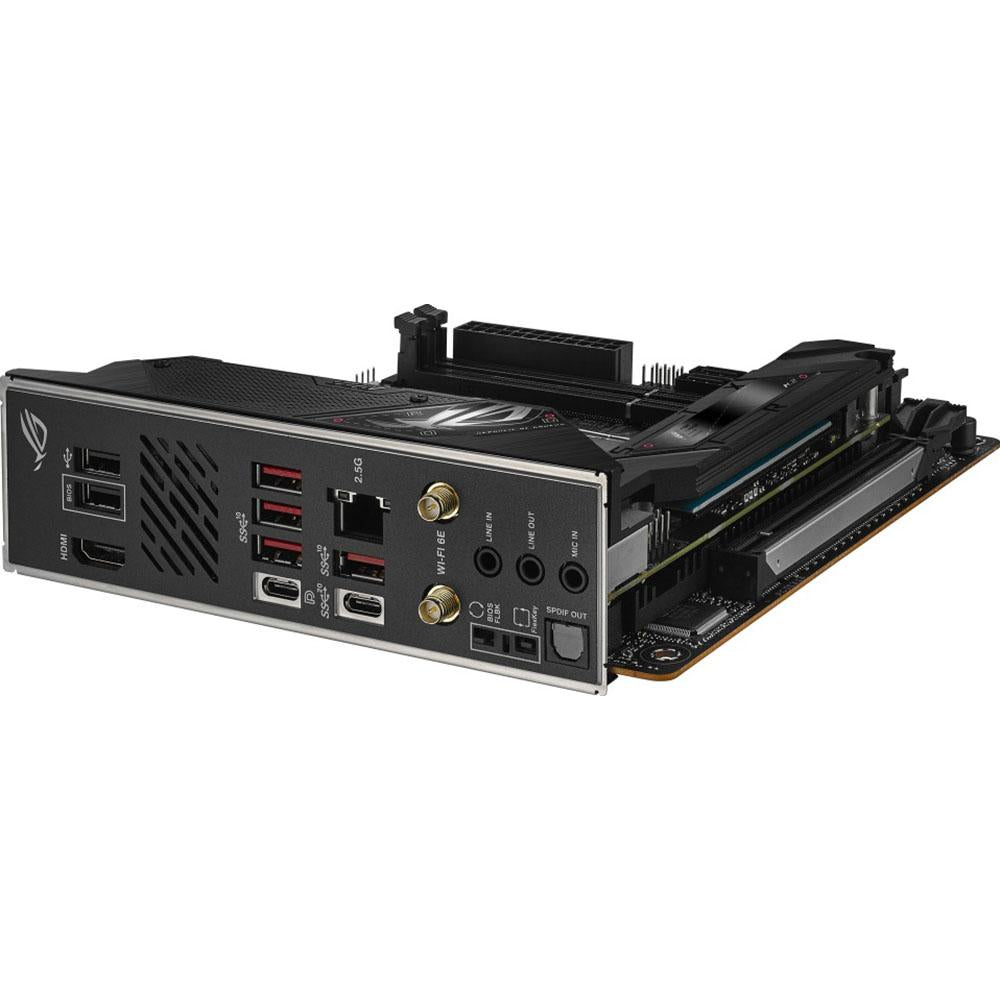

- Back Panel I/O Ports:
- 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
- 5 x USB 3.2 Gen 2 ports (4 x Type-A + 1 x USB Type-C with DP Alt mode)
- 2 x USB 2.0 ports (2 x Type-A)
- 1 x HDMI port
- 1 x Wi-Fi Module
- 1 x Intel 2.5Gb Ethernet port
- 3 x LED-illuminated audio jacks
- 1 x Optical S/PDIF out port
- 1 x BIOS FlashBack button
- 1 x FlexKey button
- Internal I/O Connectors:
- Fan and Cooling related
- 1 x 4-pin CPU Fan header
- 1 x 4-pin AIO Pump header
- 1 x 4-pin Chassis Fan header
- Power related
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
- Storage related
- 2 x M.2 slots (Key M)
- 2 x SATA 6Gb/s ports
- USB
- 1 x USB 3.2 Gen 2 connector
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 1 x USB 2.0 headers supports additional 2 USB 2.0 ports
- Miscellaneous
- 1 x Addressable Gen 2 header
- 1 x AURA RGB header
- 1 x Clear CMOS header
- 1 x CPU Over Voltage jumper
- 1 x 12-1 pin Front Panel Audio header (AAFP)
- 1 x 10-1 pin System Panel header
- 1 x Speaker header
- 1 x Thermal Sensor header
- Special Features:
- Extreme Engine Digi+: 5K Black Metallic Capacitors
- ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED (CPU [red]; DRAM [yellow]; VGA [white]; Boot Device [yellow green])
- Q-Slot
- ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsinks
- VRM heatsink design
- ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
- Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
- Software Features:
- ROG Exclusive Software
- GameFirst VI
- ROG CPU-Z
- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
- Sonic Radar III
- DTS Sound Unbound
- Anti-virus software
- ASUS Exclusive Software
- Armoury Crate
- AIDA64 Extreme (60 days free trial)
- Aura Creator
- Aura Sync
- Fan Expert 4
- Power Saving
- Two-Way AI Noise Cancellation
- AI Suite 3
- TPU
- DIGI+ VRM
- Turbo app
- PC Cleaner
- MyAsus
- WinRAR
- UEFI BIOS
- ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- Dynamic OC Switcher
- FlexKey
- BIOS: 256 Mb Flash ROM; UEFI AMI BIOS
- Manageability: WOL by PME; PXE
- Operating System: Windows 11 64-bit; Windows 10 64-bit
- Form Factor:
- Mini-ITX Form Factor
- 6.7 inch x 6.7 inch (17 cm x 17 cm)
