ASUSSKU: ASUROGSTRIXZ790AGAMINGW

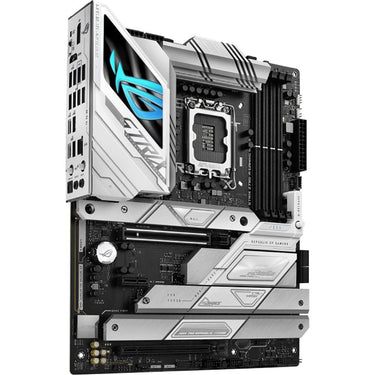

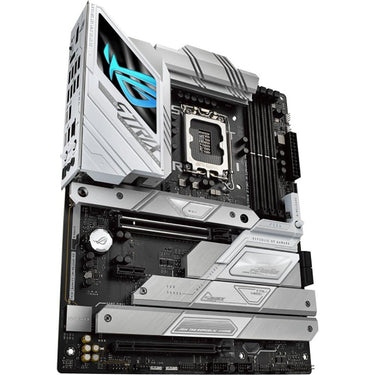

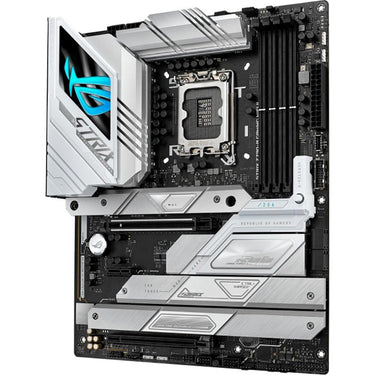

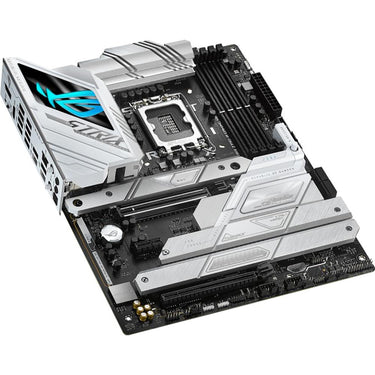

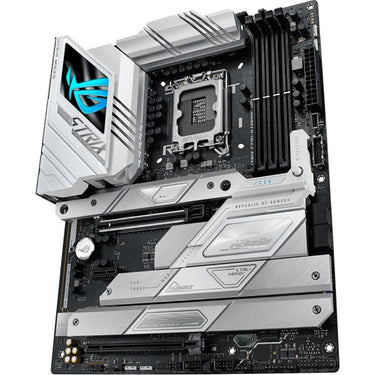

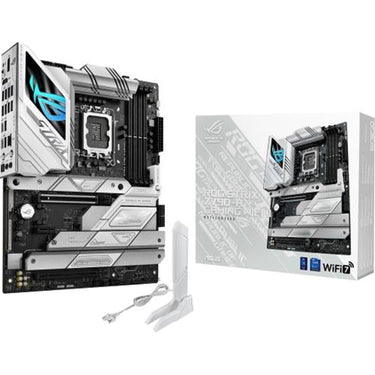

ASUS ROG Strix LGA 1700 ATX Gaming Motherboard - ROG-STRIX-Z790-A-GAM


Price unavailable

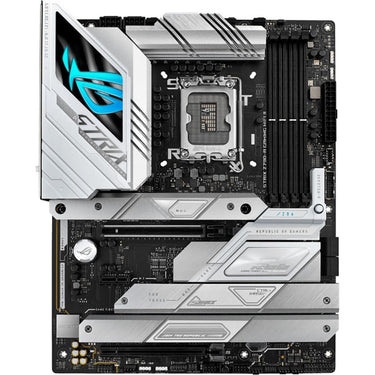

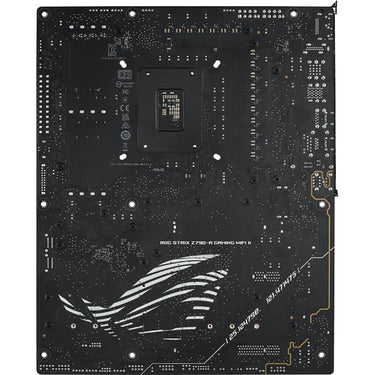

    ASUS ROG Strix Z790-A Gaming WiFi II (WiFI 7) LGA 1700(Intel 13th & 12th Gen) ATX gaming motherboard(16 + 1+2 power stages, DDR5, 5X M.2 slots, PCIe 5.0 x16 SafeSlot with Q-Release,SB 20Gbps rear I/O port, front-panel USB connector with PD 3.0 up to 30W)
ASUS ROG Strix LGA 1700 ATX Gaming Motherboard - ROG-STRIX-Z790-A-GAM
Price unavailable

Pickup currently unavailable at 80 Carter Drive

Payment & Security
American Express
Apple Pay
Diners Club
Discover
Google Pay
Mastercard
PayPal
Shop Pay
Venmo
Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

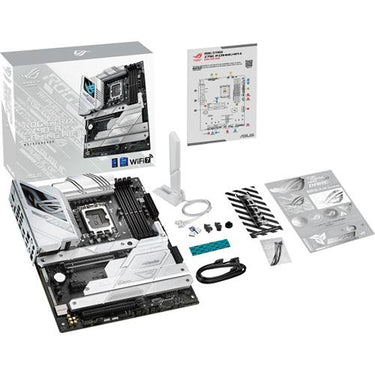

What's In The Box
Still deciding?
Free Shipping on Most U.S. Orders
Easy Returns and Exchanges
Exceptional Customer Support

Free Shipping

Free ground shipping is available to home addresses in the contiguous United States. PO Boxes, Alaska, Hawaii, US Territories (including Puerto Rico), APO/FPO and addresses outside the United States are not eligible for free shipping.

FedEx Shipping

All merchandise except for oversized items (e.g. Flat screen LED TVs over 55" and plasma TVs over 51") advertised on Beachcamera.com are usually shipped via FedEx.

All packages shipped from Beachcamera.com require a signature upon delivery. Please arrange for someone to sign for the delivery if you are unable to do so. We recommend that you provide an email address so that we may keep you informed of the status of your order and send you tracking information. You will be able to track your order online or by phone for an estimated time of arrival. FedEx will attempt to deliver your package three times before returning it to Beachcamera.com

United States Postal Service (USPS) Shipping

Small items such as memory cards may be shipped by the Post Office.

If the destination address is a PO Box or an APO/FPO, we will ship your order via USPS since FedEx is unable to deliver to those destinations. We will provide tracking information via email after your order has shipped. Items delivered to a PO Box or an APO/FPO will be delivered in 7 - 10 business days. Final delivery for APO/FPO destinations will be subject to the Terms and Conditions of the APO/FPO services. Not all items can be shipped via USPS. Some items that are shipped via USPS may be subject to an additional shipping charge. If necessary, Beachcamera.com will contact you before the order is processed.

Oversized Merchandise Shipping

Oversized merchandise (Flat screen LED TVs over 55", plasma TVs over 51", BBQ Grills & Furniture) are shipped via a motor freight carrier that specializes in Home Delivery. Since these items are large and fragile, special handling is required, and cannot be shipped via our standard shipping options.

We take every precaution during our shipping preparation process to ensure that your order arrives to you in perfect condition. Each item on your order is scanned for accuracy of model and serial number. We apply large orange fragile sticker labels to notify the carrier that your shipment is fragile and requires special handling. The labels also include important step-by-step instructions on how to inspect and sign for your shipment. In addition to the manufacturer's standard foam and corrugated packaging, we also apply a special shock absorption polyethylene material to the outer carton of every TV. This safeguard will disperse energy from impact during transit, and eliminate damage to the product itself. Our professional appointment-based delivery service allows you to open and inspect your new TV prior to signing and accepting the TV. When you purchase a TV at Beachcamera.com, you can be sure that it will arrive perfect working order, and will remain that way for a long time to come.

Non-Deliverable Addresses

We are unable to delivery to the following addresses:

- Mail box drop off locations
- Hotels and motels
- Trade Shows, Conventions, Conferences

Standard Return Policy

We want you to love the items you purchase from Beachcamera.com. If you are not satisfied with your purchase for any reason, you may return items for a full refund within 45 days, subject to the conditions below.

- Returned merchandise must be in original condition and include all factory packed accessories and paperwork (e.g. battery, charger, cords, straps, unmarked warranty card, manuals, etc.), in the original manufacturer box and packaging with UPC, barcode, and serial number intact.

- Incomplete returns will receive a reduced credit, reflecting any missing peripherals.

- The product serial number must match the serial number in our database. Beachcamera.com maintains serial number tracking.

- We require that all approved returns of computers, tablets, and similar devices have the password removed or restored to the system default.

- Return merchandise must be double-boxed with no writing on the manufacturer's box. Your Return Authorization number should be prominently displayed on the outside of the shipping box.

You must contact our customer service department to arrange a return. All returns must be shipped to the following address:

BTC Beach Camera Returns
80 Carter Drive
Edison, NJ 08817

You must include the RA number issued to you by customer service, please be sure to write this number clearly on the return box.

Please be sure to save the shipment tracking number for your return. Merchandise lost or damaged during shipping is the shipper's responsibility.

Televisions over 65" must be returned via one of our Home Delivery Partners. Please contact us to schedule a pickup for your large TV return.

If your return is not the result of our error, the return shipping costs are the responsibility of the customer.

Television Returns

Buyer's Remorse for TVs in Brand New condition:
If you are not 100% satisfied with your TV purchase, you may return it within 30 days from delivery for a full refund, less return shipping fees. Please note that a 15% restocking fee may apply. All returned TVs must be in their original box and include all packing material, manuals, and accessories.

Damages:
We're here to help!
For Common Deliveries (FedEx, UPS):
Please inspect the TV and report any damages (e.g. cracked screen, scratches, dents, etc.) within 2 days by contacting us at 1.800.572.3224

For Special Handling/Freight deliveries:
Please open and inspect the TV prior to signing for it. If the TV is cracked or damaged, please refuse delivery and contact us immediately at 1.800.572.3224 .

Please note damage claims will be denied for the following:

- TVs with over 60 minutes of recorded usage
- TVs that have been moved from the original delivery address

All damage claims must be made within two (2) days of delivery. We will issue a refund and cover all shipping costs.

Manufacturer Defects:
Your TV is fully covered under your in-home one year Manufacturer's Warranty service. If any further assistance is needed, please contact us. *Open-Box units are covered under our in-house 90 day warranty.

Drones Returns

All defects can be handled under the manufacturer's warranty. For DJI brand drones, call DJI at 818-235-0789 and obtain a case number for the defect prior to requesting an RMA. Please note only Dead on Arrival units out of the box will be returnable to us (with a valid case number). DJI will NOT authorize any returns to us if there are any signs of use like dirt, grass stains, nicks or any signs of use. For these situations, the Return Authorization would need to be handled directly between the customer & DJI

Exceptions
  • Mattresses
  • Opened or Downloadable Software
  • Consumables, including batteries, paper and ink
  • Opened packages of Apparel, Bedding or Linens
  • Used Cookwear and BBQ Grills
  • Personal Body Massagers/Shavers
  • Special order items
  • Refunds

Refunds for returns are applied to the payment method used at the time of purchase. Once we receive and inspect the product we will credit your account. Please allow 5-7 business days for a credit to appear on your account.

Product Exchanges

If you purchased a product from Beachcamera.com that you wish to exchange for an alternative, you can return the item for a full refund and simply place a new order for the item you desire. A refund credit cannot be applied to a new purchase.

Defective Items

An item that was discovered to be defective upon receipt can be replaced or returned for a full refund.

Damage or Missing Items

Claims for items damaged in transit or missing items must be received within two business days of receipt of the shipment.

Replacement

We will send a product replacement after the authorized return has completed our receiving/inspection process. The replacement will ship within four business days following the receipt of your return. Please allow for additional processing time after holidays.

Although it is our goal to ship a replacement as quickly as possible, a replacement cannot be shipped before we receive and inspect the return. To receive a replacement more quickly, you may place a new order for the same item (shipping not included) and we will issue a refund for the full value of the returned product (including shipping) upon completion of our return process.

Contact Us

+1 (800) 572-3224

Customerservice@beachcamera.com

80 Carter Drive, Edison, NJ 08817

Product Details


Q-Antenna

With Q-Antenna; attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in; they just snap into place. Less hassle; and more consistent performance.

M.2 Q-Latch

The innovative Q-Latch makes it easy to install or remove an SSD from an M.2 slot. The design employs a simple locking mechanism to secure the drive; eliminating the need for a traditional screw.

PCIE 5.0

The top PCIe 5.0 x16 SafeSlot is well-equipped for the increased size and bandwidth of next-gen graphics cards. Zippy storage options abound with four PCIe 4.0 M.2 slots; all featuring robust heatsinks to maximize performance.

Power Design

1. 16(70A)+1(70A)+2 Power Stages: The VRM features 16+ 1+ 2 power stages; each rated to handle up to 70 amps.

2. Alloy Chokes And Durable Capacitors: Hi-end chokes and durable capacitors are engineered to resist extreme temperatures; enabling performance that exceeds industry standards.

3. Dual Procool II Power Connectors: ProCool II connectors are precision-built to ensure flush contact with PSU power lines. A metal sheath improves heat dissipation and lowers electrical impedance.

4. Six-Layer Pub: A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.

Memory

DDR5 Domination: ROG has a long legacy of flexing the fastest memory performance; and DDR5 is no outlier. Thanks to improved signal routing; now enthusiast-grade kits have been driven far beyond the 8 GT/s mark on the Strix Z790-A II; and who knows how far future DIMMs can go? Seasoned veterans can test their mettle by tinkering with the extensive array of tuning options in the UEFI.

Cooling

1. VRM Heatsinks: Covering the power solution are two thick heatsinks with strategic airflow channels for increased heat dissipation while powering high-performance Intel 13th and 14th-generation processors.

2. M.2 Backplate: An integrated backplate helps ensure that high-performance drives can deliver peak performance; even when airflow is restricted.

3. M.2 Heatsinks: Heatsinks cover every slot to help keep onboard NVME SSDs at optimal temperatures for consistent performance and reliability.

Networking

1. WiFi 7: With Multi-Link Operation (MLO); WiFi 7 can outperform WiFi 6E to deliver faster speeds; higher reliability; and increased data transfer efficiency.

MLO (Multi-link Operation) full functions support will be ready in Windows 11 2024 Platform (Windows 11 24H2) or later.

WiFi 7 features require an onboard WiFi chipset; WiFi AP; and WiFi 7-supported operating systems to support the corresponding features.

2. Intel 2.5G Ethernet: Low-latency gaming; speedy file transfers; and high-resolution video streaming are among the many perks of onboard Intel 2.5 Gbps Ethernet.

Asus Wifi Q-Antenna

Dual transceivers support the 2.4; 5; and 6 GHz bands to enable faster throughput; with directional sensitivity to improve signal quality and cover greater distances.

USB 20GBPS

The Strix Z790-A II comes loaded with two USB 20Gbps Type-C connectors for speedy data transfers up to 20Gbps. One is a port on the rear I/O; the other can be attached to the chassis front panel and it also features Power Delivery (PD) 3.0 technology to quickly charge devices up to 30W.

Product Features:

  • Robust Power Solution - 16+1+2 power solution rated for 70A per stage with dual ProCool II power connectors; high-quality alloy chokes; and durable capacitors to support multi-core processors
  • Optimized VRM Thermals - Massive heatsinks with integrated I/O cover; high-conductivity thermal pads; and connected with an L-shaped heatpipe
  • Ample M.2 Support - One PCIe 4.0 M.2 slot with a heatsink and backplate; and four PCIe 4.0 M.2 slots with heatsinks

Specifications:

  • CPU:
    • Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors; Intel Core 12th Gen; Pentium Gold and Celeron Processors
    • Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
    • Refer to www.asus.com for CPU support list
    • Intel Turbo Boost Max Technology 3.0 support depends on the CPU types
  • Chipset: Intel Z790 Chipset
  • Memory:
    • 4 x DIMM slots; max. 192GB; DDR5 8000+(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC; Un-buffered Memory
    • Dual channel memory architecture
    • Supports Intel Extreme Memory Profile (XMP) memory module
    • Supports DIMM Flex
    • OptiMem II
    • ASUS Enhanced Memory Profile II (AEMP II)
    • Supported memory types; data rate (speed); and number of DRAM modules vary depending on the CPU and memory configuration; for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/
    • Non-ECC; un-buffered DDR5 memory supports On-Die ECC function
  • Graphics:
    • 1 x DisplayPort
    • 1 x HDMI port
    • Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates
    • Supports max. 8K@60Hz as specified in DisplayPort 1.4
    • Supports 4K@60Hz as specified in HDMI 2.1
    • VGA resolution support depends on processors 'or graphic cards' resolution
  • Expansion Slots:
    • Intel Core Processors (14th & 13th & 12th Gen)
      • 1 x PCIe 5.0 x16 slot
    • Intel Z790 Chipset
      • 1 x PCIe 4.0 x16 slot (supports x4 mode)
      • 1 x PCIe 3.0 x1 slot
    • Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/)
    • To ensure compatibility of the device installed; please refer to https://www.asus.com/support/ for the list of supported peripherals.erals
  • Storage:
    • Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports
    • Intel Core Processors (14th & 13th & 12th Gen)
      • M.2_1 slot (Key M); type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
    • Intel Z790 Chipset
      • M.2_2 slot (Key M); type 2280 (supports PCIe 4.0 x4 mode)
      • M.2_3 slot (Key M); type 2280 (supports PCIe 4.0 x4 mode)
      • M.2_4 slot (Key M); type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
      • M.2_5 slot (Key M); type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
      • 4 x SATA 6Gb/s ports
    • Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10; SATA RAID 0/1/5/10
  • Ethernet:
    • 1 x Intel 2.5Gb Ethernet
    • ASUS LANGuard
  • Wireless & Bluetooth:
    • Intel Wi-Fi 7
    • 2x2 Wi-Fi 7 (802.11be)
    • Supports 2.4/5/6GHz frequency band
    • Support Wi-Fi 7 160MHz bandwidth; up to 2.4Gbps transfer rate
    • Bluetooth v5.4
    • Compatible with Windows 11 or later
    • Wi-Fi 7 MLO(Multi-link Operation) full functions support will be ready in Windows 11 2024 Platform (Windows 11 24H2) or later
    • Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries
    • The Bluetooth version may vary; please refer to the Wi-Fi module manufacturer's website for the latest specifications
  • USB:
    • Rear USB (Total 12 ports)
      • 1 x USB 20Gbps port (1 x USB Type-C)
      • 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C)
      • 4 x USB 5Gbps ports (4 x Type-A)
      • 4 x USB 2.0 ports (4 x Type-A)
    • Front USB (Total 7 ports)
      • 1 x USB 20Gbps (supports USB Type-C with up to with up to 30W PD Fast-charge)
      • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
      • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • Audio:
    • ROG Supreme 5.1 Surround Sound High Definition Audio CODEC ALC4080
      • Impedance sense for front and rear headphone outputs
      • Supports: Jack-detection; Multi-streaming; Front and Rear Panel MIC Jack-retasking
      • High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
      • Supports up to 32-Bit/384 kHz playback on front panel
    • Audio Features
      • Supreme Shielding Technology
      • Savitech SV3H712 AMP
      • Audio jacks
      • Rear optical S/PDIF out port
      • Premium audio capacitors
      • Audio cover
    • The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis

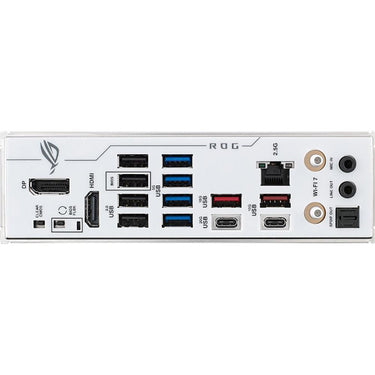

  • Back Panel I/O Ports:
    • 1 x USB 20Gbps port (1 x USB Type-C)
    • 3 x USB 10Gbps ports (2 x Type-A+1 x USB Type-C)
    • 4 x USB 5Gbps ports (4 x Type-A)
    • 4 x USB 2.0 ports (4 x Type-A)
    • 1 x DisplayPort
    • 1 x HDMI port
    • 1 x Wi-Fi module
    • 1 x Intel 2.5Gb Ethernet
    • 2 x Audio jacks
    • 1 x Optical S/PDIF out port
    • 1 x BIOS FlashBack button
    • 1 x Clear CMOS button
  • Internal I/O Connectors:
    • Fan and Cooling Related
      • 1 x 4-pin CPU Fan header
      • 1 x 4-pin CPU OPT Fan header
      • 1 x 4-pin AIO Pump header
      • 5 x 4-pin Chassis Fan headers
    • Power Related
      • 1 x 24-pin main power connector
      • 2 x 8-pin +12V power connector
    • Storage Related
      • 5 x M.2 slots (Key M)
      • 4 x SATA 6Gb/s ports
    • USB
      • 1 x USB 20Gbps connector (supports USB Type-C)
      • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
      • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
    • Miscellaneous
      • 3 x Addressable Gen 2 headers
      • 1 x Aura RGB header
      • 1 x CPU Over voltage jumper
      • 1 x Front panel audio header (F_AUDIO)
      • 1 x 20-3 pin system panel header with Chassis intrude function
      • 1 x Thermal sensor header
      • 1 x Thunderbolt (USB4) header
  • Special Features:
    • Extreme Engine Digi+: 5K Black metallic capacitors
    • ASUS Q-Design:
      • M.2 Q-Latch
      • PCIe Slot Q-Release
      • Q-Antenna
      • Q-DIMM
      • Q-LED (CPU [red]; DRAM [yellow]; VGA [white]; Boot Device [yellow green]) with DRAM Detection
      • Q-Slot
    • ASUS Thermal Solution
      • M.2 heatsink backplate
      • M.2 heatsink
      • VRM heatsink design
    • ASUS EZ DIY
      • BIOS FlashBack button
      • BIOS FlashBack LED
      • Clear CMOS button
      • CPU Socket lever protector
      • ProCool II
      • Pre-mounted I/O shield
      • SafeSlot
      • SafeDIMM
    • Aura Sync
      • Aura RGB header
      • Addressable Gen 2 headers
    • Front Panel USB 20Gbps with PD Fast Charge Support
      • Support: up to 30W charging
      • Support: USB power delivery notification with power output wattage display
      • Output: 5V/9V max. 3A; 12V max 2.5A
      • Compatible with PD3.0
  • Software Features:
    • ROG Exclusive Software
      • ROG CPU-Z
      • DTS Sound Unbound
    • ASUS Exclusive Software
    • Armoury Crate
      • AIDA64 Extreme (60 days free trial)
      • Aura Creator
      • Aura Sync
      • Fan Expert 4 (with AI Cooling II)
      • GameFirst
      • Power Saving
      • Sonic Studio
      • Two-Way AI Noise Cancelation
    • AI Suite 3
      • Easy Optimization with AI Overclocking
      • TPU
      • DIGI+ VRM
      • Turbo app
      • PC Cleaner
    • MyASUS
    • USB Wattage Watcher
    • Intel Unison
    • Adobe Creative Cloud (Free Trial)
    • Norton 360 for Gamers (60 Days Free Trial)
    • WinRAR (40 Days Free Trial)
    • UEFI BIOS
    • AI Overclocking Guide
    • ASUS EZ DIY
      • ASUS CrashFree BIOS 3
      • ASUS EZ Flash 3
      • ASUS UEFI BIOS EZ Mode
      • ASUS MyHotkey
    • FlexKey
    • MemTest86
  • BIOS: 256 Mb Flash ROM; UEFI AMI BIOS
  • Manageability: WOL by PME; PXE
  • Operating System: Windows 11; Windows 10 64-bit
  • Form Factor:
    • ATX Form Factor
    • 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
