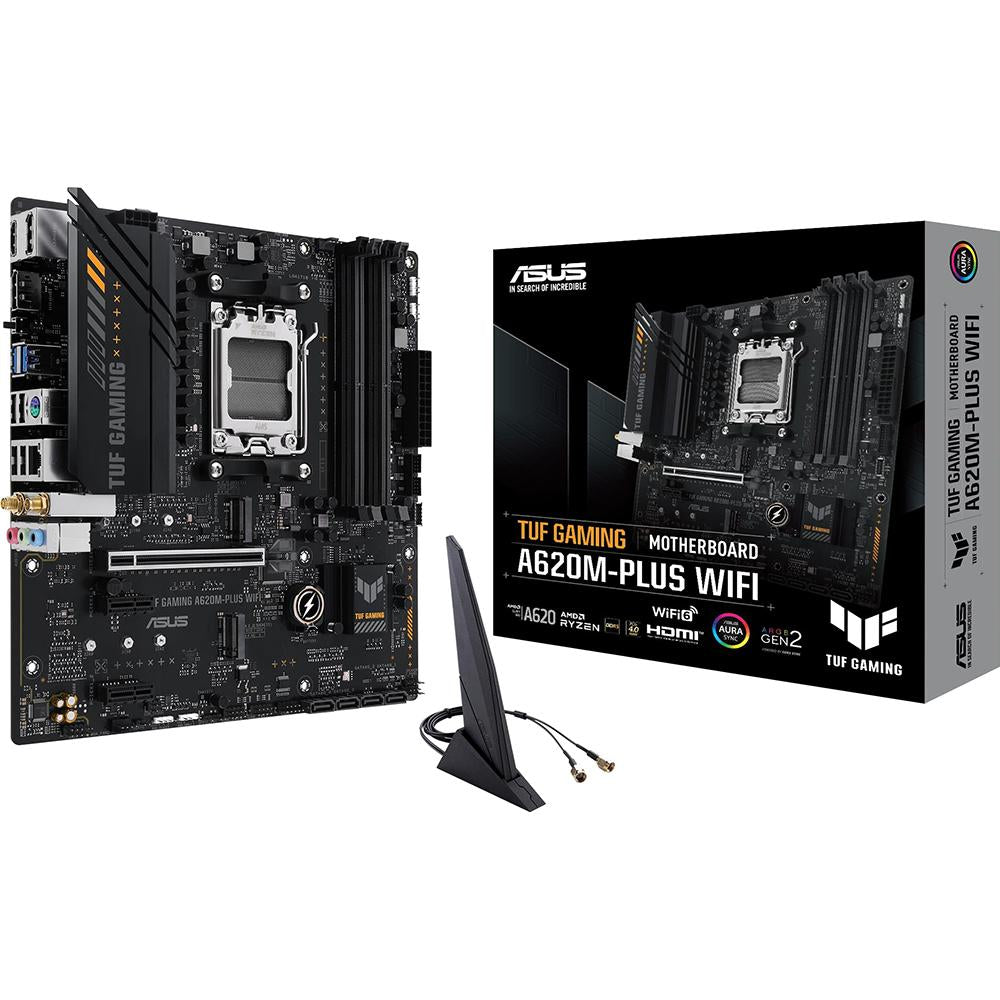

ASUS TUF Gaming A620M Plus WiFi AM5 Micro-ATX Motherboard - TUF-GAMING-A620M-PLU

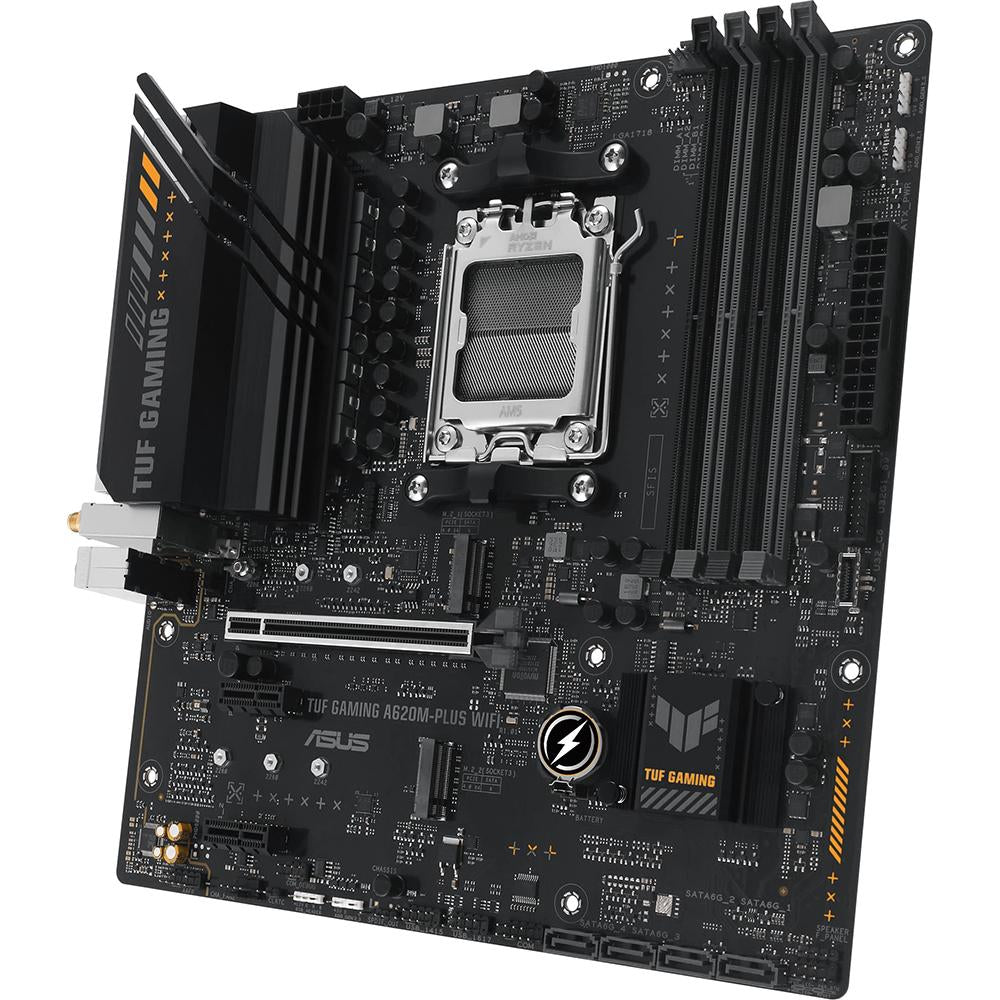

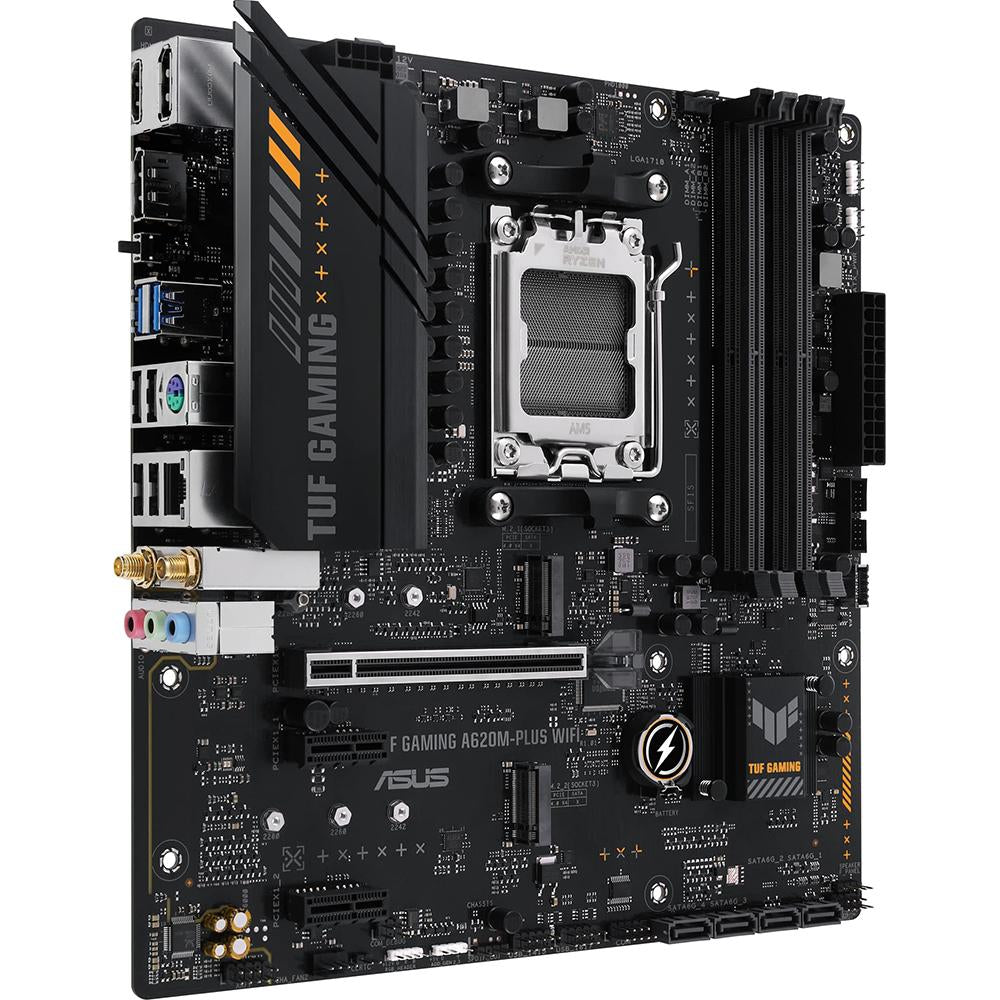

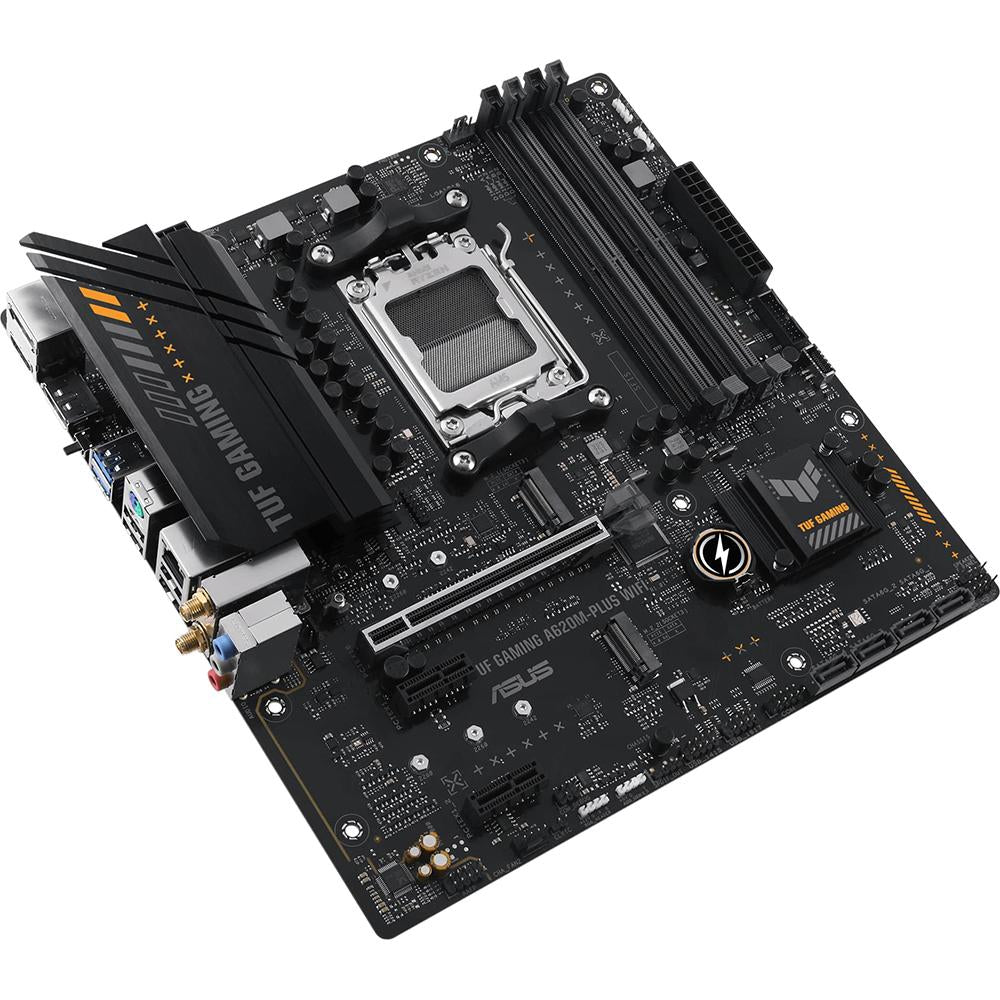

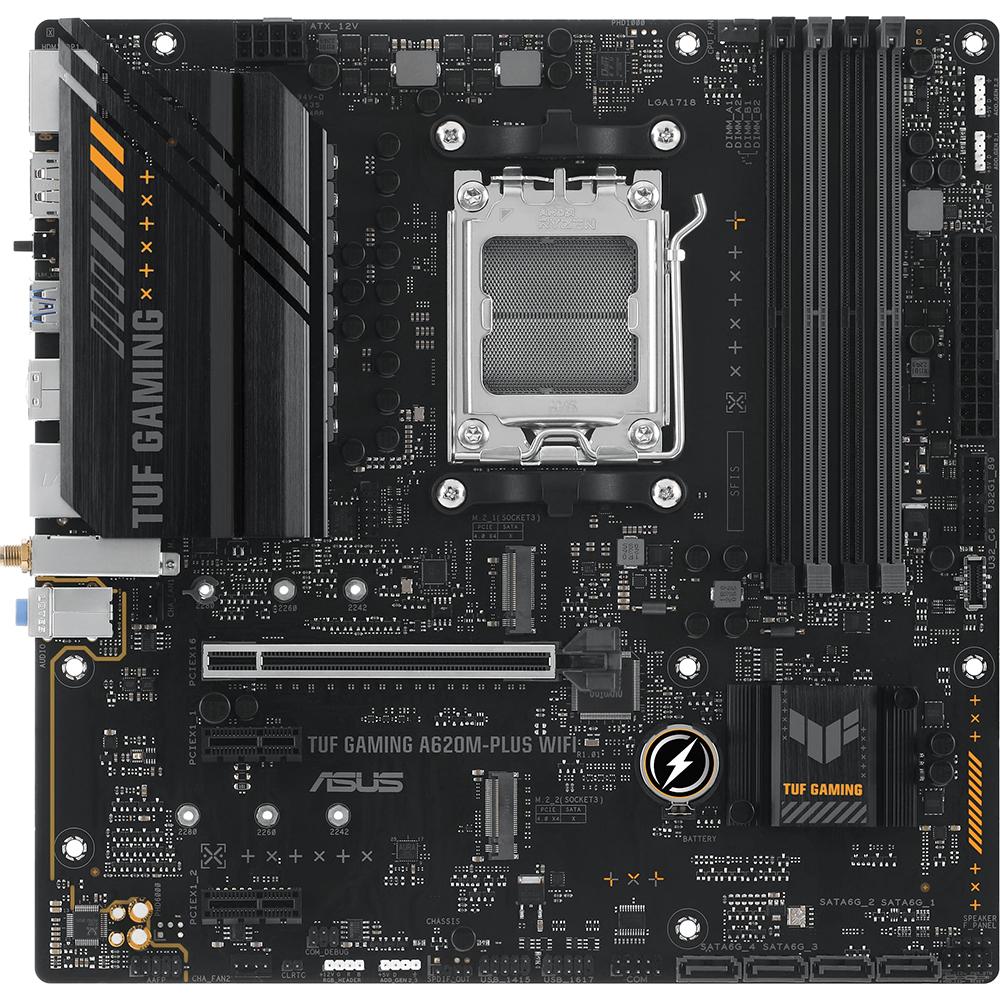

TUF GAMING A620M-PLUS WIFI

ASUS TUF GAMING A620M-PLUS WIFI takes all the essential elements of AMD Ryzen 7000-series processors and combines them with game-ready features and proven durability. Engineered with military-grade components; an upgraded power solution and a comprehensive cooling system; this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically; this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series. This platform delivers the power and connectivity that advanced AI PC applications demand.

Intelligent Control

Comprehensive controls form the foundation of the ASUS TUF GAMING series. The TUF GAMING A620 motherboard packs flexible tools to tune every aspect of your system; enabling performance tweaks to perfectly match the way you work to maximize productivity.

All-Around Energy Efficiency

The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit; darken Aura lighting; and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.

UEFI BIOS

The renowned ASUS UEFI BIOS provides everything you need to configure; tweak and tune your system. It offers intelligently simplified options for PC DIY beginners and comprehensive features for seasoned veterans.

Advanced Mode - Advanced Tuning for Serious Tweakers: An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options; and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.

Advanced Mode - Search Function: Quickly and easily find the option or setting you need.

Advanced Mode - ASUS User Profile: Transfer configuration settings between different BIOS versions; or share them with friends.

EZ Mode - Quick and Simple Setup: EZ mode displays vital settings and stats; and it offers guided wizards; drag-and-drop functionality; and one-click application of important settings - all to help you get your rig up and running in no time.

EZ Mode - Intuitive Graphical Fan Control: Fine-tune individual fan settings simply by dragging a curve with the mouse.

EZ Mode - Aura On/Off Mode (Stealth): Easily enable or disable Aura RGB lighting or every onboard LED; for a subdued aesthetic touch.

Armoury Crate

The ASUS-exclusive Armoury Crate centralizes easy control of supported gaming products. A single intuitive interface lets you customize RGB lighting for all compatible devices and link them to Aura Sync for unified illumination. It also offers information and control for a select and growing hardware ecosystem; with input device settings; Fan Xpert 2+ and Two-Way AI Noise Cancelation. Armoury Crate even features product registration; and a news section to stay in touch with the gaming community.

Rock-Solid Performance

With upgraded power delivery and comprehensive cooling options to fuel AMD's CPUs; plus support for faster memory and storage; TUF GAMING A620 motherboards are the perfect foundation for your next high-core-count AMD battle rig.

Six-Layer PCB Design

Multiple PCB layers optimize heat management for critical components to keep them at their optimal operating temperatures.

TUF Components

TUF Chokes: Certified military-grade TUF chokes deliver rock-solid power to the CPU; improving system stability.

TUF Capacitors: The TUF 5K black metallic capacitors provide 52% wider temperature tolerance and a 2.5X-longer lifespan than standard motherboard capacitors.

Digi+ VRM

The integrated Digi+ voltage-regulator module (VRM) is one of the finest in the industry; optimized for ultra-smooth and ultra-clean power delivery to the CPU at all times.

DRAM Overclocking Performance

Comprehensive memory tuning options are the cornerstone of TUF GAMING motherboards. With TUF GAMING A620 motherboards; you can extract all of the potential out of your DDR5 modules; whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked.

DDR5 Dominance: For those who want to fly past stock DDR5 speeds; TUF GAMING A620 motherboards are primed and ready for enthusiast-grade kits courtesy of vast AMD Extended Profiles for Overclocking (EXPO) support. Seasoned veterans can further tweak performance via the extensive array of settings in the UEFI.

PCIe 4.0 Support

Dual M.2 slots support up to PCIe 4.0 and also provide NVMe SSD RAID support for incredible performance potential. Create a RAID configuration with up to two PCIe 4.0 storage devices to enjoy the fast data transfer speeds.

Cooler By Design

Enlarged VRM Heatsink: The extensive surface area of this heatsink covers the VRMs and chokes to improve heat dissipation.

Comprehensive Fan Controls

TUF GAMING A620 motherboards feature comprehensive fan controls that can be configured via Fan Xpert 2+ utility in Armoury Crate or the award-winning ASUS UEFI BIOS.

Multiple Temperature Source: Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling; and all settings can be easily managed by Fan Xpert 2+ or via the UEFI.

Smart Fan Protection: A dedicated integrated circuit protects each fan header from excess heat and electrical currents.

4-Pin PWM/DC Fan: Each onboard header supports auto-detection of PWM or DC fans.

Connectivity

TUF GAMING A620 motherboards reach new heights of performance potential with the PCI Express; dual DisplayPort; while an arsenal of USB ports; including USB Type-A connectors with fast USB 3.2 Gen 1 connectivity and one front USB 3.2 Gen 1 Type-C connector for compatible cases.

Multi Display Outputs: There are three Display Outputs on TUF GAMING A620 motherboards; including dual DisplayPort and HDMI. It is very friendly to PC DIY users.

USB 3.2 Gen 1 Type-A: Numerous USB ports support gaming rigs loaded with peripherals; including two USB Type-A connectors with fast USB 3.2 Gen 1 connectivity for compatible cases.

Front USB 3.2 Gen 1 Type-A: A full complement of USB ports support high-end rigs loaded with peripherals; including a front-panel USB 3.2 Gen 1 Type-A header that provides data transfer speeds of up to 5 Gbps.

Front USB 3.2 Gen 1 Type-C: A full complement of USB ports support high-end rigs loaded with peripherals; including a front-panel USB 3.2 Gen 1 Type-C connector that provides data transfer speeds of up to 5 Gbps.

PCIe 4.0: TUF GAMING A620 motherboards offer PCIe 4.0 connectivity for the GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.

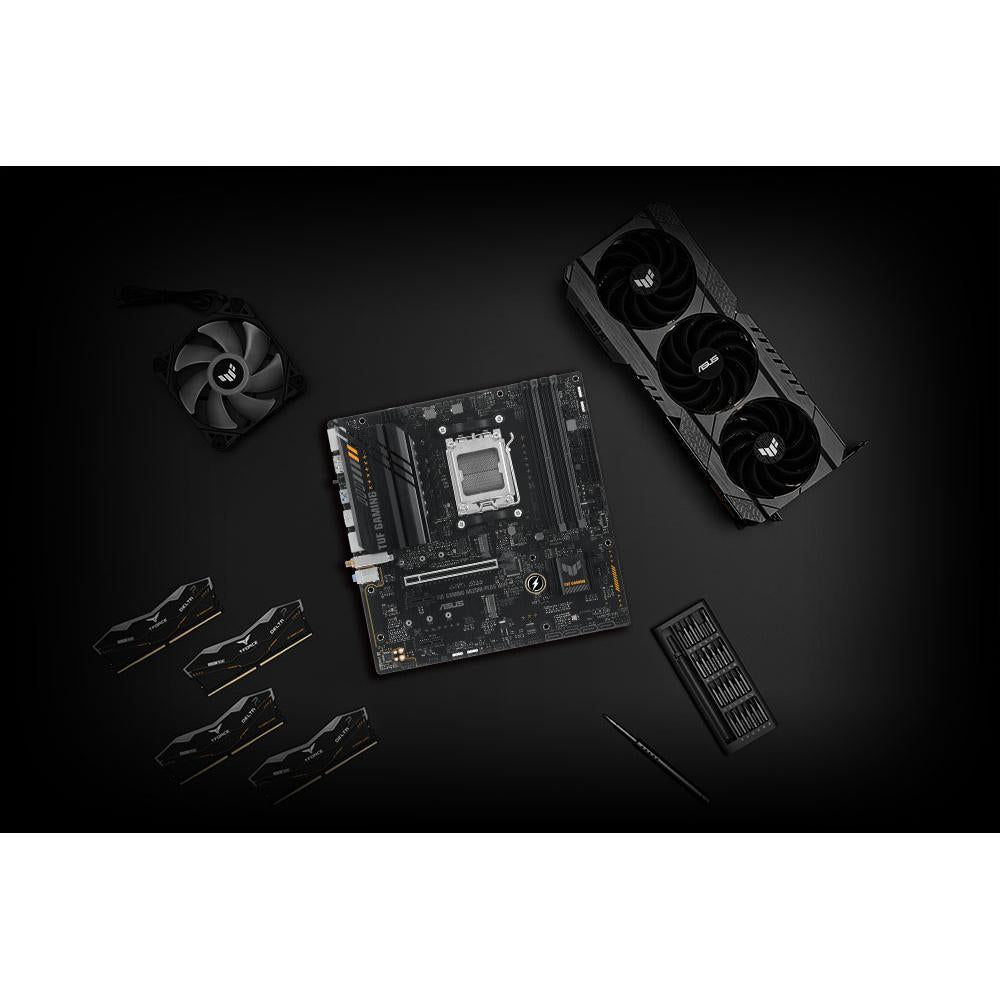

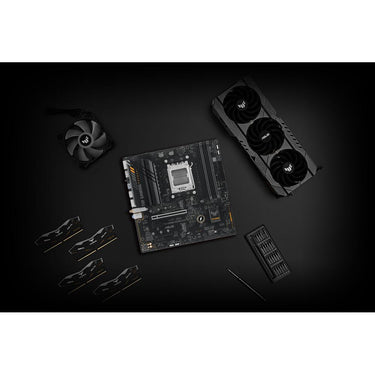

Easy PC DIY

The TUF GAMING line offers easy setup for all builders. The TUF GAMING Alliance ecosystem grants compatibility; while Armoury Crate has Fan Xpert 2+; hardware info; Two-Way AI Noise Cancelation; RGB options and peripheral settings. This platform has intuitive tools to build and optimize dream rigs.

TUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands to ensure compatibility across a wide range of parts; such as PC cases; power supplies; CPU coolers; memory kits and more. With new partnerships and components being added regularly; the TUF GAMING Alliance will continue to grow even stronger.

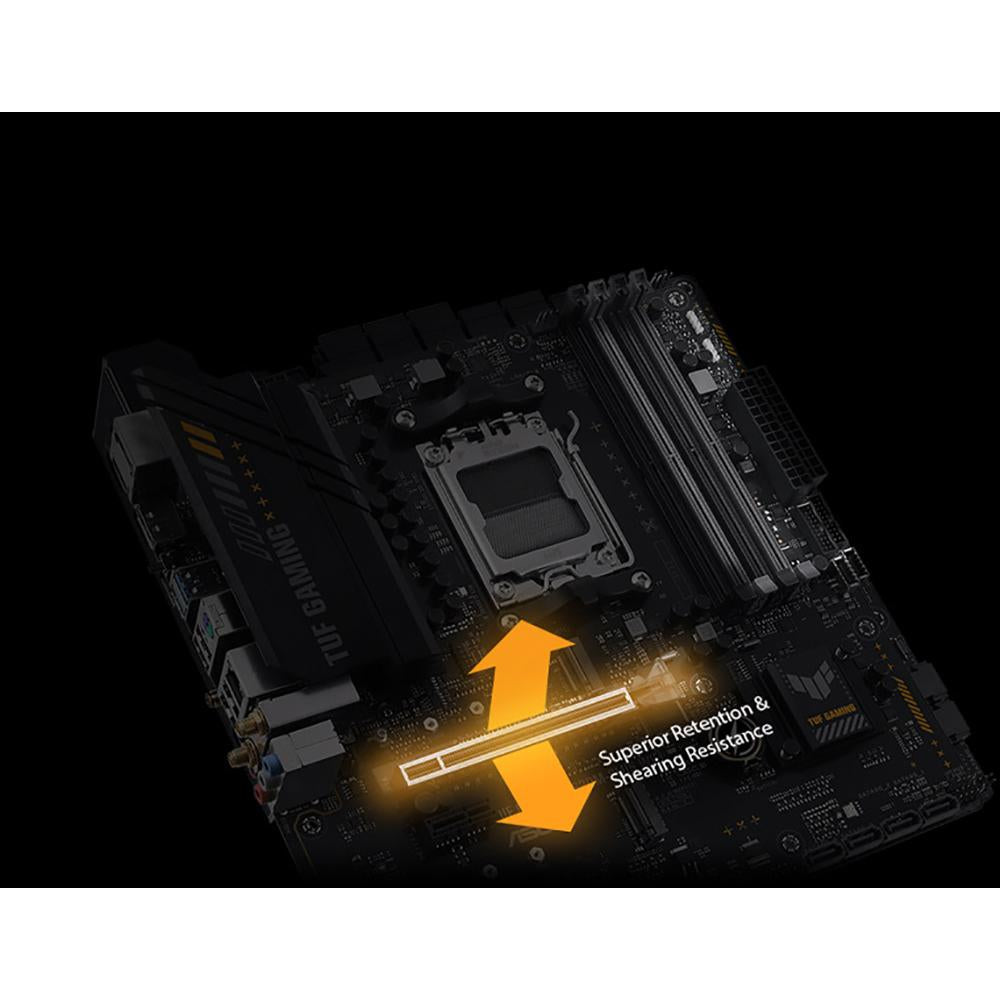

SafeSlot Core+

SafeSlot Core+ is the ASUS-exclusive PCIe slot fortified with a one-piece stainless-steel brace that shields the slot to protect it from damage. The metal cover is tightly secured to the slot with hooks; and the entire assembly is firmly anchored to the PCB with strengthened solder points to provide a secure foundation for heavyweight graphics cards.

ESD Guards

ESD Guards prolong the life of components while preventing damage from electrostatic discharge; providing protection for up to +/- 10 kV of air discharge and +/- 6 kV of contact discharge - greatly surpassing the respective industry standards of +/- 6 kV and +/- 4 kV. Surface-mounted TVS diodes in a dual in-line package help protect your PC from voltage spikes.

USB Connectors: Additional on-circuit ESD transient-voltage-suppression.

TUF LANGuard

TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput; protecting the motherboard from lightning strikes and static electricity.

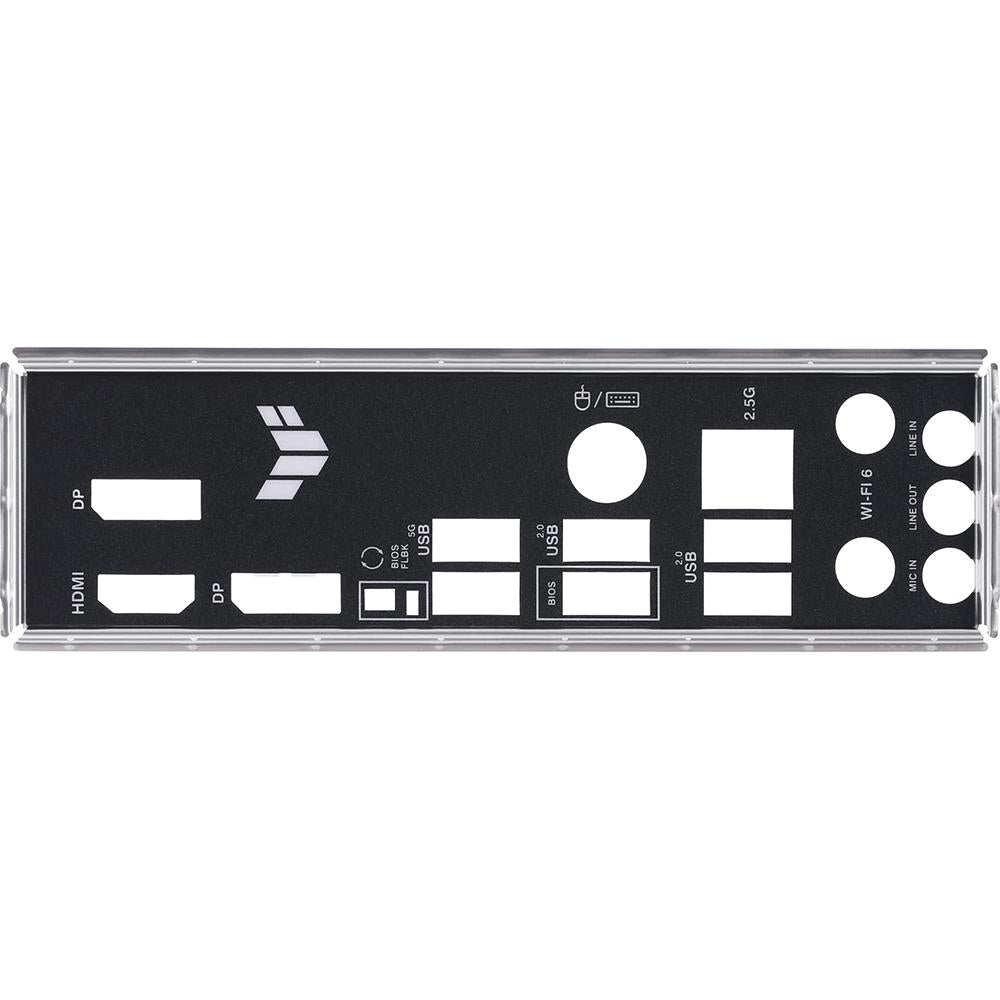

Stainless Steel Back I/O Panel

TUF GAMING motherboards have a corrosion-resistant stainless steel back I/O panel bonded with chromium oxide to provide a lifespan that's three times longer than traditional panels. With this protective feature; TUF GAMING motherboards passed 72-hour salt fog testing; while other brands only passed 24-hour testing.

BIOS FlashBack

BIOS FlashBack is the simplest and safest (UEFI) BIOS update method. Simply drop the (UEFI) BIOS file onto a FAT32 formatted USB stick; plug it into the USB BIOS FlashBack port and press the button. Updates can even be performed without a memory or a CPU installed.

M.2 Q-Latch

The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the M.2 SSD; neatly eliminating the need for screws.

Q-LED Core

The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.

Immersive Gaming

TUF GAMING A620 motherboards provide a feature-packed high-performance gaming package; with ultrafast networking for smoother online gameplay; pristine audio with positional cues for FPS Gaming; and onboard RGB lighting that syncs with attached gear to personalize your gaming atmosphere.

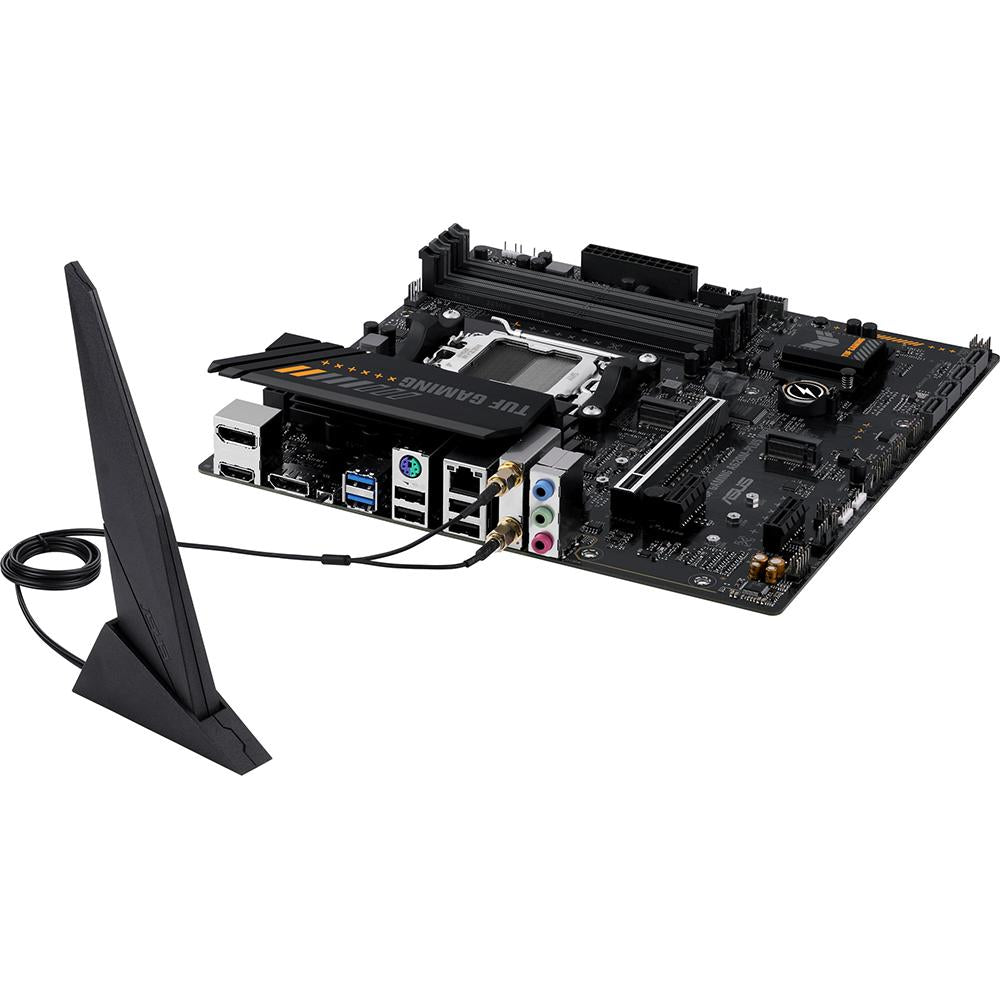

WiFi 6

The WiFi 6 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 1.2 Gbps. Perhaps more importantly for power users; it's optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6.

MyASUS: MyASUS offers a variety of support features to help you contact customer service; troubleshoot issues and optimize product performance. You can also use MyASUS to enable the WiFi SmartConnect function to automatically connect to the wireless router with the best signal.

2.5 Gb Ethernet

2.5 Gb on-board Ethernet kicks your LAN connection up a notch with a bandwidth improvement of up to 2.5X. Using your existing LAN cable; you can take advantage this networking upgrade to experience smoother; lag-free gaming; immediately stream high-resolution videos and enjoy faster file transfers.

Two-Way AI Noise Cancelation

This powerful ASUS-exclusive utility leverages a massive deep-learning database to reduce background noise from the microphone and incoming audio while preserving voices. Distracting keyboard clatter; mouse clicks and other ambient noises are removed so you can hear and be heard with perfect clarity while gaming or during calls.

Realtek 7.1 Surround Sound

The unique audio codec designed in close collaboration with Realtek for TUF GAMING A620 motherboards features an unprecedented 98 dB signal-to-noise ratio for the stereo line out; providing pristine audio quality.

Outshine The Competition

A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips and devices connected to the onboard RGB headers- and it can all be synced with an ever-growing portfolio of Aura-capable hardware.

Addressable Gen 2 RGB Headers

Three addressable Gen 2 RGB headers will support up to 500 LEDs on Gen 2 RGB devices; empowering Aura Sync to automatically tailor lighting effects across your whole system. The new headers also offer full backward compatibility with existing Aura Sync gear.

Specifications:

• CPU:
• AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
• Refer to www.asus.com for CPU support list
• Chipset: AMD A620 Chipset
• Memory:
• 4 x DIMM slots; Max. 192GB; DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800; ECC and Non-ECC; Un-buffered Memory
• Dual Channel Memory Architecture
• Supports AMD Extended Profiles for Overclocking (EXPO)
• OptiMem II
• Supported memory types; data rate (speed); and number of DRAM modules vary depending on the CPU and memory configuration
• Non-ECC; un-buffered DDR5 memory supports On-Die ECC function
• Graphics:
• 2 x DisplayPort
• 1 x HDMI port
• Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications
• Support max. 8K@60Hz as specified in DisplayPort 1.4
• Supports 4K@60Hz as specified in HDMI 2.1
• Expansion Slots:
• AMD Ryzen 9000 & 7000 Series Desktop Processors
• 1 x PCIe 4.0 x16 slot (supports x16 mode)
• AMD Ryzen 8000 Series Desktop Processors
• 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
• AMD A620 Chipset
• 2 x PCIe 3.0 x1 slots
• Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/)
• Specifications vary by CPU types
• To ensure compatibility of the device installed; please refer to https://www.asus.com/support/ for the list of supported peripherals
• Storage:
• Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
• AMD Ryzen 9000 & 7000 Series Desktop Processors
• M.2_1 slot (Key M); type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• M.2_2 slot (Key M); type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• AMD Ryzen 8000 Series Desktop Processors
• M.2_1 slot (Key M); type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• M.2_2 slot (Key M); type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
• AMD A620 Chipset
• 4 x SATA 6Gb/s ports
• AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10
• Specifications vary by CPU types
• Ethernet:
• 1 x Realtek 2.5Gb Ethernet
• TUF LANGuard
• Wireless & Bluetooth:
• Wi-Fi 6
• 1x1 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
• Supports 2.4/5GHz frequency band
• Bluetooth v5.3
• USB:
• Rear USB: Total 6 ports
• 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• Front USB: Total 7 ports
• 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C)
• 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• USB Type-C power delivery output: max. 5V/3A
• Audio:
• Realtek 7.1 Surround Sound High Definition Audio CODEC
• Supports: Jack-detection; Multi-streaming; Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback
• Audio Features
• Audio Shielding
• Premium audio capacitors
• Dedicated audio PCB layers
• A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output

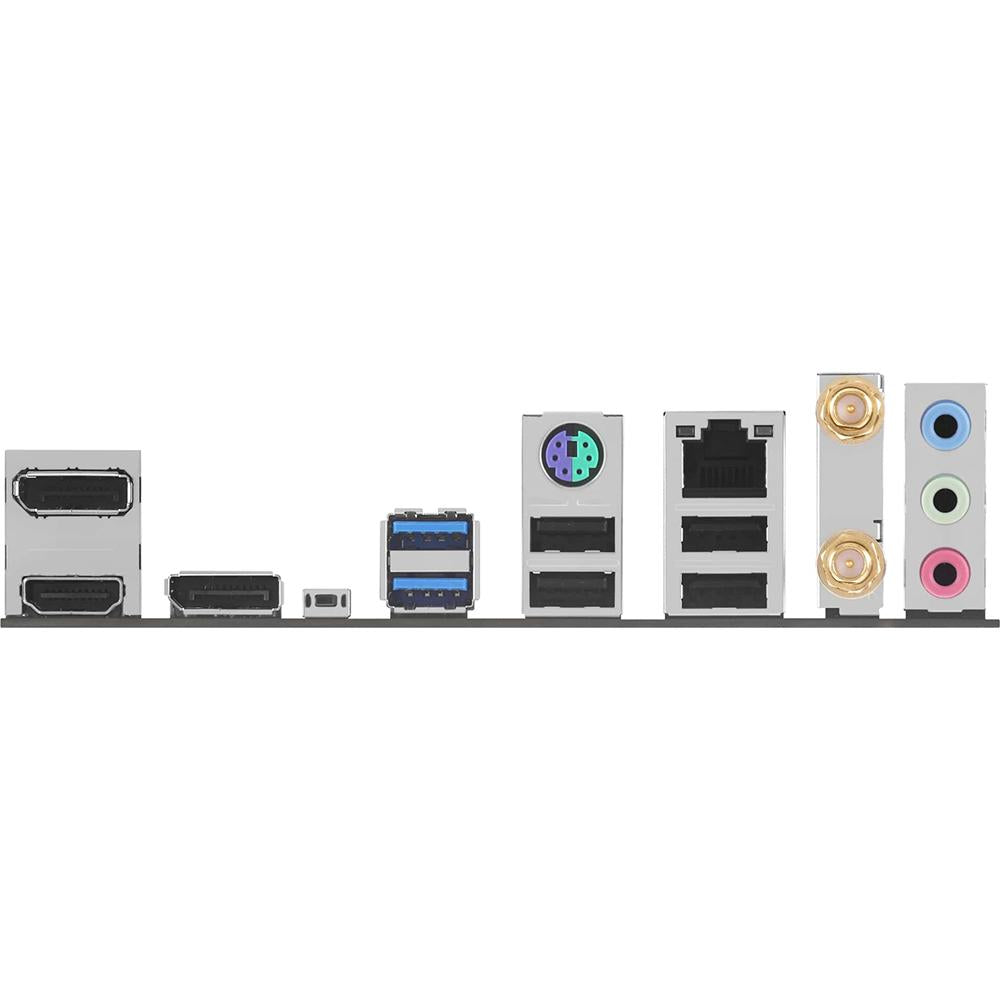

• Back Panel I/O Ports:
• 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 2 x DisplayPort
• 1 x HDMI port
• 1 x Wi-Fi Module
• 1 x Realtek 2.5Gb Ethernet port
• 3 x Audio jacks
• 1 x BIOS FlashBack button
• 1 x PS/2 Keyboard/Mouse combo port
• Internal I/O Connectors:
• Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 2 x 4-pin Chassis Fan headers
• Power related
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• Storage related
• 2 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• USB
• 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C)
• 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Miscellaneous
• 3 x Addressable Gen 2 headers
• 1 x Aura RGB header
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x S/PDIF Out header
• 1 x Speaker header
• 1 x 10-1 pin System Panel header
• Special Features:
• ASUS TUF PROTECTION
• DIGI+ VRM
• ESD Guards
• TUF LANGuard
• Overvoltage Protection
• SafeSlot Core+
• Stainless-Steel Back I/O
• ASUS Q-Design
• M.2 Q-Latch
• Q-DIMM
• Q-LED Core
• Q-Slot
• ASUS Thermal Solution
• VRM heatsink design
• ASUS EZ DIY
• BIOS FlashBack button
• BIOS FlashBack LED
• Aura Sync
• Aura RGB header
• Addressable Gen 2 headers
• Software Features:
• ASUS Exclusive Software
• Armoury Crate
• Aura Creator
• Aura Sync
• Fan Xpert 2+
• Power Saving
• Two-Way AI Noise Cancellation
• AI Suite 3
• TurboV EVO
• DIGI+ VRM
• PC Cleaner
• TUF GAMING CPU-Z
• MyASUS
• Norton 360 for Gamers (60 Days Free Trial)
• WinRAR
• UEFI BIOS
• ASUS EZ DIY
• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode
• BIOS: 256 Mb Flash ROM; UEFI AMI BIOS
• Manageability: WOL by PME; PXE
• Operating System: Windows 11; Windows 10 64-bit
• Form Factor: Micro-ATX
• Dimensions: 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
