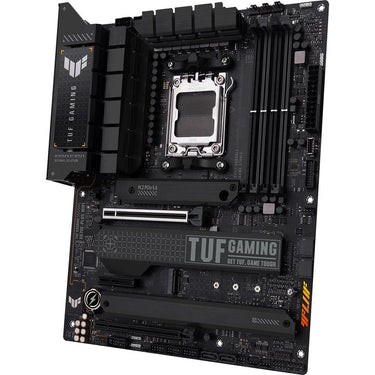

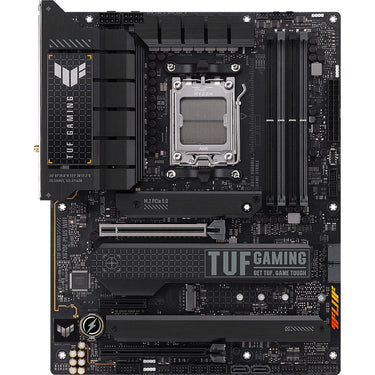

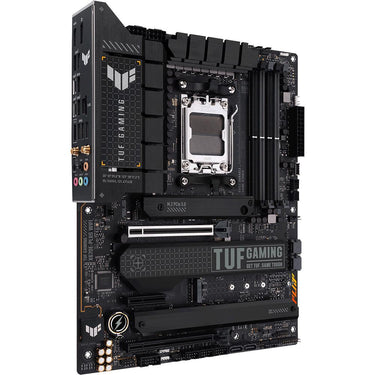

ASUS TUF Gaming Socket AM5 Ryzen 7000 ATX Motherboard - TUFGAMINGX670E-PLUSW

ASUS TUF GAMING X670E-PLUS WIFI takes all the essential elements of the latest AMD Ryzen 7000-series processors and combines them with game-ready features and proven durability. Engineered with military-grade components; an upgraded power solution and a comprehensive cooling system; this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically; this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.

Intelligent Control

Comprehensive controls form the foundation of the ASUS TUF GAMING series. The TUF GAMING X670E motherboard packs flexible tools to tune every aspect of your system; enabling performance tweaks to perfectly match the way you work to maximize productivity.

Overclocking Technologies: Whether you're looking to crush benchmarks or fine-tune your system for daily driving; TUF GAMING offers unique tools that let you exploit the intricacies of the latest Ryzen architecture.

Overclocking Technologies - AI Overclocking: Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.

Overclocking Technologies - Dynamic OC Switcher: Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks.

Overclocking Technologies - Core Flex: Core Flex empowers you to smash limits farther than ever before by letting you control power and thermals in creative new ways. In its simplest form; you can set breakpoints to gradually reduce CPU core frequency as temperature or current increases. But the system is extremely adaptable; supporting multiple user-controlled functions that can manipulate power; current and temperature limits independently so that you can bend CPU performance to your will.

AI Cooling II: Balance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test; and then it monitors CPU temperatures to dynamically adjust fans to optimal speeds.

UEFI BIOS: The renowned ASUS UEFI BIOS provides everything you need to configure; tweak and tune your system. It offers intelligently simplified options for PC DIY beginners and comprehensive features for seasoned veterans.

Armoury Crate: The ASUS-exclusive Armoury Crate centralizes easy control of supported gaming products. A single intuitive interface lets you customize RGB lighting for all compatible devices and link them to Aura Sync for unified illumination. It also offers information and control for a select and growing hardware ecosystem; with input device settings; Fan Expert 4 and Two-Way AI Noise Cancelation. Armoury Crate even features product registration; and a news section to stay in touch with the gaming community.

Rock-Solid Performance

With upgraded power delivery and comprehensive cooling options to fuel AMD's latest CPUs; plus support for faster memory and storage; TUF GAMING X670E-PLUS WIFI is the perfect foundation for your next high-core-count AMD battle rig.

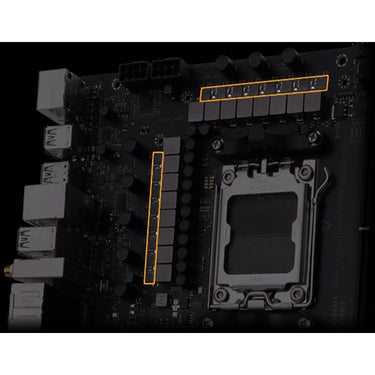

Power Design - Driver and MOSFET - 14(70A)+2(70A)+2 Power Stages: 14(70A)+2(70A)+2 power stages power stages are rated to handle up to 70 amperes; combining high-side and low-side MOSFETS and drivers into a single package to deliver power; efficiency and stable performance for all compatible AMD processors.

Power Design - Multilayer PCB - Eight-Layer PCB Design: The multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.

Power Design - Power Connector - 8+8 PIN ProCool Power Connectors: Compared to traditional power inputs; ASUS ProCool connectors are built to tight specifications to ensure full contact with PSU power cables. The resulting lower impedance helps prevent hotspots and connector failure.

Power Design - System Stability - TUF Components - TUF Chokes: Certified military-grade TUF chokes deliver rock-solid power to the CPU; improving system stability.

Power Design - System Stability - TUF Components - TUF Capacitors: The TUF 5K black metallic capacitors provide 52% wider temperature tolerance and a 2.5X-longer lifespan than standard motherboard capacitors.

Power Design - Controller - Digi+ VRM: The integrated Digi+ voltage-regulator module (VRM) is one of the finest in the industry; optimized for ultra-smooth and ultra-clean power delivery to the CPU at all times.

Memory & Storage - DRAM Overclocking Performance: Comprehensive memory tuning options are the cornerstone of TUF GAMING motherboards. With the TUF GAMING X670E-PLUS WIFI; you can extract all of the potential out of your DDR5 modules; whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked.

Memory & Storage - PCIe 5.0 Support: The TUF GAMING X670E-PLUS WIFI also features one PCIe 5.0 M.2 slot to enjoy the fastest data transfers of up to 128 Gbps; and all M.2 slots support for NVMe and SATA RAID configurations to take advantage of the latest available speeds.

Cooling - Cooler By Design: The TUF GAMING X670E-PLUS WIFI is armed with a 3X enlarged VRM; PCH and three M.2 slots with heatsinks that provide the perfect balance of mass and surface area for heat dissipation.

Cooling - Comprehensive Fan Controls: TUF GAMING X670E motherboards feature comprehensive fan controls that can be configured via Fan Expert 4 utility in Armoury Crate or the award-winning ASUS UEFI BIOS.

Connectivity: The TUF-GAMING X670E-PLUS WIFI reaches new heights of performance potential with the latest version of PCI Express; while an arsenal of USB ports includes three Type-C connections; and Thunderbolt (USB4) expands compatibility and bandwidth even further.

Connectivity - USB 3.2 Gen 2x2 Type-C: Extensive USB support ensures connections to a wide array of external devices. This TUF GAMING motherboard includes a USB 3.2 Gen 2x2 Type-C port on the rear I/O panel that delivers transfer speeds of up to 20 Gbps.

Connectivity - Front USB3.2 Gen 2 Type-C: A full complement of USB ports support high-end rigs loaded with peripherals; including a front-panel USB 3.2 Gen 2 Type-C connector that provides data transfer speeds of up to 10 Gbps.

Connectivity - PCIe 5.0: The latest AMD processors bring PCIe 5.0 support to the market. PCIe 5.0 offers twice the data transfer speed of PCIe 4.0; making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits; such as electrical changes to improve signal integrity; backward-compatible CEM connectors for add-in cards; and backward compatibility with previous versions of the PCIe bus.

Connectivity - USB4 Support: TUF GAMING X670E series features USB4 support via a Thunderbolt (USB4) header. With an ASUS add-on card; TUF GAMING motherboards can enable bi-directional speeds of up to 40 Gbps on a single cable; while providing power to fast-charge device. Additionally; this card has a daisy-chain function for multi-screen connection and supports up to dual displays with 4K resolution.

Easy PC DIY

The TUF GAMING line offers easy setup for all builders. The TUF GAMING Alliance ecosystem grants compatibility; while Armoury Crate has Fan Expert 4; hardware info; Two-Way AI Noise Cancelation; RGB options and peripheral settings. This platform has intuitive tools to build and optimize dream rigs.

TUF GAMING Alliance - Build With Confidence: TUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands to ensure compatibility across a wide range of parts; such as PC cases; power supplies; CPU coolers; memory kits and more. With new partnerships and components being added regularly; the TUF GAMING Alliance will continue to grow even stronger.

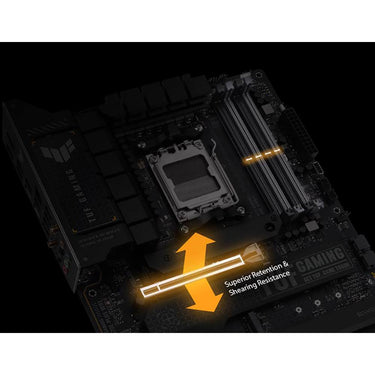

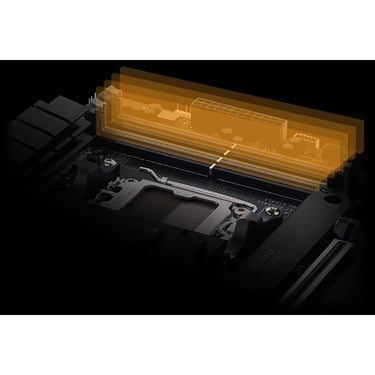

TUF Protection - SafeSlot Core+ & SafeDIMM: PCIe 5.0 is 2x faster than PCIe 4.0; so we adapted our SMT manufacturing process for the faster SafeSlot Core+; to ensure the highest data speeds. SafeSlot Core+ is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed. Meanwhile; strong ASUS SafeDIMM sheathes support and protect memory modules on select ASUS motherboards; empowering you to insert your modules with speed; accuracy and confidence.

TUF Protection - ESD Guards: ESD Guards prolong the life of components while preventing damage from electrostatic discharge; providing protection for up to +/- 10 kV of air discharge and +/- 6 kV of contact discharge - greatly surpassing the respective industry standards of +/- 6 kV and +/- 4 kV. Surface-mounted TVS diodes in a dual in-line package help protect your PC from voltage spikes.

TUF Protection - TUF LANGuard: TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput; protecting the motherboard from lightning strikes and static electricity.

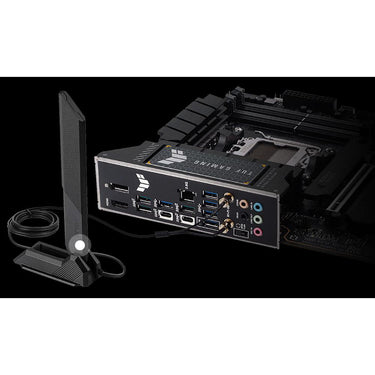

TUF Protection - Stainless Steel Back I/O Panel: TUF GAMING motherboards have a corrosion-resistant stainless steel back I/O panel bonded with chromium oxide to provide a lifespan that's three times longer than traditional panels. With this protective feature; TUF GAMING motherboards passed 72-hour salt fog testing; while other brands only passed 24-hour testing.

Easy Configuration - M.2 Q-Latch: The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the M.2 SSD; neatly eliminating the need for screws.

Easy Configuration - Removable Captive Screws: Specialized M.2 slot screws reduce the risk of dropping or losing a screw somewhere in your case during M.2 heatsink removal.

Easy Configuration - Q-LED: The on-board Q-LED troubleshooting lights give PC builders a quick indicator to confirm that key components ― CPU; RAM; graphics card; storage devices ― are functioning normally during startup.

Immersive Gaming

TUF GAMING X670E motherboards provide a feature-packed high-performance gaming package; with ultrafast networking for smoother online gameplay; pristine audio with positional cues for FPS Gaming; and onboard RGB lighting that syncs with attached gear to personalize your gaming atmosphere.

2.5 Gb Ethernet: 2.5 Gb on-board Ethernet kicks your LAN connection up a notch with a bandwidth improvement of up to 2.5X. Using your existing LAN cable; you can take advantage this networking upgrade to experience smoother; lag-free gaming; immediately stream high-resolution videos and enjoy faster file transfers.

Two-Way AI Noise Cancelation: This powerful ASUS-exclusive utility leverages a massive deep-learning database to reduce background noise from the microphone and incoming audio while preserving voices. Distracting keyboard clatter; mouse clicks and other ambient noises are removed so you can hear and be heard with perfect clarity while gaming or during calls.

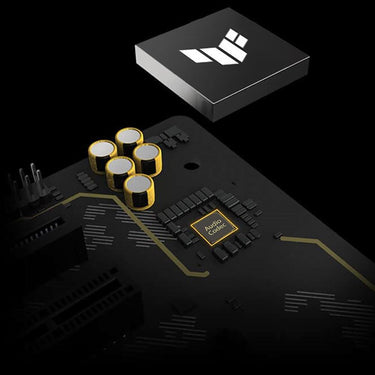

Audio - 7.1 Surround Sound - Realtek 7.1 Surround Sound: TUF GAMING X670E series utilizes a unique audio codec designed in close collaboration with Realtek - the Realtek S1220A. It features an unprecedented 120 dB signal-to-noise (SNR) ratio for the stereo line out and a 113 dB SNR for the line in; providing pristine audio quality. Additionally; an impedance-sensing circuit automatically adjusts gain to ensure an optimal volume range for your headphones.

Audio - 7.1 Surround Sound - DTS Audio Processing: DTS Audio Processing enhances gaming headset and speaker audio experiences by reducing distortion and by providing deeper bass; so games; movies and music sound better. It also allows you to customize audio settings.

Lighting - Lighting effects - Outshine The Competition: A well-tuned system deserves a matching aesthetic. TUF GAMING X670E series features edge lighting to enhance its rugged look; and ASUS Aura offers full RGB control with presets for built-in LEDs and third-party strips. It can all sync with an ever-growing portfolio of Aura-compatible hardware.

Lighting - Gen 2 RGB headers - Addressable Gen 2 RGB Header: Three addressable Gen 2 RGB headers will support up to 500 LEDs on Gen 2 RGB devices; empowering Aura Sync to automatically tailor lighting effects across your whole system. The new headers also offer full backward compatibility with existing Aura Sync gear.

This Changes Everything

Build your next rig with an AMD Ryzen 7000 Series processor and ASUS TUF GAMING motherboards to experience advanced performance. With up to 16 "Zen 4" cores and 32 threads; boost clocks of up to 5.7GHz; and 80MB cache; the AMD Ryzen 7000 Series keeps you ahead of the game.

You'll also gain access to new features for gamers with AMD Socket AM5; from the speed of DDR5 memory to the increased bandwidth of PCI 5.0. AMD Ryzen 7000 Series processors and AMD socket AM5 motherboards are unlocked for overclocking to personalize your experience. Gain even more performance when you overclock your DDR5 memory with AMD EXPO technology.

Product Features:

• Enhanced power solution - 14+2 teamed power stages; eight-layer PCB; 8+8 ProCool sockets; alloy chokes and durable capacitors for stable power delivery
• Next-gen connectivity - PCIe 5.0; USB 3.2 Gen2x2 Type-C; front USB 3.2 Gen 2 Type-C; USB4 support
• Made for online Gaming - Realtek 2.5 Gb Ethernet; WiFi 6E and TUF LANGuard
• Two-way AI Noise Cancelation - Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences

Specifications:

• CPU:
• AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors
• Refer to www.asus.com for CPU support list
• Chipset: AMD X670
• Memory:
• 4 x DIMM; Max. 192GB; DDR5 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC; Un-buffered Memory
• Dual Channel Memory Architecture
• Supports AMD Extended Profiles for Overclocking (EXPO)
• OptiMem II
• Supported memory types; data rate(Speed); and number of DRAM module vary depending on the CPU and memory configuration; for more information refer to www.asus.com for memory support list
• Non-ECC; Un-buffered DDR5 Memory supports On-Die ECC function
• Graphics:
• 1 x DisplayPort
• 1 x HDMI port
• Graphics specifications may vary between CPU types
• Supports max. 8K@60Hz as specified in DisplayPort 1.4
• Supports 4K@60Hz as specified in HDMI 2.1
• Expansion Slots:
• AMD Ryzen 7000 Series Desktop Processors
• 1 x PCIe 5.0 x16 slot
• AMD X670 Chipset
• 1 x PCIe 4.0 x16 slot (supports x4 mode)
• 1 x PCIe 4.0 x4 slots
• Please check PCIe bifurcation table at https://www.asus.com/support/FAQ/1037507/
• Storage:
• Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
• AMD Ryzen 7000 Series Desktop Processors
• M.2_1 slot (Key M); type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• M.2_3 slot (Key M); type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• AMD X670 Chipset
• M.2_2 slot (Key M); type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
• M.2_4 slot (Key M); type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• 4 x SATA 6Gb/s ports
• AMD RAID Expert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10
• M.2_2 slot shares bandwidth with SATA6G_1&2. When M.2_2 runs at PCIe x4 mode; SATA6G_1&2 will be disabled
• Ethernet:
• 1 x Realtek 2.5Gb Ethernet
• TUF LANGuard
• Wireless & Bluetooth:
• Wi-Fi 6E
• 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
• Supports 2.4/5/6GHz frequency band
• Bluetooth v5.2
• WiFi 6E 6GHz regulatory may vary between countries
• USB:
• Rear USB (Total 10 ports)
• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
• 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C)
• 5 x USB 3.2 Gen 1 ports (5 x Type-A)
• Front USB (Total 7 ports)
• 1 x USB 3.2 Gen 2 connector (supports USB Type-C)
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 3 x USB 2.0 headers support additional 6 USB 2.0 ports
• Audio:
• Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
• Impedance sense for front and rear headphone outputs
• Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
• Supports: Jack-detection; Multi-streaming; Front Panel Jack-retasking
• High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
• Supports up to 32-Bit/192 kHz playback
• Audio Features
• Audio Shielding
• Premium audio capacitors
• Dedicated audio PCB layers
• Audio Cover
• Unique de-pop circuit
• Due to limitations in HDA bandwidth; 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

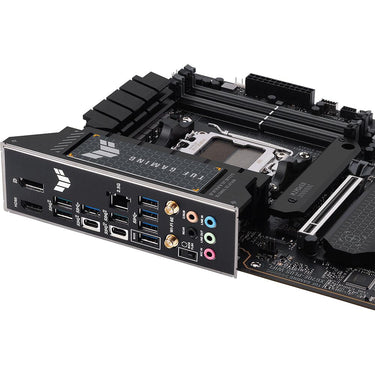

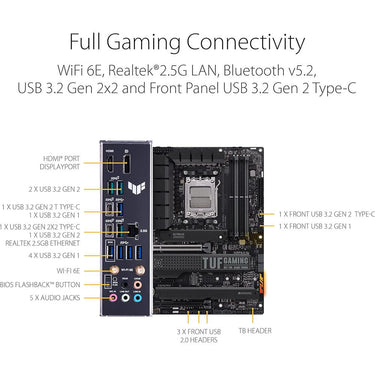

• Back Panel I/O Ports:
• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
• 4 x USB 3.2 Gen 2 ports (3 x Type-A; 1 x USB Type-C)
• 5 x USB 3.2 Gen 1 ports (5 x Type-A)
• 1 x DisplayPort
• 1 x HDMI port
• 1 x Wi-Fi Module
• 1 x Realtek 2.5Gb Ethernet port
• 5 x Audio jacks
• 1 x BIOS FlashBack button
• Internal I/O Connectors:
• Fan and Cooling Related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 4 x 4-pin Chassis Fan headers
• 1 x W_PUMP+ header
• Power Related
• 1 x 24-pin main power connector
• 2 x 8-pin +12V power connectors
• Storage Related
• 4 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• USB
• 1 x USB 3.2 Gen 2 connector (supports USB Type-C)
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 3 x USB 2.0 headers support additional 6 USB 2.0 ports
• Miscellaneous
• 3 x Addressable Gen 2 headers
• 1 x AURA RGB header
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x 20-3 pin System Panel header with Chassis intrude function
• 1 x Thermal Sensor header
• 1 x Thunderbolt header
• Special Features:
• TUF Protection
• DIGI+ VRM (- Digital power design with DrMOS)
• ESD Guards
• TUF LANGuard
• Overvoltage protection
• Safeslot Core+
• Stainless-steel back I/O
• ASUS Q-Design
• M.2 Q-Latch
• Q-DIMM
• Q-LED (CPU [red]; DRAM [yellow]; VGA [white]; Boot Device [yellow green])
• Q-Slot
• ASUS Thermal Solution
• M.2 heatsink
• VRM heatsink design
• ASUS EZ DIY
• BIOS FlashBack button
• BIOS FlashBack LED
• Clear CMOS header
• ProCool
• Pre-mounted I/O shield
• SafeSlot
• SafeDIMM
• AURA Sync
• Aura RGB header
• Addressable Gen 2 headers
• Software Features:
• ASUS Exclusive Software
• Armoury Crate
• Aura Sync
• Fan Expert 4 (with AI Cooling II)
• Power Saving
• Two-Way AI Noise Cancelation
• AI Suite 3
• Easy Optimization
• DIGI+ VRM
• Turbo app
• PC Cleaner
• TUF GAMING CPU-Z
• DTS Audio Processing
• MyAsus
• Norton Anti-virus software (Free Trial version)
• WinRAR
• UEFI BIOS
• ASUS EZ DIY
• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode
• FlexKey
• BIOS: 256 Mb Flash ROM; UEFI AMI BIOS
• Manageability: WOL by PME; PXE
• Operating System: Windows 11 64-bit; Windows 10 64-bit
• Form Factor:
• ATX Form Factor
• 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
