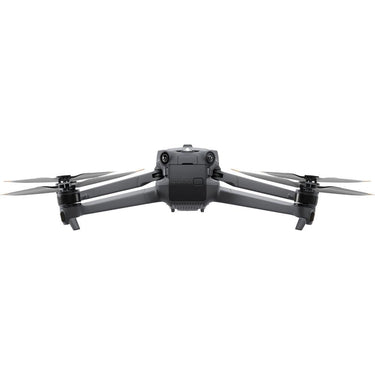

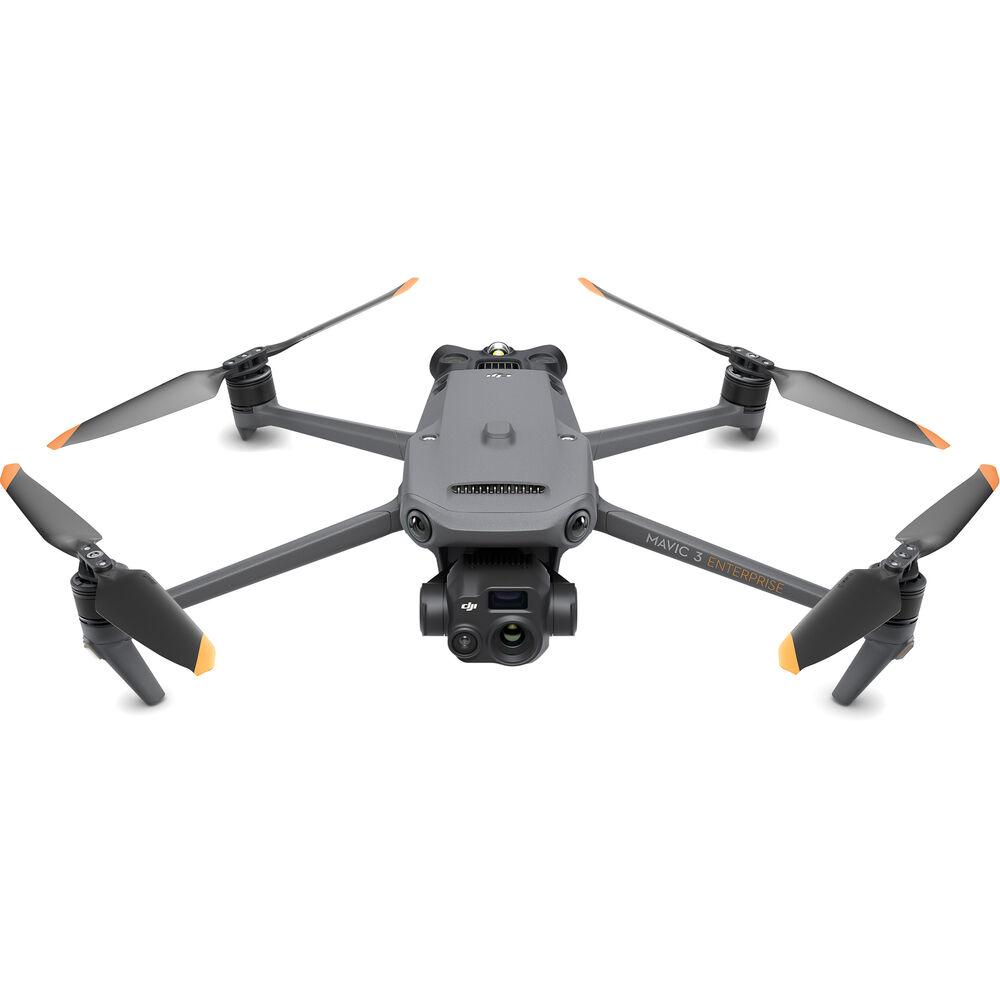

DJI Mavic 3 Thermal with 1-Year DJI Care Enterprise Basic

by DJI
Condition: New
SKU DJIMAVIC3THR1B
$5,498.00
$5,498.00 - $5,498.00
Current price $5,498.00
FG icon
Item Description
  • 20MP Wide, 12MP Tele & Thermal Lenses
  • 56x Hybrid Zoom
  • 1-Year DJI Care Enterprise Basic
  • Up to 9-Mile Range via O3 Transmission
  • Omnidirectional Obstacle Avoidance
  • Auto Obstacle Rerouting with APAS 5.0
  • X

    Overview



    The Mavic 3 Enterprise Series redefines industry standards for small commercial drones. With a mechanical shutter, a 56× zoom camera, and an RTK module for centimeter-level precision, the Mavic 3E brings mapping and mission efficiency to new heights. Thermal version is available for firefighting, search and rescue, inspection, and night operations.

    COMPACT AND PORTABLE
    Streamlined and compact, Mavic 3 Enterprise Series can be carried in one hand and deployed at a moment's notice. Perfect for beginner and veteran pilots alike, it's built to perform on lengthy missions.

    TWO MODELS, COUNTLESS APPLICATIONS

    Wide

    4/3 CMOS, 20MP, Mechanical Shutter

    Tele

    Equivalent Focal Length: 162mm, 12MP, 56× Hybrid Zoom

    Wide

    Equivalent Focal Length: 24mm, 48MP

    Zoom

    Equivalent Focal Length: 162mm, 12MP, 56× Hybrid Zoom

    SURVEY WITH SPEED
    Mavic 3E's wide-angle 4/3 CMOS, 20MP sensor has a mechanical shutter to prevent motion blur and supports rapid 0.7-second interval shooting. Complete mapping missions with extraordinary efficiency without the need for Ground Control Points.

    IMPROVED LOW-LIGHT PERFORMANCE
    Mavic 3E's Wide camera has large 3.3μm pixels that, together with intelligent low-light mode, offer significantly improved performance in dim conditions.

    FOCUS AND FIND
    Both Mavic 3E and Mavic 3T are equipped with a 12MP Zoom Camera, supporting up to 56× Max Hybrid Zoom to see essential details from afar.

    SEE THE UNSEEN
    Mavic 3T's thermal camera has 640 × 512 resolution and supports point and area temperature measurement, high temperature alerts, color palettes, and isotherms to help you find your targets and make quick decisions.Show More



    The Mavic 3 Enterprise Series redefines industry standards for small commercial drones. With a mechanical shutter, a 56× zoom camera, and an RTK module for centimeter-level precision, the Mavic 3E brings mapping and mission efficiency to new heights. Thermal version is available for firefighting, search and rescue, inspection, and night operations.

    COMPACT AND PORTABLE
    Streamlined and compact, Mavic 3 Enterprise Series can be carried in one hand and deployed at a moment's notice. Perfect for beginner and veteran pilots alike, it's built to perform on lengthy missions.

    TWO MODELS, COUNTLESS APPLICATIONS

    Wide

    4/3 CMOS, 20MP, Mechanical Shutter

    Tele

    Equivalent Focal Length: 162mm, 12MP, 56× Hybrid Zoom

    Wide

    Equivalent Focal Length: 24mm, 48MP

    Zoom

    Equivalent Focal Length: 162mm, 12MP, 56× Hybrid Zoom

    SURVEY WITH SPEED
    Mavic 3E's wide-angle 4/3 CMOS, 20MP sensor has a mechanical shutter to prevent motion blur and supports rapid 0.7-second interval shooting. Complete mapping missions with extraordinary efficiency without the need for Ground Control Points.

    IMPROVED LOW-LIGHT PERFORMANCE
    Mavic 3E's Wide camera has large 3.3μm pixels that, together with intelligent low-light mode, offer significantly improved performance in dim conditions.

    FOCUS AND FIND
    Both Mavic 3E and Mavic 3T are equipped with a 12MP Zoom Camera, supporting up to 56× Max Hybrid Zoom to see essential details from afar.

    SEE THE UNSEEN
    Mavic 3T's thermal camera has 640 × 512 resolution and supports point and area temperature measurement, high temperature alerts, color palettes, and isotherms to help you find your targets and make quick decisions.

    SIMULTANEOUS SPLIT-SCREEN ZOOM
    Mavic 3T's thermal and zoom cameras support 28× continuous side-by-side zoom for easy comparisons.

    BATTERIES OPTIMIZED FOR ENDURANCE
    45-min flight durations let you cover more ground each mission, for surveying of up to 2 square kilometers in a single flight.

    NEXT-GENERATION IMAGE TRANSMISSION
    Quad-antenna O3 Enterprise Transmission enables more stable connections in a wide variety of complex environments.

    OMNIDIRECTIONAL SENSING FOR SAFE FLYING
    Equipped with wide-angle lenses on all sides for omnidirectional obstacle avoidance with zero blind spots. Adjust proximity alarms and braking distance depending on mission requirements.



    DJI Mavic 3 Thermal Specs

    Performance

    Maximum Horizontal Speed
    44.7 mph / 20 m/s (S-Mode - Side)
    47.0 mph / 21 m/s (S-Mode - Forward)
    42.5 mph / 19 m/s (S-Mode - Backward)
    33.6 mph / 15 m/s (N-Mode)
    Maximum Ascent Speed
    17.9 mph / 8 m/s (S-Mode)
    13.4 mph / 6 m/s (N-Mode)
    Maximum Descent Speed
    13.4 mph / 6 m/s (S-Mode, N-Mode)
    Maximum Wind Resistance
    26.8 mph / 12 m/s
    Flight Ceiling
    3.7 Miles / 6000 m
    Maximum Flight Time
    45 Minutes
    Maximum Hover Time
    38 Minutes
    Maximum Tilt Angle
    35° (S-Mode)
    30° (N-Mode)
    Hovering Accuracy
    Vision Positioning
    Vertical: ±0.3' / 0.1 m
    Horizontal: ±1.0' / 0.3 m
    RTK
    Vertical: ±0.3' / 0.1 m
    Horizontal: ±0.3' / 0.1 m
    GNSS
    Vertical: ±1.6' / 0.5 m
    High-Precision Positioning System
    Horizontal: ±1.6' / 0.5 m
    Maximum Angular Velocity
    200°/s (Pitch)
    Rotor Configuration
    4
    Propeller Model
    9453F Propellers for Enterprise
    Media/Memory Card Slot
    Single Slot: microSD/microSDHC/microSDXC [512 GB Maximum / U3/V30 or Faster Recommended]
    Operating Temperature
    14 to 104°F / -10 to 40°C

    Camera

    Image Sensor
    1/2"-Type CMOS
    Sensor Resolution
    Effective: 48 Megapixel (8000 x 6000)
    Focal Length
    24mm (35mm Equivalent)
    Field of View
    84°
    Maximum Aperture
    f/2.8
    Minimum Focus Distance
    3.3' / 1 m
    ISO Sensitivity Range
    100 to 25,600
    Shutter Speed
    Electronic Shutter
    1/8000 to 8 Seconds
    Internal Recording Modes
    H.264/MP4/MPEG-4
    3840 x 2160 at 29.97 fps [85 Mb/s]
    1920 x 1080 at 29.97 fps [30 Mb/s]
    Still Image Support
    JPEG
    48 MP (8000 x 6000)

    Gimbal

    Number of Axes
    3-Axis (Pitch (Tilt), Roll, Yaw (Pan))
    Rotation Range
    Mechanical Range
    Yaw (Pan): 54° (-27 to 27°)
    Pitch (Tilt): 180° (-135 to 45°)
    Roll: 90° (-45 to 45°)
    Controllable Range
    Pitch (Tilt): 125° (-90 to 35°)
    Follow Speed
    Tilt: 100°/s
    Stabilization Accuracy
    ±0.007°

    Vision/Sensing System

    Vision System
    Downward / Forward / Backward / Left / Right with Downward-Facing IR Enhance
    Sensing System Capabilities
    Forward
    Measurement Range: 1.6 to 65.6' / 0.5 to 20 m
    Detection Range: 1.6 to 656.2' / 0.5 to 200 m
    Max Speed: 33.6 mph / 15 m/s
    Field of View: 103° (Vertical) / 90° (Horizontal)
    Backward
    Measurement Range: 1.6 to 52.5' / 0.5 to 16 m
    Max Speed: 26.8 mph / 12 m/s
    Field of View: 103° (Vertical) / 90° (Horizontal)
    Lateral
    Measurement Range: 1.6 to 82.0' / 0.5 to 25 m
    Max Speed: 33.6 mph / 15 m/s
    Field of View: 85° (Vertical) / 90° (Horizontal)
    Upward
    Measurement Range: 0.7 to 32.8' / 0.2 to 10 m
    Max Speed: 13.4 mph / 6 m/s
    Field of View: 100° (Vertical) / 90° (Horizontal)
    Downward
    Measurement Range: 1.0 to 59.1' / 0.3 to 18 m
    Max Speed: 13.4 mph / 6 m/s
    Field of View: 130° (Vertical) / 160° (Horizontal)
    Operating Environment
    Surface with Clear Patterns at >15 lux
    Required Object Reflectivity
    >20%

    Remote Controller / Transmitter

    Control Method
    Included Transmitter
    Operating Frequency
    2.4 GHz (2.400 to 2.484)
    5.8 GHz (5.725 to 5.850)
    Maximum Operating Distance
    9.3 Miles / 15 km
    Transmitter Power
    2.4 G: 33 dBm (FCC), 20 dBm (CE, MIC, SRRC)
    5.8 G: 33 dBm (FCC), 14 dBm (CE), 30 dBm (SRRC)
    Transmitter I/O
    1x USB-C
    1x Mini-HDMI
    Power Consumption
    12 W
    Battery Chemistry
    Lithium-Ion
    Battery Capacity
    5000 mAh
    Wi-Fi
    Wi-Fi 6 (802.11ax); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
    Bluetooth
    5.1
    Mobile App Compatible
    No
    Built-In Display Size / Type
    5.5" LCD
    Display Resolution
    1920 x 1080
    Display Brightness
    1000 nits / cd/m2
    Storage Temperature
    <3 Months: -22 to 113°F / -30 to 45°C
    >3 Months: -22 to 77°F / -30 to 25°C
    Operating Temperature
    14 to 104°F / -10 to 40°C
    Charging Temperature
    41 to 104°F / 5 to 40°C

    Flight Battery

    Battery Chemistry
    Lithium Cobalt Oxide (LiCoO2)
    Battery Capacity
    5000 mAh / 77 Wh
    Battery Configuration
    4 S / 15.4 V
    Maximum Charging Power
    17.6 V
    Charging Temperature
    41 to 104°F / 5 to 40°C
    Weight
    11.8 oz / 335.5 g

    Charger

    AC Input Power
    100 to 240 VAC, 50 / 60 Hz at 2.5 A
    Power Rating
    100 W

    General

    GNSS Support
    GPS, GLONASS, BeiDou, Galileo
    Diagonal Size
    15" / 380.1 mm
    Overall Dimensions
    3.8 x 3.6 x 8.7" / 96.3 x 90.3 x 221.0 mm (Folded)
    11.1 x 4.2 x 13.7" / 283.0 x 107.7 x 347.5 mm (Unfolded)
    Weight
    2.0 lb / 920 g (With Propellers)
    2.3 lb / 1050 g Maximum for Takeoff
