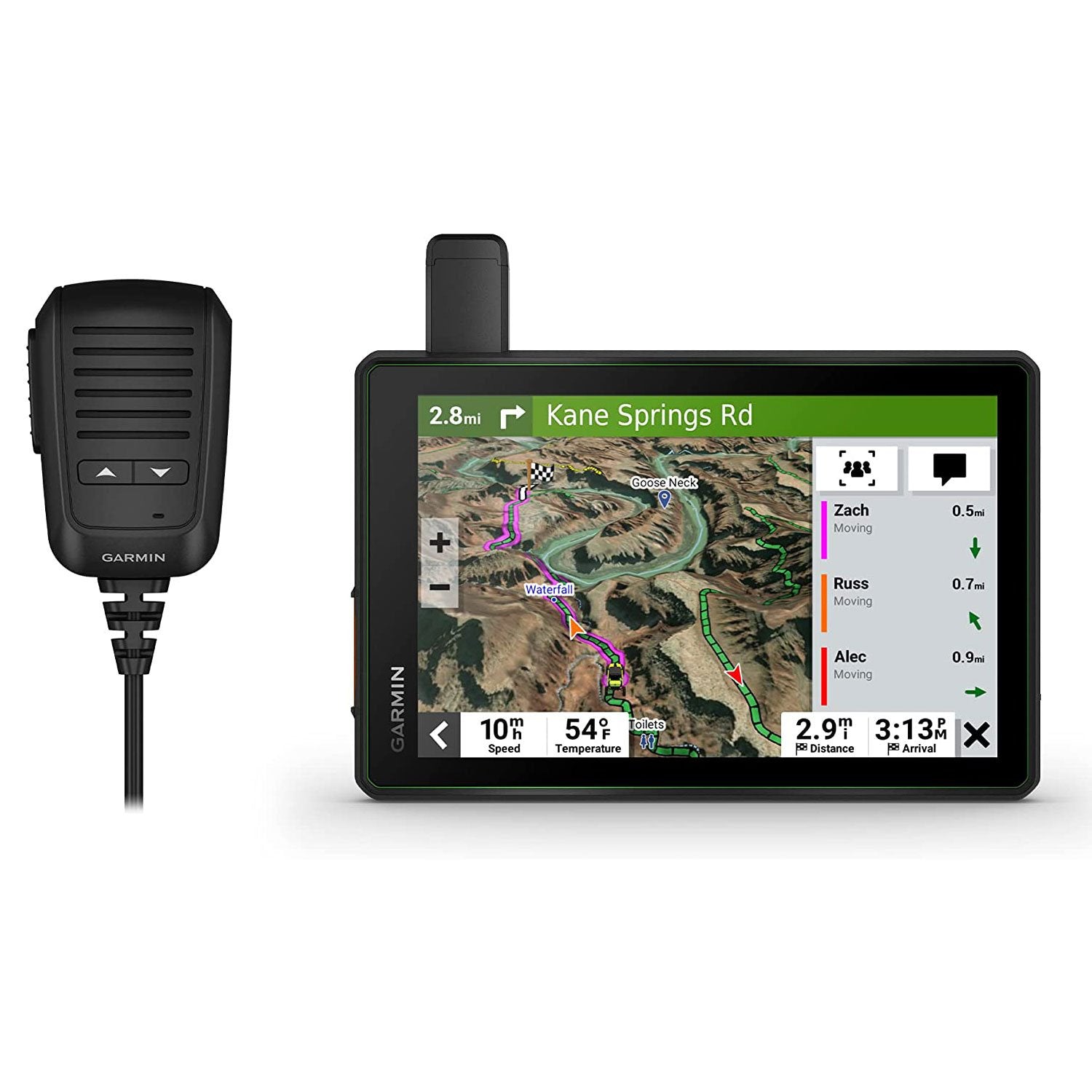

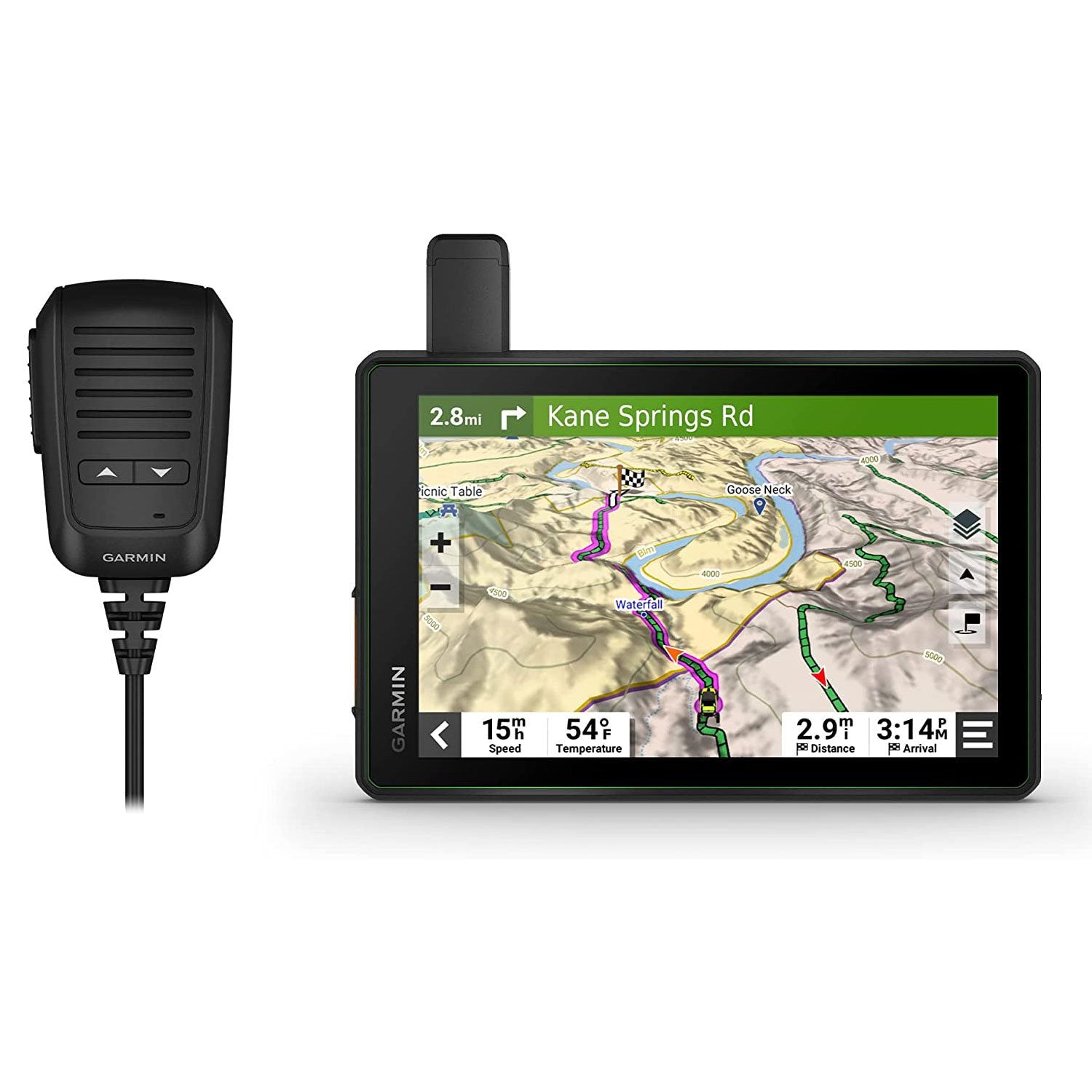

Garmin Tread - SxS Edition 8" Ultrabright Powersport Navigator - (010-02507-00)

ROAM THE UNKNOWN

Hit the trails and have fun with your friends with this rugged powersport GPS navigator. It has all the mapping you need to stay on track and communication technology to stay in touch while you're out there.

• Keep your crew together with group tracking for up to 20 riders, plus push-to-talk fist mic.

• Navigate unpaved roads and trails by using turn-by-turn trail navigation¹ with OpenStreetMap (OSM) and USFS Motor Vehicle Use Maps.

• This rugged navigator is IP67 weather-resistant and has a glove-friendly 8" touchscreen display.

• See vivid aerial views of terrain with downloadable, subscription-free BirdsEye Satellite Imagery.

• Use the Tread app on your compatible smartphone for the Group Ride Mobile feature, easy route planning and more.

• Peace of mind comes built-in. With an active subscription, you can use inReach technology for global satellite communication.

RIDING RADIO FOR GROUP GETAWAYS

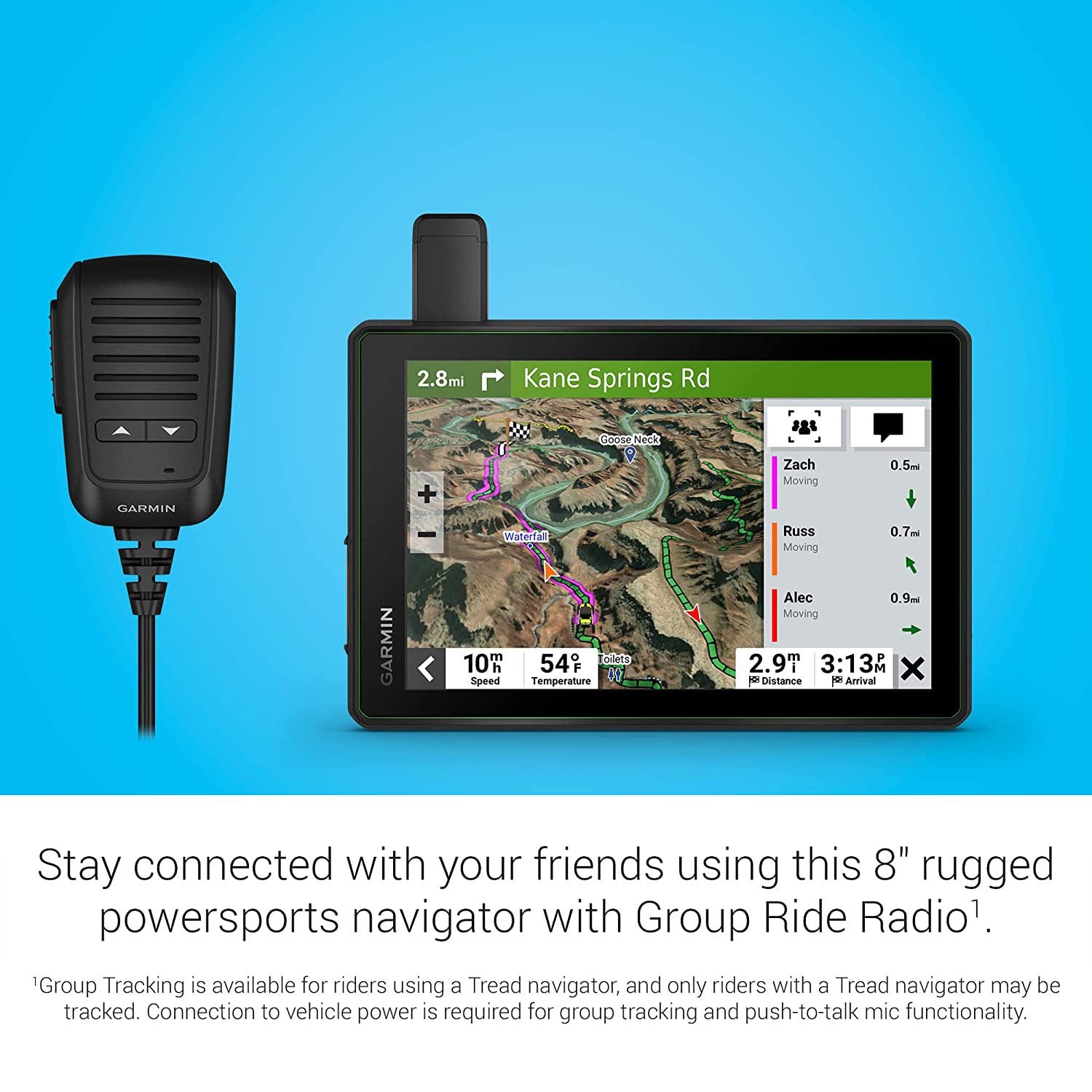

The included Group Ride Radio allows tracking for up to 20 Tread-equipped riders with no cellular coverage needed. Plus, the push-to-talk fist mic lets you easily stay in communication with your Group Ride friends. Pair Tread with your helmet or headset (not included) enabled with BLUETOOTH technology for hands-free communication.

OFF-ROAD RUGGEDNESS
Purpose-built for all-terrain use, this Tread device stands up to anything the elements can throw at it. It's IP67-rated for water-resistance and built to U.S. military standard 810G for thermal and shock resistance.

HIGH-VISIBILITY DISPLAY
With its ultrabright 8" glove-friendly touchscreen, the navigator is designed for easy viewing in bright sunlight or pitch dark. It can be mounted in portrait or landscape mode.

TRAIL NAVIGATION

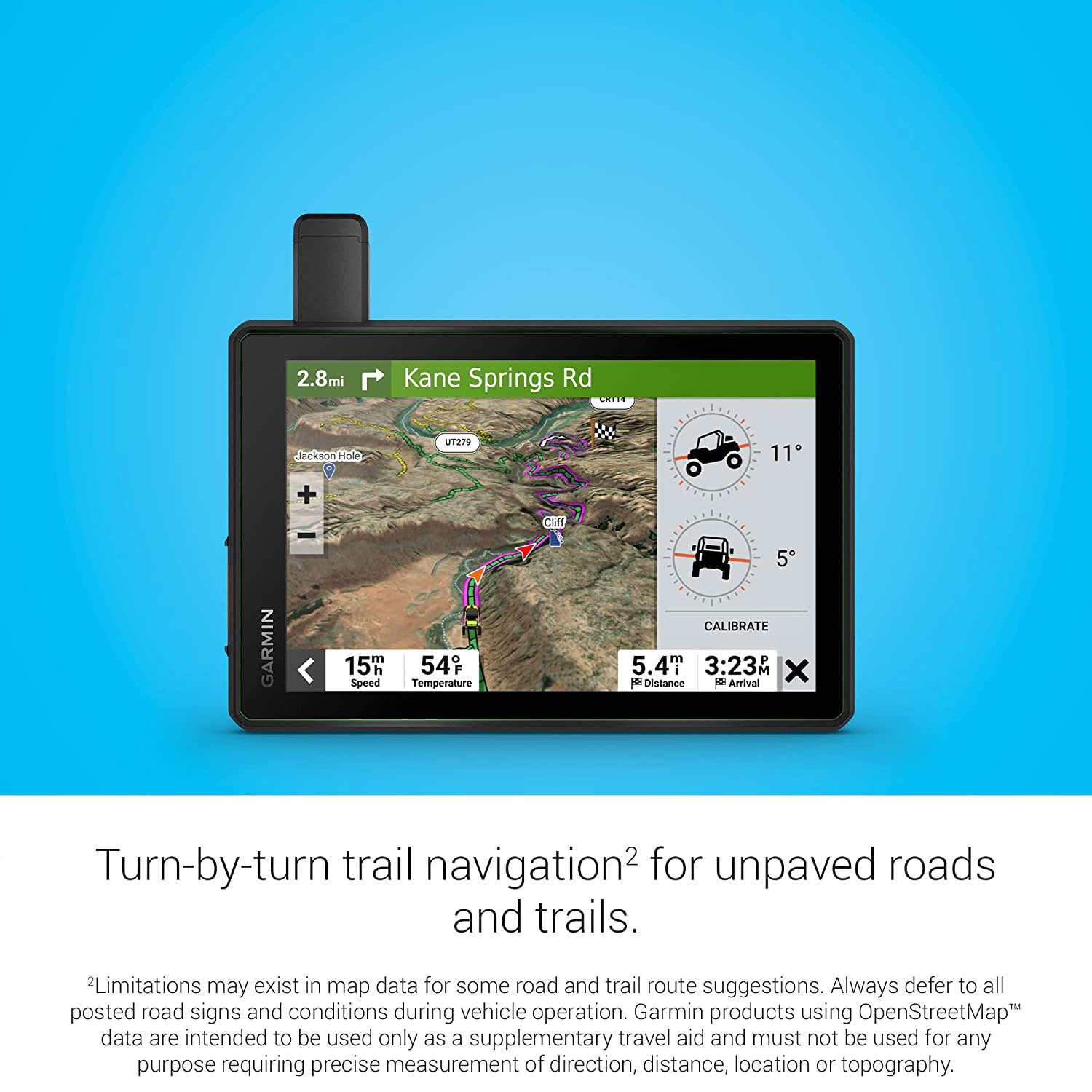

Enjoy turn-by-turn trail navigation1 for traversing unpaved roads and trails using adventure roads and trails map content comprised of OSM and USFS Motor Vehicle Use Maps.

BUILT-IN INREACH TECHNOLOGY

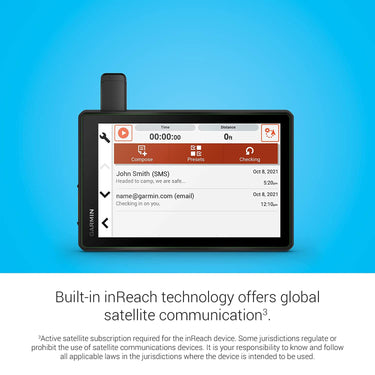

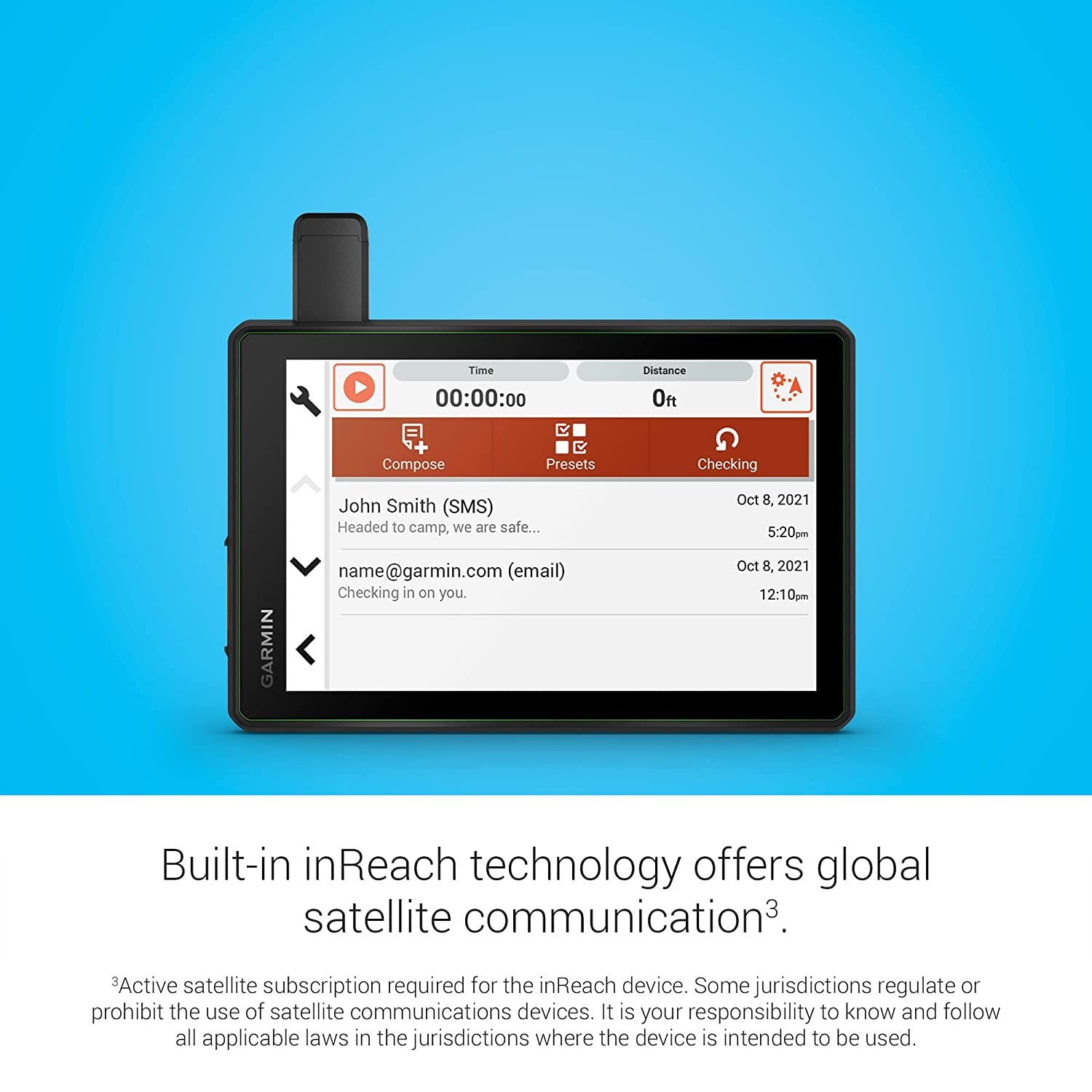

Built-in inReach technology offers global satellite communication², two-way text messaging, location sharing and interactive SOS.

MAPS ON AND OFF-ROAD

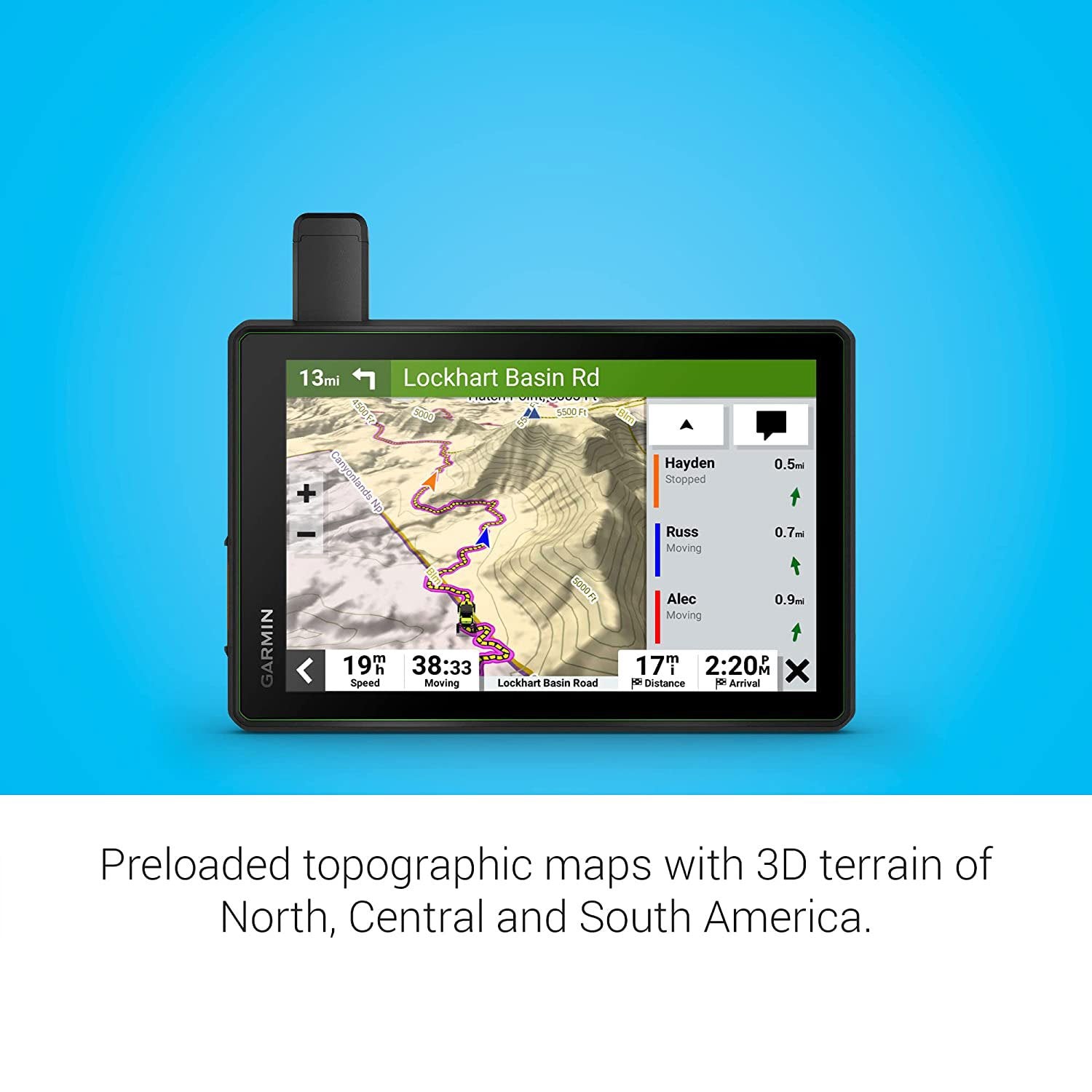

Tread features preloaded topographic maps with 3D terrain for North and Central America. It also includes detailed street maps of North America with Garmin Adventurous Routing options to take scenic and curvy routes.

KNOW YOUR BOUNDARIES
Access U.S. public land boundaries for national forests, Bureau of Land Management (BLM), wilderness areas and more. Also, see U.S. private land boundaries and landowner information for parcels greater than 4 acres.

SATELLITE IMAGERY
Enjoy vivid aerial views when you download high-resolution BirdsEye Satellite Imagery directly to your device via Wi-Fi connectivity, with no annual subscription required.

ABC SENSORS
When you're headed to tough-terrain, the built-in sensors will come in handy - including an altimeter, barometer, compass and pitch/roll gauges.

SECURE MOUNT
The included locking magnet-assisted mount and tube mount secure your Tread navigator to your powersport vehicle for riding over rough terrain.

GROUP RIDE MOBILE
Track friends from your compatible smartphone or Tread device when you and your friends use the Tread app's Group Ride Mobile feature.

EASY ROUTE PLANNER
Use the Tread app to easily plan routes with the same maps, vehicle profiles and route preferences that you have on the Tread device.

EASILY SYNC YOUR DEVICES
Use the Tread app to sync waypoints, tracks, routes and collections across all your devices. Easily import and share GPX files, too.

LIVE WEATHER
Weather ahead? Pair your Tread device with your compatible smartphone, and download the Tread app to access live weather, storm alerts, animated radar and more.

CONTROL YOUR ACCESSORIES
Pair Tread with the compatible Garmin PowerSwitch digital switch box (sold separately) to enable on-screen control for your vehicle's 12-volt electronics - light bars, differential locks and more.

TRACK YOUR DOG PACK
Wirelessly pair Tread with select Garmin GPS dog trackers (sold separately) to help track and retrieve your sporting dogs in the field. You'll see markers for each dog within tracking range, overlaid right on the navigator's map screen.

EXPAND YOUR RANGE
Get enhanced performance with the robust external GPS antenna and external inReach antenna. Both are in a low-profile, water-resistant housing and have many installation options. Each sold separately.

TRAVELING MUSIC
A built-in media player lets you easily control music loaded on your compatible smartphone on the navigator's display - and hear your tunes through your helmet or headset (not included) enabled with BLUETOOTH technology.

POINTS OF INTEREST
Tread comes preloaded with iOverlander points of interest and Ultimate Public Campgrounds, so you don't need a cell signal to route to the best-established, wild and dispersed campsites.

Product Specifications:

General

PHYSICAL DIMENSIONS
8.1"W x 6.7"H x 1.2"D (20.7 x 16.9 x 3.1 cm)

DISPLAY SIZE
6.8"W x 4.2"H (10.8 cm x 17.2 mm); 8" diagonal (20.3 cm)

DISPLAY RESOLUTION
1280 x 800 pixels

DISPLAY TYPE
multi-touch, glass, high brightness HD color TFT with white backlight

DUAL-ORIENTATION DISPLAY
Yes

WEIGHT
22.8 oz (646 g)

BATTERY TYPE
rechargeable lithium-ion

BATTERY LIFE
Up to 6 hours at 50% backlight
Up to 1 hour at 100% backlight

WATER RATING IPX7
Yes

DROP RATING MIL-STD-810
Yes

DUST RATING IP6X
Yes

MAGNETIC MOUNT
locking magnet-assisted mount

TUBE MOUNT (1.5" - 2.375")
Yes

1.5" BALL ADAPTER WITH AMPS PLATE
Yes

Maps & Memory

PRELOADED STREET MAPS
Yes

HIGH DEFINITION 3D TERRAIN
Yes

DATA CARDS
microSD card (not included)

3D TERRAIN
Yes

INTERNAL STORAGE
Yes 64 GB

ABILITY TO ADD MAPS
Yes

EXTERNAL MEMORY STORAGE
yes (256 GB max microSD card)

INCLUDES MAP UPDATES
Yes

DOWNLOADABLE SATELLITE IMAGERY yes (BirdsEye)

Sensors

GPS
Yes

GALILEO
Yes

10 HZ MULTI-GNSS POSITIONING
Yes

BAROMETRIC ALTIMETER
Yes

COMPASS
Yes

Outdoor Recreation

POINT-TO-POINT NAVIGATION
Yes

PRELOADED TOPOGRAPHICAL MAPS
Yes

PRELOADED US PUBLIC LAND BOUNDARIES
Yes

PRELOADED PRIVATE LAND PARCEL MAPS
yes (parcels greater than 4 acres)

PRELOADED USFS ROADS AND TRAILS, INCLUDING MOTOR-VEHICLE-USE-MAPS FOR MOTORCYCLE, ATV, SXS AND FULL-SIZE 4X4
Yes

NAVIGATE-A-TRACK NAVIGATION
Yes

TURN-BY-TURN TRAIL NAVIGATION
Yes

Navigation Features

GARMIN REAL DIRECTIONS LANDMARK GUIDANCE
Yes

TRIPADVISOR TRAVELER RATINGS
Yes

ROUTE SHAPING THROUGH PREFERRED CITIES/STREETS
Yes

INCLUDES TRAFFIC
yes (with Garmin Tread app)

LANE ASSIST WITH JUNCTION VIEW (DISPLAYS JUNCTION SIGNS)
Yes

SPEED LIMIT INDICATOR (DISPLAYS SPEED LIMIT FOR MOST MAJOR ROADS IN THE U.S. AND EUROPE)
Yes

DRIVER ALERTS FOR SHARP CURVES, SCHOOL ZONES, RED LIGHT AND SPEED CAMERA WARNINGS AND MORE
Yes

Advanced Features

SMART NOTIFICATIONS VIA APP
Yes

WI-FI MAP AND SOFTWARE UPDATES
Yes

ACCESS TO LIVE SERVICES VIA APP (TRAFFIC, WEATHER, ETC.)
Yes

Motorcycle Features

GLOVE-FRIENDLY TOUCHSCREEN
Yes

CONTROL MUSIC AND MEDIA FROM SMARTPHONE OR MP3 PLAYER
Yes

SUNLIGHT READABLE AND WEATHER RESISTANT
Yes

GARMIN ADVENTUROUS ROUTING
Yes

MOTORCYCLE OR POWERSPORTS SPECIFIC POINTS OF INTEREST FOR CYCLE REPAIR SERVICES, DEALERS AND MORE
Yes

ELEVATION PROFILE
Yes

ROUND TRIP ROUTING
Yes

SERVICE HISTORY LOG
Yes

CUSTOM MAP SUPPORT
Yes

TOPO MAP SUPPORT
Yes

RV Features

SPECIALIZED ROUTING FOR THE SIZE AND WEIGHT OF YOUR VEHICLE
Yes

RV PARKS & SERVICES DIRECTORY
Yes

ROAD ELEVATIONS
Yes

SPEED LIMIT CHANGES
Yes

EASY ROUTE PLANNER WITH GPX FILE SHARING
Yes

Adventure Features

BUILT-IN INREACH TECHNOLOGY (REQUIRES ACTIVE SUBSCRIPTION; SUBJECT TO REGULATIONS OR PROHIBITIONS IN SOME JURISDICTIONS)
Yes

PAIR WITH GARMIN POWERSWITCH DIGITAL SWITCH BOX
Yes

COMPATIBLE WITH GROUP RIDE RADIO Yes (included)
Yes

COMPATIBLE WITH EXTERNAL GPS ANTENNA WITH MOUNT
Yes

COMPATIBLE WITH EXTERNAL INREACH SATELLITE ANTENNA
Yes

GROUP RIDE MOBILE
yes (with Garmin Tread app)

TRACK RECORDER (BREADCRUMBS)
Yes

IOVERLANDER POINTS OF INTEREST
Yes

ULTIMATE PUBLIC CAMPGROUNDS
Yes

PITCH AND ROLL GAUGES
Yes

BIRDSEYE SATELLITE IMAGERY (DOWNLOAD VIA WI-FI)
Yes

Group Ride Radio

RADIO FREQUENCY BAND MURS (151-154 MHz)
Yes

GROUP RIDE RANGE
typically 1 mile

GROUP RIDE TRACKING
up to 20 riders simultaneously

GROUP RIDE UPDATE RATE
2.5 sec

GROUP RIDE VOICE COMMUNICATIONS
yes (with included fist mic or paired BLUETOOTH headset)

FIST MIC COMPATIBILITY
Also works with other MURS VHF radios (151 MHz - 154 MHz)

RADIO TRANSMITTED CANNED MESSAGES
Yes

Outdoor Applications

DOG TRACKING
yes (when paired to compatible dog track system)

Footnotes:

¹ Limitations may exist in map data for some road and trail route suggestions. Always defer to all posted road signs and conditions during vehicle operation. The Garmin OpenStreetMap products are intended to be used only as a supplementary travel aid.

² Active satellite subscription required for the inReach features. Some jurisdictions regulate or prohibit the use of satellite communications devices. It is your responsibility to know and follow all applicable laws in the jurisdictions where the device is intended to be used.
