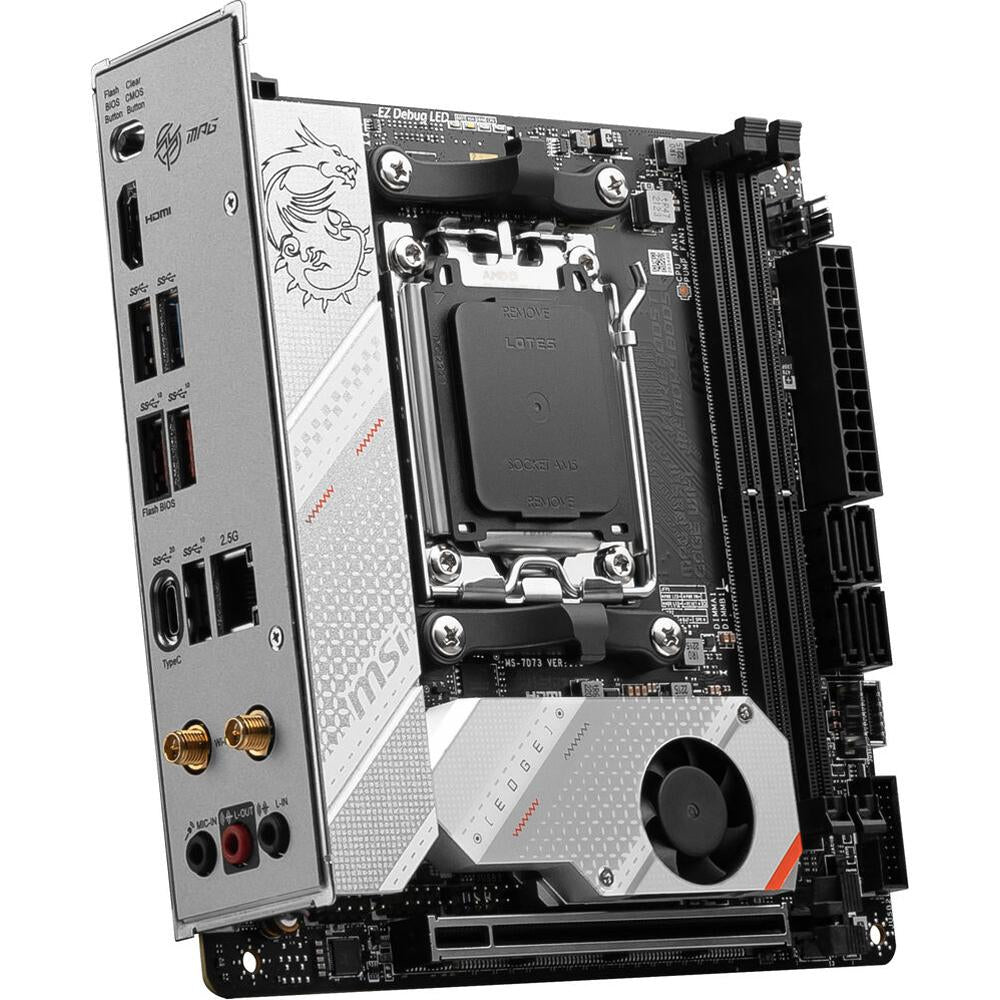

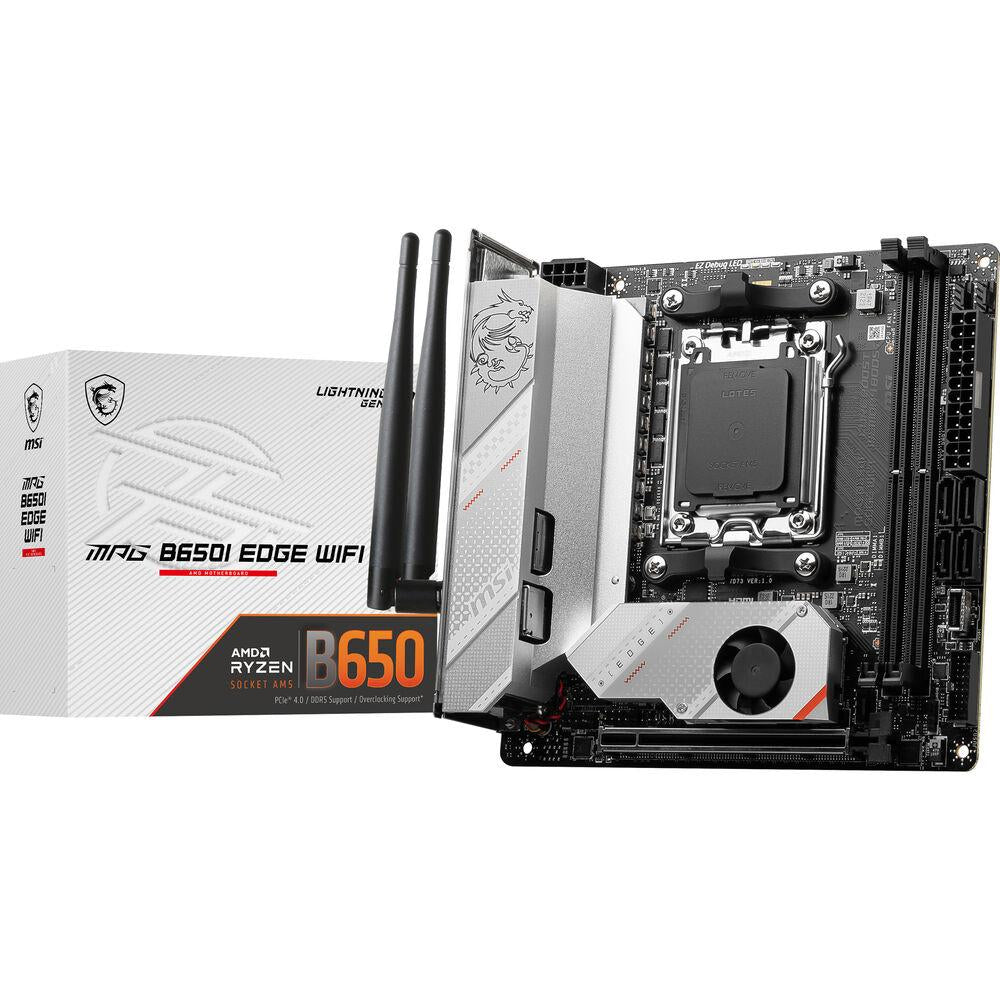

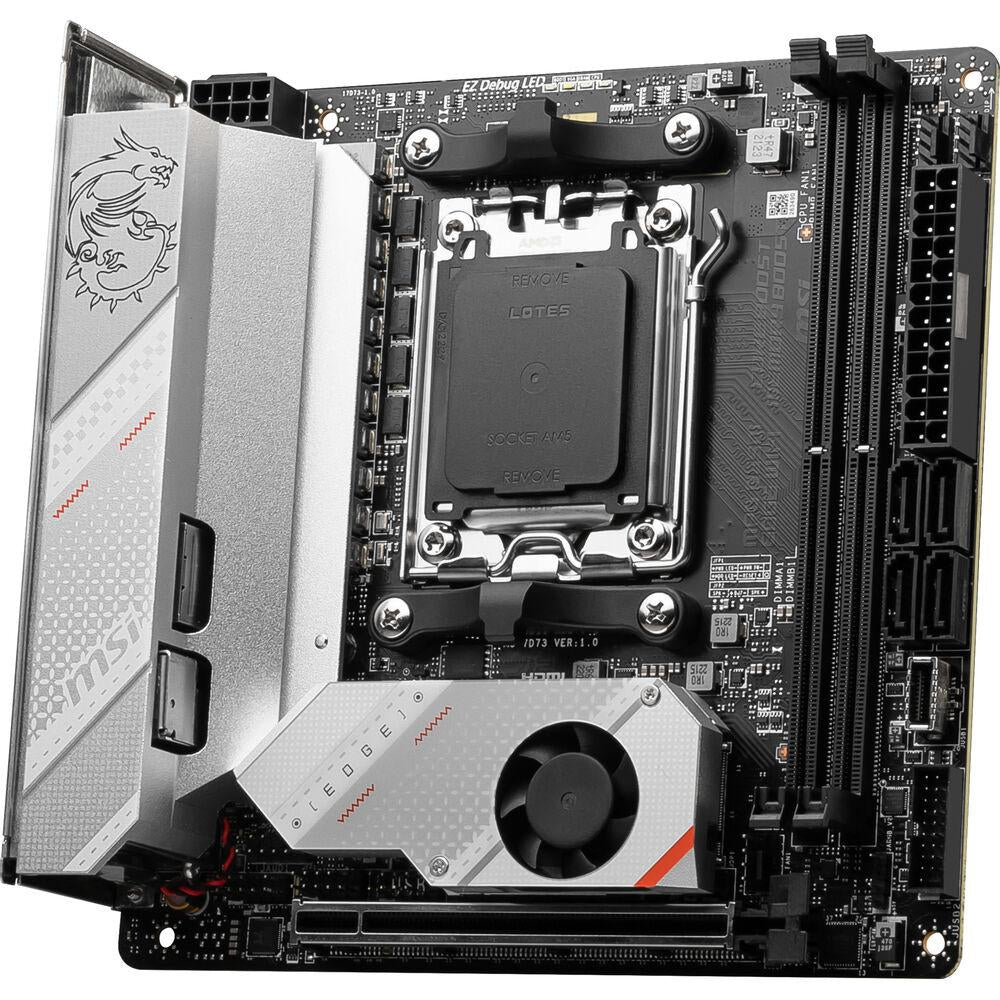

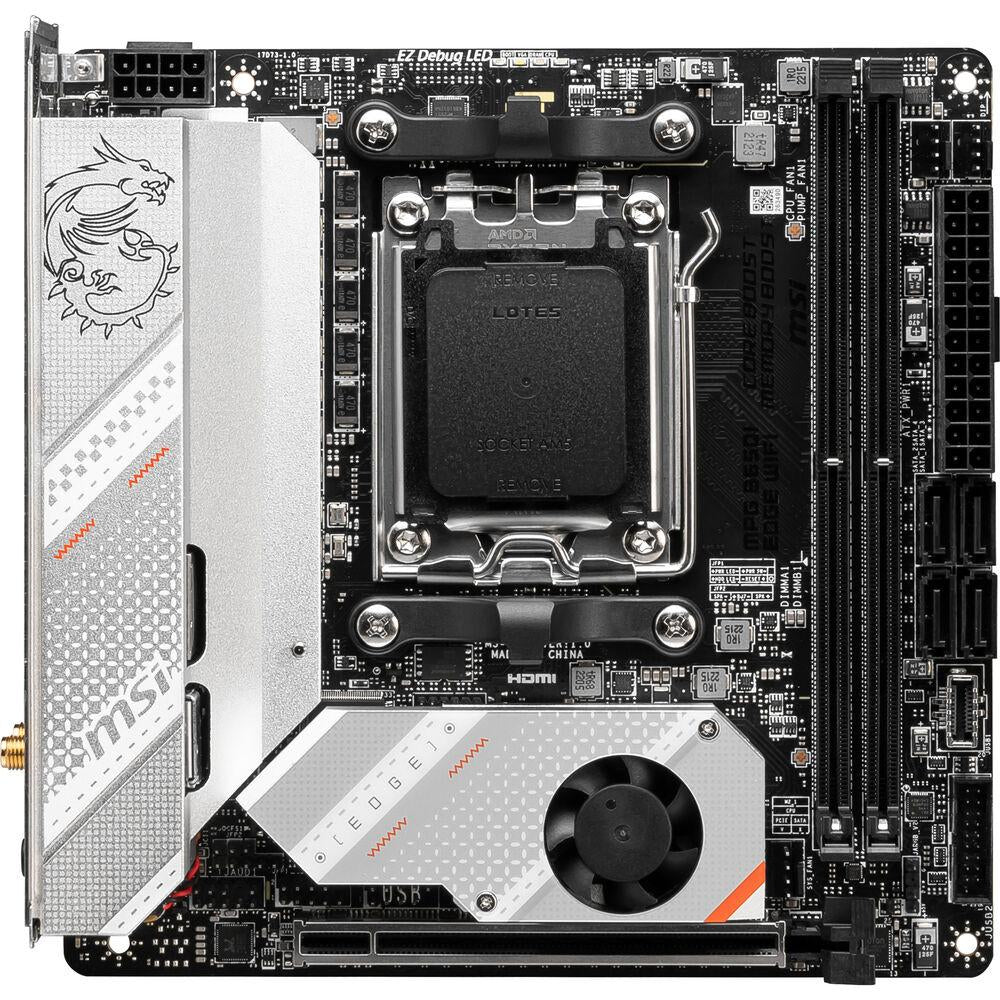

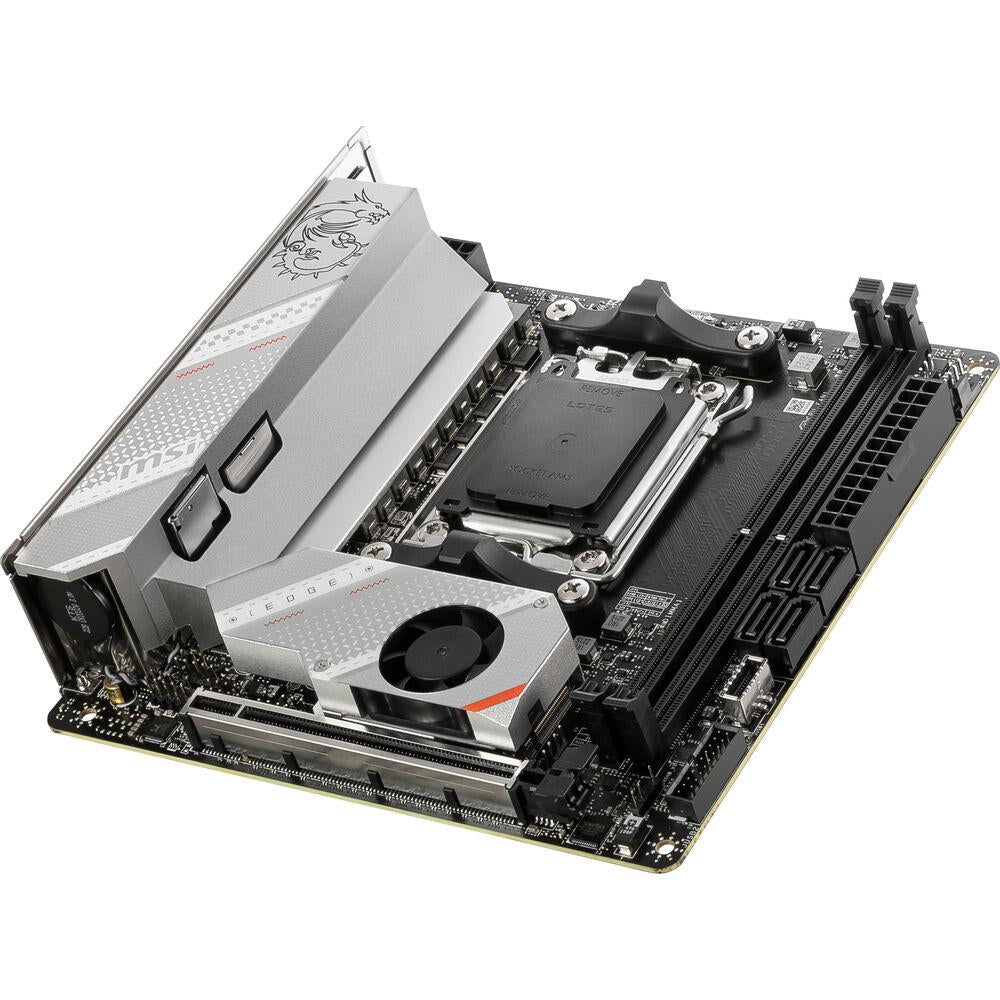

MSI MPG B650I Edge Wi-Fi Gaming Motherboard - B650IEDGEWIFI

The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. with extraordinary performance and style; the MPG series defines the future of gaming fashion. MPG B650I Edge WiFi employs silver white color scheme to show off different personality and identity. Besides being stylish; it is also powerful.

Product Features:

• Supports AMD Ryzen 7000 Series Desktop Processors

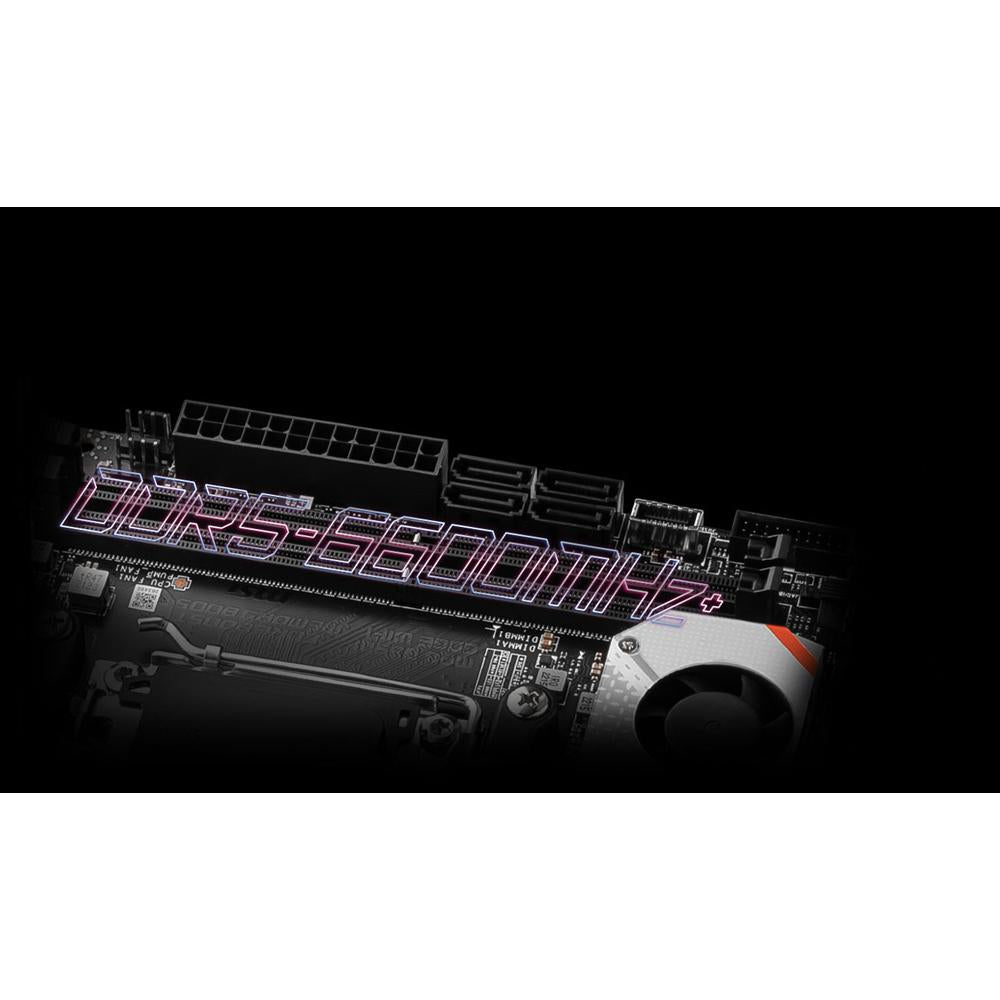

• Supports DDR5 Memory; up to 6600+ (OC) MHz

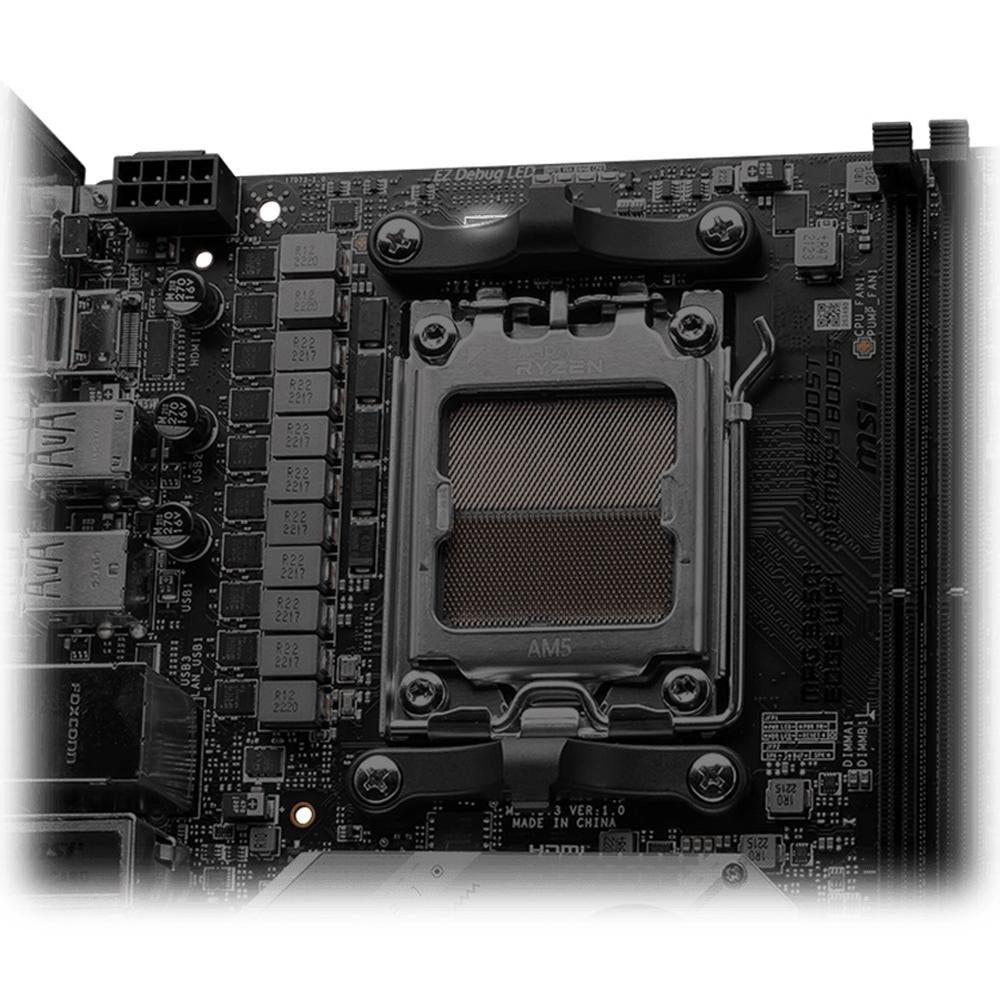

• Enhanced Power Design - Direct 8+2+1 VRM power; Core Boost; Memory Boost
• Premium Thermal Solution - Extended Heatsink; Mosfet thermal pads rated for 7W/mK; additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience

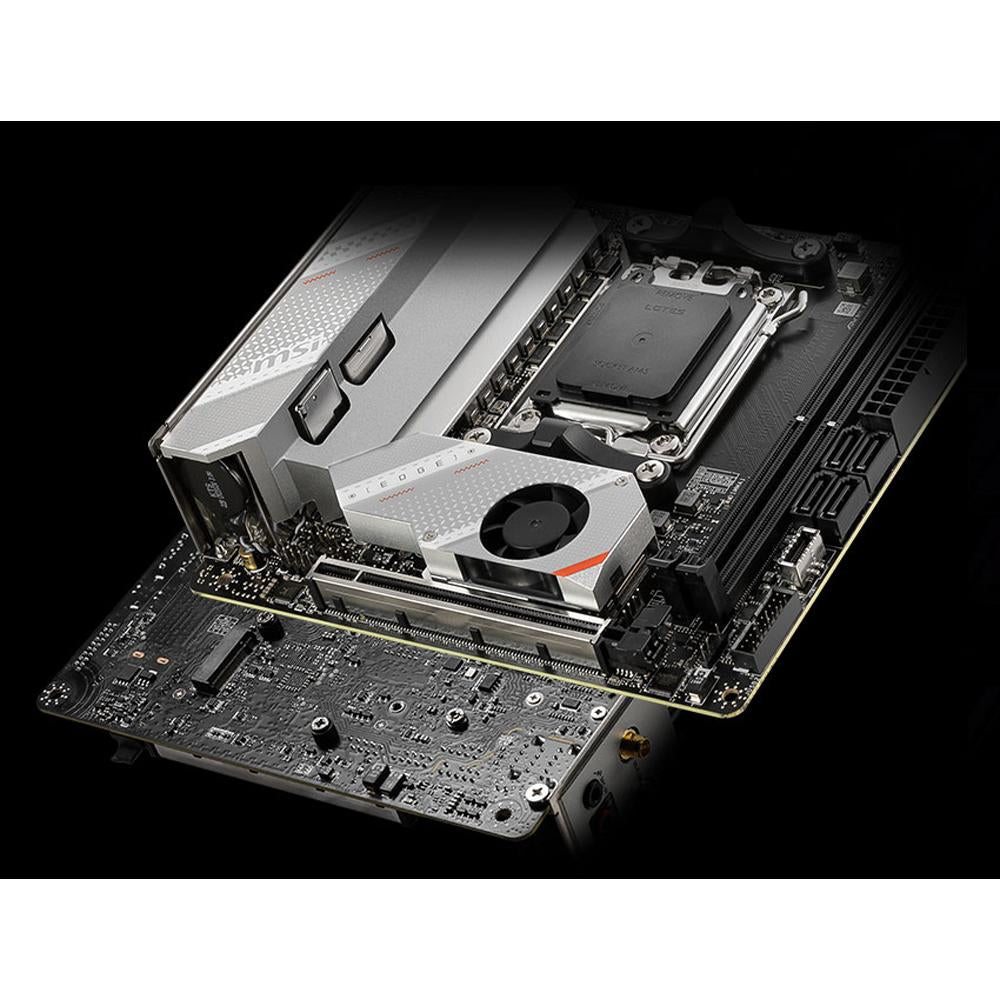

• High Quality PCB - 10-layer PCB made by 2oz thickened copper and server grade level material
• 2.5G LAN and AMD Wi-Fi 6E Solution - Upgraded network solution for professional and multimedia use. Delivers a secure; stable and fast network connection
• Lightning Fast Game experience - PCIe 4.0 slots; Lightning Gen 4 x4 M.2; USB 3.2 Gen 2x2
• DIY Friendly Design - Flash BIOS Button; Pre-installed I/O Shield; Steel Armor

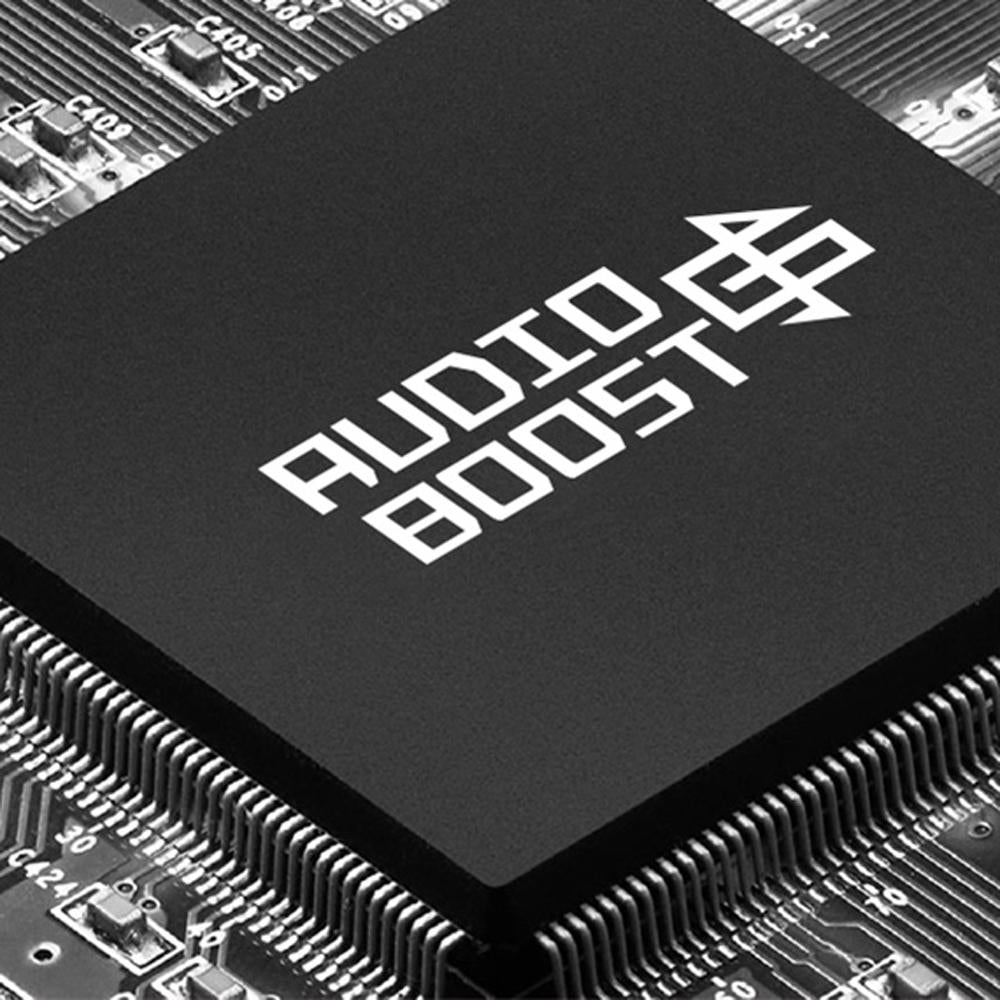

• Audio Boost 5 - Reward your ears with studio grade sound quality for the most immersive gaming experience

Specifications:

• Operating System: Support for Windows 11 64-bit; Windows 10 64-bit
• CPU:
• Supports AMD Ryzen 7000 Series Desktop Processors
• Socket AM5
• Chipset: AMD B650 Chipset
• CPU Socket: AM5
• Form Factor: Mini-ITX
• Memory:
• 2 x DDR5; Maximum Memory Capacity 64GB
• Memory Support DDR5 6600+ (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/ 5200 (OC)/5000 (OC)/4800 (JEDEC) MHz
• Max. overclocking frequency:
• 1DPC 1R Max. speed up to 6600+ MHz
• 1DPC 2R Max. speed up to 6000+ MHz
• Support Dual-Channel mode
• Supports non-ECC; un-buffered memory
• Supports AMD EXPO
• LAN: 1 x Realtek RTL8125 2.5Gbps LAN
• Wireless LAN:
• AMD Wi-Fi 6E
• The Wireless module is pre-installed in the M.2 (Key-E) slots
• Supports MU-MIMO TX/RX
• Supports 20MHz; 40MHz; 80MHz;160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz bands
• Supports 802.11 a/ b/ g/ n/ ac/ ax
• Bluetooth: Supports Bluetooth 5.2
• Audio:
• Realtek ALC4080 Codec
• 7.1-Channel USB High Performance Audio
• Supports up to 32-Bit/384 kHz playback on front panel
• Storage:
• 2 x M.2 PCIe 4.0 x4 slots
• 4 x SATA 6Gb/s ports
• Onboard Graphics:
• 1 x HDMI
• Support HDMI 2.1 FRL; maximum resolution of 4K 120Hz
• Raid:
• Supports RAID 0; RAID 1 and RAID 10 for SATA storage devices
• Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

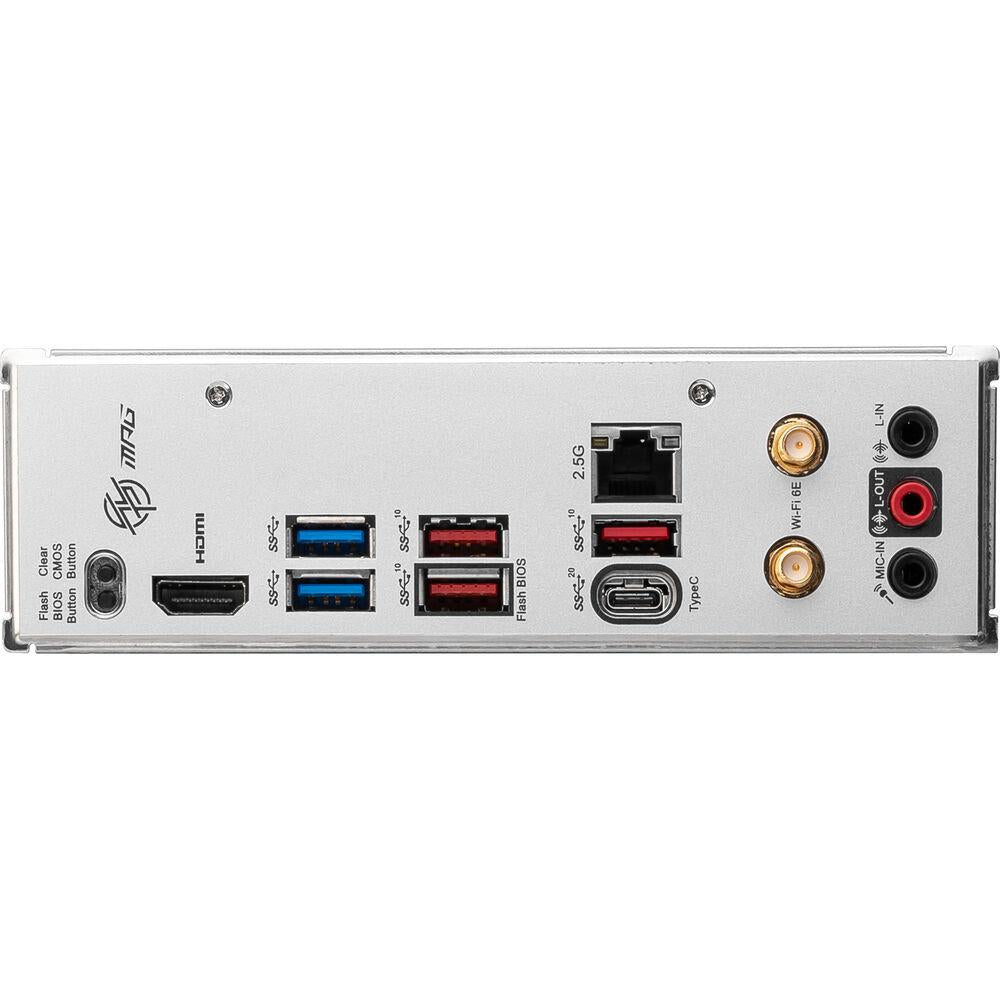

• I/O (Rear):
• Clear CMOS Button
• USB 3.2 Gen 1 5Gbps (Type-A)
• 2.5G LAN
• Wireless / Bluetooth
• Audio Connectors
• Flash BIOS Button
• HDMI
• USB 3.2 Gen 2 10Gbps (Type-A)
• USB 3.2 Gen 2 10Gbps (Type-A)

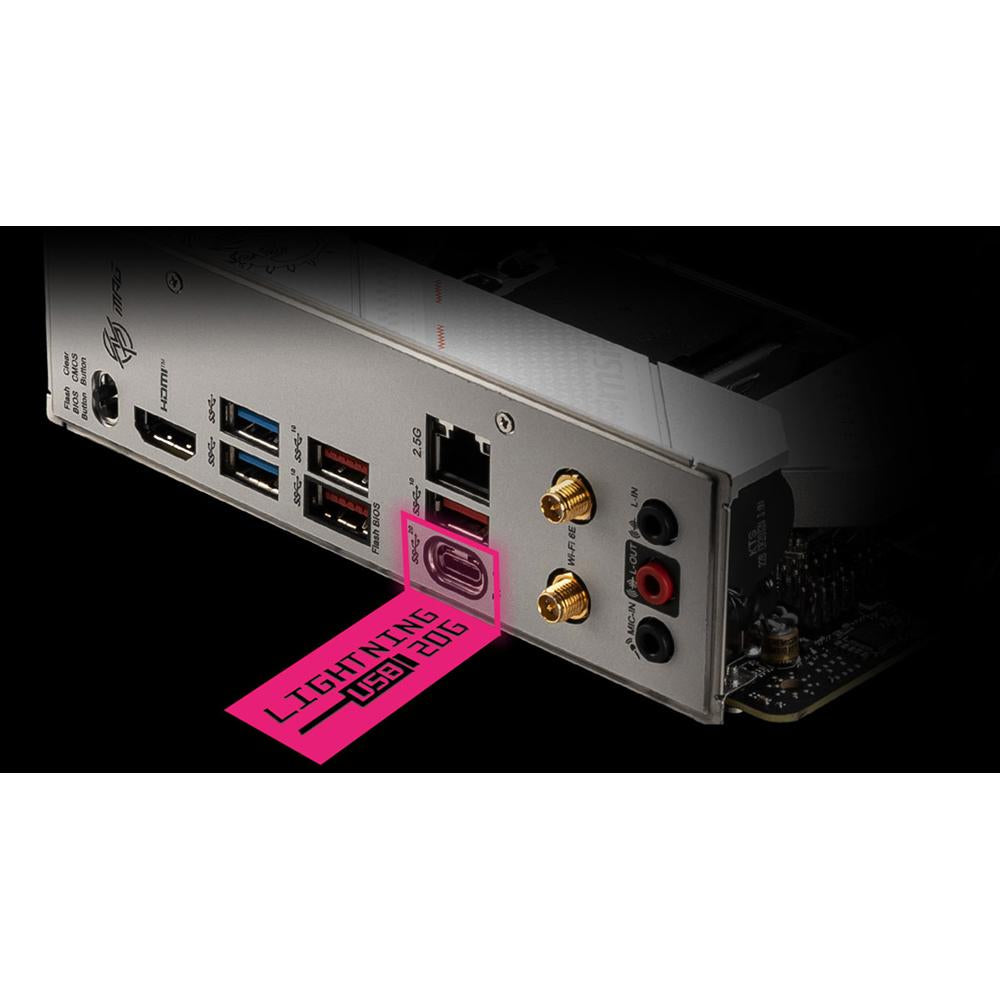

• USB 3.2 Gen 2x2 20Gbps (Type-C)
• Expansion Slots:
• 1 x PCI-E x16 slots
• PCI_E1 PCIe 4.0 supports up to x16 (From CPU)
• USB (Front):
• 2 x USB 2.0
• 2 x USB 3.2 Gen 1 Type A
• 1 x USB 3.2 Gen 2 Type C
• USB (Rear):
• 1 x USB 3.2 Gen 2x2 Type C
• 2 x USB 3.2 Gen 1 Type A
• 3 x USB 3.2 Gen 2 Type A
• Internal Connectors:
• 1 x Power Connector (ATX_PWR)
• 1 x Power Connector (CPU_PWR)
• 1 x CPU Fan
• 1 x Pump Fan
• 1 x System Fan
• 2 x Front Panel (JFP)
• 1 x Chassis Intrusion (JCI)
• 1 x Front Audio (JAUD)
• 1 x Addressable V2 RGB LED connector (JARGB_V2)
• 2 x USB 2.0
• 2 x USB 3.2 Gen 1 Type A
• 1 x USB 3.2 Gen 2 Type C
• Product Dimensions (L x W x H): 6.7 x 6.7 x 2.5 in
• Item Weight: 1 lb
• Warranty: 3 Years
