Nord Drum 3P Modeling 6-Channel Percussion Synthesizer

Nord Drum 3P

The super compact Nord Drum 3P combines stunning playability with unlimited sound design possibilities. New features include integrated multi-pad, Reverb and Delay effects, a simplified sound selection mode and new Sound Banks for quickly creating custom kits on the fly.

Product Highlights:

6-channel Modeling Percussion Synthesizer

Integrated multipad, kick pad input and MIDI

Simplified user interface with easy sound selection

New preset 'Drum Select' library for kicks, snares, toms and more

Advanced sound engine with Resonant Synthesis, Subtractive synthesis and FM-synthesis

Reverb and Delay Effects - adjustable amount for each pad

Drive, Sample-Rate reduction, Ring Modulation and EQ-effects for each pad

MIDI in/out and full CC-control

Stereo Output with improved output level

Headphone Output with improved output level

Product Features:

Sound Selection

The Drum Select feature lets you browse a wide selection of great sounding drums sounds, simply assigned to each pad individually. Easily replace toms, cymbals or kicks in seconds by selecting from our new preset library.

The Drum Select banks feature 9 categories of great preset sounds that can be easily assigned to any of the six pads/channels - and is a great starting point in rehearsal situations when you need to find the right sounds in a matter of seconds.

The categories include Bass drums, Snare drums, Toms, Hi-hats, Cymbals, Percussion, Bells, Tuned Percussion and Effects.

Sound Creation

The Sound generation takes place in the three sections Tone, Noise and Click. The sounds of the Nord Drum 3P are all synthesized in real-time - allowing you to both sculpt and play sounds with a unique dynamic response, regardless if you prefer to play with drum sticks or from a sequencer.

Tone Section

The Tone Section is specialized for creating tonal and harmonically complex sound spectras and has four synthesis modes - Resonant synthesis, Subtractive Synthesis, Frequency Modulation and Ring Modulation synthesis.

The Resonant synthesis mode offers a wide range of complex spectras inspired by materials like drum heads, marimba, vibraphone, tines and cymbals. A unique feature includes the possibility to tune harmonic spectra.

The Subtractive Wave types include Sine, Saw, Square, Pulse waveforms and T-Bridge Oscillators and are brilliant for creating classic synth-type drum sounds and effects.

The FM Synthesis mode features 6 different FM algorithms where the Frequency parameter controls modulation amount and Spectra controls modulation frequency.

The Ring Modulation mode features 2 different types of Ring Modulation.

Noise Section

The Noise section is all about producing noise and is very powerful. Create anything from silky smooth hiss to gritty gravel to give the Tone part of the sound more texture.

The Noise can be sculpted with Low-Pass, High-Pass or Band-Pass filters with Cut-Off and Resonance controls. Once you've found the noise of your choice, it can be adjusted to respond dynamically to velocity in the same manner as with the Tone section with the Dyn Filter control.

The Decay control is just as powerful, with a choice of Linear, Exponential and Gated decay types. A Dynamic Decay mode lets you set different Decay lengths for soft and hard strokes.

Combine this with the equally powerful dynamic controls of the Tone Section and it won't take long before realizing the potential for creating complex sounds with fascinating material-like behaviors!

Click Section

The Click-section is a specialized section for an ultra-short attack to the sound. A wide range of different click types are available as well as a level control for finding the sweet spot where the Click merges with the other elements and becomes one coherent sound.

Dynamic Control

The Nord Drum 3P offers great control over the dynamic response of the harmonic spectras. When using Resonant synthesis waveforms the upper parts of the harmonic spectra be controlled with velocity, giving it a brighter timbre when played hard.

When using the Subtractive synthesis mode, the Frequency parameter controls the cut-off frequency of a Low-Pass filter and the Dyn Filter controls how much the filter should respond to velocity.

The Decay controls the decay of the whole spectra, with a choice of Linear and Exponential decay envelopes. A Dynamic Decay mode lets you set different Decay lengths for soft and hard strokes. The Punch Decay adds more attack to the Tone by giving the fundamental pitch an ultra-fast envelope at the very beginning of the sound.

The Bend parameter provides a powerful, velocity sensitive pitch envelope. Use it to create attack-like effects but also more radical bending sounds that travel up or down when played such as the sound of a raindrop, tablas or the classic 80's "pioouw" tom-sound.

Effects

Each of the 6 channels of the Nord Drum 3P has its own powerful effects – Drive, EQ and Ring Modulation. Adding just a touch of Drive to your sounds can make a huge difference in terms of realism, while the Sample-Rate reduction is perfect for Lo-fi crackling effects. Ring Modulation can be used for slow tremolo-like effects to total atonal mayhem.

A flexible parametric Equalizer with selectable band and amount is also available for each channel, brilliant for adding some finish or attitude to your sounds.

The Nord Drum 3 features two new Master Effects, Reverb and Delay. The Reverb features 5 room algorithms (Tiled Room, Room, Plate, Stage and Hall) with controls for tonal color. The Delay effect features a Tap Tempo-mode and adjustable feedback amount. The amount of Reverb and Delay can be set individually for each of the 6 channels of the Nord Drum 3P.

Additional Features:

Mute Group

The Mute Group gives you the option to create sounds that can cancel each other out. Only one of the members of the group can sound at a time, and can be used for creating a close/open hi-hat behavior and emulating muting techniques from hand percussion.

Scale Presets

Tuned Percussion kits can be created instantly by selecting one of the Scale Presets, which include Chord Scales, Pentatonic, Hang Tunings and Hexatonic.

Edit All

The handy Edit All mode let's you edit all 6 channels simultaneously, for example reverb, distortion or delay.

MIDI

MIDI in/out is also available for using the Nord Drum 3P with any kind of MIDI pads or sequence it from an external MIDI Sequencer. All of the Nord Drum 3P sound parameters can be controlled via CC-controls over MIDI. If you own an iPad don't miss our free iPad app Nord Beat, specifically designed for sequencing the Nord Drum 3P via MIDI.

Mixer

The Channel Mixer sets the level for each channel and also features a Pan control for creating a lush stereo image. If you like to send the kick to a separate output, just pan that channel all the way to the left and the other channels to the right.

Trigger interface

Everything you play when using the multipads and external input is automatically output to the MIDI output, making the Nord Drum 3 a brilliant controller for other sound sources via MIDI.

Product Specifications:

Global

4 Character LED-display

4 Banks x 50 Programs for Drum Kits

8 User Banks x 50 sounds for single drum sounds

9 Drum banks for single drum sounds - Bass Drums, Snare Drums, Toms, Hi-Hats, Cymbals, Percussion, Bells, Tuned Percussion, Effects

Free OS updates

Sound Generation

6-channel Percussion Modeling Syntesizer

Tone section - Resonance modeling, Subtractive, Ring Modulation and FM-synthesis

Noise section - Low Pass 12dB/24dB, High Pass 12db/24dB, High Pass High Cut and Band Pass 6dB/12dB filter. Adjustable resonance and filter envelope response

Click section - 12 click types, Noise Waveforms, Short Pulses, High Pass Filtered Pulses and Chirps. Adjustable level.

Effects

Global Stereo Reverb with 5 reverb modes (Tiled Room, Room, Plate, Stage and Hall) and Color highpass/low pass. Reverb amount can be adjusted per channel.

Global Delay with Rate (Milliseconds), Feedback and Tap Tempo mode (BPM)

Drive, Sample Rate Reduction and Ring Modulation Effects per channel

EQ with Gain and Frequency controls per channel

Pads and Trigger Input

6 integrated rubber pads with adjustable Input Threshold/Sensitivity

External Trigger input with adjustable Input Threshold/Sensitivity for Kick drum pad or similar

Adjustable Dynamic Response Curves

Channel Peak/Activity indicator

MIDI

MIDI Note ON/OFF

MIDI Program Change

MIDI CC parameter control

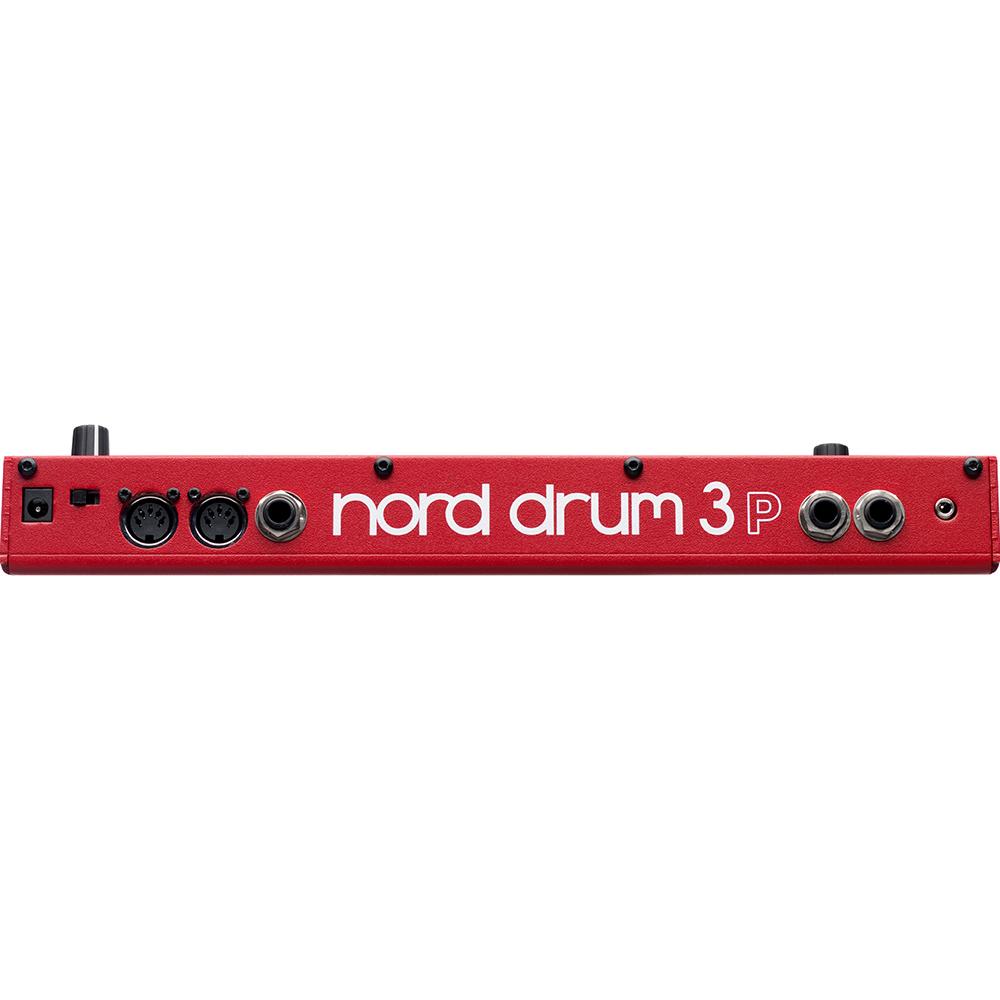

Connections

2 Audio Outputs 1/4", 6.35 mm (unbalanced)

Stereo Headphones Output - 1/8", 3.5 mm

MIDI in & out - 5 pin DIN connectors

1 generic trigger input - 1/4", 6.35 mm

DC input - 12V, 500mA

Dimensions

29.9 x 4.85 x 28.1 cm (11.78" x 1.9" x 11.2")

Weight

1.85 kg (4.1 lbs)

Included Accessories

User Manual

Universal Module Mount

Universal Power Adapter
