Overview
Hear Klipsch Like Never Before. Optimized Onkyo Sound

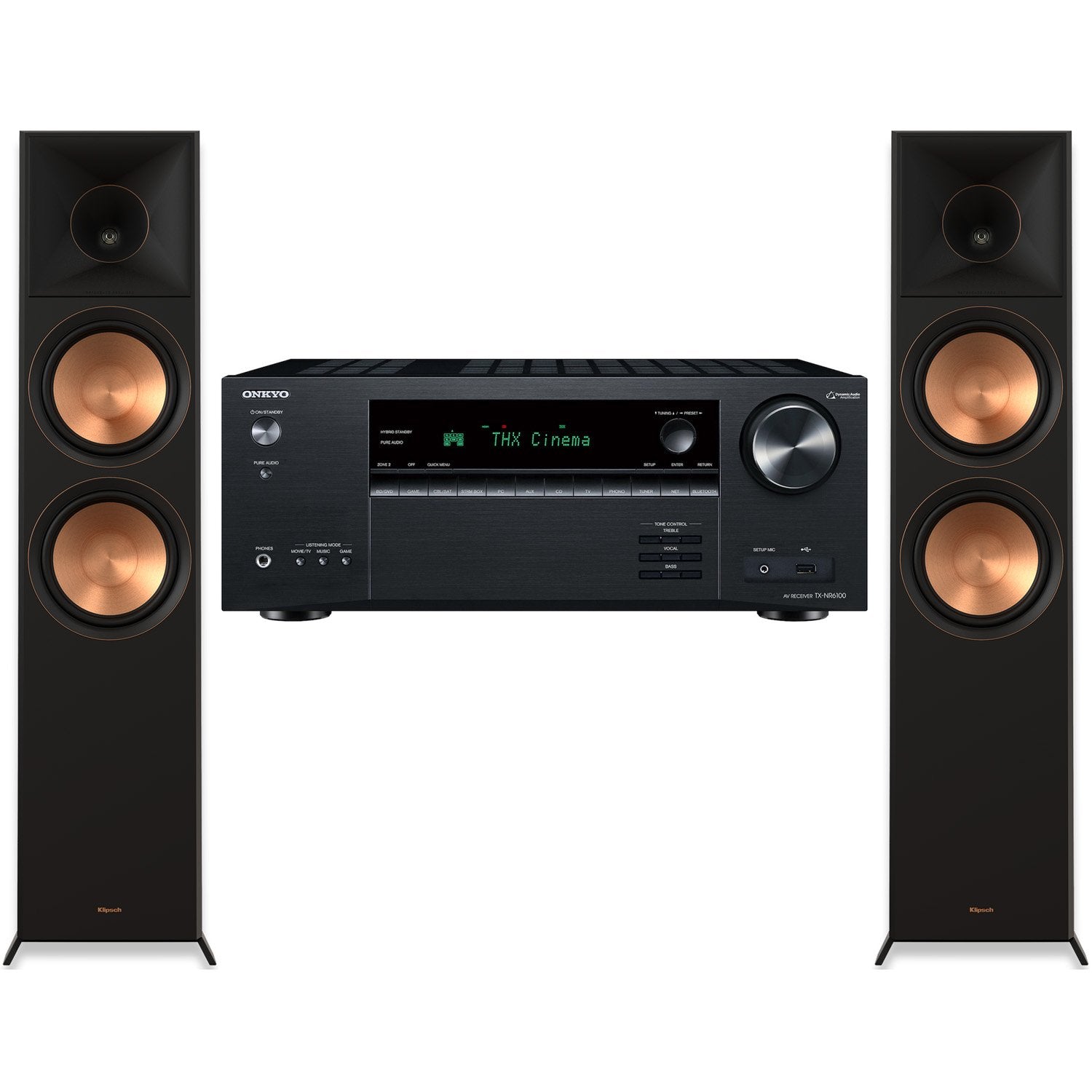

Unleash the true potential of your Klipsch Reference Premiere speakers with the Onkyo TX-NR6100 & Klipsch RP-8000F II Speaker Bundle. This powerful trio takes home theater to the next level, thanks to the revolutionary Klipsch Optimize Mode built right into the Onkyo receiver.
No more guesswork, no more tinkering: Klipsch Optimize Mode automatically sets the perfect crossover frequencies for your specific RP-8000F II speakers. This ensures seamless integration, tighter bass, and crystal-clear midrange, unlocking the full sonic power of your Klipsch system.
Product Features:

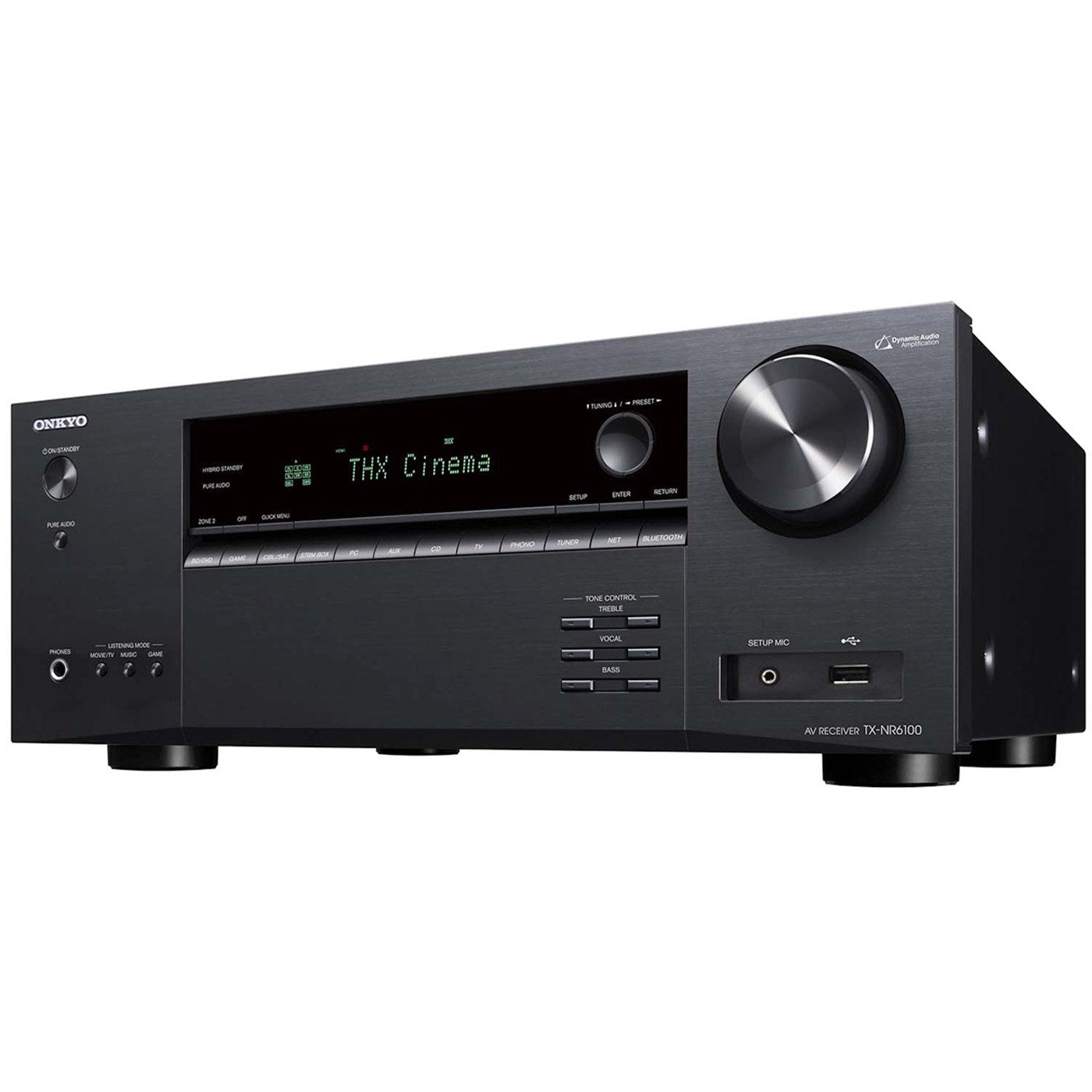

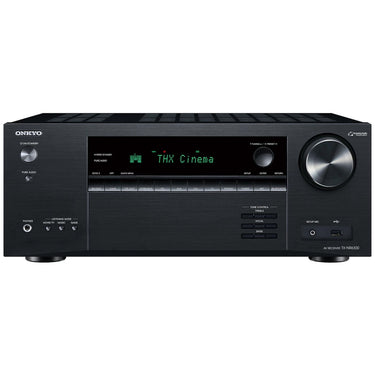

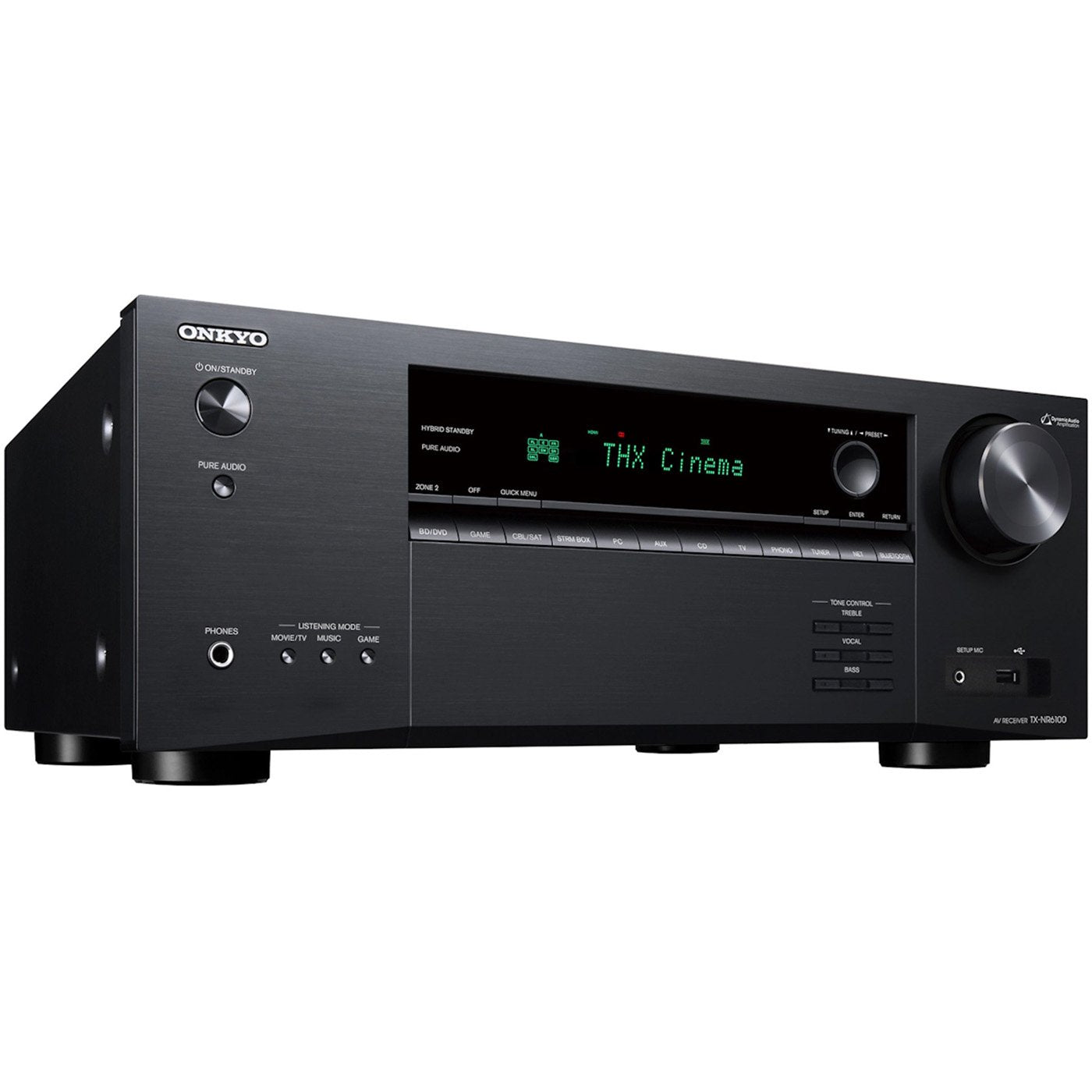

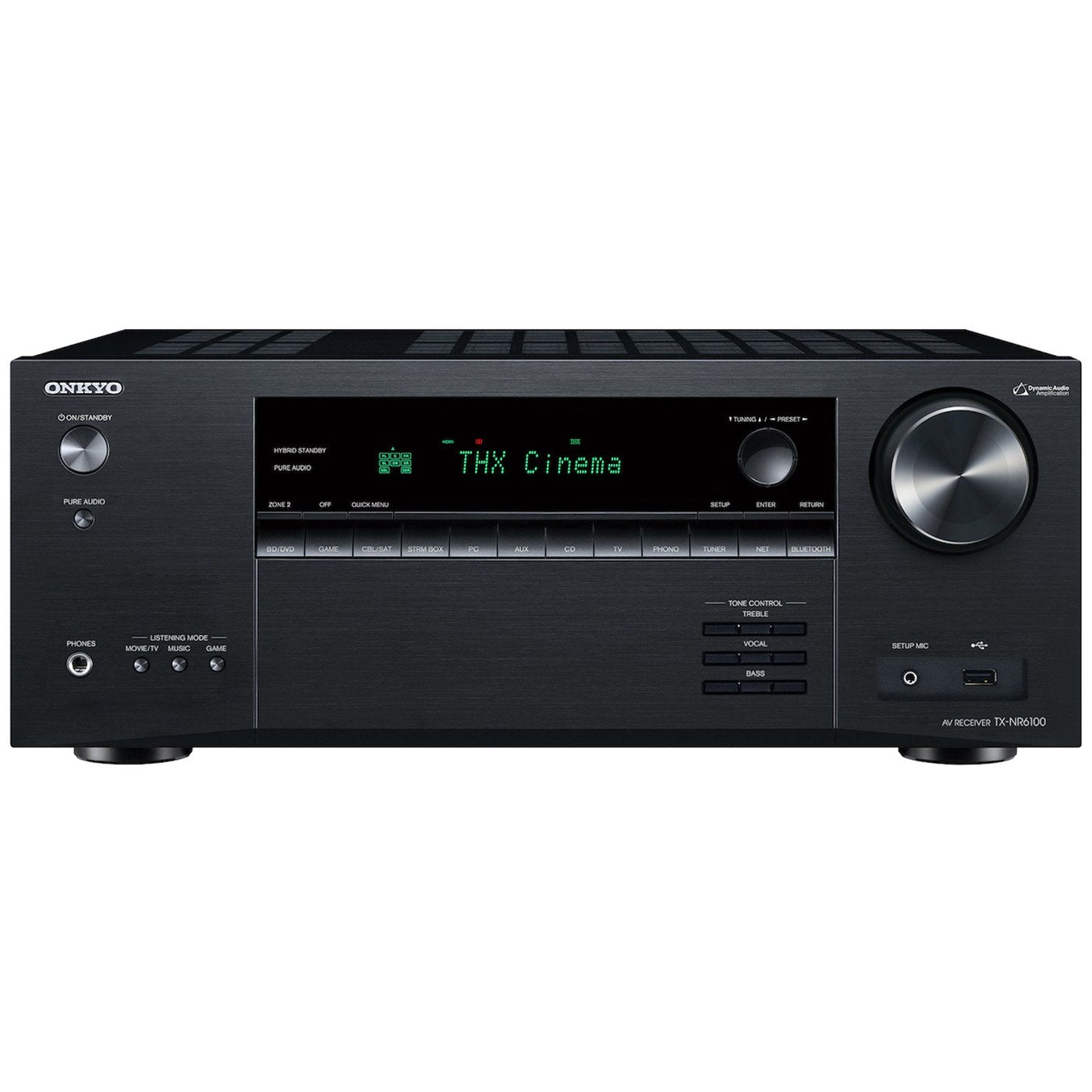

Onkyo TX-NR6100
- Features a built-in phono preamp, eliminating the need for a separate unitShow More
Hear Klipsch Like Never Before. Optimized Onkyo Sound
Unleash the true potential of your Klipsch Reference Premiere speakers with the Onkyo TX-NR6100 & Klipsch RP-8000F II Speaker Bundle. This powerful trio takes home theater to the next level, thanks to the revolutionary Klipsch Optimize Mode built right into the Onkyo receiver.
No more guesswork, no more tinkering: Klipsch Optimize Mode automatically sets the perfect crossover frequencies for your specific RP-8000F II speakers. This ensures seamless integration, tighter bass, and crystal-clear midrange, unlocking the full sonic power of your Klipsch system.
Product Features:
Onkyo TX-NR6100
- Features a built-in phono preamp, eliminating the need for a separate unit
- Klipsch Optimize Mode seamlessly integrates Reference Premier speakers with ease
- THX Certified
- Discrete Zone 2 HDMI Switching
- 4K/120Hz HDR pass-through enables ultra-fast-motion-VRR (Variable Refresh Rate)
- Auto Low Latency Mode optimizes latency from source to screen
- QFT Quick Frame Transport limits lag for a smoother experience
- Built-In Streaming Services: Spotify, TIDAL, Deezer, TuneIn, and Pandora
- Free Onkyo Control App allows for bluetooth payback, source selection, and playback
- Onkyo 2-Year Parts and Labor Warranty

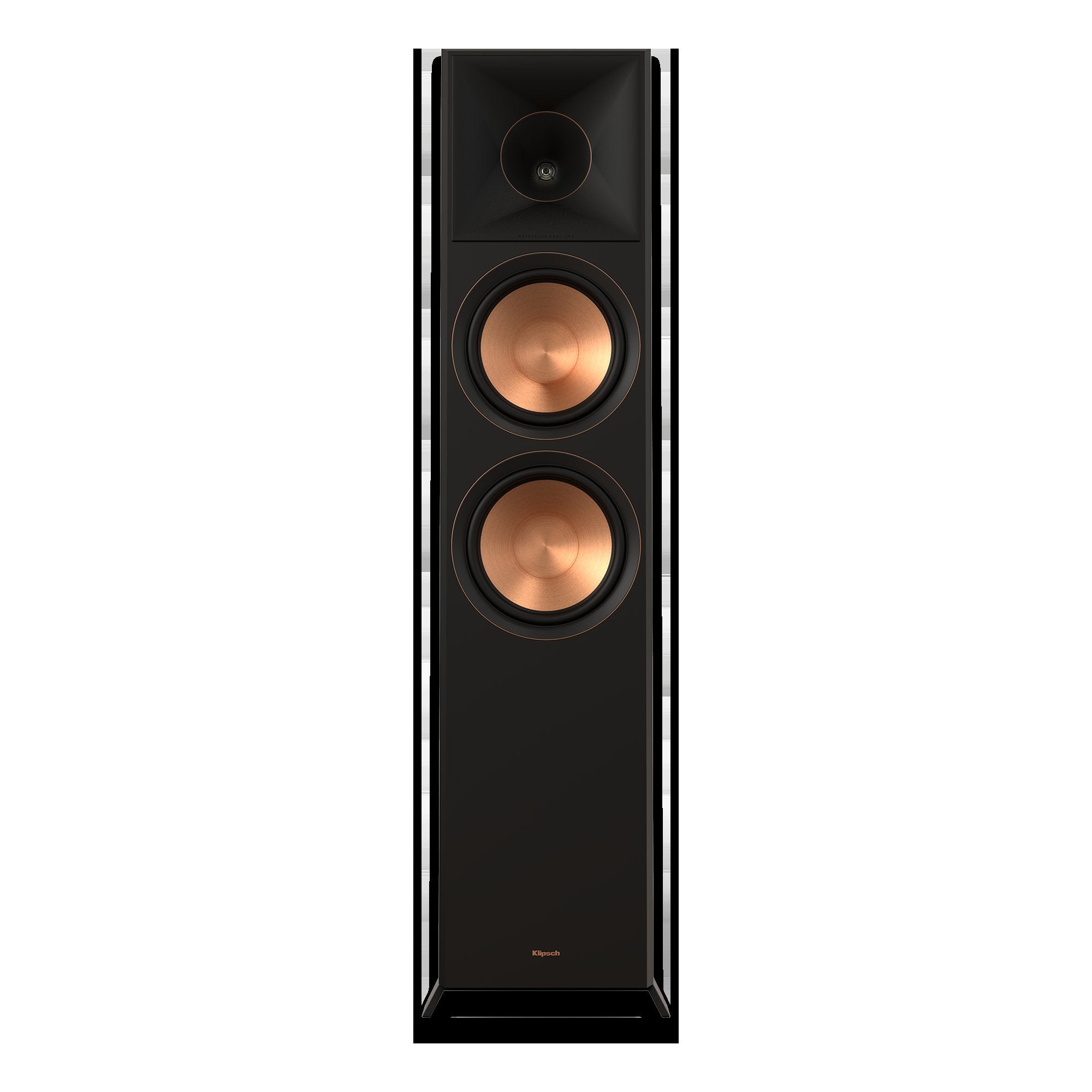

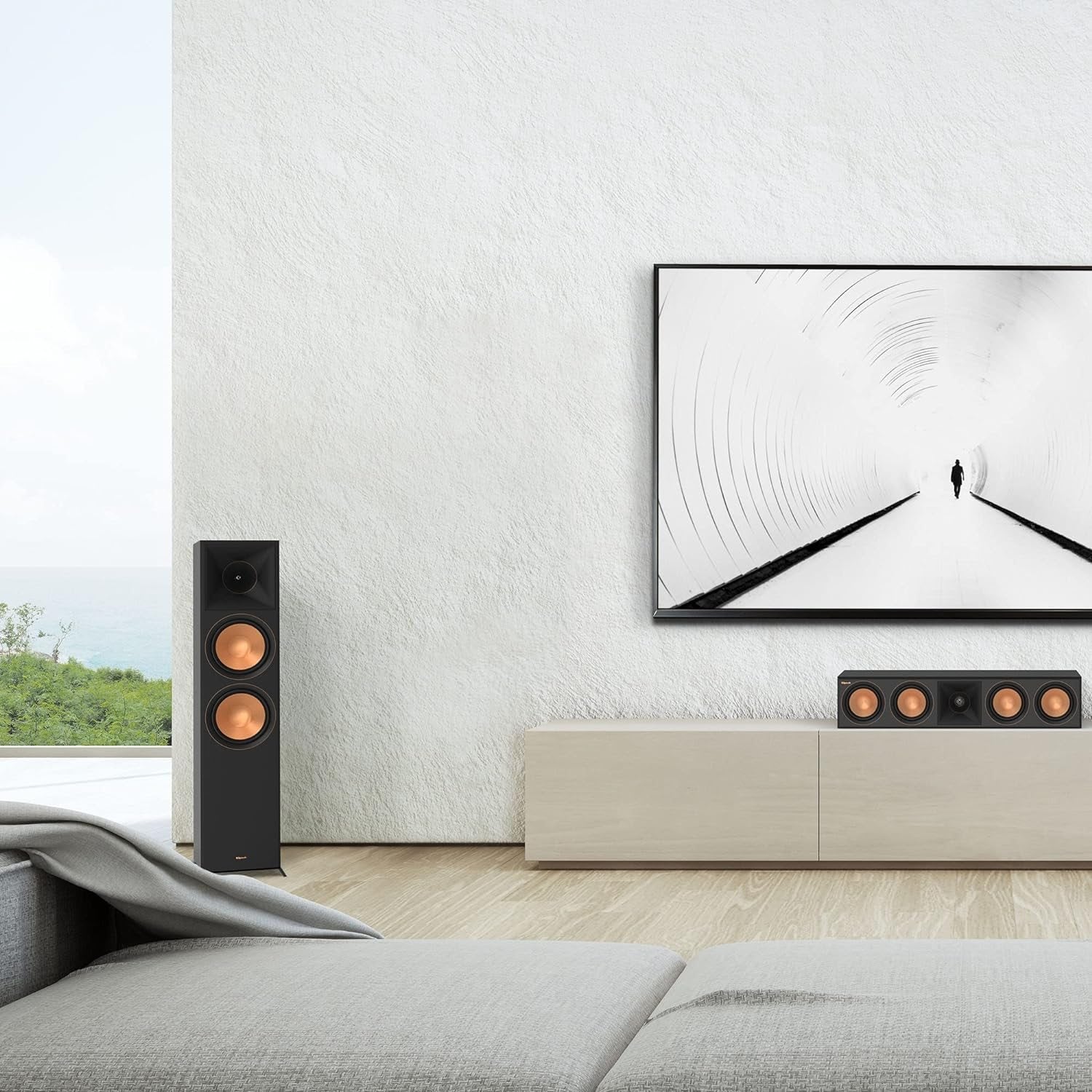

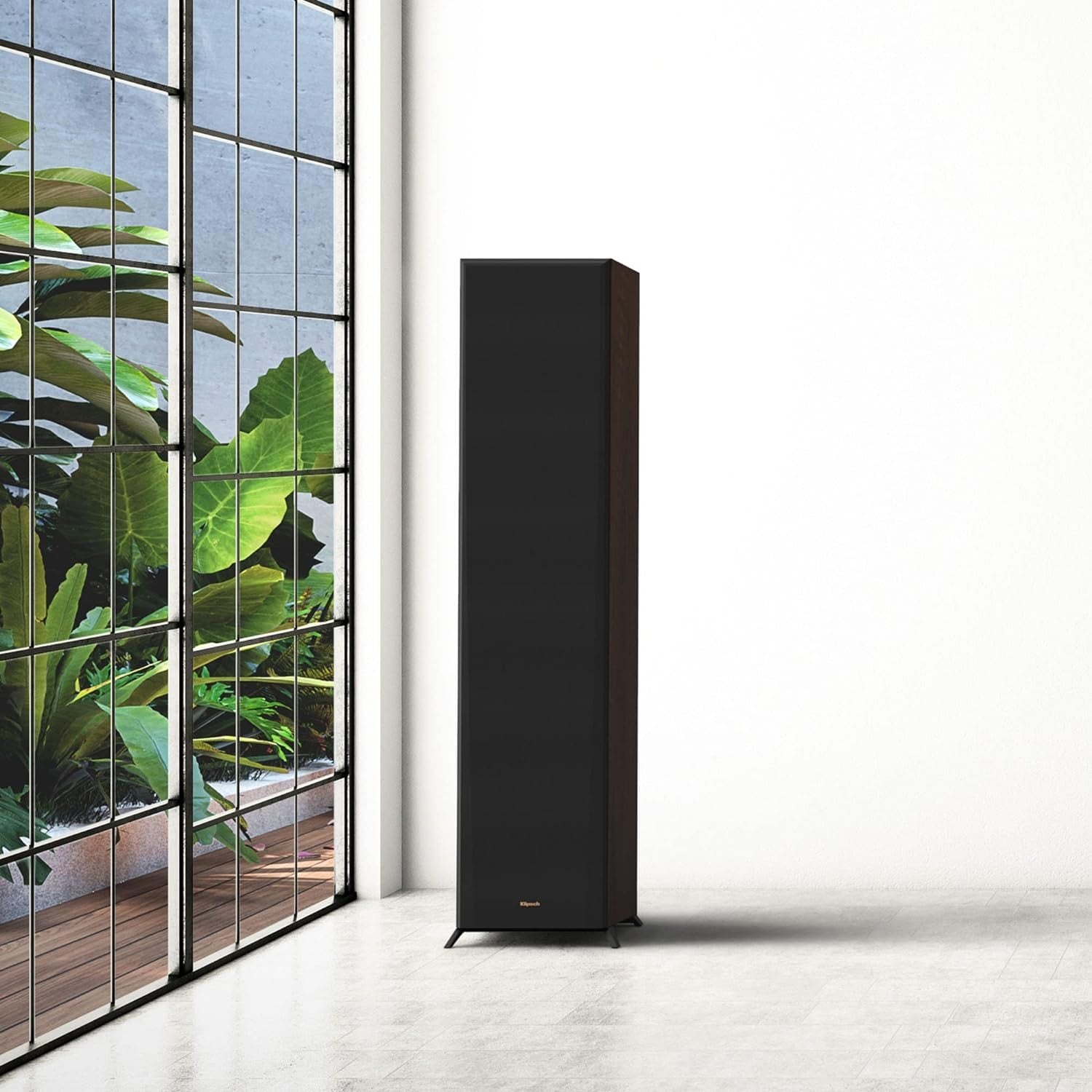

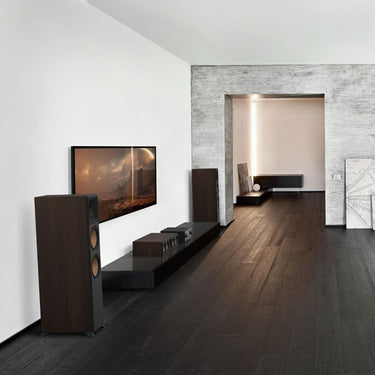

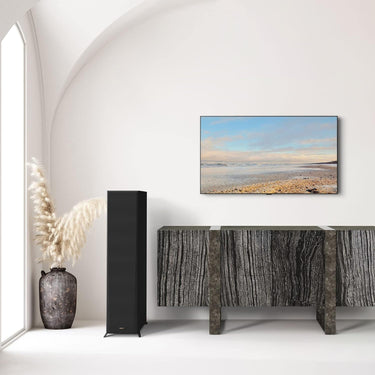

Klipsch RP-8000F Floorstanding Speakers
- 90x90° Hybrid Tractrix Horn signature technology ensures efficient high-frequency transfer for crisp, clear sound
- Dual 8" Cerametallic™ Woofers deliver dynamic, powerful bass with minimal distortion
- Linear Travel Suspension (LTS) Titanium Tweeter offers exceptional detail and clarity for high frequencies
- Vented Tweeter Design reduces standing waves for smoother high-frequency reproduction
- Up to 150W Continuous Power Handling fills even large rooms with rich, detailed sound
- Atmos-Enabled Design creates a more immersive and realistic 3D surround sound experience
- Bi-Wire/Bi-Amp Capability allows for more customization and potential performance improvements
- Strong, Flexible Removable Magnetic Grilles provide protection and a sleek aesthetic
- Stylish aesthetics with a luxury wood finish
- Klipsch 5-Year Warranty
Product Features:
Onkyo TX-NR6100
General Features:
210 W/Ch THX® Certified Select Dynamic Audio Amplification system
Yes
5.2.2-channel Dolby Atmos® and DTS:X playback
Yes
AccuReflex phase-matching solution for Atmos-enabled speakers
Yes
SMART AV Receiver™
Works with Sonos, Chromecast built-in™, AirPlay 2, and DTS Play-Fi®; includes Spotify®, Amazon Music HD, Pandora®, TIDAL, Deezer, and TuneIn streaming services
Works with Hey Google or Alexa
Yes, sold separately
Stream over 5 GHz/2.4 GHz dual-band Wi-Fi® supporting the 802.11ac standard
Yes

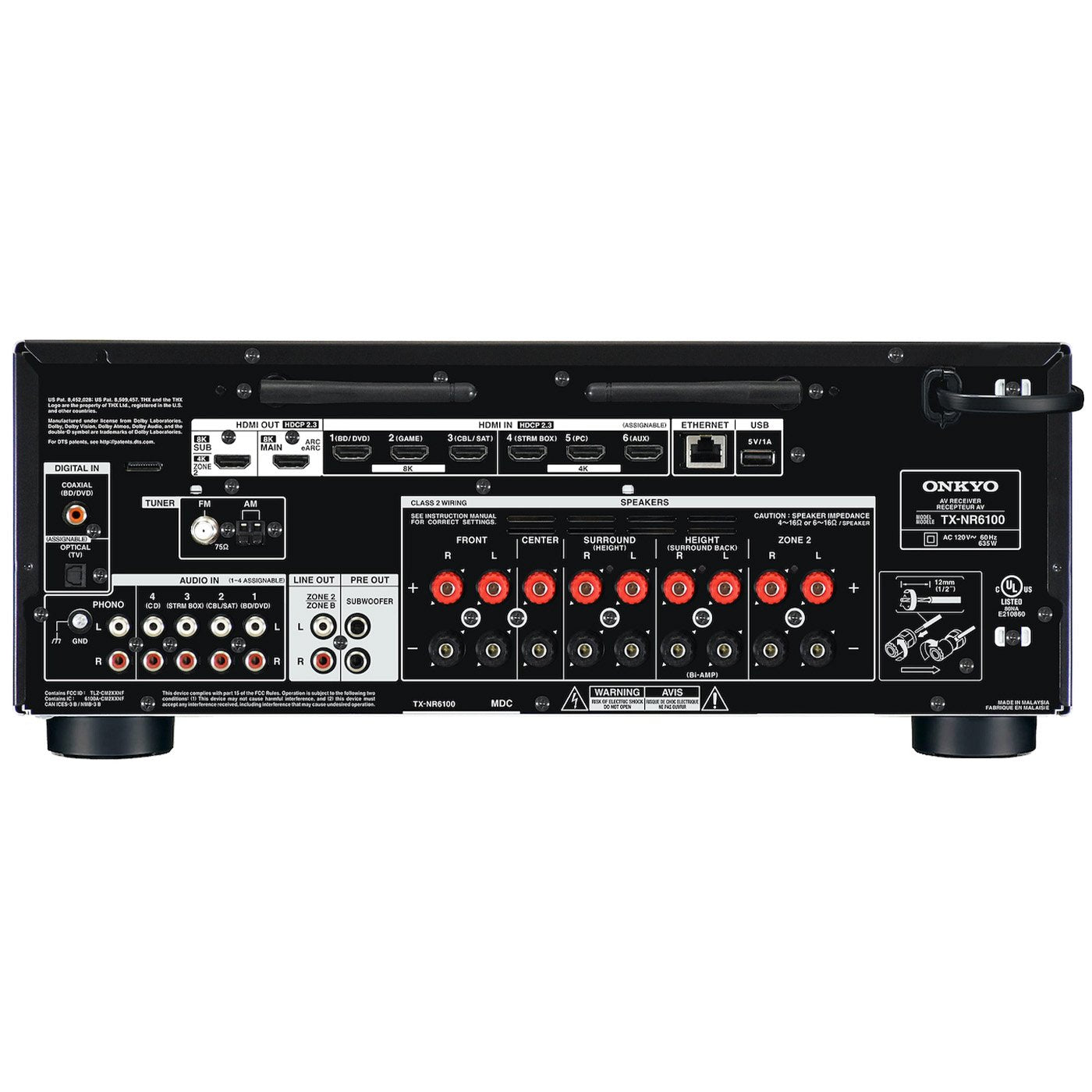

HDMI® inputs
Inputs 1-3 and Main/Sub out support 8K/60AB and 4K/120AB. Inputs 4-6 support up to 4K/60 and HDMI 2.0 features.
HDMI 2.1
HDMI 2.1 features are supported on HDMI inputs 1–3, Main Out, and Sub/Zone 2 Out in Sub Mode output including VRR, ALLM, QFT (Quick Frame Transport), DSC (Display Stream Compression), QMS (Quick Media Switching), and eARC (Main Out).
HDMI Sub/Zone 2 Out for media transmission to a second display
Yes
Send or receive audio via Bluetooth® wireless technology
RX mode: SBC/AAC, TX mode: SBC/Qualcomm® aptX™/ aptX HD
Refined chassis, HDMI board, DAC, Digital/Analog inputs, power-amp grounds and power lines
Yes
5.2-ch Main + Powered Zone 2 speakers support synced/independent D/A audio playback
Yes
Zone 2/Zone B line-out*7 (analog RCA) supports synced or independent D/A playback*8 on compatible audio systems or headphone docks
Yes
Amplifier:
Power output (All channels)
210 W/Ch (6 ohms, 1 kHz, 10% THD,1-ch driven) 100 W/Ch (8 ohms, 20 Hz–20 kHz, 0.08% THD, 2-ch driven, FTC)
Dynamic power
240 W (3 ohms, Front) 210 W (4 ohms, Front) 120 W (8 ohms, Front)
THD+N (Total Harmonic Distortion + Noise)
0.08% (20 Hz–20 kHz, half power)
Input sensitivity and impedance
200 mV rms/47 k-ohms (Line) 3.5 mV rms/47 k-ohms (Phono MM)
Rated RCA output level and impedance
1 V rms/470 ohms (Subwoofer pre-out) 200 mV rms/470 ohms (Zone 2/Zone B line-out)
Frequency response
10 Hz–100 kHz/+1 dB, -3 dB (Direct/Pure Audio)
Tone control
±10 dB, 20 Hz (Bass) ±10 dB, 20 kHz (Treble)
Signal-to-noise ratio
106 dB (Line, IHF-A) 80 dB (Phono, IHF-A)
Speaker impedance
4–16 ohms
Tuner:
FM
87.5 MHz–107.9 MHz
AM
530 kHz–1,710 kHz
FM/AM preset memory
40 stations
Power:
Power supply
AC 120 V~, 60 Hz
Power consumption (operating)
635 W
Power consumption (idle)
65 W
Power consumption (standby)
0.1 W
Dimensions and Warranty:
Dimensions (W x H x D)
17 1/8˝ x 6 13/16˝ x 14 15/16˝ (435 x 173.5 x 379.5 mm)
Weight
21.7 lb (9.8 kg)
Warranty
Onkyo 2-Year Warranty
Klipsch RP-8000F Floorstanding Speakers
Count
2x RP-8000F Floorstanding Speakers
Frequency Response
35-25kHz +/- 3dB
Sensitivity
98dB @ 2.83V / 1m
Power Handling (Cont/Peak)
150W / 600W
Nominal Impedance
8 Ohms Compatible
Crossover Frequency
1630Hz
High Frequency Driver
1" Titanium LTS Vented Tweeter with Hybrid Cross-Section Expanded Tractrix Horn
Low Frequency Driver
Dual 8” Cerametallic Cone Woofers with Faraday rings
Enclosure Material
MDF (Internally Braced)

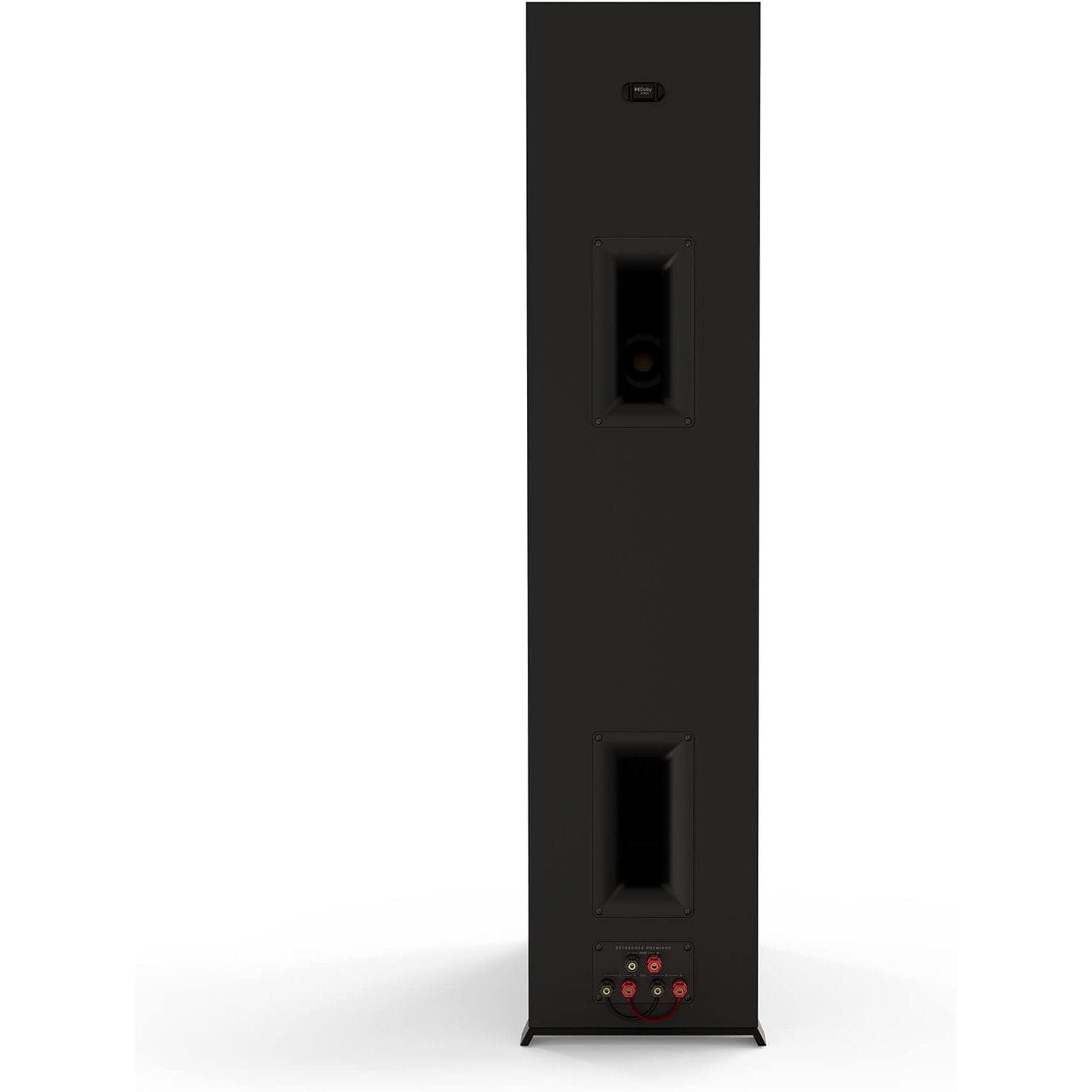

Inputs
Dual aluminum binding posts / bi-wire / bi-amp with Dolby Atmos passthrough
Height Inches (cm)
43.10" (109.5 (cm)
Width Inches (cm)
10.84" (27.5 cm)
Product Weight LBS (kg)
61.4lb (27.85kg)
Finish
Ebony
Show Less
