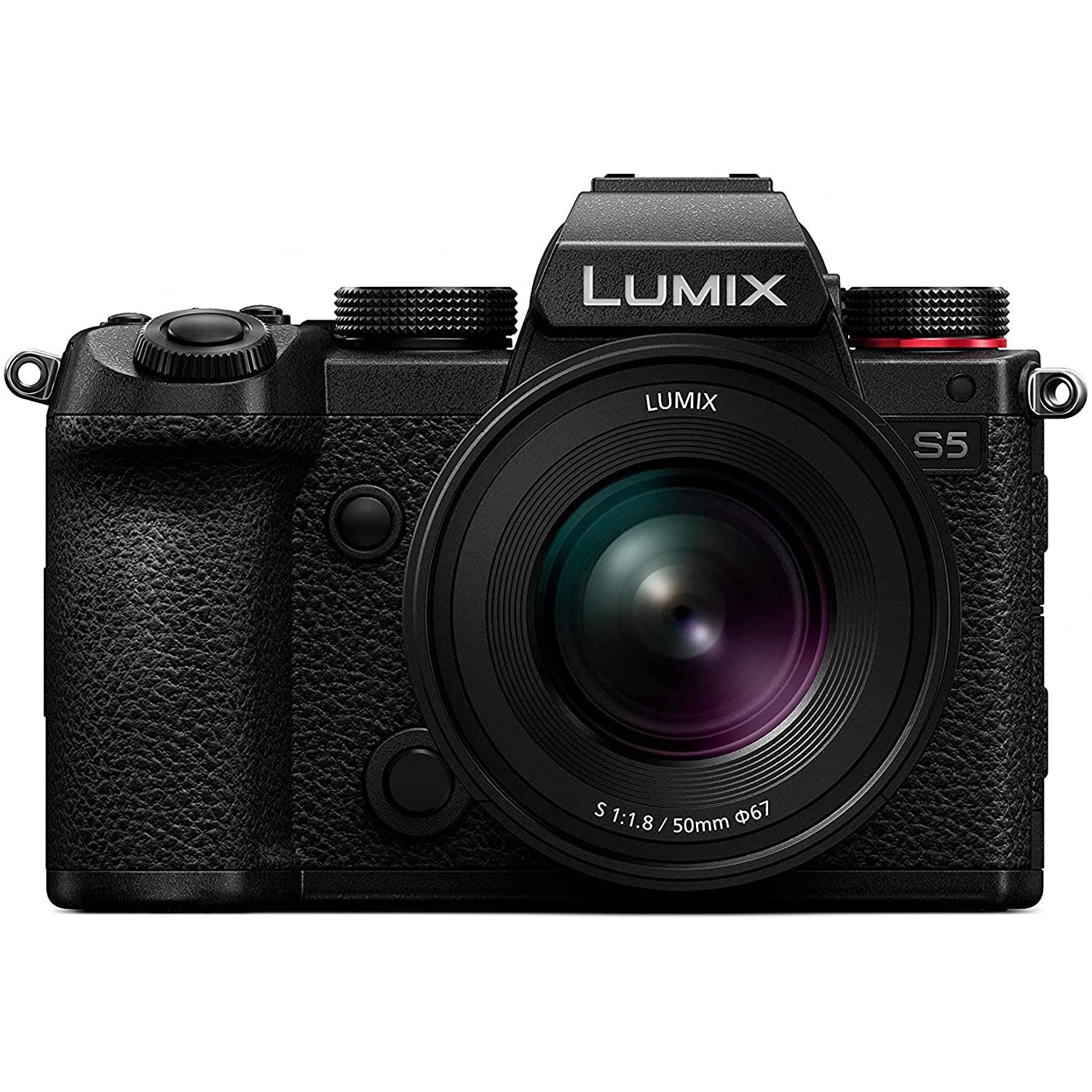

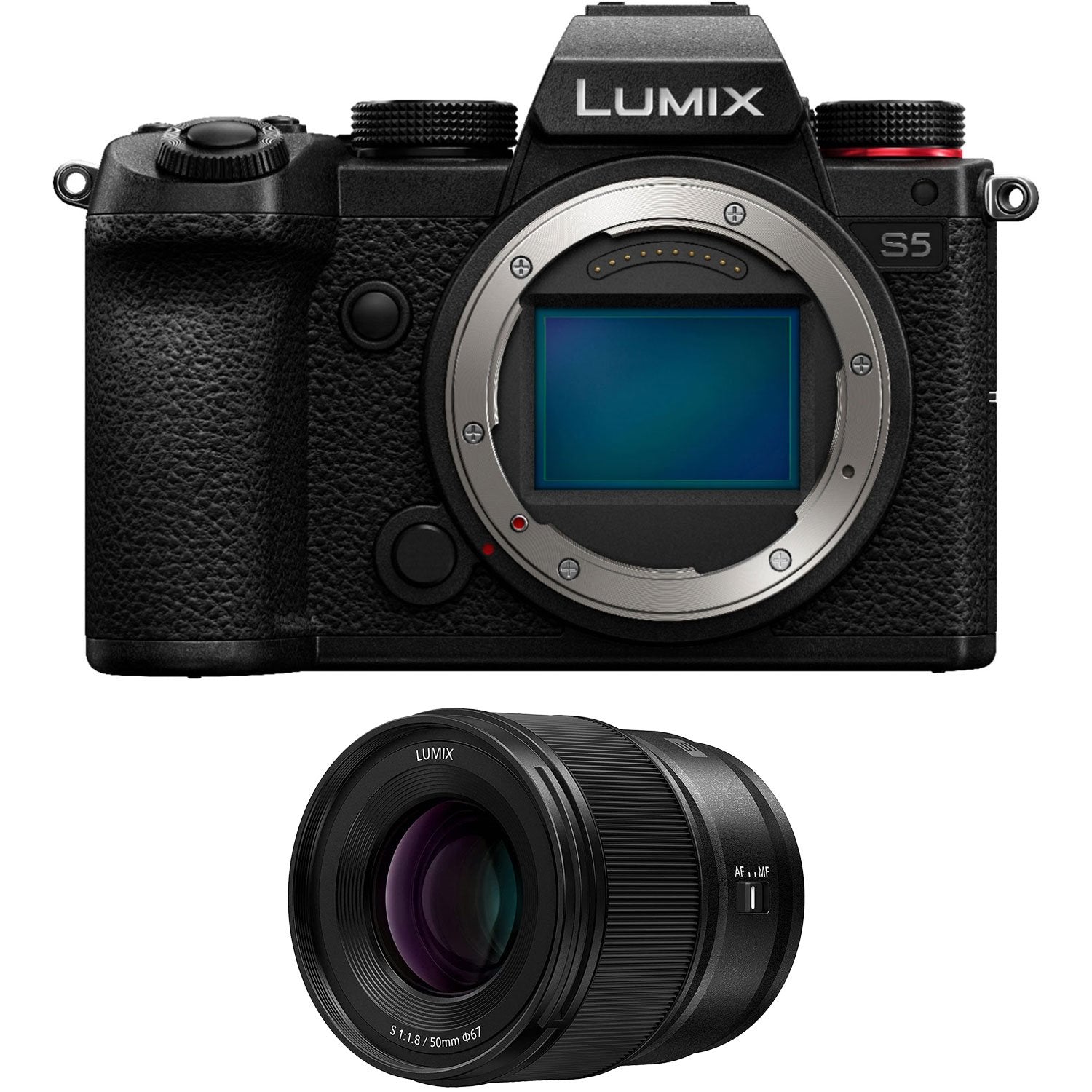

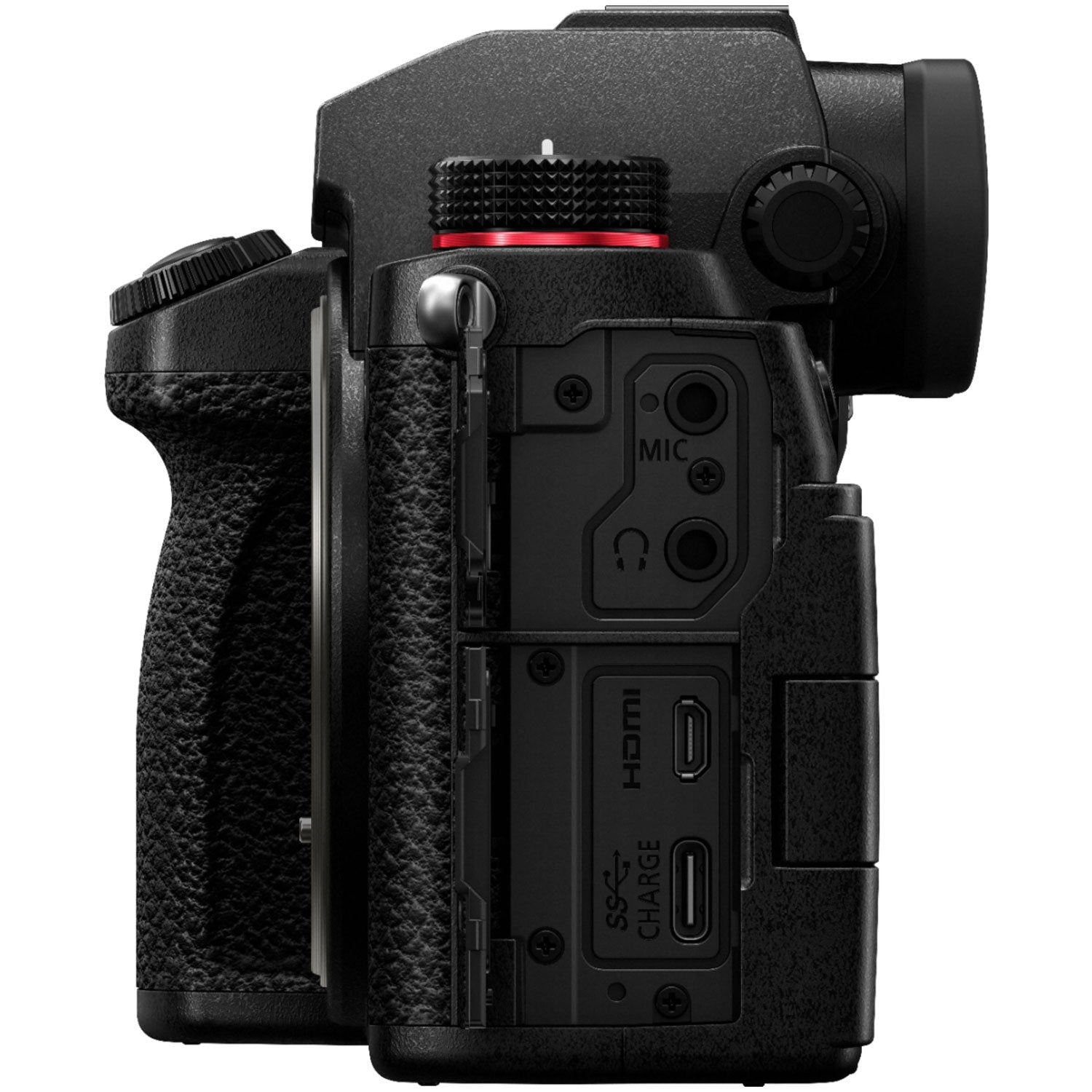

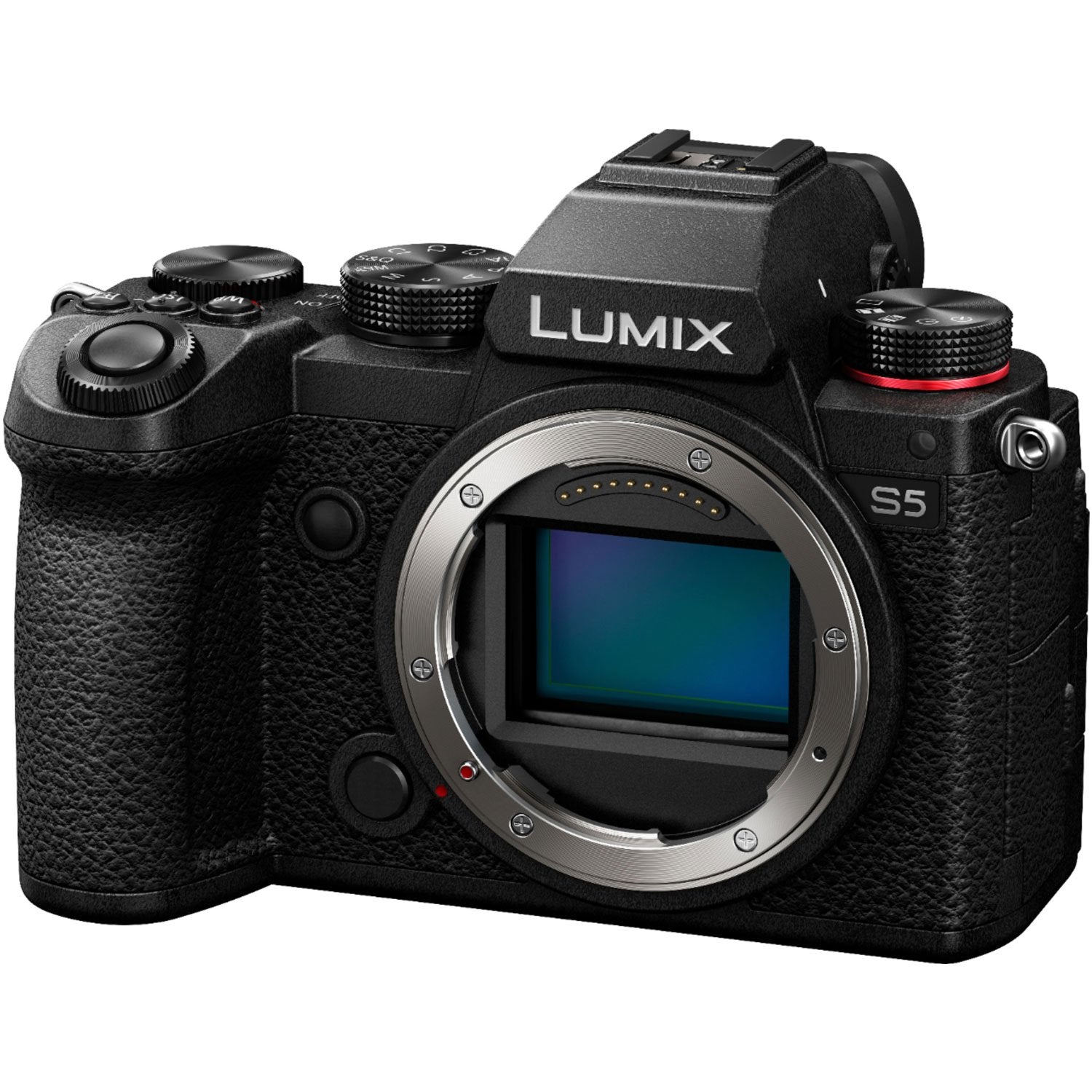

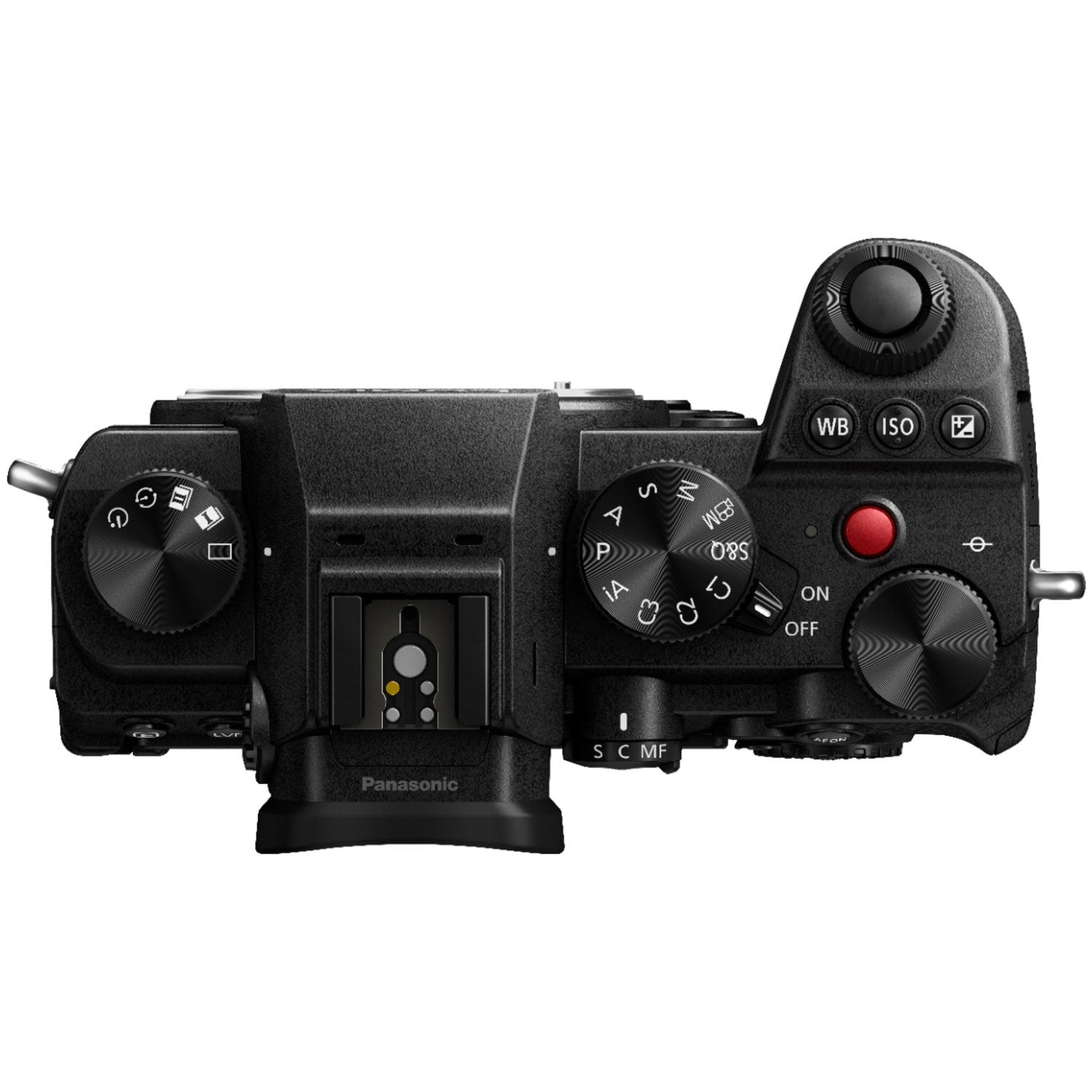

Panasonic Lumix S5 Mirrorless Full Frame L-Mount Camera (Body) Bundle with 50mm F1.8 Lens

Product Features:

A LIGHTWEIGHT, POWERFUL HYBRID CAMERA FOR VIBRANT STILL PHOTOGRAPHY AND CINEMATIC VIDEO
Realize your creative vision with extraordinary 4K 60p, 10-bit video, FHD 180fps Slow Motion option as well as 4:3 Anamorphic support.

DETAILED PHOTO AND VIDEO THAT WILL DELIGHT ENTHUSIASTS AND EXPERTS ALIKE
The Lumix S5 makes it easy and accessible to capture content in impressive high resolution. 96MP High Resolution Recording mode delivers with clarity and precision. Dual Native ISO minimizes noise in high sensitivity. V-Log/V-Gamut compatibility offers a 14+ stop dynamic range to capture every detail.

IMPROVED, HIGH-PRECISION AUTOFOCUS AND POWERFUL IMAGE STABILIZATION
Improved autofocus includes detection of the head as well as eyes, face and body, to capture subjects with ease and precision. 5-axis Dual I.S. 2 enables 6.5-stop slower shutter speed. Also equipped with Double SD memory card slot (UHS-II/UHS-I) for reliability.

EXPANDED FEATURES OFFER NEW LEVELS OF CREATIVITY
Use Live View Composite mode to instantly create a stunning image out of several live shots; the shutter releases at designated intervals of exposure time to merge the bright parts into a single image. Useful for shooting fireworks or a starry sky.

Moving Images Forward
Whether you're a content creator, DIY filmmaker, photo hobbyist, or seasoned photographer, the S5 truly has it all: from a 24.2MP CMOS sensor with Dual Native ISO, to 4:2:2 10-bit video, to unlimited recording time in 4K/30p 4:2:0 8-bit and Live Composte mode.

Full frame 24.2MP CMOS Sensor
Dual native ISO Technology to realize ISO51200 clean high sensitivity video

6.5-stop Dual Image Stabilization
5-axis Dual I.S.2 combines control of the Body I.S. and Lens O.I.S. to offer 6.5 stops worth of correction* to keep your video clear and steady even when shooting on the go.

* 5-axis Dual I.S. 2 can be used with the lens S-R24105, S-E70200 and S-R70200 as of September 2, 2020.

^{Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=200mm when S-E70200 is used.}

Improved Autofocus with Advanced AI Technology
Features high-speed (approx. 0.08 sec*), high precision AF. Improved autofocus includes detection of the head as well as eyes, face, and body, to capture subjects with ease and precision.

*11EV, at wide-end with S-R24105 (CIPA) in LVF120 fps setting

Features for Maximum Creativity
Enjoy unlimited recording in 4K/30p 4:2:0 8bit with optimum heat disperson. 14+ stops dynamic range with pre-installed V-Log/V-Gamut, FHD180fps, and 4:3 Anamorphic support for vibrant storytelling.

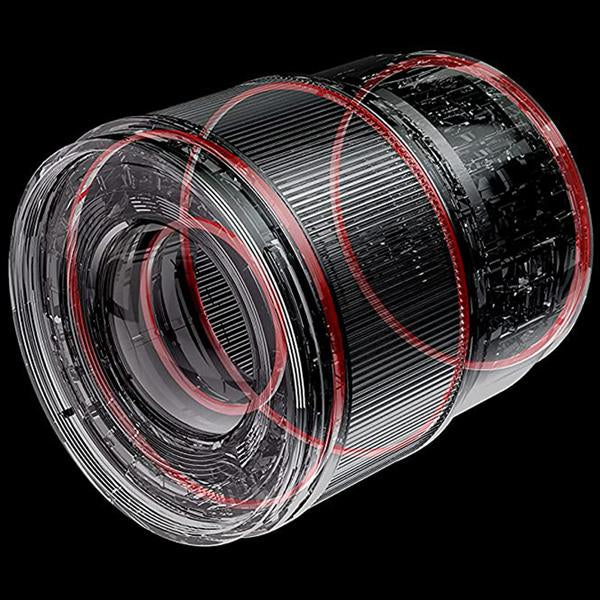

Dust and Splash Resistant* Body Is Made for Action
The tough body is dust- and splash-resistant* thanks to sealing and other protection for seams, buttons, and other functional parts.

*Dust and Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water.

96 MP High Resolution Mode with JPEG
Photos can now be saved directly in the JPEG format for finely detailed, 96-megapixel-equivalent images characteristic of LUMIX.

Product Specifications:

TYPE

Type
Digital Single Lens Mirrorless camera

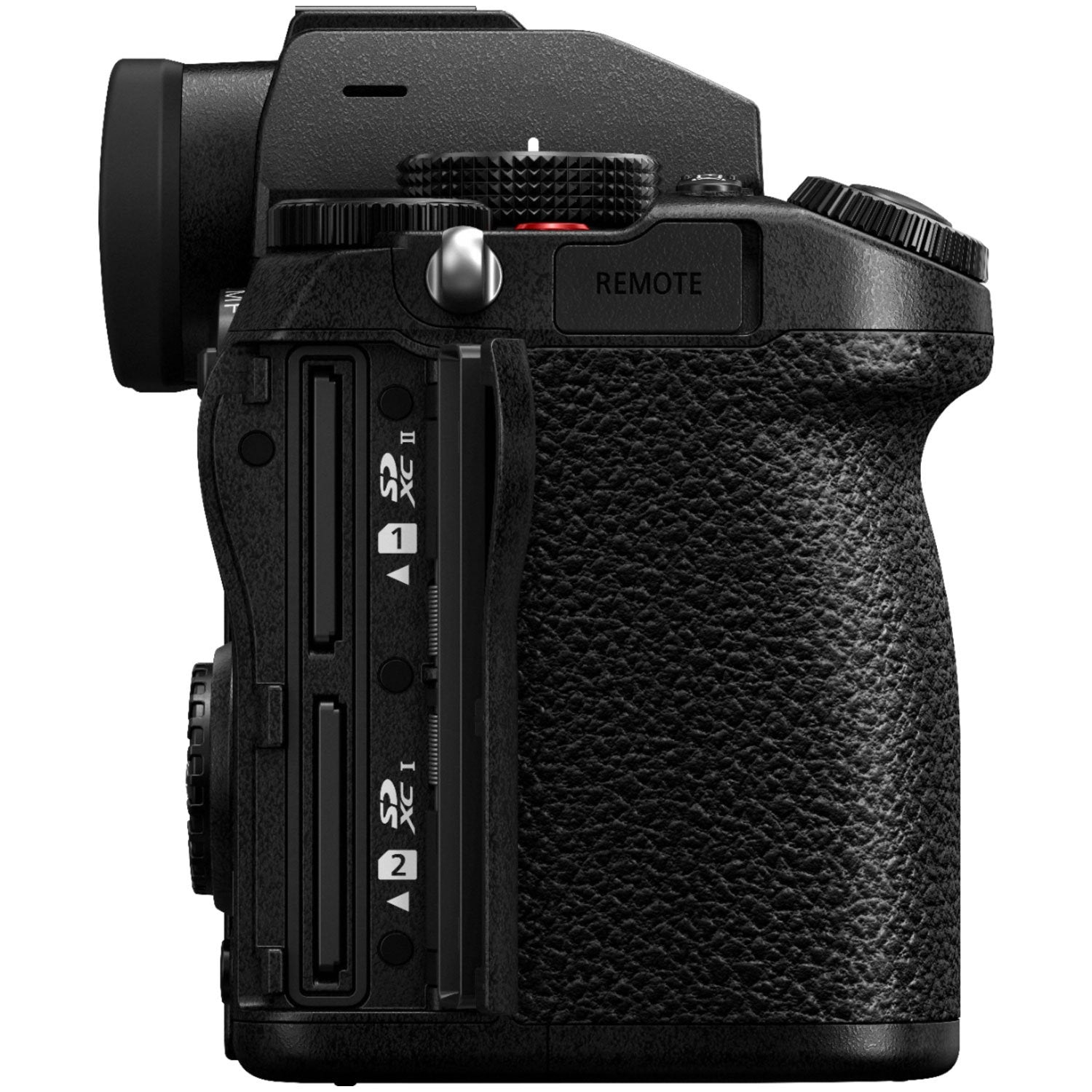

Recording media
SD Memory Card / SDHC Memory Card / SDXC Memory Card
Slot 1: Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.
Slot 2: Compatible with UHS-I UHS Speed Class 3 standard SDHC/SDXC Memory Cards.

Lens mount
L-Mount

IMAGE SENSOR

Type
35mm full-frame (35.6mm x 23.8mm) CMOS sensor

Camera effective pixels / Total pixels
24.20 megapixels / 25.28 megapixels

Aspect ratio / Color filter
3:2 / Primary color filter

Dust reduction system
Image sensor shift type

LATITUDE

LATITUDE
14+ stops (V-Log)

STILL IMAGE

Recording file format

Still image
JPEG (DCF, Exif 2.31), RAW, HLG Photo (CTA-2072)

6K PHOTO** / 4K PHOTO**
6K PHOTO: MP4 (H.265/HEVC, Audio format: AAC (2ch))
4K PHOTO: MP4 (H.264/MPEG-4 AVC, Audio format: AAC (2ch))
Extracted still images: JPEG (DCF, Exif 2.31)

Aspect ratio
4:3 / 3:2 / 16:9 / 1:1 / 65:24 / 2:1

File size (Pixels)

When using full-frame lenses 3:2
6000x4000(L) / 4272x2848(M) / 3024x2016(S) / 12000x8000(XL)* / 8496x5664(LL)* *High Resolution Mode.
5184x3456(6K PHOTO) / 3504x2336(4K PHOTO) / 5984x4000(HLG PHOTO, Full-Res.) / 3232x2160(HLG PHOTO, 4K-Res.)

When using full-frame lenses 4:3
5328x4000(L) / 3792x2848(M) / 2688x2016(S) / 10656x8000(XL)* / 7552x5664(LL)* *High Resolution Mode.
4992x3744(6K PHOTO) / 3328x2496(4K PHOTO) / 5312x3984(HLG PHOTO, Full-Res.) / 2880x2160(HLG PHOTO, 4K-Res.)

When using full-frame lenses 16:9
6000x3368(L) / 4272x2400(M) / 3024x1704(S) / 12000x6736(XL)* / 8496x4784(LL)* *High Resolution Mode.
3840x2160(4K PHOTO) / 5888x3312(HLG PHOTO, Full-Res.) / 3840x2160(HLG PHOTO, 4K-Res.)

When using full-frame lenses 1:1
4000x4000(L) / 2848x2848(M) / 2016x2016(S) / 8000x8000(XL)* / 5664x5664(LL)* *High Resolution Mode.
2880x2880(4K PHOTO) / 4000x4000(HLG PHOTO, Full-Res.) / 2144x2144(HLG PHOTO, 4K-Res.)

When using full-frame lenses 65:24
6000x2208(L)

When using full-frame lenses 2:1
6000x3000(L)

When using APS-C/Super 35mm lenses 3:2
3984x2656(L) / 2880x1920(M) / 2064x1376(S) / 3504x2336(4K PHOTO)

When using APS-C/Super 35mm lenses 4:3
3536x2656(L) / 2560x1920(M) / 1840x1376(S) / 3328x2496(4K PHOTO)

When using APS-C/Super 35mm lenses 16:9
3984x2240(L) / 2880x1624(M) / 1920x1080(S) / 3840x2160(4K PHOTO)

When using APS-C/Super 35mm lenses 1:1
2656x2656(L) / 1920x1920(M) / 1376x1376(S) / 2880x2880(4K PHOTO)

Image quality
RAW / RAW+Fine / RAW+Standard / Fine / Standard

Color space
sRGB, AdobeRGB

MOTION PICTURE

Recording file format
MOV: H.264/MPEG-4 AVC, H.265/HEVC (Audio format: LPCM (2ch 48kHz/16-bit))
MP4: H.264/MPEG-4 AVC, H.265/HEVC (Audio format: AAC (2ch))

Switch NTSC / PAL

Yes (NTSC (59.94Hz) / PAL(50.00Hz))

MOV**

NTSC (59.94Hz) Full-frame
[C4K] 4096x2160**** 29.97p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
[C4K] 4096x2160**** 23.98p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
[4K] 3840x2160 29.97p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
[4K] 3840x2160 23.98p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
[FHD] 1920x1080 59.94p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
[FHD] 1920x1080 29.97p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
[FHD] 1920x1080 23.98p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.

NTSC (59.94Hz) APS-C / Pixel by Pixel
[C4K] 4096x2160**** 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
[C4K] 4096x2160**** 29.97p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
[C4K] 4096x2160**** 23.98p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
[4K] 3840x2160 59.94p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM) *HLG is selectable.
[4K] 3840x2160 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
[4K] 3840x2160 29.97p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
[4K] 3840x2160 23.98p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
[Anamorphic 4K] 3328x2496 (4:3) 29.97p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
[Anamorphic 4K] 3328x2496 (4:3) 23.98p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
[FHD] 1920x1080 59.94p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
[FHD] 1920x1080 29.97p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
[FHD] 1920x1080 23.98p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.

PAL (50.00Hz) Full-frame
[C4K] 4096x2160**** 25.00p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
[4K] 3840x2160 25.00p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
[FHD] 1920x1080 50.00p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
[FHD] 1920x1080 25.00p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.

PAL (50.00Hz) APS-C / Pixel by Pixel
[C4K] 4096x2160**** 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
[C4K] 4096x2160**** 25.00p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
[4K] 3840x2160 50.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM) *HLG is selectable.
[4K] 3840x2160 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
[4K] 3840x2160 25.00p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
[Anamorphic 4K] 3328x2496 (4:3) 50.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM) *HLG is selectable.
[Anamorphic 4K] 3328x2496 (4:3) 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
[Anamorphic 4K] 3328x2496 (4:3) 25.00p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
[FHD] 1920x1080 50.00p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
[FHD] 1920x1080 25.00p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.

MP4**

NTSC (59.94Hz) Full-frame
[4K] 3840x2160 29.97p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
[4K] 3840x2160 23.98p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
[4K] 3840x2160 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
[4K] 3840x2160 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
[FHD] 1920x1080 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
[FHD] 1920x1080 29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
[FHD] 1920x1080 23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)

NTSC (59.94Hz) APS-C / Pixel by Pixel
[4K] 3840x2160 59.94p, 100Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
[4K] 3840x2160 29.97p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
[4K] 3840x2160 23.98p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
[4K] 3840x2160 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
[4K] 3840x2160 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
[FHD] 1920x1080 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
[FHD] 1920x1080 29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
[FHD] 1920x1080 23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)

PAL(50.00Hz) Full-frame
[4K] 3840x2160 25.00p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
[4K] 3840x2160 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
[FHD] 1920x1080 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
[FHD] 1920x1080 25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)

PAL(50.00Hz) APS-C / Pixel by Pixel
[4K] 3840x2160 50.00p, 100Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
[4K] 3840x2160 25.00p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
[4K] 3840x2160 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
[FHD] 1920x1080 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
[FHD] 1920x1080 25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)

HDMI RAW DATA OUTPUT**** *Use the ATOMOS Ninja V 4K HDR Monitor-Recorder (AtomosOS 10.55 or higher). *This does not guarantee all of the capabilities that the compatible external recorder may have.

Rec quality

NTSC (59.94Hz) Full-frame
[5.9K] 5888x3312 29.97p, 12-bit (LPCM)
[5.9K] 5888x3312 23.98p, 12-bit (LPCM)

NTSC (59.94Hz) APS-C
[4K] 4128x2176 (17:9) 59.94p, 12-bit (LPCM)
[4K] 4128x2176 (17:9) 29.97p, 12-bit (LPCM)
[4K] 4128x2176 (17:9) 23.98p, 12-bit (LPCM)
[Anamorphic 3.5K] 3536x2656 (4:3) 29.97p, 12-bit (LPCM)
[Anamorphic 3.5K] 3536x2656 (4:3) 23.98p, 12-bit (LPCM)

PAL (50.00Hz) Full-frame
[5.9K] 5888x3312 25.00p, 12-bit (LPCM)

PAL (50.00Hz) APS-C=
[4K] 4128x2176 (17:9) 50.00p, 12-bit (LPCM)
[4K] 4128x2176 (17:9) 25.00p, 12-bit (LPCM)
[Anamorphic 3.5K] 3536x2656 (4:3) 50.00p, 12-bit (LPCM)
[Anamorphic 3.5K] 3536x2656 (4:3) 25.00p, 12-bit (LPCM)

Audio format
LPCM (2ch 48kHz/16-bit)

SLOW & QUICK

MP4**

NTSC (59.94Hz) Full-frame
[FHD] 1920x1080 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
[FHD] 1920x1080 29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
[FHD] 1920x1080 23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
1, 2, 5, 10, 15, 30, 60, 100, 120, 150*, 180* fps

*Angle of view narrows if you select a frame rate with a number of frames 180. The AF mode switches to MF when the frame rate is set to of 150 fps or more.

NTSC (59.94Hz) APS-C / Pixel by Pixel
[4K] 3840x2160 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
[4K] 3840x2160 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
1, 2, 5, 10, 15, 30, 60 fps

PAL (50.00Hz) Full-frame
[FHD] 1920x1080 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
[FHD] 1920x1080 25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
1, 2, 5, 10, 15, 30, 60, 100, 120, 150*, 180* fps

*Angle of view narrows if you select a frame rate with a number of frames 180. The AF mode switches to MF when the frame rate is set to of 150 fps or more.

PAL (50.00Hz) APS-C / Pixel by Pixel
[4K] 3840x2160 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
1, 2, 5, 10, 15, 30, 60 fps

VIEWFINDER

Type
OLED Live View Finder

Pixels
Approx. 2.36 million dots

Field of view / Magnification
Approx. 100% / Approx. 0.74x with 50 mm lens at infinity; -1.0 m-1, when the aspect ratio is set to 3:2

Eye point / Diopter adjustment
Approx. 20 mm at infinity; -1.0 m-1 / -4.0 - +4.0 (dpt)

Eye sensor
Yes

Display speed
120fps / 60fps

Display time lag
Approx. 0.005sec

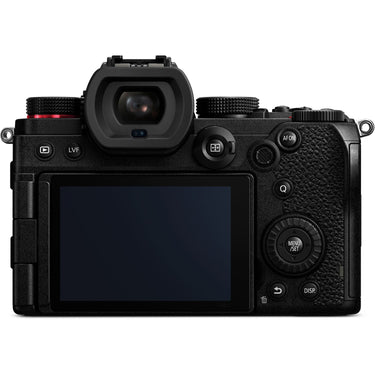

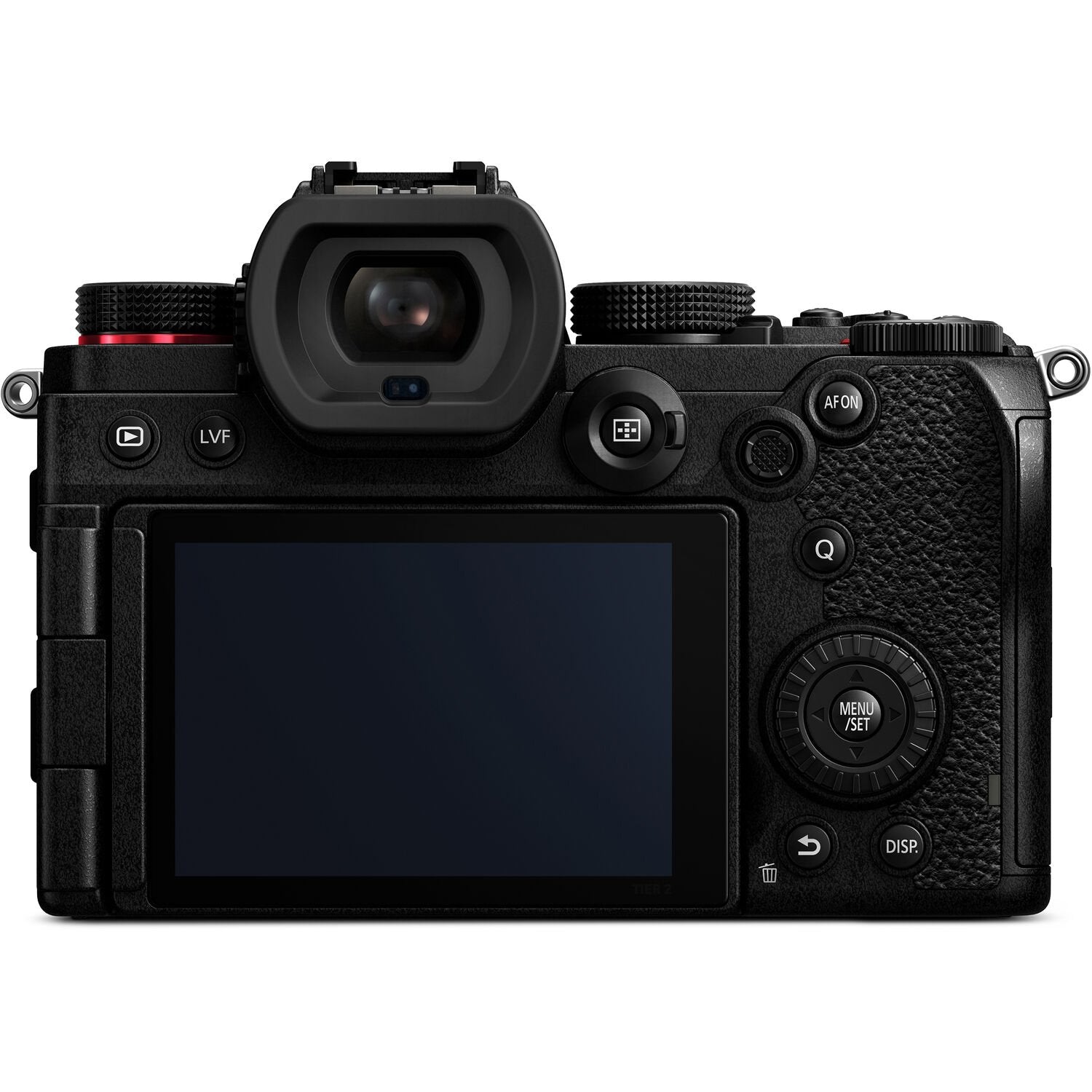

REAR MONITOR

Type
TFT LCD monitor with static touch control

Monitor size
Free-angle, 3.0-inch (7.5cm), 3:2 aspect

Pixels
Approx. 1.84 million dots

Field of view
Approx. 100%

FOCUS

Type
Contrast AF system

DFD technology
Yes

Focus mode
AFS (Single) / AFC (Continuous) / MF

AF mode
Auto Detection (Face, Eye, Body, Animal) / Tracking / 225-Area / Zone (Vertical/Horizontal) / Zone (Square) / Zone (Oval) / 1-Area+* / 1-Area* / Pinpoint / Custom 1, 2, 3
(Full area touch is available) (Scalable AF frame size and flexible AF position) *Human/Animal Detection AF can be set ON or OFF.****

AF detective range
EV -6 - 20 (F1.4, ISO100 equivalent, AFS)

AF custom setting
AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction

AF assist lamp
Yes

AF lock
Set the Fn button in custom menu to AF lock

Post Focus / Focus Stacking
Yes / Yes

Others
AF-ON, AF-ON: Near Shift, AF-ON: Far Shift, Shutter AF, Half Press Release, Focus/Shutter Priority, Quick AF, Continuous AF (during motion picture recording), Eye Sensor AF, AF-Point Scope Setting, AF+MF, MF Guide, MF Assist, Touch MF Assist, Focus Peaking, Touch AF/AE Function, Touch Pad AF, Touch Shutter, Focus Switching for Vert/Hor, Focus Ring Lock, Show/Hide AF Mode, 1-Area AF Moving Speed, Loop Movement Focus Frame, AFC Start Point (225-Area), Lens Focus Resume, Focus Ring Control

EXPOSURE CONTROL

Light metering system
1,728-zone multi-pattern sensing system

Light metering mode
Multiple / Center Weighted / Spot / Highlight Weighted

Metering range
EV0-18 (F2.0 lens, ISO100 equivalent)

Exposure mode
Program AE / Aperture Priority AE / Shutter Priority AE / Manual Exposure

ISO sensitivity (Standard output sensitivity)
Auto / 50* / 100 / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 / 51200 / 102400* / 204800* (Changeable to 1/3 EV step) *Extended ISO

Dual Native ISO

[Normal]
Native ISO: 100, 640
Auto: Auto / 50* / 100-51200 / 102400* / 204800* *Extended ISO

[V-Log]
Native ISO: 640, 4000
Auto: Auto / 320* / 640-51200 *Extended ISO

[HLG]
Native ISO: 400, 2500
Auto: Auto / 400-51200 / 102400* / 204800* *Extended ISO

[Cinelike D2 / Cinelike V2]
Native ISO: 200, 1250
Auto: Auto / 100* / 200-51200 / 102400* / 204800* *Extended ISO

Exposure compensation
1/3 EV step ±5EV (±3EV for motion picture)

AE lock
Set the Fn button in custom menu to AE lock

IMAGE STABILIZATION SYSTEM

IMAGE STABILIZATION SYSTEM
Image sensor shift type (5-axis / 5.0-stop*) *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=60mm when S-R2060 is used.]
Dual I.S. (6.5-stop* Dual I.S. 2 compatible) *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=200mm when S-E70200 is used.]

WHITE BALANCE

White balance
AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4

White balance adjustment
Blue/Amber bias, Magenta/Green bias

Color temperature setting
2500-10000K in 100K

SHUTTER

Type
Focal-plane shutter

Shutter speed
Still image: Bulb (Max. 30 minutes), 1/8,000 - 60
Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60
Electronic shutter: Bulb (Max. 60 sec), 1/8,000 - 60
Motion picture: 1/16,000 - 1/25
Creative Video M mode / MF mode: 1/16,000 - 1/2

Self timer
10sec, 3 images / 2sec / 10sec

Remote control
Remote control by DMW-RS2 (sold separately)

Silent mode / Shutter type
Yes / Yes (Auto / Mechanical / Electronic front curtain / Electronic / Electronic+NR)

BRACKET

AE bracket
3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst

Aperture bracket
3, 5 or all positions in 1 EV step

Focus bracket
1 to 999 images, focus steps can be set in 10 levels

White balance bracket
3 images in blue/amber axis or in magenta/green axis, color temperature setting

BURST SHOOTING

Burst speed
Mechanical shutter / Electronic front curtain shutter
AFS/MF: H: 7 frames/sec, M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View)
AFC: H: 5 frames/sec (with Live View), M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View)

Electronic shutter
AFS/MF: H: 7 frames/sec, M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View)
AFC: H: 5 frames/sec (with Live View), M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View)

Number of recordable images
RAW / RAW+JPEG: More than 24 images
JPEG: More than 999 images (When using a card with SD Speed Class with "UHS-II UHS Speed Class 3 (U3)" inserted into card slot 1.)

* When recording is performed under the test conditions specified by Panasonic.

6K PHOTO** / 4K PHOTO**

Burst speed
6K PHOTO: 30 frames/sec
4K PHOTO: 60 frames/sec, 30 frames/sec

Exif information
Yes (Each JPEG image cropped out of the 6K/4K burst file complies with EXIF.)

FLASH

Flash type
TTL External Flash (sold separately)

Flash mode
Auto* / Auto/Red-eye Reduction* / Forced On / Forced On/Red-eye Reduction / Slow Sync. / Slow Sync./Red-eye Reduction / Forced Off *For iA only.

Flash synchronization
1st Curtain Sync, 2nd Curtain Sync.

Flash output adjustment
1/3EV step ±3EV

Synchronization speed
Less than 1/250 second *The guide number decreases at 1/250 second. Only when set to M mode or S mode.

Wireless control
Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch

EXTRA TELE CONVERSION

EXTRA TELE CONVERSION
2.0x (EX S) (When using full-frame lenses), 1.9x (EX S) (When using APS-C / Super 35mm lenses), 1.4x (EX M) *Only for still image recording.

PHOTO STYLE

Photo Style
Standard / Vivid / Natural / L. Classic Neo**** / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / L. Monochrome S**** / Cinelike D2 / Cinelike V2 / Like709 / V-Log / Standard (HLG) / Monochrome (HLG) / Like2100 (HLG) / My Photo Style 1-10

Picture adjustment
Contrast / Highlight / Shadow / Saturation / Color Tone / Hue / Filter Effect / Grain Effect / Color Noise**** / Sharpness / Noise Reduction / ISO / WB

*Adjustable settings vary depending on the Photo Style mode.

FILTER

FILTER
Expressive / Retro / Old Days / High Key / Low Key / Sepia / Monochrome / Dynamic Monochrome / Rough Monochrome* / Silky Monochrome* / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy Pop / Bleach Bypass / Miniature Effect / Soft Focus* / Fantasy / Star Filter* / One Point Color / Sunshine*

*For photos only.

MOTION PICTURE FUNCTION

Master pedestal level****
31 steps

Luminance level
8-bit: 0-255 / 16-235 / 16-255
10-bit: 0‒1023 / 64‒940 / 64‒1023

Wave form monitor / Vectorscope****
Selectable

LUT display
LUT View Assist (Monitor) / LUT View Assist (HDMI)

Time code
Count Up: Rec Run/Free Run selectable, Time Code Mode: Drop frame/Non-drop frame selectable (When NTSC (59.94Hz) is selected.)

SS/Gain operation****
Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB

Knee control
Yes (in Like709 mode)

FUNCTION BUTTON

REC
Exposure Comp. / Sensitivity / White Balance / Photo Style / Metering Mode / Aspect Ratio / Picture Quality / Picture Size / HLG Photo / High Resolution Mode / 1 Shot Spot Metering / Long Exposure NR / Min. Shutter Speed / 1 Shot RAW+JPG / i.Dynamic Range / Filter Effect / One Push AE / Touch AE / Exposure Mode / AF Mode / AF Custom Setting(Photo) / AF Custom Setting(Video) / Focus Peaking / Focus Peaking Sensitivity / 1-Area AF Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift / AF-ON: Far Shift / AF-Point Scope / Focus Area Set / Flash Mode / Flash Adjust. / Wireless Flash Setup / Drive Mode / 1 Shot "6K/4K PHOTO" / Bracketing / Silent Mode / Image Stabilizer / Shutter Type / Ex. Tele Conv. / Live View Composite / Post-Focus / Motion Pic. Rec File Format / Motion Pic. Rec Quality / Slow & Quick Setting / Time Code Display / Sound Rec Level Disp. / Sound Rec Level Adj. / Sound Rec Level Limiter / Special Mic. Directivity Adjust / Image Stabilizer / E-Stabilization (Video) / Boost I.S. (Video) / Image Area of Video / Live Cropping / Q.MENU / Rec / Playback Switch / Video Record / LVF/Monitor Switch / Operation Lock / Dial Operation Switch / Preview / Preview Aperture Effect / Constant Preview / Level Gauge / Histogram / Luminance Spot Meter / Frame Marker / Photo Grid Line / Live View Boost / Monochrome Live View / Night Mode / LVF/Monitor Disp. Style / Photo/Video Preview / Zebra Pattern / LUT View Assist (Monitor) / LUT View Assist (HDMI) / LUT Select / HLG View Assist(Monitor) / HLG View Assist (HDMI) / Sheer Overlay / I.S. Status Scope / WFM/Vector Scope**** / Anamorphic Desqueeze Display / Focus Ring Control/ Zoom Control / Destination Card Slot / Wi-Fi / No Setting / Restore to Default

PLAY
Magnify from AF Point / LUT View Assist (Monitor) / HLG View Assist (Monitor) / Anamorphic Desqueeze Display / RAW Processing / 6K/4K PHOTO Bulk Saving / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / LVF/Monitor Switch / Video Record / Night Mode / Card Slot Change / Wi-Fi / Send Image (Smartphone) / LUT View Assist (HDMI) / HLG View Assist (HDMI) / 6K/4K Photo Play / No Setting / Off (Disable Press and Hold) / Restore to Default

LEVEL GAUGE

LEVEL GAUGE
Yes

OSD LANGUAGE

OSD LANGUAGE
English, Chinese (Traditional), Chinese (Simplified), Thai, Arabic, Persian, Vietnamese, Hindi

PRINT

PRINT
PictBridge compatible

INTERFACE

USB
SuperSpeed USB 3.1 Gen1 Type-C

HDMI***
Monitor-through

When a mode other than [C4K/60p]****/[C4K/50p]****/[4K/60p]/[4K/50p] is selected for [Picture Quality]:
4:2:2 10bit, 4:2:2 8bit, 4:2:0 8bit

When [C4K/60p]****/[C4K/50p]****/[4K/60p]/[4K/50p] mode is selected in [Rec Quality]:

4:2:2 10bit*, 4:2:0 8bit *When 4:2:2 10bit mode is selected, it is not possible to record motion picture or still picture on the memory card in the camera unit.

Info Display: ON / OFF (selectable)

HLG View Assist (HDMI): AUTO / MODE1 / MODE2 / OFF (selectable)

Playback
microHDMI TypeD / VIERA Link, Audio: Stereo
NTSC (59.94Hz): Auto / C4K/60p**** / 4K/60p / 4K/30p / 1080p / 1080i / 720p / 480p
PAL (50.00Hz): Auto / C4K/50p**** / 4K/50p / 4K/25p / 1080p / 1080i / 720p / 576p

Remote input
2.5mm

External microphone / external audio device input
3.5mm for external microphone / external audio device

MIC (Plug-in Power) / MIC / LINE is selectable.

Stereo/Lens Auto/Shotgun/Super Shotgun/Manual is selectable when attaching DMW-MS2 (sold separately).

Headphone output

3.5mm

Microphone
Stereo, Wind Noise Canceller: OFF / Low* / Standard / High *When attaching DMW-MS2 (sold separately).

XLR microphone
Yes with DMW-XLR1 (sold separately)

Speaker
Monaural

SD card slot
SD Memory Card, SDHC Memory Card, SDXC Memory Card
Slot 1: Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.
Slot 2: Compatible with UHS-I UHS Speed Class 3 standard SDHC/SDXC Memory Cards.

WIRELESS

Wi-Fi
2.4GHz (STA/AP) (IEEE802.11b/g/n)
5GHz (STA) (IEEE 802.11a/n/ac) *5GHz Wi-Fi is not available in some countries.
1-13, 36, 40, 44, 48, 52, 56, 60, 64 ch

Bluetooth
Bluetooth v4.2 (Bluetooth Low Energy (BLE))

DUST AND SPLASH RESISTANT

DUST AND SPLASH RESISTANT*
Yes.

*Dust and Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water.

POWER

Battery
Li-ion Battery Pack (7.2V, 2200mAh, 16Wh) (bundled)
USB power supply, USB power charging

Battery life (CIPA standard)
Approx. 440 images (rear monitor), 470 images (LVF), 1,500 images (Power Save LVF mode*) with S-R2060

*Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.

Continuous recordable time (Motion picture)**
MP4 [4K/60p]: Approx. 110 min (APS-C, Pixel by Pixel) (LVF), 110 min (APS-C, Pixel by Pixel) (rear monitor) *When using S-R2060. When the battery is fully charged.
MOV [4K/60p/4:2:0 10-bit/LongGOP]: Approx. 100 min (APS-C, Pixel by Pixel) (LVF), 110 min (APS-C, Pixel by Pixel) (rear monitor) *When using S-R2060. When the battery is fully charged.

Actual recordable time (Motion picture)**
MP4 [4K/60p]: Approx. 55 min (APS-C, Pixel by Pixel) (LVF), 55 min (APS-C, Pixel by Pixel) (rear monitor) *When using S-R2060. When the battery is fully charged.
MOV [4K/60p/4:2:0 10-bit/LongGOP]: Approx. 50 min (APS-C, Pixel by Pixel) (LVF), 55 min (APS-C, Pixel by Pixel) (rear monitor) *When using S-R2060. When the battery is fully charged.

Battery grip
DMW-BGS5 (sold separately)

DIMENSIONS / WEIGHT

Dimensions (W x H x D)
Approx. 132.6 x 97.1 x 81.9 mm / 5.22 x 3.82 x 3.22 inch (excluding protrusions)

Weight
Approx. 714g / 1.58 lb (SD Memory Card x 1, Battery, Body)
Approx. 630g / 1.39 lb (Body only)

OPERATING ENVIRONMENT

Operating temperature
0degC to 40o=degC (32degF to 104degF)

Operating humidity
10%RH to 80％RH

STANDARD ACCESSORIES

Software
Recording

LUMIX Tether

This software is used to control a Panasonic digital camera from a PC. It allows you to change various settings of the camera, perform remote recording, and save remotely recorded images to the PC. Check the site below to download and install the software.

https://panasonic.jp/support/global/cs/soft/download/d_lumixtether.html (For Windows / Mac)

Playback / Editing

The software to edit and playback images on computer is not bundled with this camera. To do this, PHOTOfunSTUDIO 10.1PE is available for download at Panasonic website using computer connected to the Internet.

https://panasonic.jp/support/global/cs/soft/download/d_pfs1001pe.html(For Windows)

The software to process RAW file on computer is not bundled with this camera. To do this, SILKYPIX Developer Studio is available for download at Ichikawa Soft Laboratory's website using computer connected to the Internet.

https://www.isl.co.jp/SILKYPIX/english/p/ (For Windows / Mac)

NOTE

NOTE

** About motion picture recording / 6K PHOTO/4K PHOTO recording

- 6K PHOTO is a high speed burst shooting function that cuts a still image out of a 4:3 or 3:2 video footage with approx. 18-megapixel (approx. 6000 x 3000 effective pixel count) that the 6K image manages.

- Use a card with SD Speed Class with "Class 4" or higher when recording motion pictures in [MP4 (under 28Mbps)].

- Use a card with SD Speed Class with "UHS-I / UHS-II UHS Speed Class 3 (U3)" when recording motion pictures with [MP4] in [4K], [MOV], [S&Q], [6K PHOTO] or [4K PHOTO].

(SD speed class is the speed standard regarding continuous writing.)

- Recording stops when the continuous recording time exceeds 30 minutes in [C4K/60p] [C4K/50p] [4K/60p] [4K/50p] [4K-A/50p] [C4K/4:2:2 10-bit] [4K/4:2:2 10-bit] [4K-A/4:2:2 10-bit] [4K/4:2:0 10-bit] [4K-A/4:2:0 10-bit] [S&Q].

- Recording stops when the continuous recording time exceeds 15 minutes in [6K PHOTO] [4K PHOTO].

- MP4 motion pictures with [MP4] in [4K]:

- When using an SDHC memory card: You can continue recording without interruption even if the file size exceeds 4 GB or 30 minutes, but the motion picture file will be divided and recorded/played back separately.

- When using an SDXC memory card: You can continue recording without interruption even if the file size exceeds 96 GB or 3 hours 4 minutes in length, but the motion picture file will be divided and recorded/played back separately.

- MP4 motion pictures with [MP4] in [FHD]:

- You can continue recording without interruption even if the file size exceeds 4 GB or 30 minutes in length, but the motion picture file will be divided and recorded/played back separately.

- MOV motion picture with [MOV]

- When using an SDHC memory card: You can continue recording without interruption even if the file size exceeds 4 GB or 30 minutes, but the motion picture file will be divided and recorded/played back separately.

- When using an SDXC memory card: You can continue recording without interruption even if the file size exceeds 96 GB or 3 hours 4 minutes in length, but the motion picture file will be divided and recorded/played back separately.

- 4:2:2 10-bit recording is a recording mode for film production and the video needs to be processed on PC.

The original video cannot be played on standard TV, Blu-ray Disc recorder and Blu-ray Disc player.

It may cause problems such as freezing when played on these devices.

- When the ambient temperature is high or continuous recording is performed, the camera may stop the recording to protect itself. Wait until the camera cools down.

*** For [C4K/60p] [C4K/50p] [4K/60p] [4K/50p] video output, use an HDMI2.0 cable that has the HDMI logo on it, and that is described as"4K compatible".

**** Firmware must be updated to version 2.0.

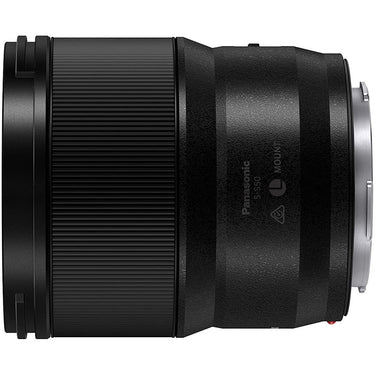

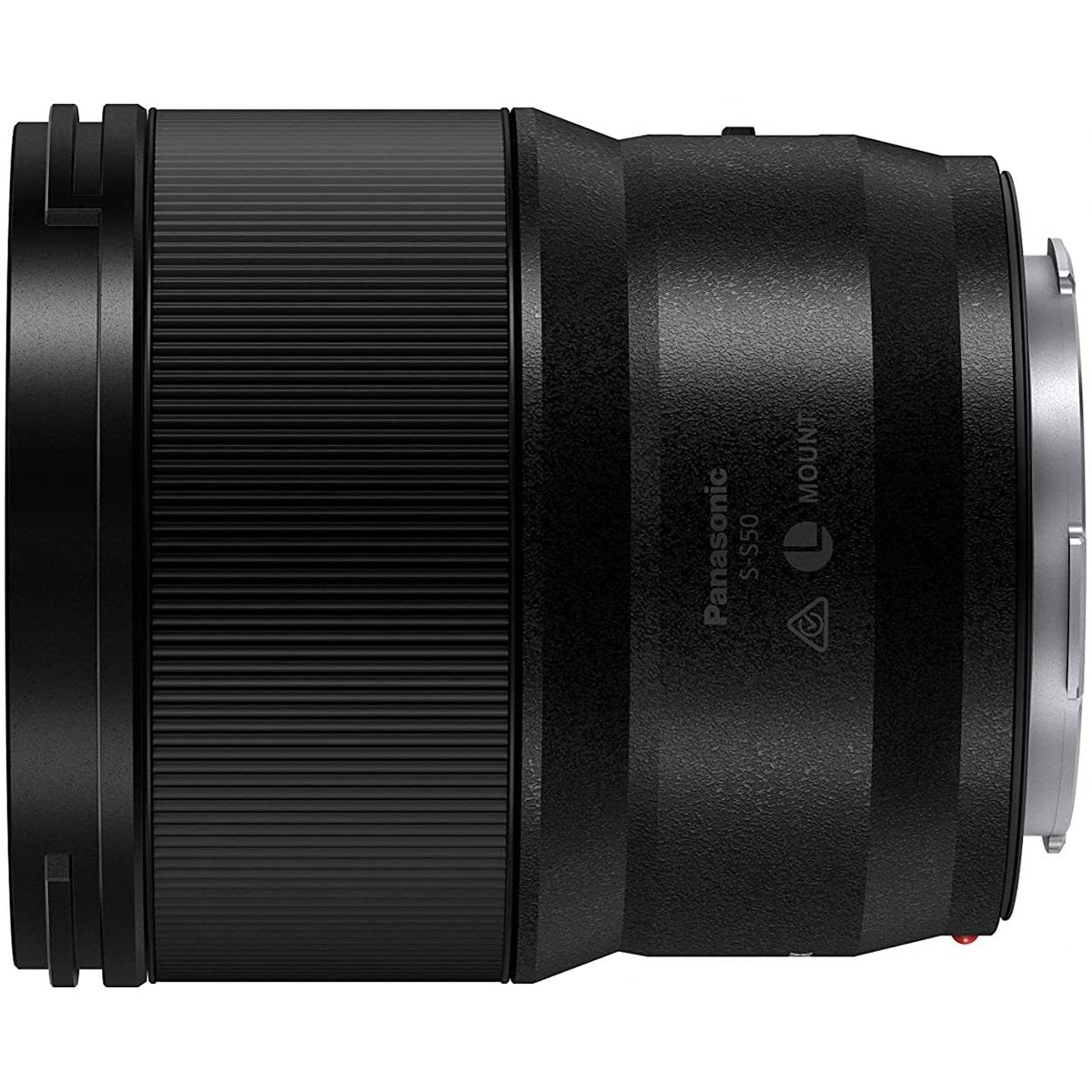

Product Features:

Create beautiful bokeh with this large-aperture standard fixed focal length lens that's lightweight and easily portable. The LUMIX S 50mm F1.8 is a large-diameter standard lens compatible with all L-mount cameras for maximum versatility, yet it has a compact size and weight. Ideal for a wide range of photography, from landscape to portraits and snapshots, this lens uses three aspherical lenses to achieve both high depiction performance and beautiful bokeh. An excellent choice for video, it suppresses breathing during focus and realizes smooth exposure change by microstep control of the aperture, enabling high-quality video expression. By using one ED lens, chromatic aberration is well suppressed. This compact, lightweight, and dust-, splash-, and low-temperature resistant lens is easy to carry and dependable even when shooting outdoors.

Product Highlights:

Works with All L-Mount Full-Frame Digital Cameras

F1.8 large-aperture lens provides a wide range of creative choices for portraiture, including beautiful bokeh and smooth defocus gradation

Suppressed focus breathing and smooth aperture control allow you to shoot videos with minimal re-adjustment or the rigs during your shooting

Light, portable and easy-to-carry lens lets you stay mobile all day in comfort

Dust/splash/freeze-resistant design withstands heavy field use under harsh conditions

Product Features:

A versatile lens for photo and video

The LUMIX S F1.8 Series 50mm lens is designed for superior mobility and beautiful bokeh. It helps you capture unique landscapes and facial expressions. When it’s combined with a LUMIX S series camera, the focus ring control setting can be finely set and focus adjusted to feel just right, so it’s also ideal for video creation.

Ideal for video recording

This lens offers fast, accurate autofocus and smooth aperture changes, critical for the modern content creator, allowing you to record beautiful 4K video and stills without disturbing your subject.

Dust, splash and freeze-resistant design

he LUMIX S 50mm F1.8 is designed to keep shooting in the toughest conditions thanks to a dust- and splash-resistant construction that allows you to shoot in temperatures as low as -10 °C/14 °F.

Superior lens construction

The optimized lens configuration has 9 elements in 8 groups, including 3 ASPH, 1 ED and 1 UHR lenses to minimize aberrations and ensure superb resolution.

Outstanding sharpness and resolution

Offering outstanding sharpness and resolution from the center to the edges of the frame, this is an ideal lens for the LUMIX full-frame system, and provides creative opportunities without compromise.

Product Specifications:

Mount - Leica Camera AG L-Mount

Focal Length - f=50mm

Lens Construction - 9 elements in 8 groups (3 aspherical lenses, 1 ED lens, 1 UHR lens)

Aperture Type - 9 diaphragm blades/Circular aperture diaphragm

Maximum Aperture - F1.8

Minimum Aperture Value - F22

Angle of View - 47 Degrees

In Focus Distance - 0.45m (1.48 feet) to (from the focus distance reference line)

Maximum Image Magnification - 0.14x

Optical Image Stabilizer - No

Filter Diameter - 67mm

Maximum Diameter - 73.6mm (2.9")

Overall Length - Approx. 82.0mm (3.2") (from the tip of the lens to the base of the side of the lens mount)

Mass (Weight) - Approx. 300g (0.66lb)

Dust and Splash Resistant - Yes

Recommended Operating Temperature - -10 Degrees C to 40 Degrees C (14 Degrees F to 104 Degrees F)

Permissible Relative Humidity - 10 Percent RH to 80 Percent RH

Show Less
