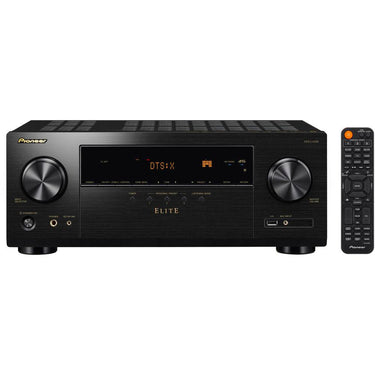

Pioneer Elite VSX-LX105 7.2 Channel Network AV Receiver

Condition: New
SKU PRVSXLX105
$999.00

List Price

$400.00(40%)

You Save


$599.00
$599.00 - $599.00
Current price $599.00
FG icon
Item Description
  • Works with SONOS
  • Built-in Bluetooth receiver and transmitter
  • MCACC Auto Room Tuning
  • HDMI 2.1 for Enhanced Gaming
  • X

    Overview

    Indulge yourself with a 7.2-channel AV receiver, featuring the ability for a 5.2.2 configuration: With 5 traditional speaker channels, two specifically for height or surround with Dolby Atmos® or DTS:X, and 2 subwoofer outputs to take advantage of all the low tones. Or you can experience similar height-oriented sounds with Dolby Atmos Height Virtualizer and DTS:X built into the VSX-LX105. Then, you may want to use the 7.2-channels to power a second zone with a dedicated DAC. You can further personalize your experience with presets, 2HDMI outputs and voice control with Alexa or Hey Google.

    Superior imagery is also yours with Ultra HD, HDR10+, HLG, and Dolby Vision™ pass through. Plus, the VSX-LX105 supports HDMI 2.1 for 8K, VRR, ALLM, and QFT pass-through for high resolution picture and next-generation gaming. Finally, listening to music couldn’t be easier with a number of streaming services in the VSX-LX105, available simply via Bluetooth®, or with the ability to connect your entire music library through Roon.

    Features:

    All Encompassing Sound
    Reproduce object-oriented sound with DTS:X and the smooth, curving or realistic, three-dimensional, overhead movements of Dolby Atmos. Or if you don’t have surrounds or height speakers, Dolby Atmos Height Virtualizer and DTS:X Virtual will create virtual height effects from traditional speaker layouts to simulate upfiring speakers. With or without upfiring speakers, E-ARC (Enhanced Audio Return Channel) simplifies connectivity and supports the latest high-bitrate audio formats.

    100 Watts per Channel
    With 100 Watts per channel (8 ohms, 20 Hz-20 kHz, THD 0.08 %, 2ch Driven FTC) the VSX-LX105 has enough power to support a 5.2.2-channel surround sound home theater setup or power a second zone at 4K120 resolution with the extra channels instead of overhead.

    Discrete 2 Zone Switching
    Great news for anyone sharing a ho... Show More

    Indulge yourself with a 7.2-channel AV receiver, featuring the ability for a 5.2.2 configuration: With 5 traditional speaker channels, two specifically for height or surround with Dolby Atmos® or DTS:X, and 2 subwoofer outputs to take advantage of all the low tones. Or you can experience similar height-oriented sounds with Dolby Atmos Height Virtualizer and DTS:X built into the VSX-LX105. Then, you may want to use the 7.2-channels to power a second zone with a dedicated DAC. You can further personalize your experience with presets, 2HDMI outputs and voice control with Alexa or Hey Google.

    Superior imagery is also yours with Ultra HD, HDR10+, HLG, and Dolby Vision™ pass through. Plus, the VSX-LX105 supports HDMI 2.1 for 8K, VRR, ALLM, and QFT pass-through for high resolution picture and next-generation gaming. Finally, listening to music couldn’t be easier with a number of streaming services in the VSX-LX105, available simply via Bluetooth®, or with the ability to connect your entire music library through Roon.

    Features:

    All Encompassing Sound
    Reproduce object-oriented sound with DTS:X and the smooth, curving or realistic, three-dimensional, overhead movements of Dolby Atmos. Or if you don’t have surrounds or height speakers, Dolby Atmos Height Virtualizer and DTS:X Virtual will create virtual height effects from traditional speaker layouts to simulate upfiring speakers. With or without upfiring speakers, E-ARC (Enhanced Audio Return Channel) simplifies connectivity and supports the latest high-bitrate audio formats.

    100 Watts per Channel
    With 100 Watts per channel (8 ohms, 20 Hz-20 kHz, THD 0.08 %, 2ch Driven FTC) the VSX-LX105 has enough power to support a 5.2.2-channel surround sound home theater setup or power a second zone at 4K120 resolution with the extra channels instead of overhead.

    Discrete 2 Zone Switching
    Great news for anyone sharing a home! You can use your channels as you please and setup two distinct entertainment zones. If you don’t have or don’t want to use the 2 channels for height speakers, you can redirect them to create a secondary zone in another room. The primary zone will run with 8K60 resolution and the secondary zone will produce 4K120 resolution with the secondary HDMI output.

    HDMI 2.1 + 8K
    The most recent update of the HDMI® spec, HDMI 2.1 supports a range of higher video resolutions and refresh rates (including 8K60 and 4K120, as well as Dynamic HDR formats). 8K delivers a super-immersive viewing experience with 2x the horizontal and vertical resolution of 4K, and 4 times as many pixels for a crystal clear picture. Combined with a 60Hz refresh rate the VSX-LX105 enables smooth and sharp viewing for high-speed action in gaming, sports and films.

    That 4K/120Hz HDR pass-through enables ultra-fast motion -VRR (Variable Refresh Rate) eliminates lag, stutter, and frame-tearing for fluid gameplay. - ALLM (Auto Low Latency Mode) optimizes latency from source to screen - QFT (Quick Frame Transport) limits lag for a smoother experience. Altogether, this means the gamer in your life will be happy.

    Auto Room Tuning
    Pioneer’s Multi-Channel Acoustic Calibration System (MCACC) automatically adjusts sound according to your listening area and speakers by suppressing the standing waves that occur between walls or ceiling and the floor. Additionally, Auto Phase Control Plus makes real-time analysis of the phase difference and automatically compensates for the gap, resulting in strong bass and clear high-frequency sound.

    Roon Tested and Ready for You
    Capable of playing your entire music library to many devices, but Roon Tested devices like the VSX-LX105 are profiled by the Roon team to ensure simple setup and effortless daily use. You can be confident that you’ll enjoy the best musical experience.

    Bi-Directional Bluetooth
    Now, Bluetooth connectivity is even better with bi-directional Bluetooth. Stream from your device to the AVR using SBC or AAC codecs, or transmit audio playing through the AVR to compatible wireless headphones. This is great news if you want to stream from your phone or for the gamer in your life…or maybe for the person who doesn’t want to hear what their gamer is playing.

    Built-In Streaming
    With the VSX-LX105 you also have access to a number of music streaming services including Works with Sonos, Chromecast built-in™, AirPlay 2, DTS Play-Fi®, Spotify®, Amazon Music, Pandora®, TIDAL, Deezer and TuneIn. There will be no shortage of musical opportunities.

    Pioneer VSX-LX105 Specs

    Amplifier

    Channels
    5.2.2
    Power Output per Channel
    1-Channel Driven:
    210 W at 6 Ohms / 1 kHz / 10% THD
    2-Channel Driven:
    100 W at 8 Ohms / 20 Hz to 20 kHz / 0.08% THD

    Audio Processing

    DTS Compatibility
    DTS 96/24, DTS Express, DTS Neural:X, DTS-ES, DTS-HD High Resolution, DTS-HD Master Audio, DTS:X
    Dolby Compatibility
    Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Digital Plus, Dolby TrueHD
    Auro 3D Support
    No
    Upmixing Technology
    Dolby Surround, DTS Neural:X, Dolby Atmos Height Virtualization Technology
    Supported File Formats
    5.6 MHz DSD, AIFF, ALAC, FLAC, WAV via USB
    DAC
    192 kHz / 24-Bit

    Video

    HDR Compatibility
    HDR10, HDR10+, Dolby Vision, Hybrid Log Gamma
    Upscaling
    1080p to 8K UHD
    GUI
    Yes

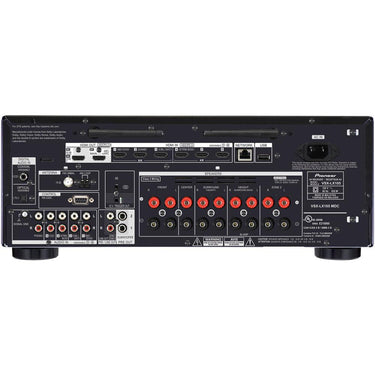

    Connectivity

    Rear A/V Inputs
    3 x HDMI 2.1
    3 x HDMI
    1 x USB-A
    1 x Digital Coaxial
    1 x Optical TOSLINK
    4 x Stereo RCA
    1 x Stereo RCA (Phono) with Ground Screw
    Rear A/V Outputs
    1 x HDMI
    1 x HDMI Zone 2
    2 x RCA Subwoofer Pre-Out
    1 x Stereo RCA Zone 2 / Zone B Pre-/Line-Out
    Front I/O
    1 x USB-A Input
    1 x 1/8" / 3.5 mm Setup Mic Input
    1 x 1/8" / 3.5 mm Aux Input
    1 x 1/4" / 6.35 mm Headphone Output
    Other Rear I/O
    1 x RJ45 (Ethernet) Input/Output
    1 x DE-9 (RS-232C) Input
    1 x 1/8" / 3.5 mm (IR) Input
    1 x 1/8" / 3.5 mm (12 V Trigger) Output
    1 x FM Coaxial F-Type Input
    1 x AM Block Input
    Speaker I/O
    9 x Binding Post Pair (Front, Center, Height, Height 2, Rear, Rear Surround)
    HDCP Support
    Yes, Version 2.3
    HDMI Compression Modes
    Not Specified by Manufacturer
    Audio Return Channel (ARC)
    ARC, eARC
    HDMI CEC
    Yes
    Media Card Slot
    None

    Wireless Connectivity

    Wi-Fi
    Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz)
    Bluetooth
    Yes
    Supported Audio Codecs
    AAC, aptX, aptX HD, SBC
    Wireless Audio Protocols
    AirPlay 2, Chromecast built-in, DTS Play-Fi

    Control

    External Control Support
    Android/iOS Control App
    Virtual Assistant
    Works with Alexa, Works with Google Assistant

    Tuner Section

    Tuner Type
    AM, FM
    Number of Tuner Presets
    40 Stations

    Power

    AC Input Power
    120 VAC, 60 Hz
    Power Consumption
    Active: 635 W
    Standby: 0.1 W
