Revolutionary home theater surround sound

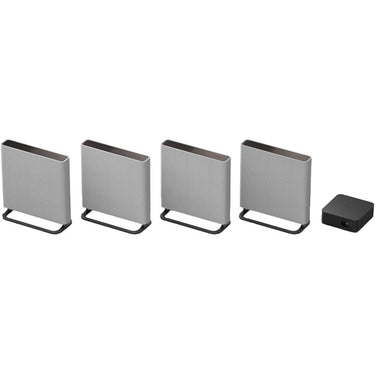

Introducing BRAVIA Theater Quad, our flagship home theater surround sound system that brings movies to life. With a revolutionary design that compliments your space, 16 total speakers and 360 Spatial Sound Mapping, any space becomes the movie theater with pin-point surround sound from every corner of the room. And get heart pounding bass with optional wireless subwoofer.
Product Highlights:
- Hear cinema-style surround sound all around you with 360 Spatial Sound Mapping.
- Sound is auto calibrated to your room’s characteristics with Sound Field Optimization.
- Supports industry-standard formats including Dolby Atmos, DTS:X, and IMAX Enhanced.
- With 16 speaker units, hear exceptional acoustic performance and precise room filling spatial audio.
- Position the four wireless speakers virtually anywhere in the room for total flexibility.
- Expand the cinematic experience with optional wireless subwoofer (SA-SW3 or SA-SW5).
- Pair with compatible BRAVIA TVs to control Quad from the TV menu and hear elevated audio with Acoustic Center Sync.
- Use BRAVIA Connect app to easily control BRAVIA Theater from your smartphone and change volume, sound profiles, and advanced settings.
- The dual-purpose stand allows the four slim speakers to be placed free-standing or wall mounted.
- Supports video formats 4K HDR, 8K HDR, Dolby Vision and HDMI 2.1 gaming features 4K120...
Show More
Revolutionary home theater surround sound
Introducing BRAVIA Theater Quad, our flagship home theater surround sound system that brings movies to life. With a revolutionary design that compliments your space, 16 total speakers and 360 Spatial Sound Mapping, any space becomes the movie theater with pin-point surround sound from every corner of the room. And get heart pounding bass with optional wireless subwoofer.
Product Highlights:
- Hear cinema-style surround sound all around you with 360 Spatial Sound Mapping.
- Sound is auto calibrated to your room’s characteristics with Sound Field Optimization.
- Supports industry-standard formats including Dolby Atmos, DTS:X, and IMAX Enhanced.
- With 16 speaker units, hear exceptional acoustic performance and precise room filling spatial audio.
- Position the four wireless speakers virtually anywhere in the room for total flexibility.
- Expand the cinematic experience with optional wireless subwoofer (SA-SW3 or SA-SW5).
- Pair with compatible BRAVIA TVs to control Quad from the TV menu and hear elevated audio with Acoustic Center Sync.
- Use BRAVIA Connect app to easily control BRAVIA Theater from your smartphone and change volume, sound profiles, and advanced settings.
- The dual-purpose stand allows the four slim speakers to be placed free-standing or wall mounted.
- Supports video formats 4K HDR, 8K HDR, Dolby Vision and HDMI 2.1 gaming features 4K120, VRR, ALLM.
- Level-up with compatibility for BRAVIA TV exclusive features for PS5 – Auto HDR Tone Mapping and Auto Genre Picture Mode.
- Wirelessly stream music with support for Spotify Connect, Apple AirPlay 2 and Bluetooth.
- Bring your music to life with support for high-res audio, low-res upmixing, and 360 Reality Audio.
Product Features:
Cinema is coming home
Feel the emotion and excitement of the movies with BRAVIA Theater. Our decades of professional filmmaking experience allow us to faithfully recreate the creators vision at home with intricate surround sound and spatial audio. Immerse yourself in the story with sound that fills every corner of the space just as you hear in real life.

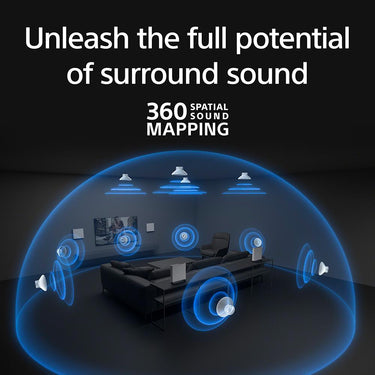

Unleash the full potential of surround sound
360 Spatial Sound Mapping creates multiple phantom speakers around you and reflects sound off the ceiling and walls, enabling cinema-style surround sound from a handful of physical speakers.
Room optimized sound for maximum impact
Turn the whole room into a movie theater. Sound Field Optimization analyzes and calibrates sound to your room’s size, acoustic characteristics, and your listening position, allowing you to place the speakers virtually anywhere in the room.
Sound straight from cinema
Bring authentic cinema surround sound quality to your living room. BRAVIA Theatre supports industry-standard formats including Dolby Atmos®, DTS:X®, and IMAX® Enhanced certification.

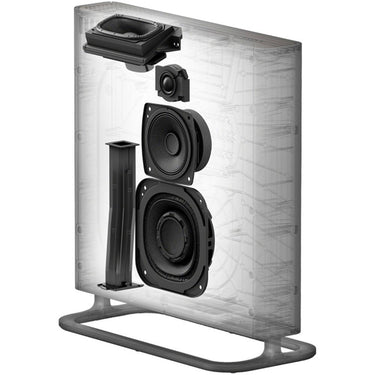

Innovative acoustic design
With 16 total speakers, BRAVIA Theater Quad delivers exceptional acoustic performance with precise spatial audio. Each speaker features an innovative 3-way woofer design along with an up-firing speaker, projecting sound in every direction. The new unique design generates high sound pressure, and coupled with bass reflex port, the result is powerful, punchy bass.

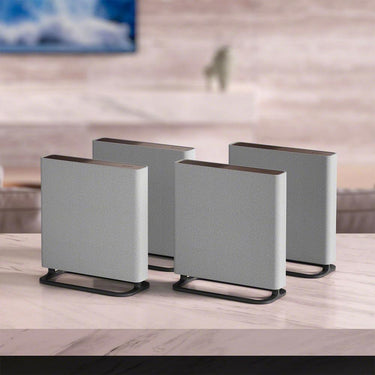

Wireless speakers for total flexibility
Forget about speaker wires messing up your living space. Position the four speakers virtually anywhere in the room and they wirelessly sync with the control box connected to your TV via HDMI.
Add room filling bass
Expand the cinematic experience with optional wireless subwoofer (SA-SW3 or SA-SW5) to hear sound with even greater impact. Connection is simplified as the subwoofer automatically pairs when powered on.
BRAVIA Theater and BRAVIA TV, the perfect pair
Pair BRAVIA Theater Quad with a compatible BRAVIA TV for the ultimate cinema-like experience at home. Acoustic Center Sync uses the TV as a center channel speaker, enabling clearer, fuller dialogue. When connected, easily control the sound settings on the TVs Quick Settings menu, making it easy to adjust volume and sound field with a single remote.

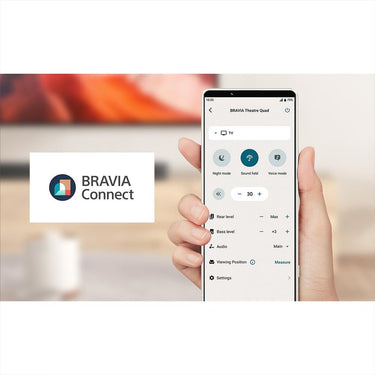

Do it all with BRAVIA Connect app
Easily control BRAVIA Theater from your smartphone. The BRAVIA Connect app guides you through initial setup and lets you adjust volume, sound field and more. Also, use the BRAVIA Connect app to perform Sound Field Optimization to calibrate sound to your room’s unique acoustic characteristics.

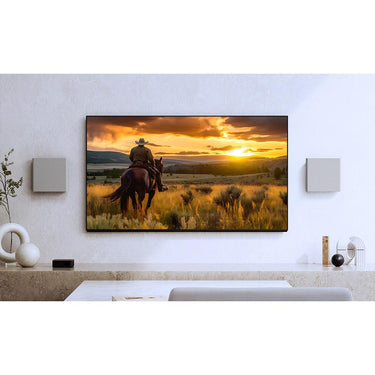

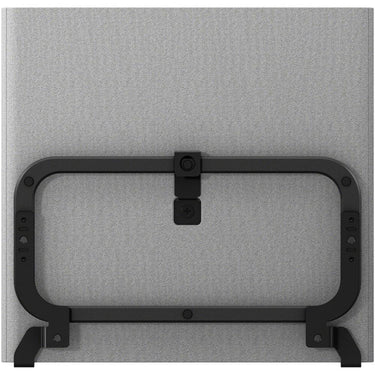

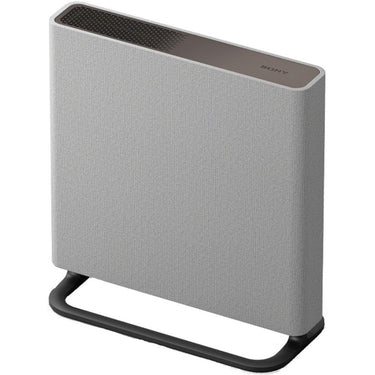

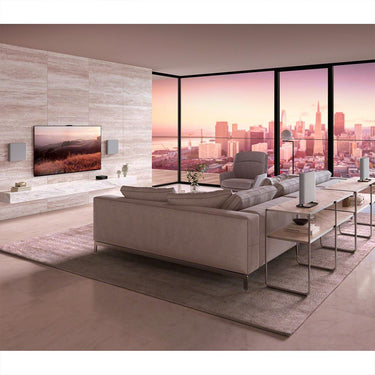

Blends in seamlessly, free-standing or wall-mounted
BRAVIA Theater Quad is designed to complement your space, giving you an ideal mix of convenience and style. The four slim wireless speakers can easily be placed free-standing or mounted on a wall, thanks to the supplied dual-purpose stand/bracket.
Support for all the latest video and gaming formats
Get the most out of all your entertainment. With support for 4K HDR, 8K HDR, and Dolby Vision®, everything you watch will feel so real. Take gaming to the next level with HDMI 2.1 features 4K120, VRR and ALLM as well as exclusive features for the PlayStation® 5 – Auto HDR Tone Mapping and Auto Genre Picture Mode – for optimized picture settings when connected with a compatible BRAVIA TV and PS5® console.
Stream music from everywhere
Support for Spotify Connect™, Apple® AirPlay® 2 and Bluetooth® lets you wirelessly stream music and enjoy every detail in high-quality upmixed sound.
Lose yourself in supreme music quality
Bring your music to life as never before. Enjoy tracks the way the artists intended with High-Resolution Audio. For low-resolution tracks, DSEE Ultimate™ (Digital Sound Enhancement Engine) upmixes compressed digital music, restoring acoustic details for a richer listening experience. And discover a new way of hearing music with 360 Reality Audio for a truly immersive live music experience.
Designed with the environment in mind
BRAVIA Theater is designed for an exceptional sound experience while having less impact on the environment. We are committed to using more recycled materials with approximately 65% less virgin plastic used in our soundbars and packaging compared to previous models and fabrics recycled from PET plastic bottles.
Product Specifications:
Color
Speaker Layout
- Speaker Structure: 4.0.4 ch
Speaker Unit(front)
- Full Range: Number of speaker: 2, Enclosure Type: Acoustic suspension, Unit size (mm): 60 mm, Unit size (inch): 2 3/8 in
- Woofer: Number of speaker: 2, Enclosure Type: Bass reflex, Unit size (mm): 85 mm x 85 mm, Unit size (inch): 3 3/8 in x 3 3/8 in, X-Balanced Speaker Unit: Yes
- Tweeter: Number of speaker: 2, Unit size (mm): 19 mm, Unit size (inch): 3/4 in
- Upfiring Speaker: Number of speaker: 2, Unit size (mm): 36 mm x 79 mm, Unit size (inch): 1 7/16 in x 3 1/8 in, X-Balanced Speaker Unit : Yes
Speaker Unit(Rear)
- Full Range: Number of speaker: 2, Enclosure Type: Acoustic suspension, Unit size (mm): 60 mm, Unit size (inch): 2 3/8 in
- Woofer: Enclosure Type: Bass reflex, Unit size (mm): 85 mm x 85 mm, Unit size (inch): 3 3/8 in x 3 3/8 in, X-Balanced Speaker Unit: Yes
- Tweeter: Unit size (mm): 19 mm, Unit size (inch): 3/4 in, Impedance: 6 ohms
- Upfiring Speaker: Number of speaker: 2, Unit size (mm): 36 mm x 79 mm, Unit size (inch): 1 7/16 in x 3 1/8 in, X-Balanced Speaker Unit: Yes
Speaker Grill
- Speaker Grill (Front): Front Speaker Grill type: Fixed, Front Speaker Grill Material: Metal punching (top) / Fabric (side)
- Speaker Grill (Rear): Front Speaker Grill type: Fixed, Front Speaker Grill Material: Metal punching (top) / Fabric (side)
Interfaces
- Button on main unit: Power: Yes
- Button on Speaker Unit(Front): Link: Yes
- Button on Speaker Unit(Rear): Link: Yes
- HDMI: Number of Input/Output: 1 / 1, eARC: Yes, 3D pass through: Yes, 4K/60p/YUV4:4:4: Yes, 8K/60 YUV 4-2-0 10bit (Non compression): Yes, 4K/120 YUV4-4-4 10bit (Non compression): Yes, 8K/60 YUV 4-4-4 12bit (Compression): Yes
- Ethernet: Yes
- Wi-Fi method: Yes
- Wi-Fi IEEE802.11 version: a/b/g/n/ac
- Speaker Terminal: S-Center out: Yes
- Display: Display: Yes, Dimmer: Yes, LED indicator: Yes, LED Indicator OFF Mode: Yes
- HDMI: 4K/120 YUV4-4-4 12bit (Compression): Yes, Variable Refresh Rate (VRR): Yes, Auto Low Latency Mode (ALLM): Yes, DSC (Display Stream Compression): Yes, SBTM (Source-Based Tone Mapping): Yes, Colour Space BT.2020: Yes
- HDMI: HDR: Yes, Auto HDR Tone Mapping: Yes, Auto Genre Picture Mode: Yes, Dolby Vision: Yes, HLG (hybrid log gamma): Yes, HDCP2.2: Yes, HDCP2.3: Yes, 18Gbps: Yes, 40Gbps: Yes, x.v.Color (xvYCC): Yes
- HDMI: HDMI control: Yes, BRAVIA Sync: Yes, HDMI CEC: Yes, HDMI standby through: Yes
Bluetooth® Specification
- Bluetooth® communication(RX / TX) ¹²: RX
- A2DP: Yes
- A2DP version: 1.3.2
- AVRCP: Yes
- AVRCP version: 1.5
- Bluetooth® low energy ¹²: Yes
- Bluetooth® version ¹²: 5.2
- Bluetooth® Standby ¹²: Yes
- Bluetooth® Technology ¹²: FHSS
- Power Output: 2 dBm
- Effective Range(m): Line of sight approx. 30 m
- Effective Range(feet): Line of sight approx. 98.4 ft
- Frequency Range: 2.4000 - 2.4835 GHz
- Modulation: GFSK/π/4-DQPSK/8-DPSK
- Interface(A2DP) ¹³: Yes
- Interface(AVRCP) ¹³: Yes
- Supported Audio Format(s)(SBC) ¹⁴: Yes
- Supported Audio Format(s)(AAC) ¹⁴: Yes
- Supported Audio Format(s)(LDAC) ¹⁴: Yes
- Supported Content Protection: Yes
- Frequency Range(A2DP): Yes
Decode Format
- High Resolution Audio: Yes
- 360 Reality Audio: Yes
- HDMI input: Dolby Digital: Yes, Dolby Digital Plus: Yes, Dolby TrueHD: Yes, Dolby Digital Plus/Atmos: Yes, Dolby TrueHD/Atmos: Yes, Dolby Dual mono: Yes, DTS: Yes, DTS HD High Resolution Audio: Yes, DTS HD Master Audio: Yes, DTS ES: Yes
- HDMI ARC: Dolby Digital: Yes, Dolby Digital Plus: Yes, Dolby Digital Plus/Atmos: Yes, Dolby Dual mono: Yes, DTS: Yes, DTS 96/24: Yes, LPCM 2 ch: Yes, LPCM fs: -48kHz/24bit
- HDMI eARC: Dolby Digital: Yes, Dolby Digital Plus: Yes, Dolby Digital Plus/Atmos: Yes, Dolby TrueHD: Yes, Dolby TrueHD/Atmos: Yes, Dolby Dual mono: Yes, DTS: Yes, DTS HD High Resolution Audio: Yes, DTS HD Master Audio: Yes, DTS ES: Yes
- HDMI input: DTS 96/24: Yes, DTS:XYes, LPCM: Yes, LPCM fs: -192kHz/24bit, MPEG-H 3D Audio BL profile(Level3/Level4): Yes, 360 Reality Audio: Yes
- HDMI eARC: DTS 96/24: Yes, DTS:X: Yes, LPCM: Yes, LPCM fs: -192kHz/24bit
Bluetooth® Communication (Receiver)
- AAC: Yes
- SBC: Yes
- LDAC: Yes
Amplifier
- Amplifier Type: Digital Amplifier: Yes, S-Master HX: Yes
- Number of Channel: 16 ch
- Output Power: Power Output (Total): 504 W, Front (Reference): 31.5 W x4 (Mid range), Front Woofer(Reference): 31.5 W x4 (Woofer), Front Tweeter(Reference): 31.5 W x4 (Tweeter), Enabled Speaker(Reference): 31.5 W x4
Sound Function
- Sound Adjustment: Bass level: Yes, AV Sync: Yes, Advanced Auto Volume(AAV): Yes, Audio DRC: Yes, Rear level: Yes
- Sound Mode: Sound Field: Yes, Muting: Yes
- Sound Effect: Night Mode: Yes, Voice Mode: Yes
- Sound Enhancement: DSEE Ultimate: Yes, Sound optimizer: Yes
- Surround: 360 Spatial Sound Mapping: Yes, Dolby Speaker Virtual: Yes, Dolby Surround: Yes, Neural:X: Yes
Function with BRAVIA
- Acoustic Center Sync: Yes
- Quick Setting Menu: Yes
Network Service
- Spotify Connect: Yes
- AirPlay 2: Yes
Function for Custom Installation
- Control Features: CIS IP Control: Yes
Application
- Sony | Home Entertainment Connect: Sony | Home Entertainment Connect via Wi-Fi: Yes
Shop Front Mode
- Built in Demo: Yes
- USB playback demo: Yes
- DEMO mode(1/2/3/4): Yes
Firmware Update
Features for PlayStation®5
- AUTO HDR TONE MAPPING compatible(Pass-through) ¹⁵: Yes
- AUTO GENRE PICTURE MODE compatible (Pass-through) ¹⁵: Yes
Operation
Supplied Accessories
- Remote Commander: Model Name: RMT-AH513U, Batteries for remote commander: Yes
- Cable: TV center speaker mode cable: Yes, HDMI Cable: Yes, AC Adaptor: Yes (Control Box), AC Cord: Yes (Front/Rear Speaker)
- Quick Setup Guide: English(US) or English(GB), French or French(CA), German, Italian, Dutch, Spanish or Spanish(LA), Portuguese or Portuguese(LA), Polish, Danish, Finnish, Swedish, Norwegian, Persian
- Instruction Manual / Reference Guide: English(US) or English(GB): Yes, French or French(CA): Yes, Spanish or Spanish(LA): Yes
- Card: Warranty Card: Yes
- Others: Table stand: Yes, Wall mounting bracket: Yes
- Quick Setup Guide: Chinese (Traditional), Thai, Greek, Czech, Hungarian, Bulgarian, Slovak, Arabic, Romanian
Dimensions (Approx.)
- Front Speaker Left (WxHxD) mm: 289 mm x 275 mm x 55 mm
- Front Speaker Left (WxHxD) inch: 11 1/2 in x 10 7/8 in x 2 1/4 in
- Front Speaker Right (WxHxD) mm: 289 mm x 275 mm x 55 mm
- Front Speaker Right (WxHxD) inch: 11 1/2 in x 10 7/8 in x 2 1/4 in
- Rear Speaker Left (WxHxD) mm: 289 mm x 275 mm x 55 mm
- Rear Speaker Left (WxHxD) inch: 11 1/2 in x 10 7/8 in x 2 1/4 in
- Rear Speaker Right (WxHxD) mm: 289 mm x 275 mm x 55 mm
- Rear Speaker Right (WxHxD) inch: 11 1/2 in x 10 7/8 in x 2 1/4 in
- Speaker with supplied table stand (W x H x D) (mm): 289 mm x 306 mm x 129 mm
- Speaker with supplied table stand (W x H x D) (inch): 11 1/2 in x 12 1/8 in x 5 1/8 in
- Speaker with supplied wall mounting bracket (W x H x D) (mm): 289 mm x 279 mm x 73 mm
- Speaker with supplied wall mounting bracket (W x H x D) (inch): 11 1/2 in x 11 in x 2 7/8 in
- Control box (WxHxD) mm: 160 mm x 56 mm x 160 mm
- Control box (WxHxD) inch: 6 3/8 in x 2 1/4 in x 6 3/8 in
- Carton Type: Box
- Carton (WxHxD) mm: 891mm x 664 mm x 146 mm
- Carton (WxHxD) inch: 35 1/8 in x 26 1/4 in x 5 3/4 in
Weight (Approx.)
- Front Speaker Left (kg): 2.4 kg
- Front Speaker Left (oz): 5 lb 5 oz
- Front Speaker Right (kg): 2.4 kg
- Front Speaker Right (oz): 5 lb 5 oz
- Rear Speaker Left (kg): 2.4 kg
- Rear Speaker Left (oz): 5 lb 5 oz
- Rear Speaker Right (kg): 2.4 kg
- Rear Speaker Right (oz): 5 lb 5 oz
- SPEAKER with supplied table stand (kg): 2.6 kg
- Speaker with supplied table stand (oz): 5 lb 12 oz
- Speaker with wall mounting bracket (kg): 2.7 kg
- Speaker with wall mounting bracket (oz): 5 lb 16 oz
- Control box (kg): 770 g
- Control box (oz): 1 lb 12 oz
- Gross weight (kg): 18.2 kg
- Gross weight (oz): 40 lb 2 oz
Power
- Power Cable Length: Control box (mm): 1500 mm, Control box (inch): 59 1/8 in, Front Speaker (mm): 3000 mm, Front Speaker (inch): 118 1/8 in, Rear Speker(mm): 3000 mm, Rear Speker(inch): 118 1/8 in
- Power Supply: Power Requirement: 120 V, Power frequency: 60 Hz
- Power Consumption: Power Consumption(On Operation) *approx: Control Box 13 W/Speaker 20 W, Power Consumption(On Standby mode) *approx: Control Box 0.5 W
- Power Setting: Auto Standby: Yes, Network / Bluetooth® Standby Mode¹⁶: Yes, Auto Power OFF: Yes
- Power Consumption: Power consumption(Network standby mode) *approx: Control Box 2.8 W/Speaker 1.1 W, Power consumption(off) *approx: Speaker 0.5 W
