Overview

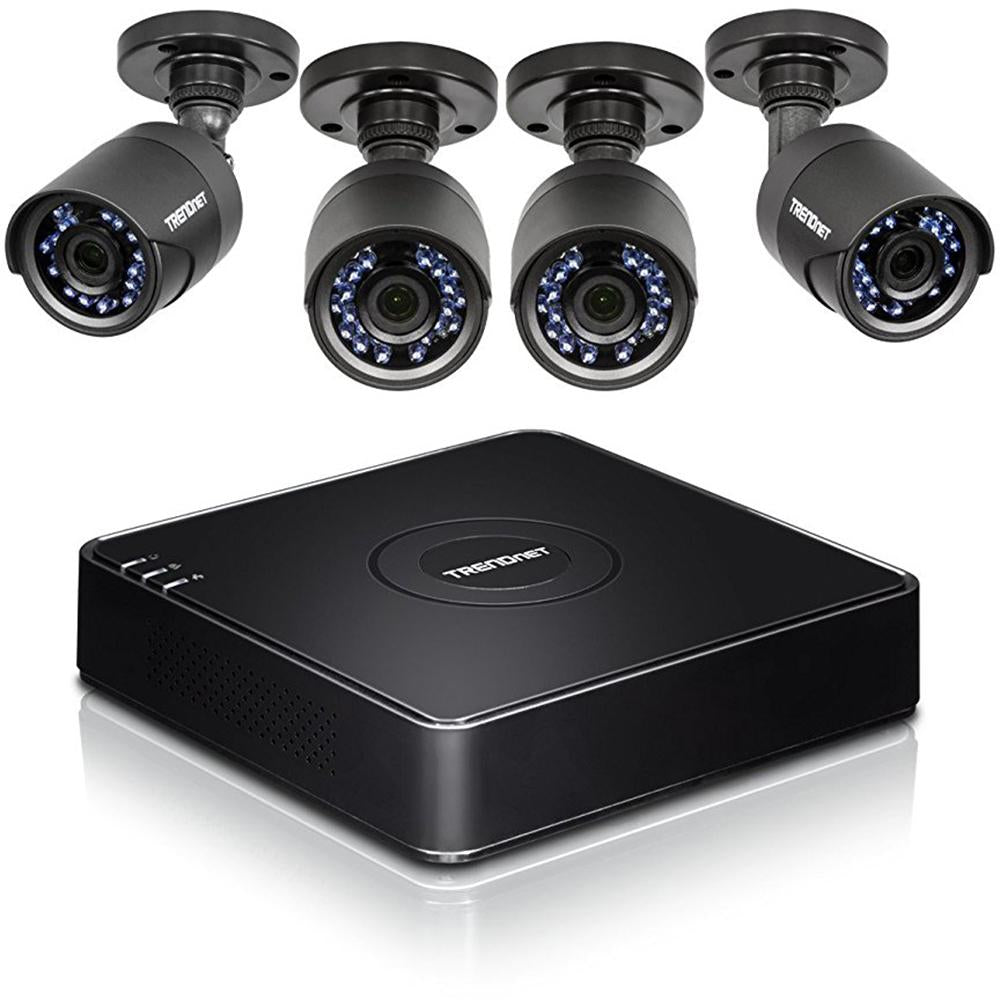

TRENDnet's 4-Channel HD CCTV DVR Surveillance Kit; model TV-DVR104K; offers a comprehensive video; storage; and management solution. The DVR kit comes with a pre-installed 1 TB hard drive plus four 1080p HD IR analog cameras; each with an IP66 outdoor weather rating. With a plug and play camera installation; the DVR is simple to use and conveniently powers all four cameras. Connect your TRENDnet DVR kit to your network for local and remote access to your surveillance system. Record one week of continuous video and utilize the advanced video playback features from the intuitive user interface.

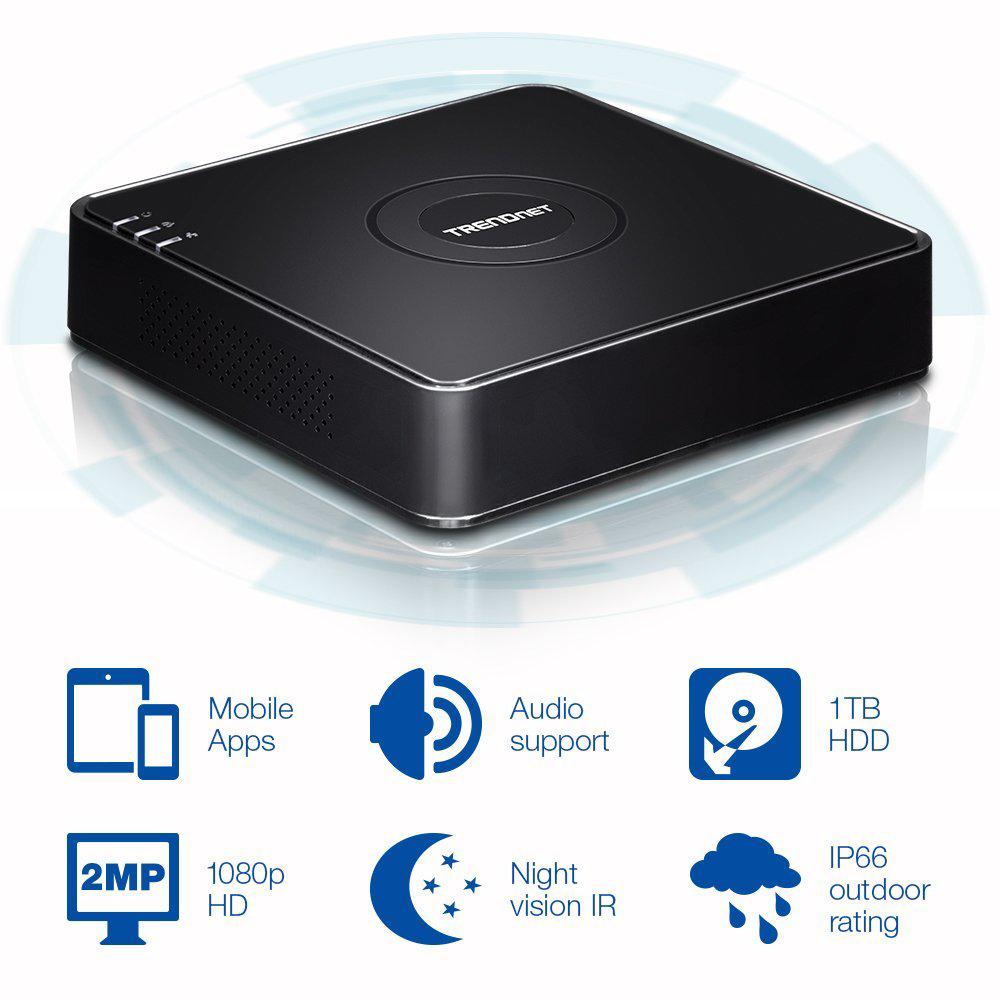

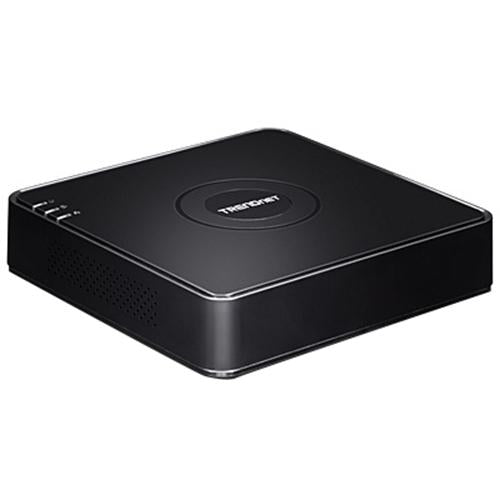

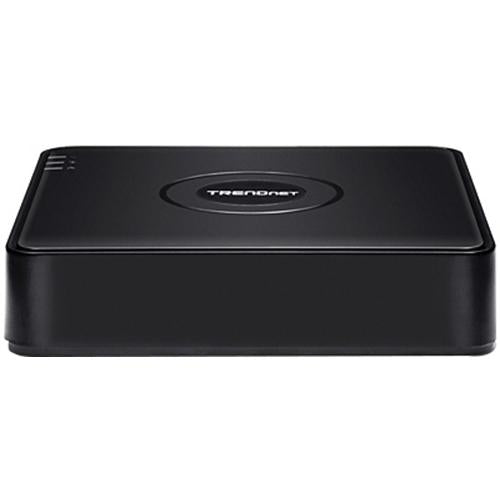

Standalone HD DVR
This standalone CCTV HD DVR includes a preinstalled 1 TB HDD that provides one week of continuous 1080p video recording for up to four CCTV cameras (display sold separately).
Plug-and-Play Installation
The DVR auto-recognizes TRENDnet CCTV cameras - simply connect the included cameras and start recording surveillance video.
Intuitive Interface
Users will find the management interface intuitive and easy to use - quickly navigate live view preferences; recording schedules; and advanced playback options.
Product Features:
- 4-Channel CCTV digital video recorder
- Pre-installed 1 TB SATA HDD
- Includes four outdoor ready HD cameras
- Plug and play up to 4 CCTV cameras
- Video recording supported up to 1080p HD
- One week of continuous recording
Specifications:
DVR Specification
Video Input
- 4 channels
- Interface: BNC (1.0 Vp-p; 75 Ω)
Video Output
- HDMI and VGA display outputs
- Resolution: 1920 x 1080 (1080p); 1280 x 1024; 1280 x 720 (720p); 1024 x 768 @ 60 Hz
- Up to 12 fps on main stream; 22 fps on second stream
AudioShow More
TRENDnet's 4-Channel HD CCTV DVR Surveillance Kit; model TV-DVR104K; offers a comprehensive video; storage; and management solution. The DVR kit comes with a pre-installed 1 TB hard drive plus four 1080p HD IR analog cameras; each with an IP66 outdoor weather rating. With a plug and play camera installation; the DVR is simple to use and conveniently powers all four cameras. Connect your TRENDnet DVR kit to your network for local and remote access to your surveillance system. Record one week of continuous video and utilize the advanced video playback features from the intuitive user interface.
Standalone HD DVR
This standalone CCTV HD DVR includes a preinstalled 1 TB HDD that provides one week of continuous 1080p video recording for up to four CCTV cameras (display sold separately).
Plug-and-Play Installation
The DVR auto-recognizes TRENDnet CCTV cameras - simply connect the included cameras and start recording surveillance video.
Intuitive Interface
Users will find the management interface intuitive and easy to use - quickly navigate live view preferences; recording schedules; and advanced playback options.
Product Features:
- 4-Channel CCTV digital video recorder
- Pre-installed 1 TB SATA HDD
- Includes four outdoor ready HD cameras
- Plug and play up to 4 CCTV cameras
- Video recording supported up to 1080p HD
- One week of continuous recording
Specifications:
DVR Specification
Video Input
- 4 channels
- Interface: BNC (1.0 Vp-p; 75 Ω)
Video Output
- HDMI and VGA display outputs
- Resolution: 1920 x 1080 (1080p); 1280 x 1024; 1280 x 720 (720p); 1024 x 768 @ 60 Hz
- Up to 12 fps on main stream; 22 fps on second stream
Audio
- Analog audio in/out; RCA (linear; 1 KΩ)
- Compression: G.711u
Storage
- One 3.5" SATA I/II HDD or SSD up to 6 TB storage
Network Standards
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x

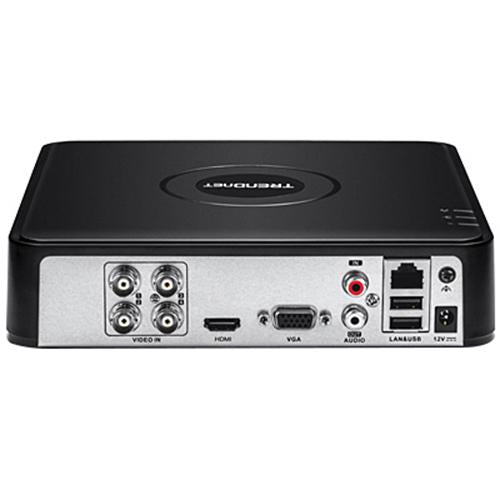

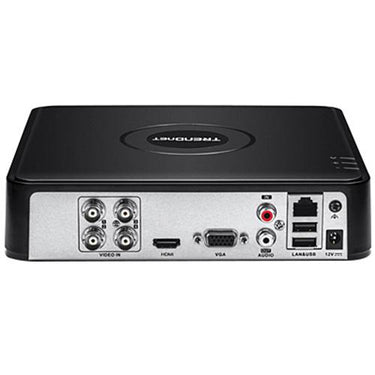

Device Interface
- 10/100 Mbps network port
- 2 x USB 2.0 ports
- 4 x BNC connectors
- 1 x 1TB HDD (pre-installed)
- HDMI port
- VGA port
- Analog audio in port
- Analog audio out port
- Power port
- LED indicators (Power; Storage; and Network)
- Grounding point
Network Protocol
- IPv4; IPv6; UDP; TCP; ICMP
- DHCP; NTP; DNS; DDNS; SMTP; FTP
- HTTP; UPnP; RTSP; RTP; RTCP
Power
- Input: 100 - 240 V AC; 50/60 Hz; 0.7 A
- Output: 12 V DC; 1.5 A
- Consumption: 8 W max.
Operating Temperature
- -10 - 55 degreeC (14 - 131 degreeF)
Operating Humidity
- Max. 90% non-condensing
Certifications
- CE
- FCC
Dimensions
- 200 x 200 x 45 mm (7.9 x 7.9 x 1.8 in.)
Weight
- 0.8 kg (1.8 lb.)
Management Interface
- Live View: Single camera or quad-view
- Camera Management : On screen display: camera name; date; week; and date format; Image quality: brightness; contrast; saturation; hue; mirror; PTZ: pan; tilt; zoom; focus; iris; preset points; pattern; cruise; patrol; Motion detection: define custom motion detection areas; motion sensitivity; and triggering channels; Privacy masks: define custom privacy mask areas; Video tamper detection: trigger actions if the viewing field darkens suddenly
- Scheduled recording: continuous and motion detection
- Video recording: Record up to 1080p HD video
- Holiday scheduling for custom recording schedules during observed holidays
- Advanced playback: playback multiple channels simultaneously and search video recordings with special event or tag
- Video export: tag; cut; and export video clips
- Local live view settings: define screen layout and channel viewing sequence
- Alert messages: storage full; storage error; network disconnected; IP conflict; illegal login; and recording exceptions
- Supported dynamic DNS services: Dyn.com and NO-IP.com
- Management Setting: maximum 32 user accounts
Remote Viewing and Management
- User interface compatible with Internet Explorer 9.0 or higher; Safari 4.0 or higher
TRENDnet IP View App
- Free iOS and Android app
- View your DVR video on your mobile device
- Take snapshots
- Zoom
Warranty
- 2-year
- Hard Drive: Manufacturer Warranty

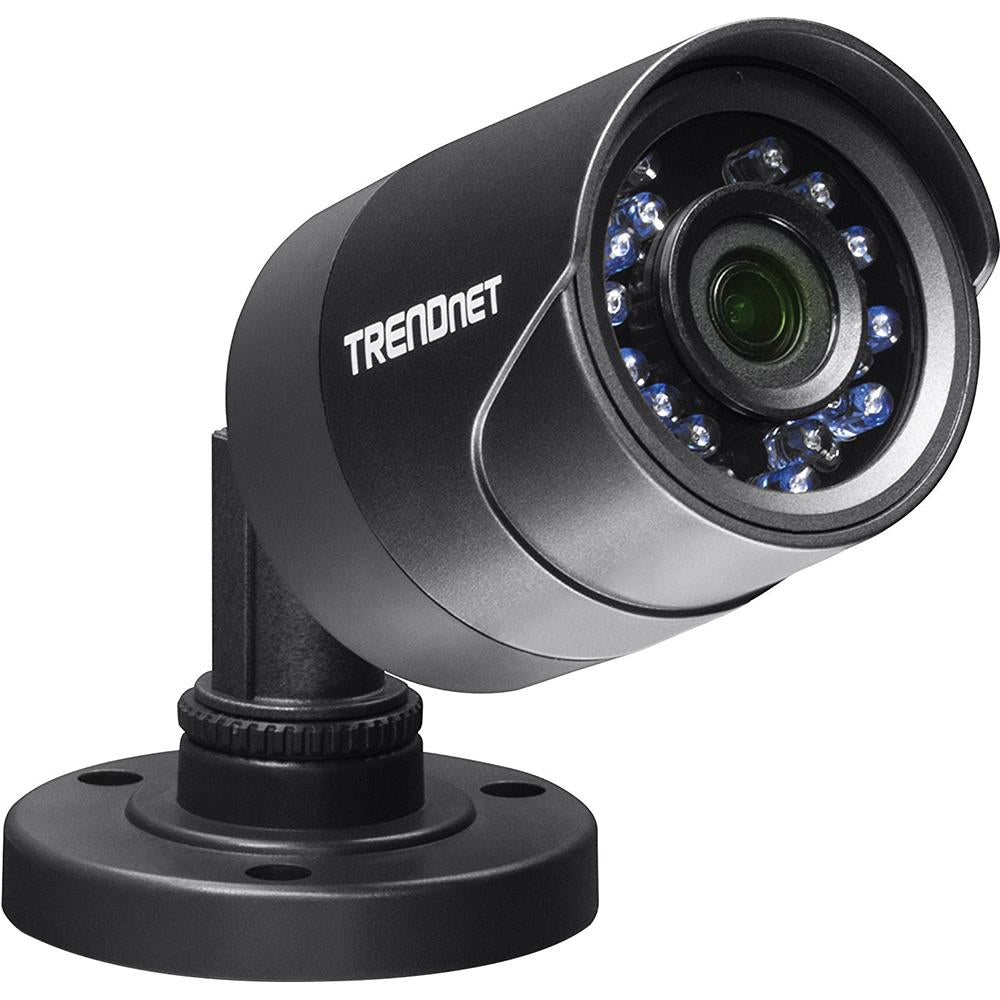

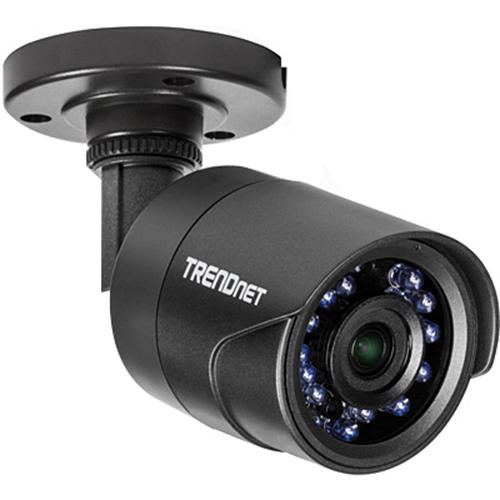

Camera Specification
Lens
- Focal Length: 3.6 mm
- Sensor: 1/ 2.7" CMOS sensor
Viewing Angle
- 82.2˚
Minimum Illumination
- IR off: 0.01 lux
- IR on: 0 lux
- 20 m distance
- IR wavelength : 850 nm
H.264 Resolution
- Main Stream: 1920 x 1080 up to 12 fps
- Sub Stream: 960 x 576 up to 22 fps

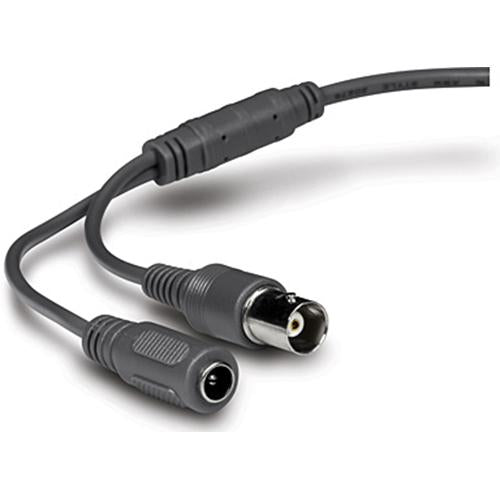

Device Interface
- IR LEDs
- BNC connectors
- Power jack
Housing
- IP66 rated
Dimension
- 70 x 70 x 154 mm (2.75 x 2.75 x 6 in.)
Weight
- 300 g (0.7 lbs.)
Operating Temperature
- -40 - 60 degreeC (-40 - 140 degreeF)
Humidity
- Max. 90% non-condensing

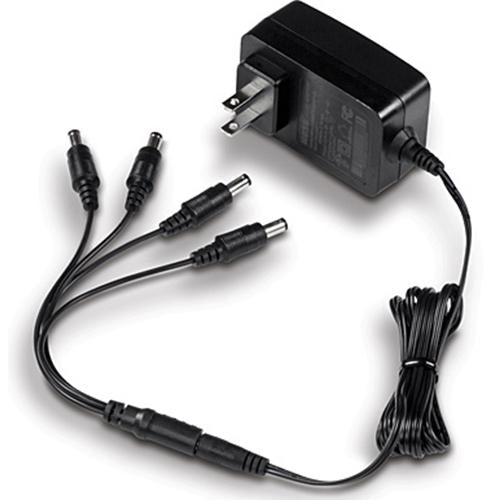

Power
- Input: 100 - 240 V AC ; 50/60 Hz; 0.7 A
- Output: 12 V DC; 2 A external power adapter
- Consumption: 4 W max.
Warranty
- 2-year
